4 Port HDMI® KVM Switch

Model No.: RHD104

Control of Computers: One USB console controls 4 HDMI interface computers.
High Video Resolution: The resolution of this 4-port KVM switch is up to 1920*1080@60Hz.
Optional Switching Methods: Front panel buttons and keyboard hotkeys.
Hot Plugging: Add or remove computers without having to power down the switch.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan RHD104 HDMI KVM switch is a control device which controls multiple computers from a single console (keyboard, video and mouse). Users can switch between PCs or servers via front panel buttons and keyboard hotkeys.

Kinan’s RHD104 4-port KVM switch provides HDMI connections with video resolution up to 1920*1080@60Hz. This KVM switch has 4 USB2.0 ports, allowing 4 computers to share U disk, scanner, printer, computer camera, etc., making your work more convenient and efficient.

This HDMI USB switch is compatible with multiplatform—Windows, Sun, Unix and Linux. Small yet powerful, the RHD104 4 port KVM switch supports hot-pluggable function— add or remove computers without shutting down the switch.

4 Port HDMI KVM Switch

One USB console controls 4 HDMI interface computers
Easy switching between PCs via front panel pushbuttons, keyboard hotkeys

4 Port HDMI KVM Switch

One USB console controls 4 HDMI interface computers
Easy switching between PCs via front panel pushbuttons, keyboard hotkeys

Video Quality

Supports resolutions of up to 1920*1080@60Hz

Video Quality

Supports resolutions of up to 1920*1080@60Hz

USB 2.0 Hub

The RHD104 4-port KVM switch has 4 USB2.0 ports, allowing 4 computers to share U disk, scanner, printer, computer camera, etc.

USB 2.0 Hub

The RHD104 4-port KVM switch has 4 USB2.0 ports, allowing 4 computers to share U disk, scanner, printer, computer camera, etc.

Wide Compatibility

Multi-platform Support-Compatible with Windows, Sun, Unix and Linux.

Wide Compatibility

Multi-platform Support-Compatible with Windows, Sun, Unix and Linux.

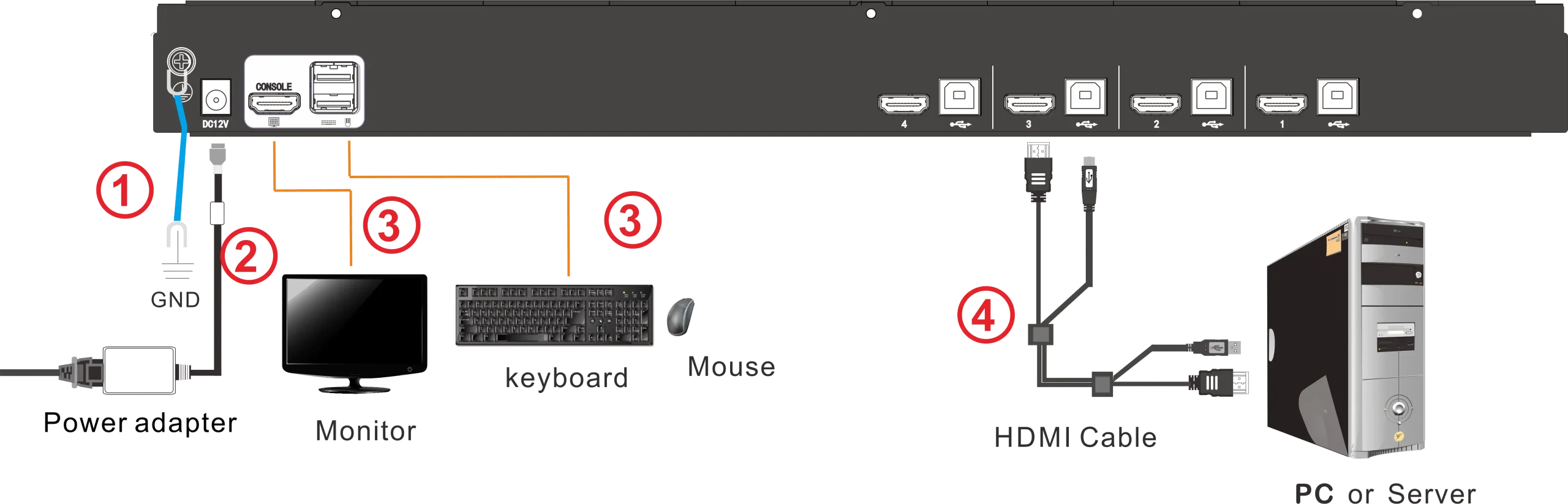

Diagram

Specification

Mode			RHD104
Direct Computer Connection			4
Max Computer Connection			4
Port Selection			Pushbutton, Hotkey
Connector	Console	Monitor	1 * HDMI Type A
		Keyboard	2 * USB type A
		Mouse
	KVM	HDMI Type A	4
		USB Type B	4
Switch	Port Selection (buttons)		4
LEDs	Online (orange)		4
	Selected(green)		4
	Port Display		2*7- Segment (orange)
I/R Value			DC12V/2A
Resolution			1920*1080@60Hz
Consumption			4W
Emulation	Keyboard/Mouse		USB
Environment	Operating		0-50℃
	Storage		-20-60℃
	Humidity		0-80%RH, Non-condensing
Physical Features	Material		Metal
	Weight		2.0kg
	Dimension		44016943mm
