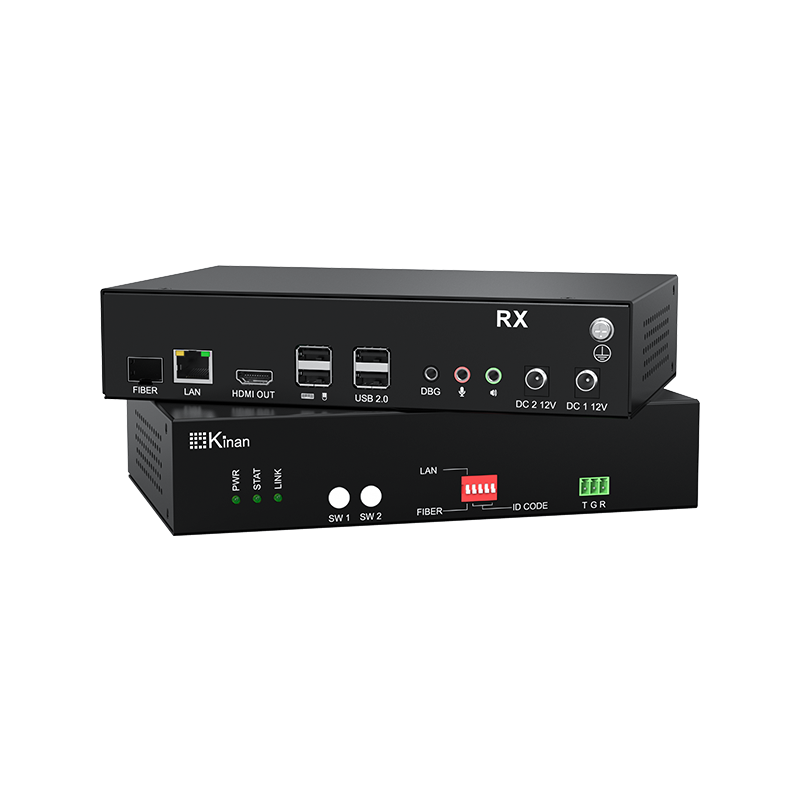

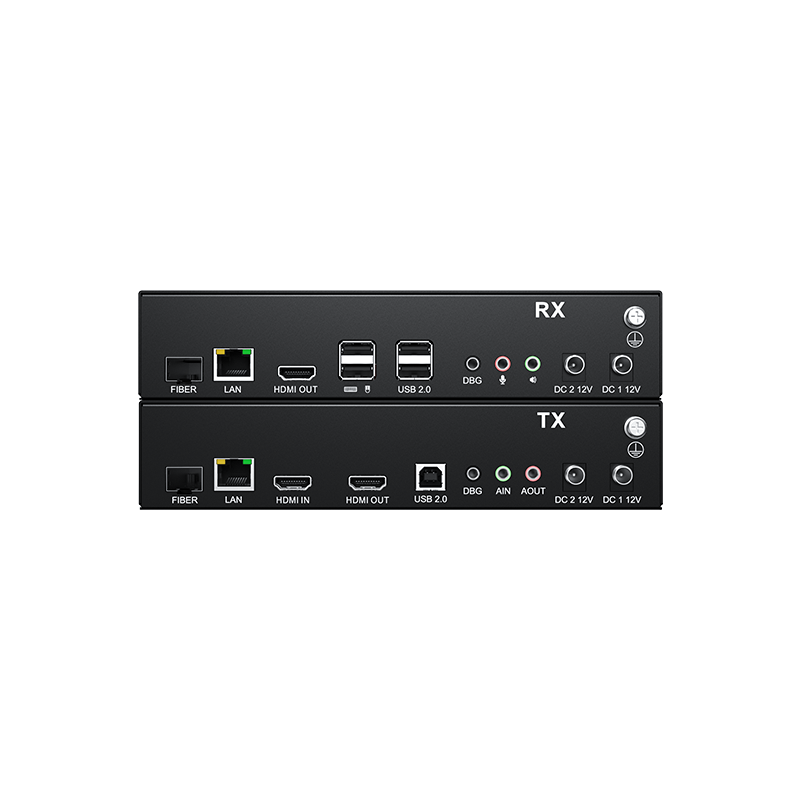

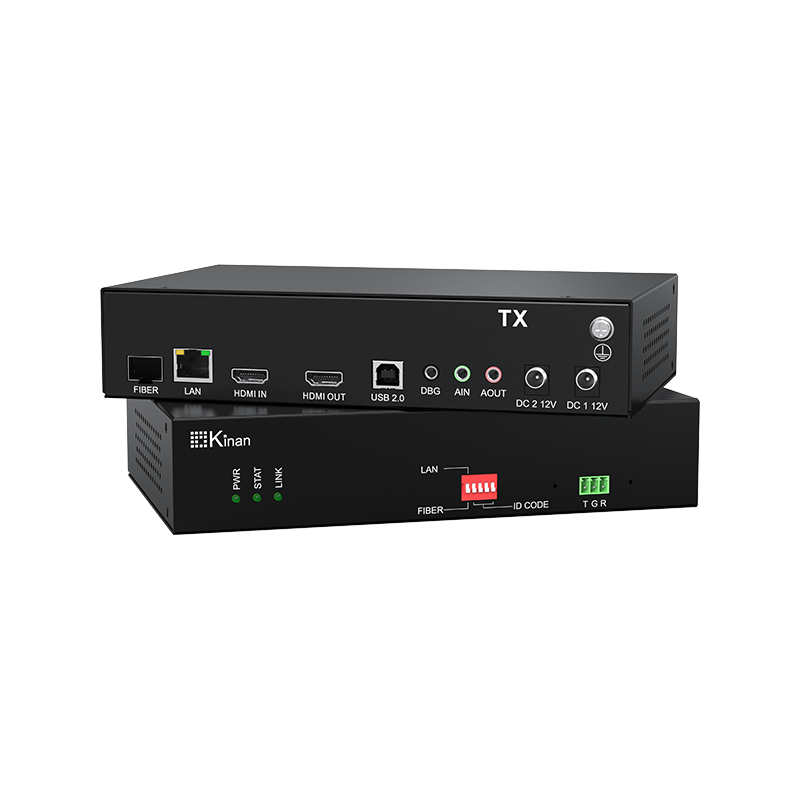

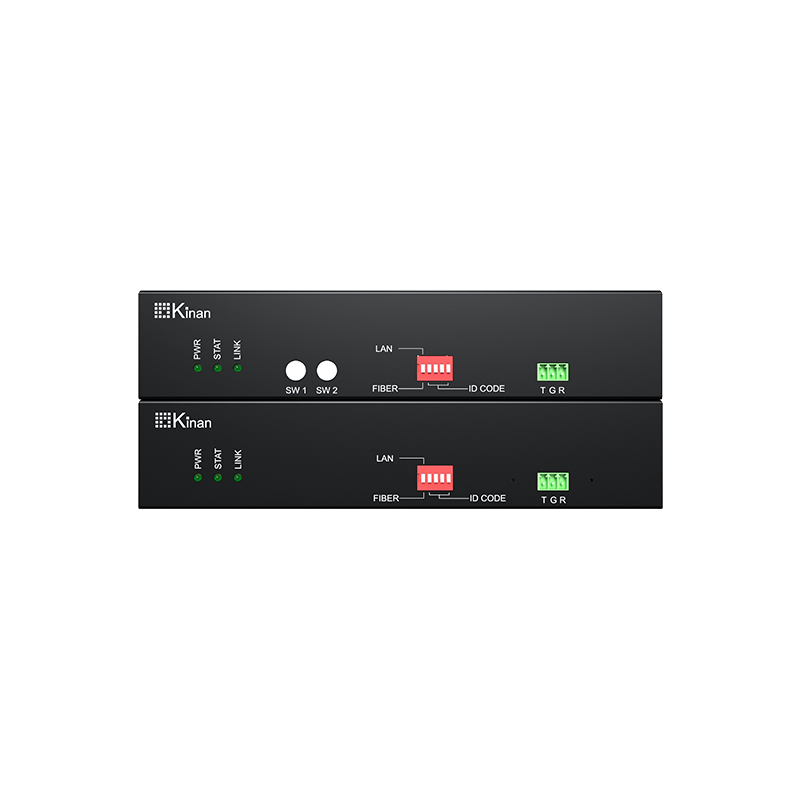

| Specifications | KFH136S_TX | KFH136S_RX | |
| Connections | DisplayPort input | 1 | N/A |
| DisplayPort output | 1 | 1 | |
| Power | 1x 12V | 1x 12V | |
| LAN port | 1x RJ45 | 1x RJ45 | |
| SFP | 1x SFP | 1x SFP | |
| Mic | 3.5mm Stereo Jack (Pink) x 1 | 3.5mm Stereo Jack (Pink) x 1 | |
| Speaker | 3.5mm Stereo Jack (Green) x 1 | 3.5mm Stereo Jack (Green) x 1 | |
| USB Type B | 1 | N/A | |
| USB Type A | N/A | 4 | |
| Resolution | 3840×2160@60Hz | ||
| Cable | CAT5e/6/7 or Optical Fiber Cable | ||
| I/R Value | DC12V / 2A | DC12V / 2A | |
| Power consumption | 10W | 12W | |
| Operating temperature | 0—50 ℃ | ||
| Storage temperature | -20—60 ℃ | ||
| Humidity | 0—80% RH, non-condensing | ||
| Material | Metal | ||
| Net weight(kg) | 0.82 kg | 0.82 kg | |
| Product dimension (W × D × H) | 210mm x 132.2 mm x 44mm | ||
| Package dimension (W × D × H) | 395 mm x 274 mm x 110mm | 395 mm x 274 mm x 110mm | |
