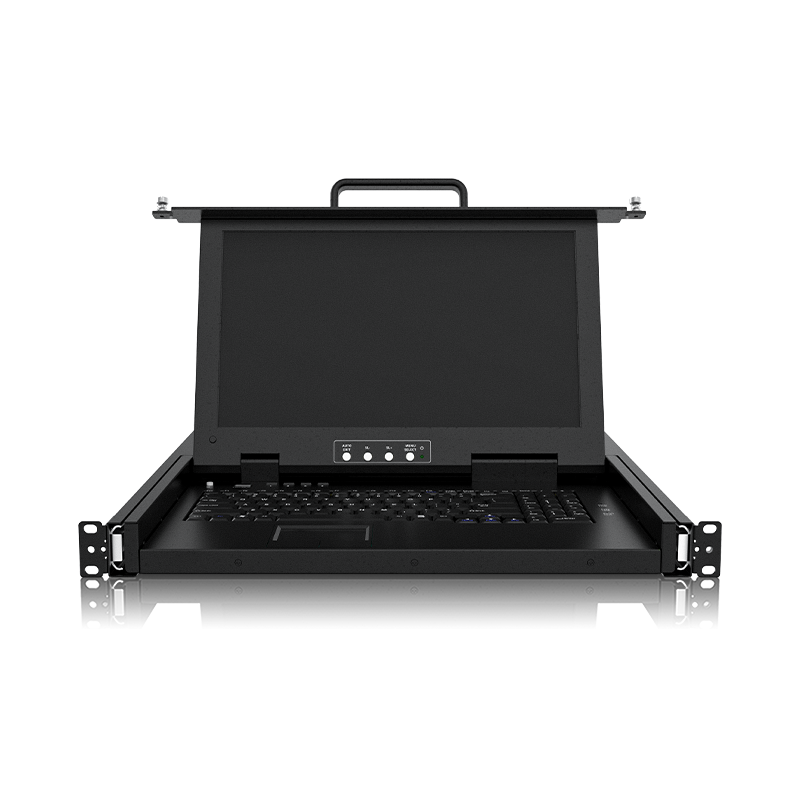

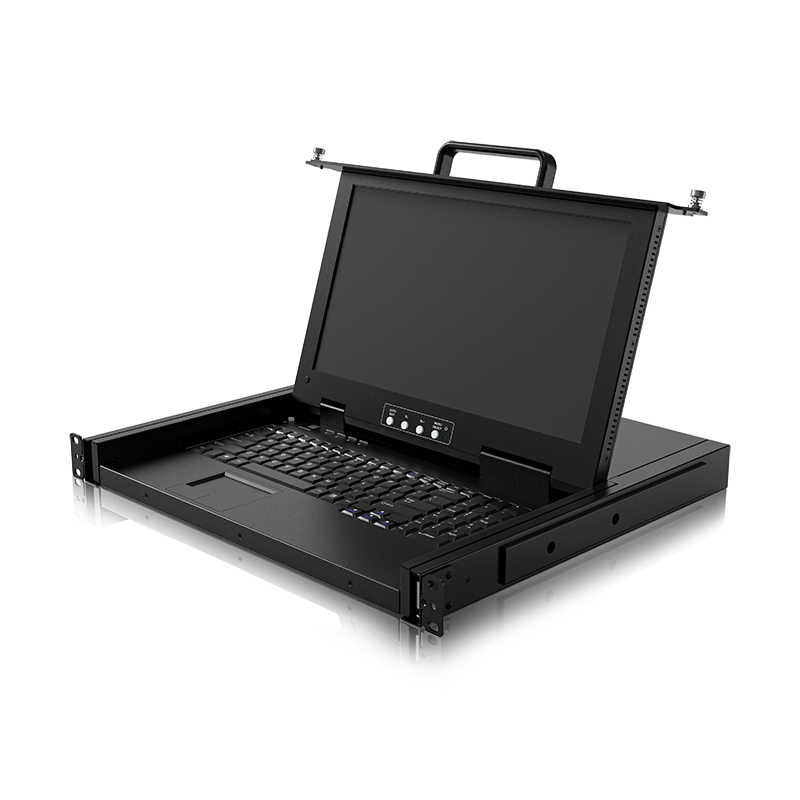

15.6 ” 4-Port FHD Rackmount LCD KVM Console

Model No.: LH1604

Compact Design: The integrated control platform consolidates multi-port KVM switching functionality within a space-efficient 1U height enclosure, enabling a single set of devices—including a monitor, keyboard, and mouse—to manage multiple computers from one centralized location.
Easy to Use:Installation requires only the connection of cables to their corresponding ports, with no software configuration whatsoever, eliminating complex setup procedures and ensuring operation free from incompatibility concerns.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The Kinan LH1604 is a high-performance KVM switch that allows a single control station to manage up to four HDMI servers. Featuring a compact 1U rack-mountable design, it consolidates control of multiple computers through a single console (keyboard, mouse, and monitor). The integrated 15.6-inch LCD screen delivers crisp visuals with a resolution of 1920×1080 at 60Hz, ensuring a clear and immersive workspace for users.

Installation is quick and easy—simply connect the cable to the correct port; no software configuration is required, so there are no complicated installation processes or compatibility issues.

Widely utilized in data centers, the LH1604 maximizes space utilization and simplifies infrastructure organization. Its simple design reduces cable clutter, facilitates orderly server placement, and enables technicians to identify and address malfunctioning equipment during maintenance checks.

Hardware Features

Compact Depth: Short depth of 415.6mm.
Durable Construction: Constructed of heavy-duty steel in a 1U housing.
Integrated Keyboard: Ultra-slim 99-key keyboard with compact numeric keypad.
Secure Front Panel: The front panel is secured with shock-resistant mounting screws to prevent accidental opening or damage during transport and use.

Hardware Features

Compact Depth: Short depth of 415.6mm.
Durable Construction: Constructed of heavy-duty steel in a 1U housing.
Integrated Keyboard: Ultra-slim 99-key keyboard with compact numeric keypad.
Secure Front Panel: The front panel is secured with shock-resistant mounting screws to prevent accidental opening or damage during transport and use.

Enhanced User Experience

Effortless Server Selection: Easily choose servers with mouse.
Crisp Visuals: 15.6″ FHD TFT LCD monitor with high brightness and high resolution.
No Software Installation Required: Select computers via push button, hotkey, and OSD.
Reliable Signal Emulation: Complete keyboard and mouse signal simulation ensures correct booting and switching.

Enhanced User Experience

Effortless Server Selection: Easily choose servers with mouse.
Crisp Visuals: 15.6″ FHD TFT LCD monitor with high brightness and high resolution.
No Software Installation Required: Select computers via push button, hotkey, and OSD.
Reliable Signal Emulation: Complete keyboard and mouse signal simulation ensures correct booting and switching.

Centralized Management

4-Port HDMI Management: A single console controls up to 4/8 HDMI computers.
Broadcast mode: operations simultaneously performed on all selected computers.

Centralized Management

4-Port HDMI Management: A single console controls up to 4/8 HDMI computers.
Broadcast mode: operations simultaneously performed on all selected computers.

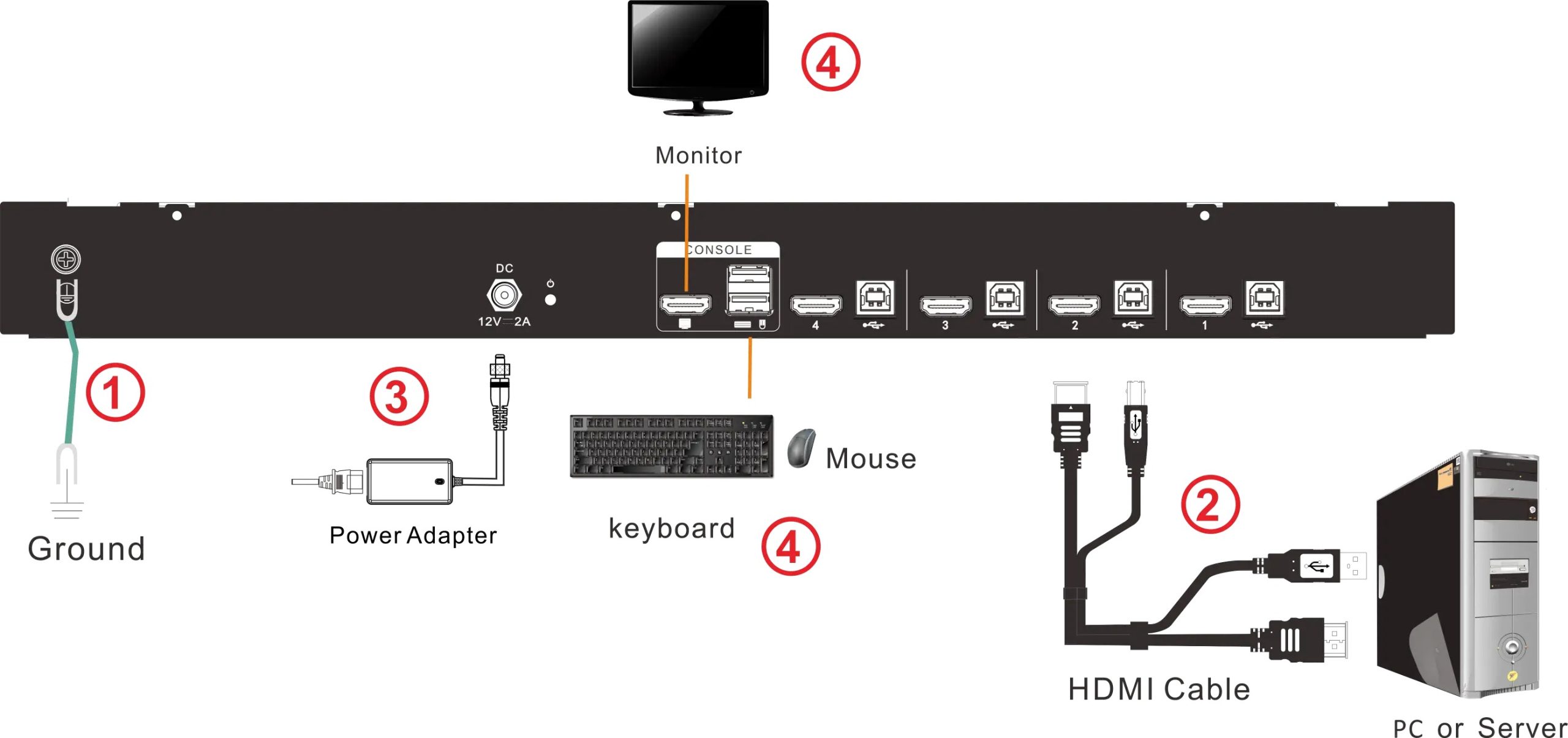

Diagram

Specification

Model		LH1604
Computer connections	Direct	4
	Max	4
Port emulation	Keyboard, mouse	USB
LCD monitor	LCD model	FHD TFT
	View area	15.6”
	Optimum resolution	1920*1080@60Hz
	Display color	16.2M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	800 : 1 （ T y p ）
	Pixel pitch(mm)	0.17925(H) × 0.17925(V)
Mouse	X/Y resolution	>1000 points / inch,（ 40 points/mm ）
	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Pushbuttons, hotkeys, OSD menu
Input power		DC12V /2A
Power consumption		12W
Mounting distance		450-700mm ( L=420mm) 366-520mm( L=235mm)
		Mounting bracket can be customized for other mounting distance
Operating temperature		0 — 50 ℃
Store temperature		-20 — 60 ℃
Humidity		0~80% RH, non-condensing
Net weight		9.4kg
Product dimension (W × D × H)		448mm×415.6 mm×42.5mm
Package dimension (W × D × H)		600 mm ×538 mm×160mm
