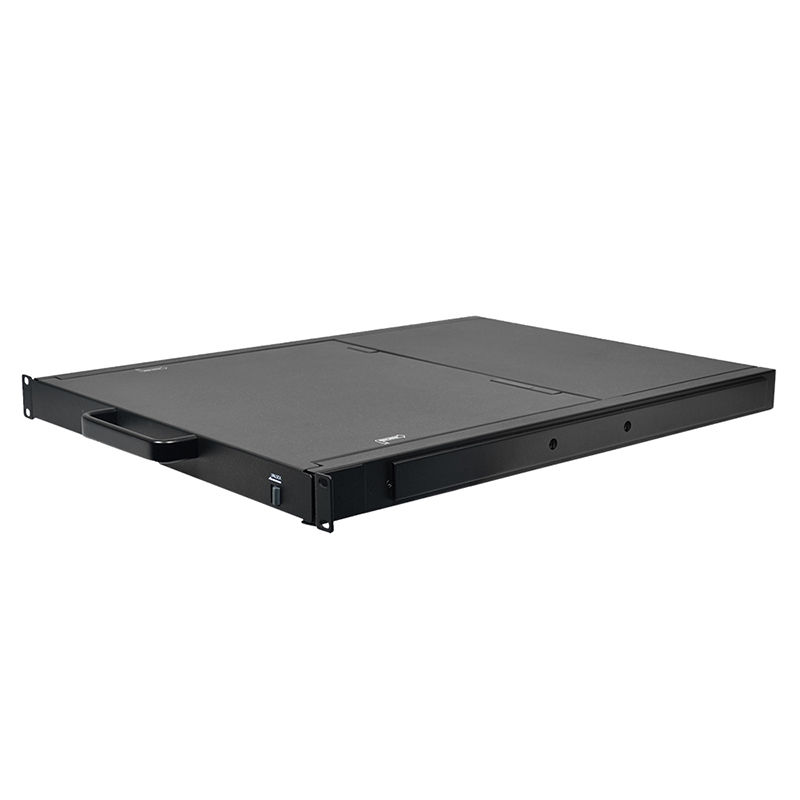

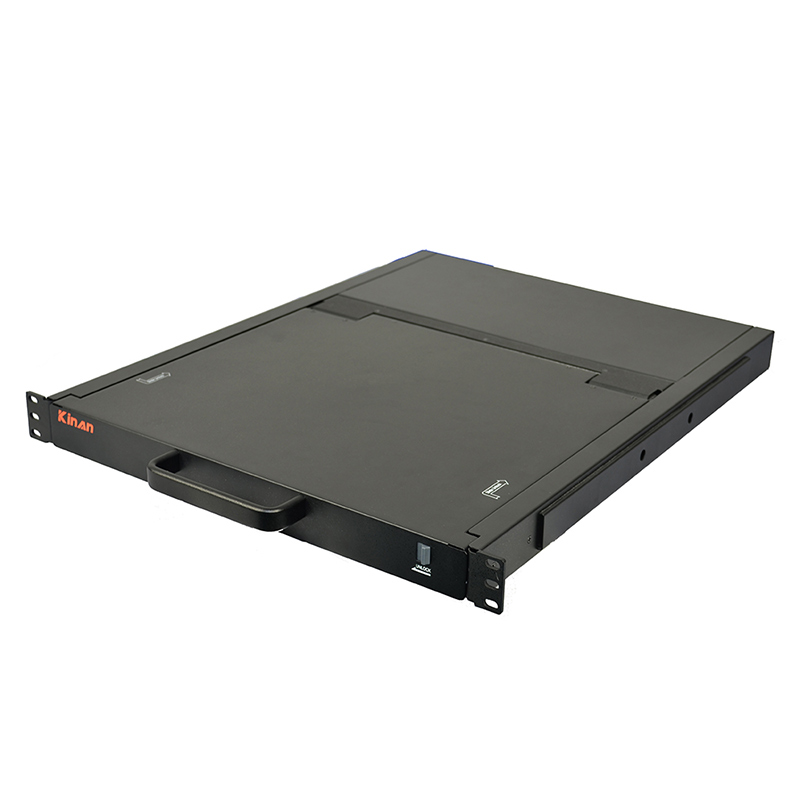

32-Port Cat5 LCD KVM over IP Switch 1-Local/2-Remote Access

Model No.: HT5832

  • Friendly Design: A console with an 18.5″ LCD monitor, built-in keyboard, and a sensitive touch pad, occupies only 1U space.
  • Computer Control: Up to 32 computers can be controlled at the same time.
  • Video Resolution: The remote console supports up to 1920 x 1080@60Hz, and the local console supports up to 1280 x 1024@60Hz.
  • Remote Control: 1 local user and 2 remote users are supported.
  • Switching Methods: Browser-based UI interface, hotkeys and push buttons.
  • Wide Compatibility: It is compatible with multiple operating systems like Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu.

Overview

HT5832 is a 32-port KVM over IP switch that occupies only 1U rack space. Designed with 32 ports, it allows users to control up to 32 computers simultaneously with a set of keyboard, mouse, and monitor. Switching options like keyboard hotkeys, OSD menu, and pushbuttons are provided. In addition, 1 local user and 2 remote users are allowed to manage computers at the same time. It can securely gain BIOS-level system access for maintenance, support or failure recovery over the Internet.

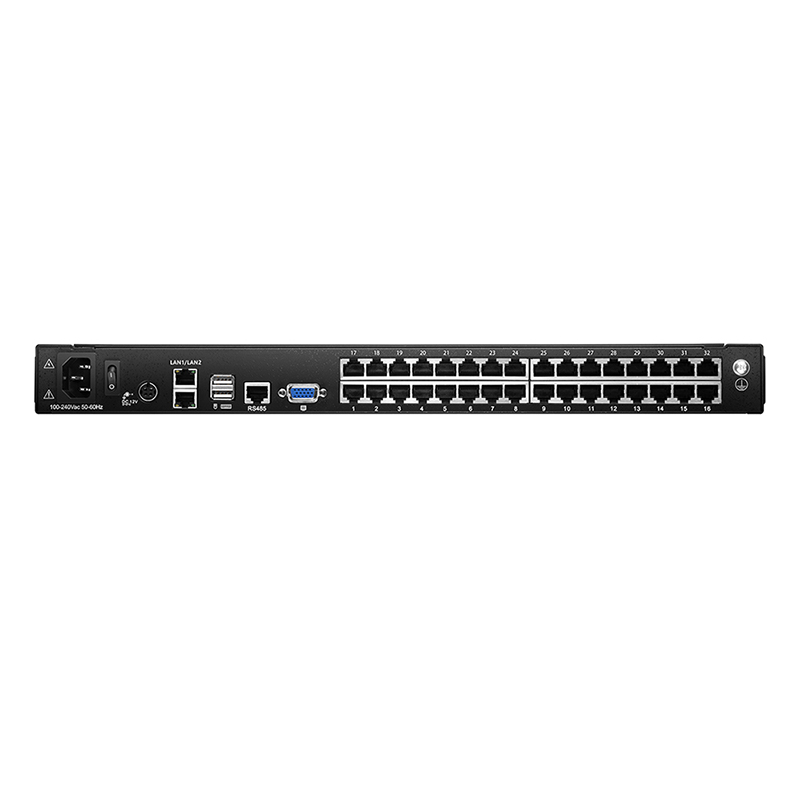

This Cat5 KVM over IP switch is easy to install without any complicated procedures or needed software. The users just need to connect the cables to the port of the switch correctly. It can connect multiple computers with compact RJ-45 connectors and Cat5e/6/7 cables, and the transmitting distance is up to 100m.

Hardware Design

  • Designed with an 18.5″ widescreen LCD monitor that supports high resolution.
  • The adjustable LCD module can support up to 108 degrees.
  • Space-saving because of the space-saving design.
  • Designed with a full-size built-in keyboard with an integrated number pad.
  • Supports power redundancy.

Hardware Design

  • Designed with an 18.5″ widescreen LCD monitor that supports high resolution.
  • The adjustable LCD module can support up to 108 degrees.
  • Space-saving because of the space-saving design.
  • Designed with a full-size built-in keyboard with an integrated number pad.
  • Supports power redundancy.

Local Console

  • Control up to 32 computers.
  • Support a resolution up to 1366 x 768@60Hz.
  • Support 1 local user and 2 remote users. The Port Share Mode allows the local and remote users to access to servers simultaneously.
  • Allows users to switch computers easily through UI interface,hotkeys, and pushbuttons.
  • Support servers with VGA/HDMI/DVI/DP port.
  • Support diverse operating systems such as Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu.
  • The EDID information for the local console display can be stored in the host module for video resolution optimization.
  • Keyboard and mouse emulation can ensure the normal booting.
  • It is hot-pluggable, allowing users to add or remove computers without need to ppower down the switch.

Local Console

  • Control up to 32 computers.
  • Support a resolution up to 1366 x 768@60Hz.
  • Support 1 local user and 2 remote users. The Port Share Mode allows the local and remote users to access to servers simultaneously.
  • Allows users to switch computers easily through UI interface,hotkeys, and pushbuttons.
  • Support servers with VGA/HDMI/DVI/DP port.
  • Support diverse operating systems such as Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu.
  • The EDID information for the local console display can be stored in the host module for video resolution optimization.
  • Keyboard and mouse emulation can ensure the normal booting.
  • It is hot-pluggable, allowing users to add or remove computers without need to ppower down the switch.

Remote Console

  • Adaptive 10 / 100 / 1000 Mbps network.
  • Support Web browser-based or KVM_clients remote management.
  • BIOS-level access.
  • Support AES / DES / 3DES encryption.
  • Theaudit function allows the administrator to audit the device through the system log and operation log.
  • Exit Macros support
  • Remote users and local users can control the same server synchronously
  • Configurable user and group permissions for server access and control
  • Supports firmware upgrade

Remote Console

  • Adaptive 10 / 100 / 1000 Mbps network.
  • Support Web browser-based or KVM_clients remote management.
  • BIOS-level access.
  • Support AES / DES / 3DES encryption.
  • Theaudit function allows the administrator to audit the device through the system log and operation log.
  • Exit Macros support
  • Remote users and local users can control the same server synchronously
  • Configurable user and group permissions for server access and control
  • Supports firmware upgrade

Diagram

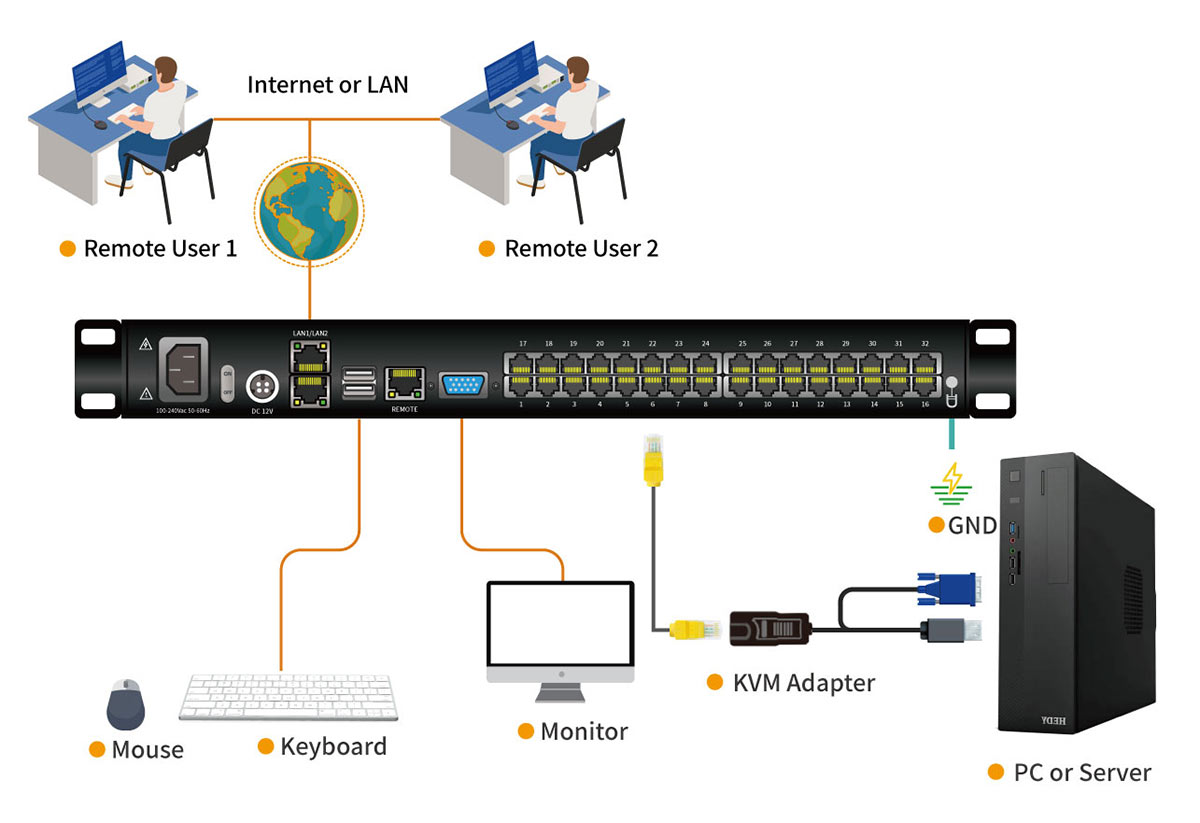

Connection Diagram HT5832

Specification

Model HT5832
Computer Connections Direct 32
Max 32
Port Selection Keyboard, Mouse Button, UI, Web, Hotkey
LED Monitor Model WXGA TFT
View Area 18.51”
Optimum Resolution 1366×768@60Hz
Color 16.7 M
Brightness 250cd/m²( T y p )
Contrast Ratio 1000 : 1 ( T y p )
Pixel Pitch(mm) 0.300(H) × 0.300(W)
Mouse X/Y Resolution >1000 points / inch, (40 points/mm)
Scroll Wheel Supports Scroll Wheel function
Keyboard 99 keys (82 keyboard + 17 number pad)
Remote Remote Control KVM Control (A9ctiveX)
Management Web
Security DES Encrypted
Resolution 1920×1080@60Hz
Power Input 100V- 240Vac , 50-60Hz , <1.5A
Mounting distance 686-770mm ( L=262mm)
Mounting bracket can be customized for other mounting distance
Power Consumption 35W
Operating Temperature 0 — 50 ℃
Store Temperature -20 —60 ℃
Humidity 0—80% RH, non-condensing
Net Weight 11.9kg
Product Dimension (W × D × H) 448mm×560mm×42.5mm
Package Dimension (W × D × H) 765mm×615mm×185mm

Package Contents

  • 1x HT5832 LCD KVM over IP Switch
  • 1x Power Cord (Regional)
  • 1x Quick Start Guide
  • 1x User Manual
  • 2x Mounting Rails
  • 1x Cat5 shield network cable
  • 1x Ground Lead
