17.3″ 8 Port Cat5 LCD IP KVM Switch 1-Local / 1-Remote Access

Model No.: HT2708

Distinctive Hardware: An 8-port IP KVM switch with a 17.3″ widescreen LCD monitor.
Space-saving Design: Rack-mountable in a 1U height space.
High Video Resolution: The resolution of the local and remote console is up to 1920×1080@60Hz
Dual Power Supply: Its dual power supply makes sure its smooth operation.
Convenient Remote Access: Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously.
Support Diverse Servers: Support servers with VGA/DVI/HDMI/DP ports.
Support Hot Plugging: Add or remove servers without need for powing off the LCD switch.
Browser-based Remote Management: Securely access and manage connected servers from anywhere through a web browser or the Kinan kvmCtrlEN client.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The Kinan HT2708 Cat5 LCD IP KVM Switch is an ideal solution for centralized server management, allowing one local user and one remote user to securely access and control up to 8 computers from a single console without time or distance limitations.

Featuring an integrated 17.3″ LCD monitor, keyboard, and touchpad in a compact 1U rack-mount design, it helps maximize rack space while simplifying server administration. Supporting TCP/IP communication, dual LAN ports (100 Mbps and 1000 Mbps), HTTPS, and AES encryption, the HT2708 provides secure remote management through a standard web browser or the Kinan kvmCtrlEN client. BIOS-level access enables administrators to perform low-level system configuration and maintenance even before the operating system boots.

The HT2708 is designed for quick and effortless deployment. Simply connect the corresponding cables to the appropriate ports without any software configuration or compatibility concerns. Computers are connected through compact RJ-45 interfaces using Cat5e/6/7 cables, supporting transmission distances of up to 40 m for reliable and efficient KVM extension.

The switch supports both USB and PS/2 connections for connected computers. Kinan also provides VGA, DVI, HDMI, and DisplayPort KVM adapter cables, allowing seamless integration with servers and computers using different video interfaces to meet a wide range of deployment requirements.

Hardware Features

Designed with a 17.3″ screen, high definition and high resolution.
Rack-mountable in a 1U EIA system rack.
Full size keyboard with integrated number pad.
Trackball eliminates the need for a separate, external mouse.
Power supply redundancy.

Hardware Features

Designed with a 17.3″ screen, high definition and high resolution.
Rack-mountable in a 1U EIA system rack.
Full size keyboard with integrated number pad.
Trackball eliminates the need for a separate, external mouse.
Power supply redundancy.

Local Console

Control up to 8 computers.
Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously.
Provide multiple switching ways – UI interfacem, hotkeys and pushbuttons.
Support servers with VGA/HDMI/DVI/DP port.
Support multiple operating system – Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu.
The resolution of the local console is up to 1920 x 1080@60Hz.
Supports mouse synchronization mode – automatically synchronizes the local and remote mouse movements.

Local Console

Control up to 8 computers.
Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously.
Provide multiple switching ways – UI interfacem, hotkeys and pushbuttons.
Support servers with VGA/HDMI/DVI/DP port.
Support multiple operating system – Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu.
The resolution of the local console is up to 1920 x 1080@60Hz.
Supports mouse synchronization mode – automatically synchronizes the local and remote mouse movements.

Remote Console

Supports dual LAN ports (LAN1: 100 Mbps, LAN2: 1000 Mbps) network.
WEB browser-based or kvmCtrlEN remote management.
BIOS-level access.
Video quality and video tolerance can be adjusted to optimize data transfer speed, up to 30 FPS.
Full screen or scalable video display.
Remote users and local users can control the same server synchronously.
Support AES encryption.
Support audit function-allows the administrator to audit the device through the system log and operation log.
Exit Macros support.
Supports HTTPS to ensure encrypted and secure remote access.
Configurable user and group permissions for server access and control.
Supports firmware upgrade.

Remote Console

Supports dual LAN ports (LAN1: 100 Mbps, LAN2: 1000 Mbps) network.
WEB browser-based or kvmCtrlEN remote management.
BIOS-level access.
Video quality and video tolerance can be adjusted to optimize data transfer speed, up to 30 FPS.
Full screen or scalable video display.
Remote users and local users can control the same server synchronously.
Support AES encryption.
Support audit function-allows the administrator to audit the device through the system log and operation log.
Exit Macros support.
Supports HTTPS to ensure encrypted and secure remote access.
Configurable user and group permissions for server access and control.
Supports firmware upgrade.

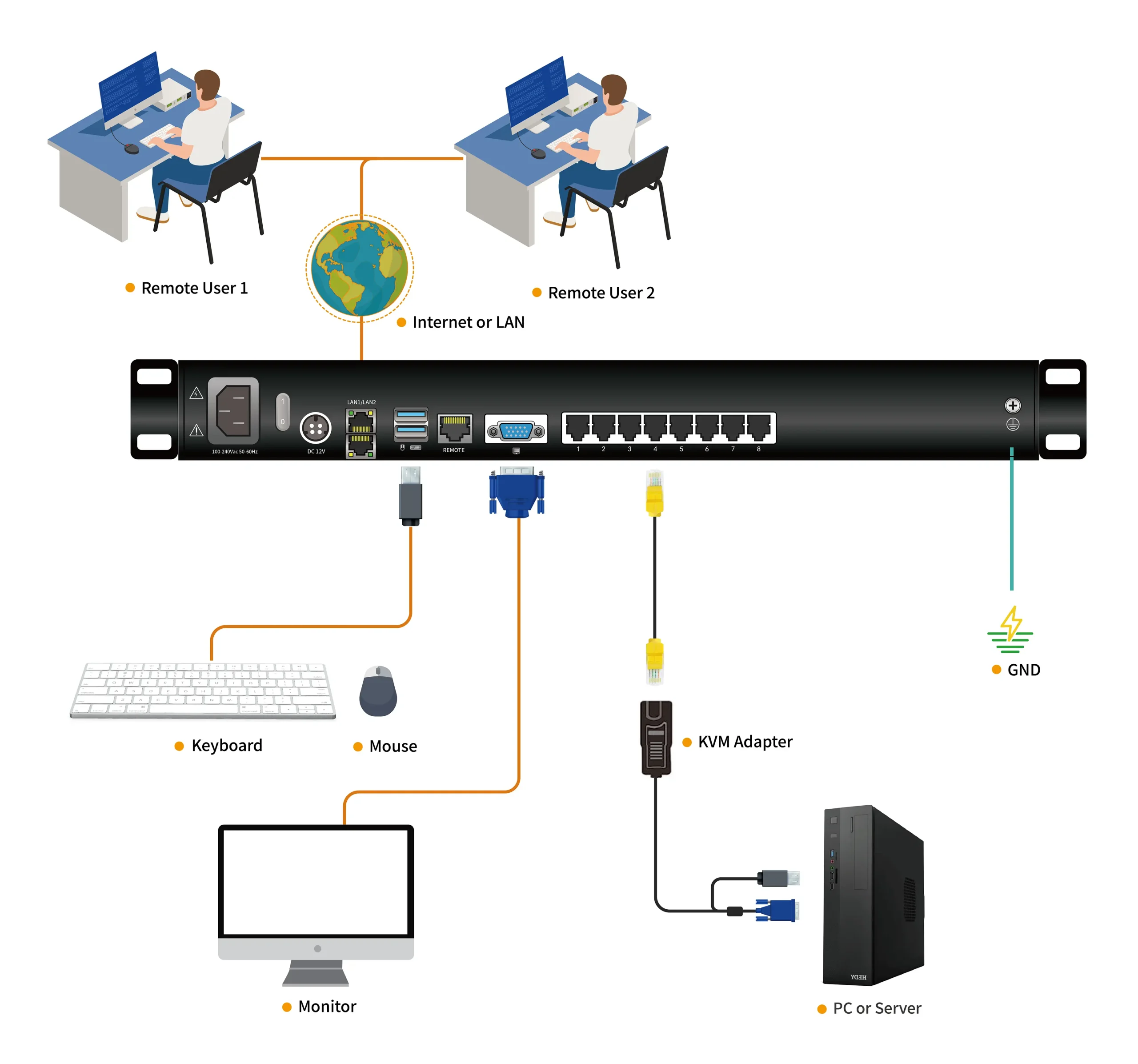

Diagram

Specification

Model		HT2708
Computer Connections	Direct	8
	Max	8
Port Selection	Keyboard, Mouse	Button, UI, Web, Hotkey
LED Monitor	Model	FHD TFT
	View Area	17.3″
	Optimum Resolution	1920×1080@60Hz
	Color	16.7M
	Brightness	250cd/m²( T y p )
	Contrast Ratio	800 : 1( T y p )
	Pixel Pitch(mm)	0.1989(H) × 0.1989(W)
Mouse	X/Y Resolution	>1000 points / inch, (40 points/mm)
	Scroll Wheel	Supports Scroll Wheel function
Keyboard		104 function keys
		99 keys (82 keyboard + 17 number pad)
Remote	Remote Control	KVM Control (ActiveX)
	Management	Web
	Security	AES 256 Encrypted
	Resolution	1920×1080@60Hz
Power Input		100V- 240Vac , 50-60Hz , <1.5A
Mounting distance		510-850mm ( L=420mm)
		Mounting bracket can be customized for Other mounting distance
Power Consumption		23W
Operating Temperature		0 — 50 ℃
Store Temperature		-20 —60 ℃
Humidity		0—80% RH, non-condensing
Net Weight		11.2kg
Product Dimension (W × D × H)		448mm×525.6mm mm×42.5mm
Package Dimension (W × D × H)		765mm×615mm×185mm
