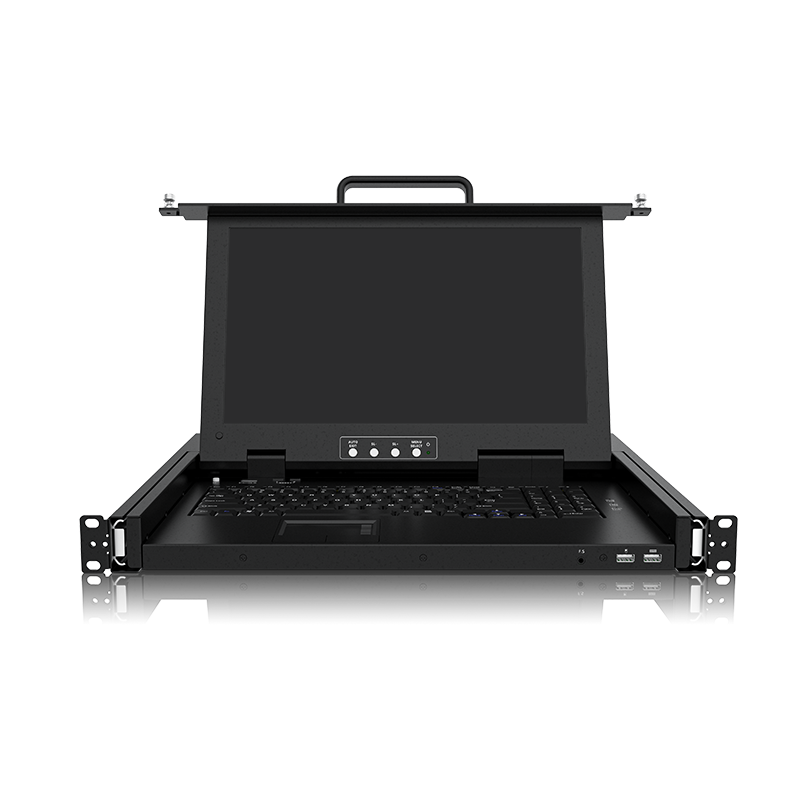

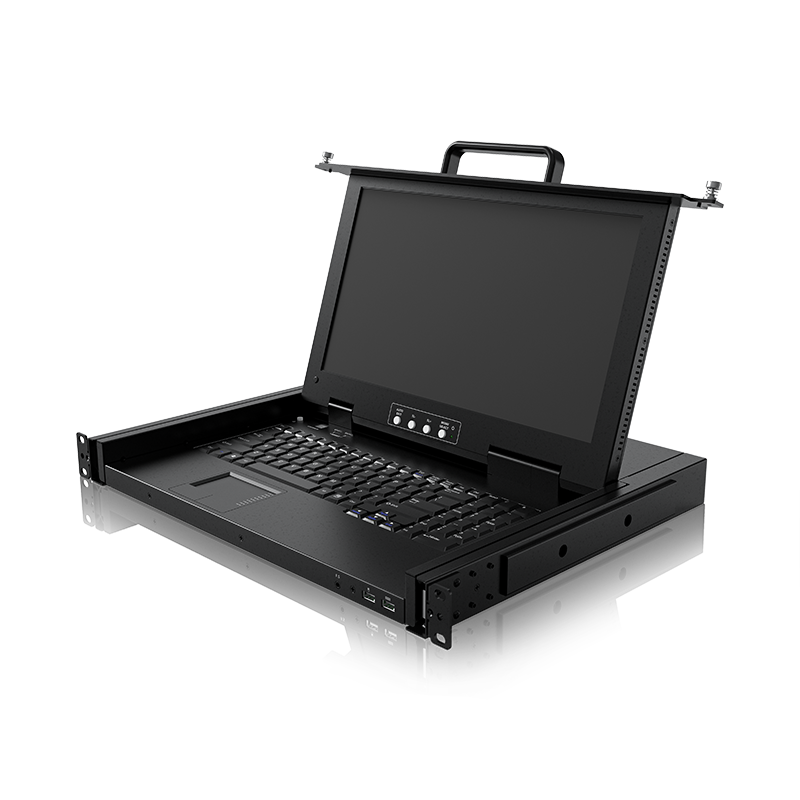

1U Short Depth Rack Mount 15.6″LCD KVM Console

Model No.: XW1602

Compact Design: The single-port control platform integrates a display, keyboard, and touchpad into a 1U-height device that can be mounted in a standard 19-inch rack.
Easy to Use: It can be connected directly to a single computer to control the display, keyboard, and mouse.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The Kinan XW1602 is a high-performance KVM switch that enables centralized management of 2 computers. Featuring a compact 1U rack-mountable design, it consolidates control of multiple computers through a single console (keyboard, mouse, and monitor). The integrated 15.6-inch LCD screen delivers crisp visuals with a resolution of 1920×1080 at 60Hz, ensuring a clear and immersive workspace for users.

Installation is quick and easy, requiring only the cables to be connected to the correct ports, with no software configuration required, so there are no complicated installation processes or incompatibilities.

Widely utilized in data centers, the XW1602 maximizes space utilization and simplifies infrastructure organization. Its simple design reduces cable clutter, facilitates orderly server placement, and enables technicians to identify and address malfunctioning equipment during maintenance checks.

Hardware Features

Short depth: 360mm
Durable Construction: 1U height, suitable for 19” standard cabinet installation, metal structure.
Integrated Keyboard: Ultra-thin 99 keyboard with numeric keyboard, standard PS/2 interface.
Secure Front Panel: The front panel is secured with shock-resistant mounting screws to prevent accidental opening or damage during transport and use.

Hardware Features

Short depth: 360mm
Durable Construction: 1U height, suitable for 19” standard cabinet installation, metal structure.
Integrated Keyboard: Ultra-thin 99 keyboard with numeric keyboard, standard PS/2 interface.
Secure Front Panel: The front panel is secured with shock-resistant mounting screws to prevent accidental opening or damage during transport and use.

Enhanced User Experience

Convenient Switching: Front Panel Buttons & Hotkeys.
Energy-saving LCD display: the screen automatically shut down when closing the LCD monitor.
Crisp Visuals: 15.6″LED TFT LCD display, high brightness, high definition, high resolution display.

Enhanced User Experience

Convenient Switching: Front Panel Buttons & Hotkeys.
Energy-saving LCD display: the screen automatically shut down when closing the LCD monitor.
Crisp Visuals: 15.6″LED TFT LCD display, high brightness, high definition, high resolution display.

Centralized Management

LED Indicators: Easy Status Monitoring at a Glance.
Per-Console Unit Limit: A single console manages up to 2 servers.

Centralized Management

LED Indicators: Easy Status Monitoring at a Glance.
Per-Console Unit Limit: A single console manages up to 2 servers.

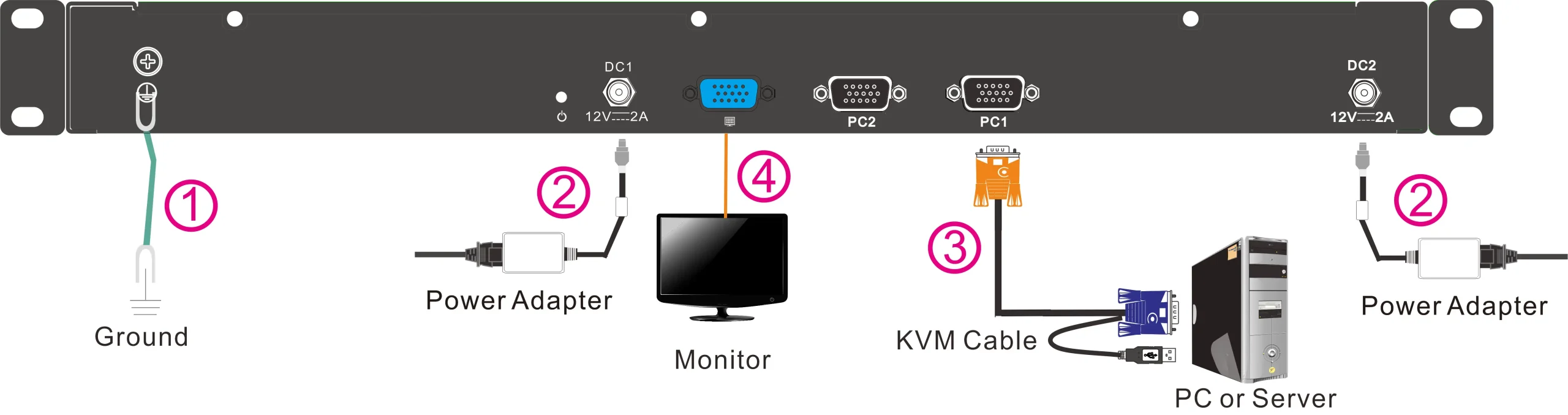

Diagram

Specification

Model		XW1602
Computer connections	Direct	2
	Max	2
Port emulation	Keyboard, mouse	PS/2，USB
LCD monitor	LCD model	FHD TFT
	View area	15.6 “
	Optimum resolution	1920*1080@60Hz
	Display color	16.2M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	800 : 1 （ T y p ）
	Pixel pitch(mm)	0.17925(H) x 0.17925(V)
Mouse	X/Y resolution	>1000 points / inch,（ 40 points/mm ）
	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)

Input power		DC12V /2A
Power consumption		8W


Operating temperature		0 — 50 ℃
Store temperature		-20 — 60 ℃
Humidity		0~80% RH, non-condensing
Net weight		8.7kg
Product dimension (W × D × H)		448mm×360mm×42.5mm
Package dimension (W × D × H)		600mm×538mm×160mm
