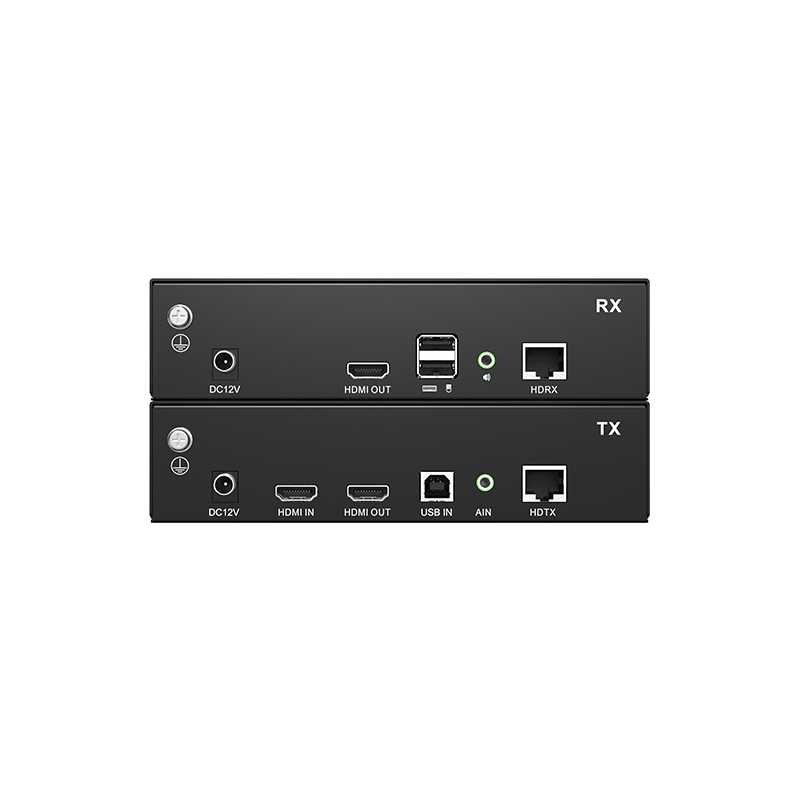

| Model | KEH103_TX | KEH103_RX | |
| Connector | HDMI Input | 1 | NA |
| HDMI Output | 1 | 1 | |
| Power | 12V | 12V | |
| Fiber Module | / | / | |
| Microphone | / | / | |
| Speaker | 3.5MM Stereo Jack (Green) | 3.5MM Stereo Jack (Green) | |
| USB Type B | 1 | N/A | |
| USB | N/A | USB x 2 | |
| Resolution | 1920*1080@60Hz | ||
| Connection Cable | CAT5E/CAT6 | ||
| Power Input | DC12V/1A | DC12V/1A | |
| Power Consumption | 12W | 12W | |
| Operating Temperature | 0 ~ 50 ℃ | ||
| Storage Temperature | -20 ~ 60 ℃ | ||
| Humidity | 0~80% RH, Non-condensing | ||
| Material | Metal | ||
| Net Weight (kg) | 0.65kg | 0.65kg | |
| Product Dimension (W × D × H) | 180 mm x 123mm x 44mm | ||
