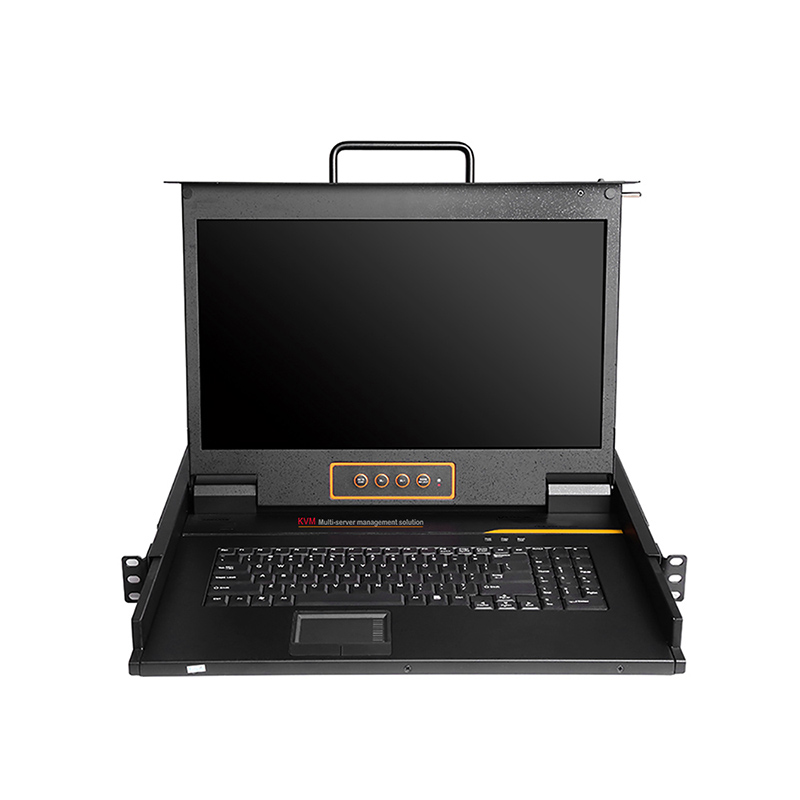

SW1701 front view
SW1701 side view

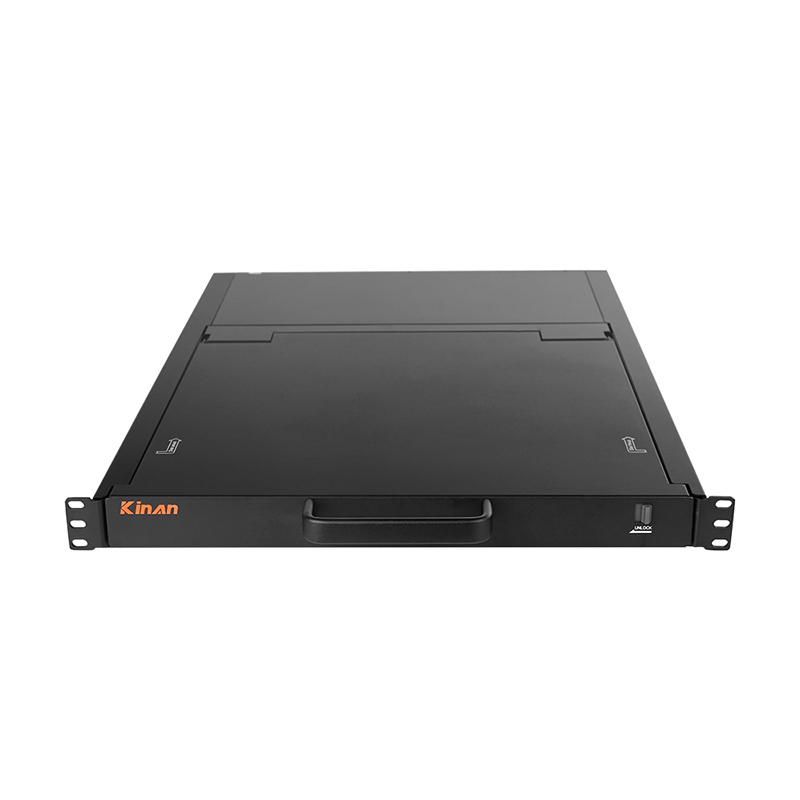

SW1701 over view
SW1701 rear view
SW1701 front view
SW1701 side view
SW1701 over view
SW1701 rear view

Single Rail 1U 17.3″ Widescreen VGA LCD Console

Model No.: SW1701

  • Integrated KVM Console with 17.3” LCD monitor, keyboard/touchpad in a neatly single rail 1U metal housing, fits for all standard 19” equipment cabinet.
  • Easy to install and simple to operate. It slides neatly into a 1U rack space when not in use.
  • The 17.3” widescreen LCD screen supports video resolutions up to 1920 x 1080@60Hz.
  • Support 99 key full keyboard with numeric keypad + trackpad.
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle.
  • The rack mount console is compatible with all major operating systems and KVM Switches with a VGA monitor port and USB keyboard and mouse ports.

Overview

Kinan’s SW1701 is a rack mount monitor kvm that features an integrated 17.3″ LCD monitor, full 99-key keyboard and touchpad in a 1U compact housing. The included cable allows for connection to a USB/PS2 computer or KVM. Featuring a 17.3-inch LCD TFT panel, the SW1701 supports resolutions of up to 1920×1080@60Hz.

The SW1701 rack mount console features a single VGA port, which can be connected directly to a server or PC, or to a KVM switch to control multiple systems. The rack mount monitor serves as the monitoring and managing console for standard kvm solutions.

Hardware Features

  • Integrated KVM Console with 17.3” LCD monitor, keyboard/touchpad
  • Standard VGA connection-Connect to a server or computer via standard VGA connector
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Support computers with USB and PS/2 port
  • Internal power supply

Hardware Features

  • Integrated KVM Console with 17.3” LCD monitor, keyboard/touchpad
  • Standard VGA connection-Connect to a server or computer via standard VGA connector
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Support computers with USB and PS/2 port
  • Internal power supply

High Resolution

  • 17.3” widescreen LCD KVM with monitor supports highlight, high definition and high resolution
  • Support input video resolutions up to 1920 x 1080 @60Hz

High Resolution

  • 17.3” widescreen LCD KVM with monitor supports highlight, high definition and high resolution
  • Support input video resolutions up to 1920 x 1080 @60Hz

High Performance Touchpad

  • Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

High Performance Touchpad

  • Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Diagram

Connection Diagram SW1701-1

Specification

Model SW1701
Computer Connections Direct 1
Max 1
Port emulation Keyboard, mouse PS/2, USB
LCD monitor LCD model FHD TFT
View area 17.3″
Optimum resolution 1920×1080@60Hz
Display color 262K
Brightness 300cd/m² (T y p)
Contrast ratio 800: 1(T y p)
Pixel pitch(mm) 0.1989(H) × 0.1989(W)
Mouse X/Y resolution >1000 points / inch, (40 points/mm)
Touchpad with Eliminates the need for an external mouse
trackball
Keyboard 99 keys (82 keys main keyboard+17 independent small number pad)
Input power 100V-240Vac, 50~60Hz, <1.5A
Power consumption 11W
Operating temperature 0—50 ℃
Storage temperature -20— 60 ℃
Humidity 0—80% RH, non-condensing
Net weight 10.5 kg
Product dimension (W × D × H) 448mm×525.6mm×42.5mm
Package dimension (W × D × H) 765mm×615mm×185mm
Optional power input -36V— -72Vdc

Package Contents

  • 1x LCD KVM Console (SW1701)
  • 1x Power Cord (Regional)
  • 1x Quick Start Guide
  • 2x Mounting Rails
  • 1x USB+VGA KVM Cable (1.8m/6ft)
