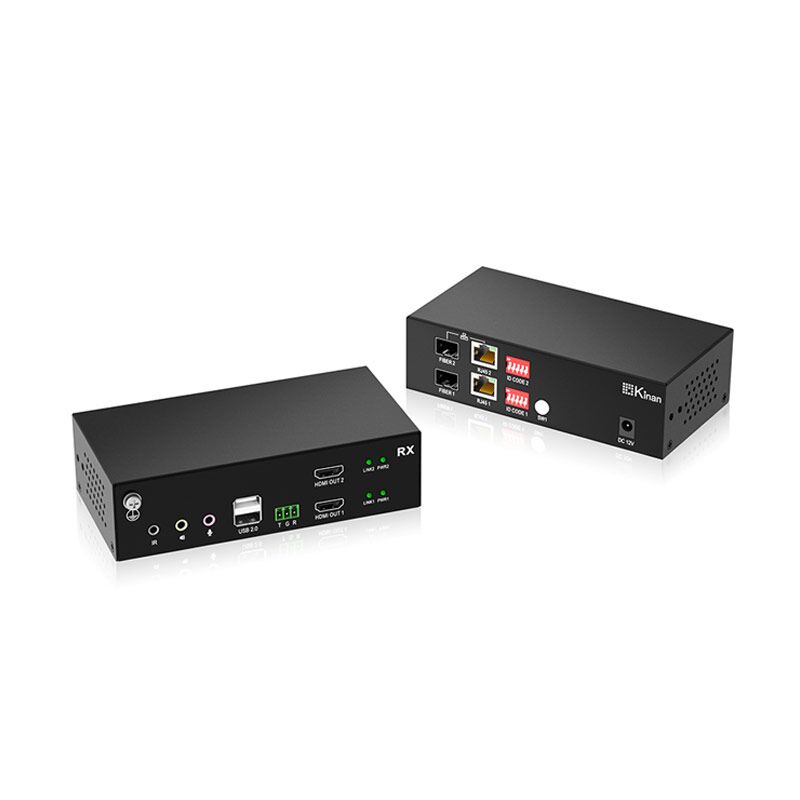

KFH262S-1-1

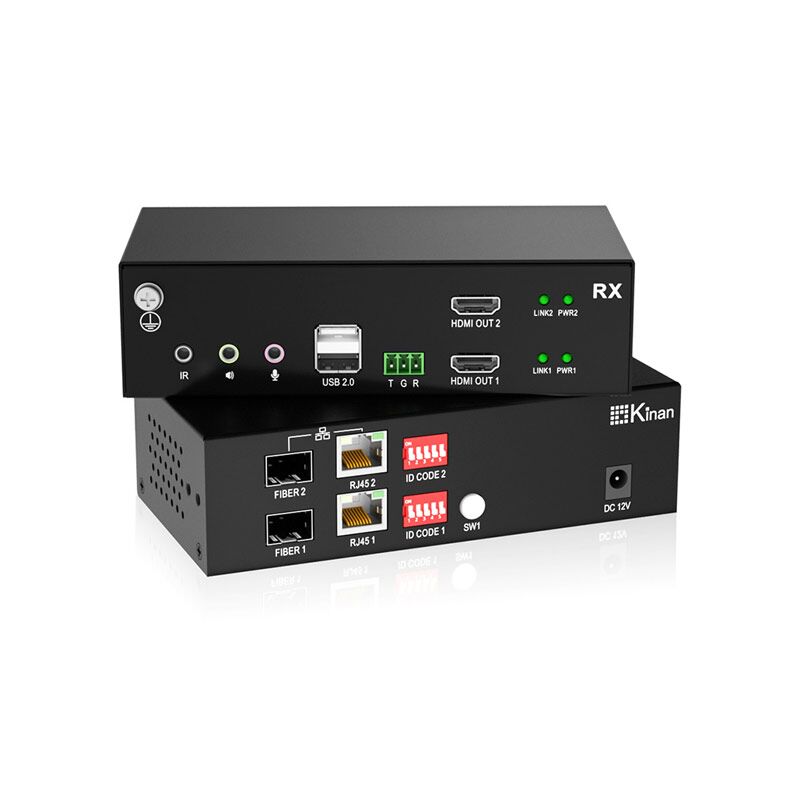

KFH262S-2-2

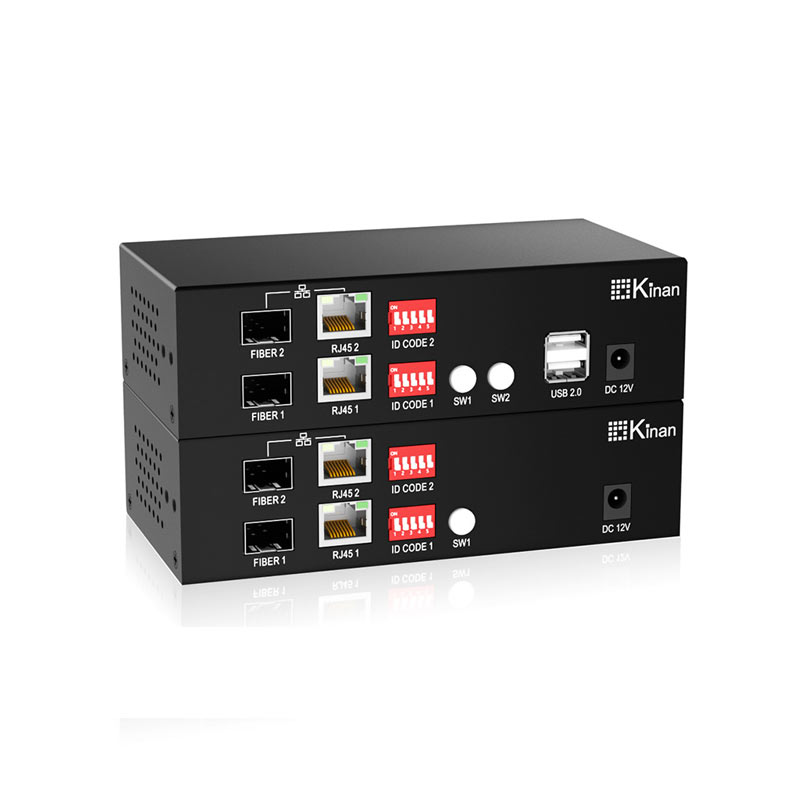

KFH262S-3-3
KFH262S-4-4
KFH262S-1-1
KFH262S-2-2
KFH262S-3-3
KFH262S-4-4

HDMI Dual View KVM Extender over Fiber/Cat5

Model No.: KFH262S

  • Extends HDMI video, audio, USB, RS-232 signals over fiber optic cable or CATx cable
  • Distance: Up to 10km
  • Resolution: Up to 3840×2160@30Hz
  • Number of Screens: 2
  • High speed USB 2.0 ports -supports a wide range of USB peripherals, such as encrypted U disk, face recognition and other USB devices, connect via the built-in 4 USB hub

Overview

The KFH262S delivers FHD high quality HDMI dual view video, USB2.0, keyboard, mouse and stereo audio signals up to a remote desk over fiber optic cable or Cat5 cable.

A complete set of KFH262S including Transmitter (KFH262S-TX) and Receiver (KFH262S-RX). The Transmitter is connected to a computer or server, and the receiver is connected to a display, keyboard, mouse, audio player and other USB devices.

The KFH262S supports signal transmission over fiber optic cable or Cat5 cable, it supports single-mode and multi-mode optical fiber, the maximum transmission distance of single mode is 10km, for multimode the transmission distance is up to 300m. If you connect the KFH262S-TX and KFH262S-RX with a Cat5 cable, the transmitting distance is up to 150m. It supports the transmission of 2 channel high-quality HDMI signals and has a wide range of applications.

Extension Distance

  • Support transmitting distance up to 150m over Cat5 cable.
  • Transmitting distance is up 10km over single mode fiber, 300m over multimode fiber.

Extension Distance

  • Support transmitting distance up to 150m over Cat5 cable.
  • Transmitting distance is up 10km over single mode fiber, 300m over multimode fiber.

High Resolution

  • HDMI FHD video, resolution up to 3840×2160@30Hz.

High Resolution

  • HDMI FHD video, resolution up to 3840×2160@30Hz.

FHD digital video, real time control

  • Extends FHD HDMI video, USB2.0, keyboard, mouse and stereo audio signals up to a remote desk over fiber optic cable or Cat5 cable.
  • Support connection for 2 screens

FHD digital video, real time control

  • Extends FHD HDMI video, USB2.0, keyboard, mouse and stereo audio signals up to a remote desk over fiber optic cable or Cat5 cable.
  • Support connection for 2 screens

Supports USB 2.0

  • Supports a wide range of USB peripherals, such as encrypted U disk, face recognition and other USB devices, connect via the built-in 4 USB hub

Supports USB 2.0

  • Supports a wide range of USB peripherals, such as encrypted U disk, face recognition and other USB devices, connect via the built-in 4 USB hub

High quality audio

  • Bidirectional Analog Audio: line in/out with microphone and headphone support

High quality audio

  • Bidirectional Analog Audio: line in/out with microphone and headphone support

Plug and Play

  • Easy to install, no software required – connecting cables to the devices is all it takes

Plug and Play

  • Easy to install, no software required – connecting cables to the devices is all it takes

Supports connect to a network switch

  • Supports connect to a network switch (1000M)
  • Supports point-to-point dial-up connection

Supports connect to a network switch

  • Supports connect to a network switch (1000M)
  • Supports point-to-point dial-up connection

Diagram

Connection Diagram KFH262S-1

Specification

Model KFH262S_TX KFH262S_RX
Interfaces HDMI in 2 NA
HDMI out NA 2
Power 12V 12V
SFP SFPx 2 SFPx 2
Microphone 3.5mm Stereo Jack (Pink) 3.5mm Stereo Jack (Pink)
Speaker 3.5mm Stereo Jack (Green) 3.5mm Stereo Jack (Green)
LAN RJ45 x 2 RJ45 x 2
USB Type B 1 N/A
USB 2.0 N/A USB x 4
Resolution 3840×2160@30Hz
Connection Cable Fiber optical cable or Cat5/6 cable
Power Input DC12V /2A DC12V / 2A
Power Consumption 5.8W 5.3W (USB peripherals not included)
Operating Temperature 0–50 ℃
Storage Temperature -20–60 ℃
Humidity 0–80% RH, Non-condensing
Material Metal
Net Weight (kg) 0.5 kg 0.5kg
Product Dimension (W × D × H) 158 mm x 80 mm x 44mm
Package Dimension (W × D × H) 395 mm x 274 mm x 110mm

Package Contents

  • 1x Transmitter
  • 1x Receiver
  • 2x HDMI cable (1.5m)
  • 2x Audio cable (1.5m)
  • 2x USB cable (USB-A female to USB-B female, 1.5m)
  • 2x Power Adapter
  • 2x Power Cords (Regional)
  • 1x Mounting Kit
  • 1x User Manual
