8-Port Cat5 Dual Rail LCD KVM Switch with 19 in. LCD

Model No.: DL2908

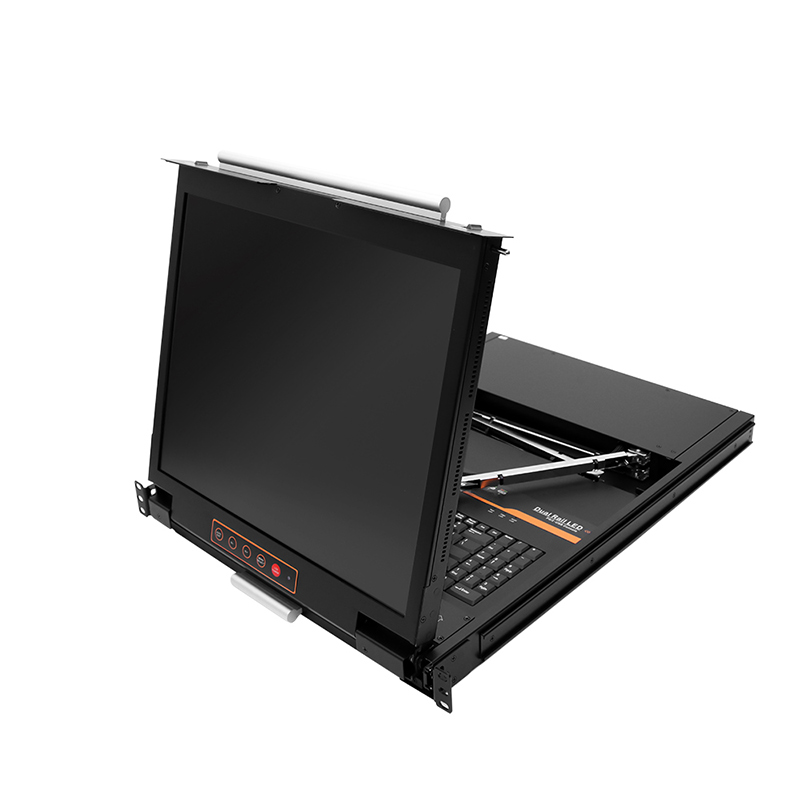

Hardware Structure: A short depth dual rail rack console featuring a 19″ LCD monitor with an integrated keyboard and touchpad, fits for all standard 19″ equipment cabinet.
Convenient Design: The LCD panel and keyboard/touchpad modules slide independently of each other, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates back, flush against the rack.
High Video Resolution: The 19in. LCD screen supports video resolutions up to 1280 x 1024@60Hz.
Number of Computers: A single console controls up to 8 computers.
Comfortable Viewing Angle: The LCD dispaly module is flexible and the max angle is 108 degrees.

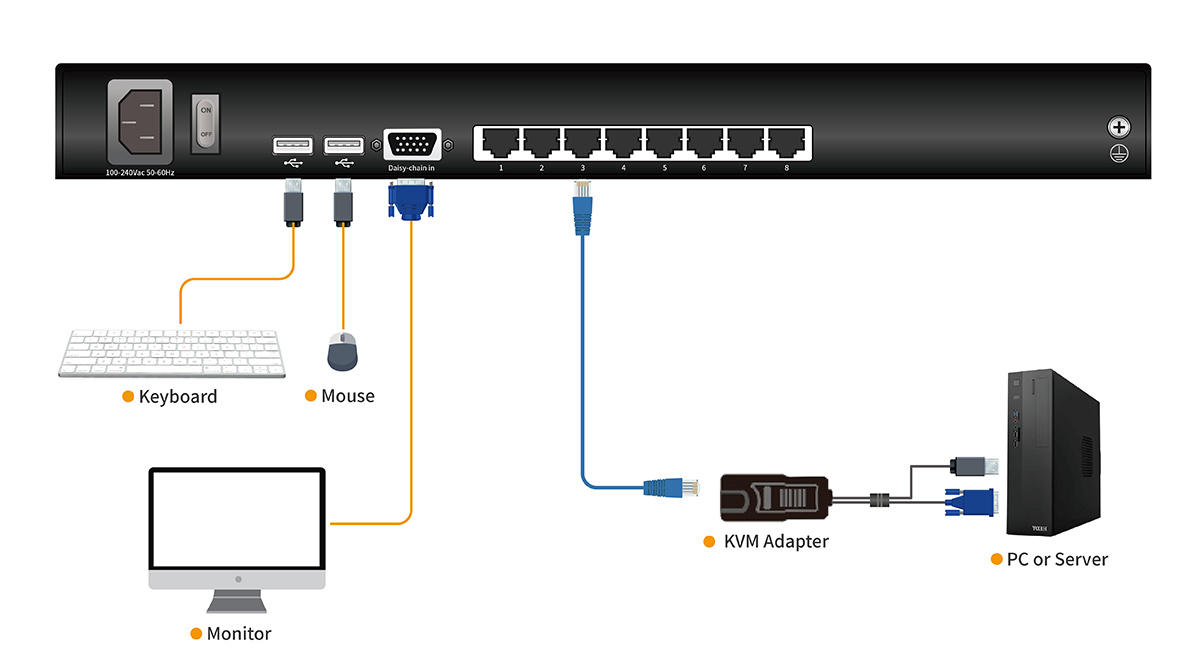

Diagram

Overview

Kinan’s DL2908 LCD CAT5 KVM integrating the LCD monitor, ultra-slim keyboard and touchpad in a 1U housing. The LCD panel and keyboard/touchpad modules slide independently of each other with the drawer design which saves much space.

The DL2908 integrates an 8 port CAT5 KVM switch together with the LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). The number of connected computers can be increased up to 256 by cascading up to 31 KC2108 KVM Switches. With RJ-45 interface and CAT5 cables to connect the server, the transmitting distance is up to 150m.

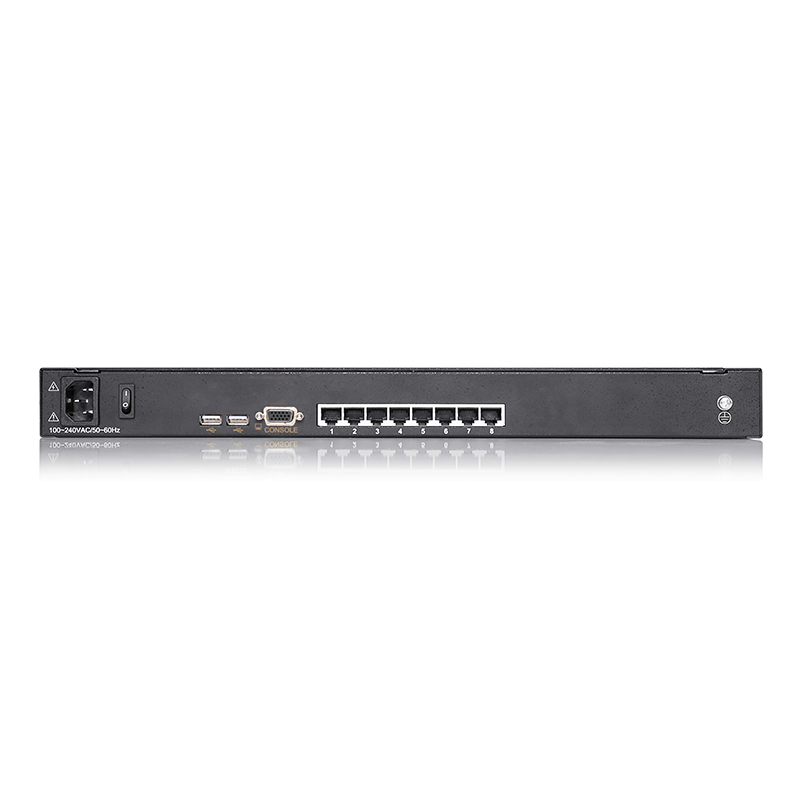

The DL2908 LCD KVM Switch has a built-in LCD monitor that supports resolution up to 1280×1024@60Hz. An extra console port is provided on the rear panel to manage the LCD KVM switch from an external console.

Hardware Features

Integrated KVM Console with 19″ LCD monitor, keyboard and touchpad in a dual rail housing
Connect to a server or computer via a standard RJ-45 connector with CAT 5e/6 cable
LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
Support computers with USB and PS/2 keyboard and mouse
The LCD monitor and keyboard/touch pad modules slide independently of each other

Hardware Features

Integrated KVM Console with 19″ LCD monitor, keyboard and touchpad in a dual rail housing
Connect to a server or computer via a standard RJ-45 connector with CAT 5e/6 cable
LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
Support computers with USB and PS/2 keyboard and mouse
The LCD monitor and keyboard/touch pad modules slide independently of each other

Dual Rail Design

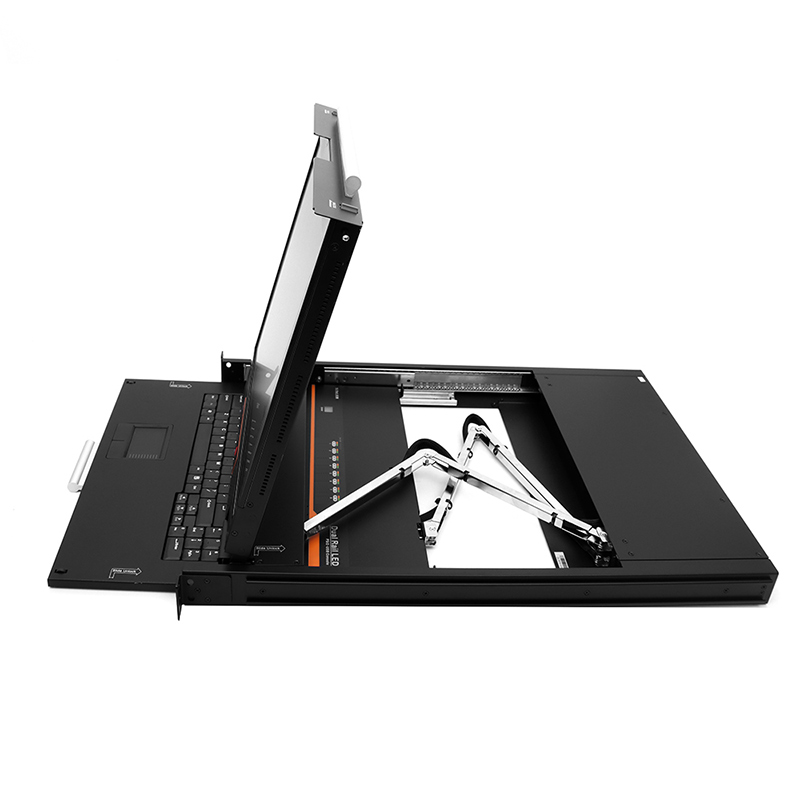

The LCD panel and keyboard/touchpad modules slide independently of each other, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates back, flush against the rack, allowing administrators to easily manage computer.

Dual Rail Design

The LCD panel and keyboard/touchpad modules slide independently of each other, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates back, flush against the rack, allowing administrators to easily manage computer.

Management

Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
Auto scan feature for monitoring user-selected computer
Broadcast mode–operations simultaneously performed on all selected computers
Hot pluggable –add or remove computers without having to power down the switch
Quickly select your computer by naming the server or inputting SN number of the server
On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

Management

Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
Auto scan feature for monitoring user-selected computer
Broadcast mode–operations simultaneously performed on all selected computers
Hot pluggable –add or remove computers without having to power down the switch
Quickly select your computer by naming the server or inputting SN number of the server
On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

High Resolution

19” TFT LCD monitor with highlight, high definition and high resolution
Resolution is up to 1280 x 1024 60Hz

High Resolution

19” TFT LCD monitor with highlight, high definition and high resolution
Resolution is up to 1280 x 1024 60Hz

Daisy-Chain Connection

By daisy-chaining up to another 31 switches, as many as 256 servers can be controlled from a single console

Daisy-Chain Connection

By daisy-chaining up to another 31 switches, as many as 256 servers can be controlled from a single console

Security

Two level password security–only authorized users view and control computers
Supports one administrator and four user accounts with a separate profile for each

Security

Two level password security–only authorized users view and control computers
Supports one administrator and four user accounts with a separate profile for each

High Performance Touchpad

Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

High Performance Touchpad

Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

Keyboard

Multi-language support–English, Russian, German, French, UK and Spanish, etc.
Full size 99 keys keyboard with integrated number pad

Keyboard

Multi-language support–English, Russian, German, French, UK and Spanish, etc.
Full size 99 keys keyboard with integrated number pad

Wide Compatibility

Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Diagram

Specification

Model		DL2908
Computer connections	Direct	8
Computer connections	Max	256
Port emulation	Keyboard, mouse	PS/2, USB
LCD monitor	LCD model	SXGA TFT
	View area	19 “
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m² (T y p)
	Contrast ratio	1000: 1 (T y p)
	Pixel pitch(mm)	0.2928 (H) × 0.2928 (W)
Mouse	X/Y resolution	>1000 points / inch, (40 points/mm)
Mouse	Touchpad with trackball	Eliminates the need for an external mouse
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Pushbuttons, hotkeys, OSD menu, mouse
Input power		100V – 240Vac, 50 ~ 60Hz, <1.5A
Power consumption		20W
Operating temperature		0 – 50 ℃
Store temperature		-20 – 60 ℃
Humidity		0 – 80% RH, non-condensing
Net weight		13.5 kg
Product dimension (W × D × H)		448mm×605mm×43.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V– -72V DC
