19″ 16 Port HDMI® Rackmount LCD KVM Switch

Model No.: LH1916

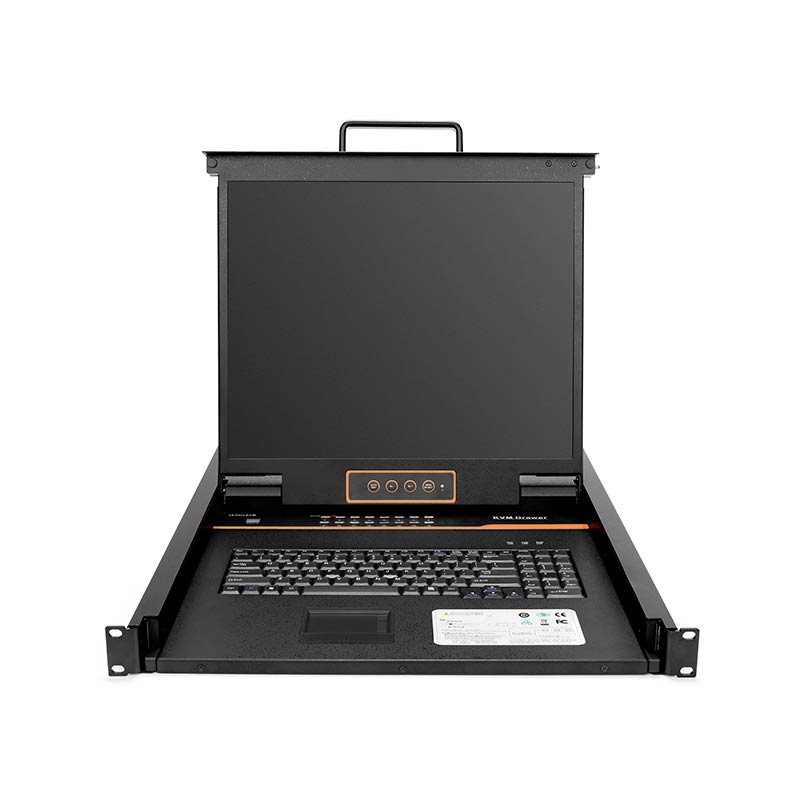

Hardware Structure: A rackmount KVM switch with a 19″ LCD monitor, built-in keyboard and touchpad.
Number of Servers: Up to 16 computers can be controlled from a single console.
High Video Resolution: The max resolution of this switch is 1280 x 1024 @60Hz.
Multiple Switching Options: Front panel LEDs, hotkeys and on-screen-display(OSD) menu.
Viewing Experience: The LCD display module can support up to 108 degrees, which is a suitable viewing angle for users.
Effortless Installation: This LCD KVM switch can be intalled easily by only connecting the cables into the right ports.
Standard HDMI Connection: Connect to a server or computer via standard HDMI connectors.

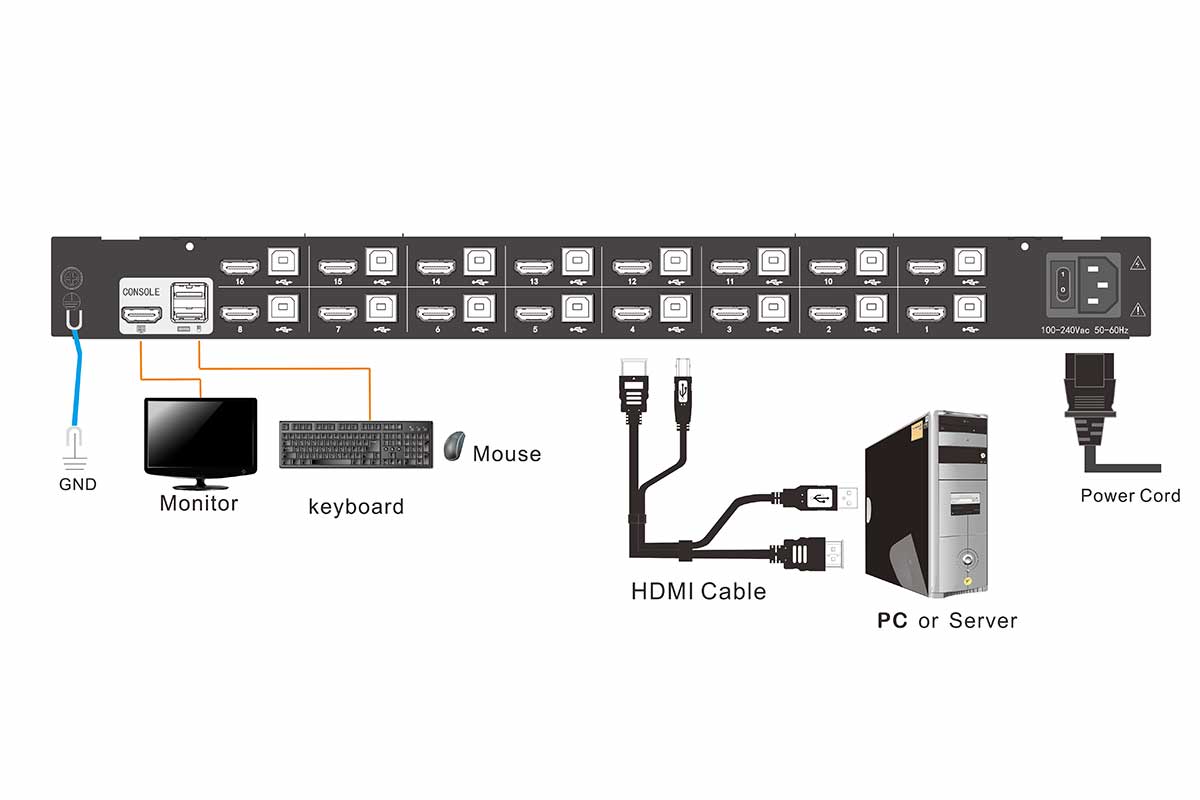

Diagram

Overview

Designed with a 19″ widescreen monitor, built-in keyboard, and touchpad, Kinan LH1916 performs its functions well when users use it to control up to 16 computers/servers freely. To provide the users with comfortable experience, this rackmount LCD KVM switch is designed to allow users to control selected computers by front panel LEDs, hotkeys or on-screen-display (OSD) menu.

What’s more, the resolution of this 19″ monitor is up to 1280 x 1024@60Hz. And this KVM switch supports USB connections for the computers. An extra HDMI port allows an additional HDMI monitor to be connected.

Hardware Features

An lcd kvm unit with a 19″ monitor, keyboard/touchpad and 8 HDMI ports
The angle of the LCD module can reach up to 108 degrees
Support computers with USB keyboard and mouse
Standard HDMI connection – Connect to a server or computer via standard HDMI connectors

Hardware Features

An lcd kvm unit with a 19″ monitor, keyboard/touchpad and 8 HDMI ports
The angle of the LCD module can reach up to 108 degrees
Support computers with USB keyboard and mouse
Standard HDMI connection – Connect to a server or computer via standard HDMI connectors

High Resolution

19″ TFT LCD monitor with highlight, high definition and high resolution
Support high resolution up to 1280×1024@60Hz

High Resolution

19″ TFT LCD monitor with highlight, high definition and high resolution
Support high resolution up to 1280×1024@60Hz

Security

Two level password security – only authorized users view and control computers
Supports one administrator and four user accounts with a separate profile for each

Security

Two level password security – only authorized users view and control computers
Supports one administrator and four user accounts with a separate profile for each

Keyboard

Support English, Russian, German, French, UK and Spanish, etc.
Full size 99 keys keyboard with integrated number pad

Keyboard

Support English, Russian, German, French, UK and Spanish, etc.
Full size 99 keys keyboard with integrated number pad

Wide Compatibility

This rackmount LCD KVM switch is compatible with Windows, Sun, Unix and Linux
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

This rackmount LCD KVM switch is compatible with Windows, Sun, Unix and Linux
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Diagram

Specification

Function		LH1916
Computer connections	Direct	16
	Max	16
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	SXGA TFT
	View area	19″
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.2928(H) × 0.2928(W)
Mouse	X/Y resolution	>1000 points /inch,( 40 points/mm )
	Roll wheel	Supports scroll wheel function
Keyboard		99 keys
		(82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Front panel pushbuttons,hotkeys,OSD menu
Input power		100V- 240Vac , 50-60Hz , <1.5A
Power consumption		25W
Mounting distance		716~825mm ( L=262mm)
		Mounting rails can be customized for other mounting distance.
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non condensing
Net weight		13.6kg
Product dimension (W × D × H)		448mm×605mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V— -72V DC
