19″ 24-Port Cat5 LCD KVM over IP Switch 1-Local / 1-Remote Access

Model No: HT1924

Hardware Structure: A KVM over IP switch consists of a 19″ LCD monitor, a built-in keyboard, and a touchpad.
Superior Video Resolution: Up to 1280 x 1024 @60Hz for local console, up to 1920 x 1080@60Hz for remote console.
Power Supply Redundancy: Provide guarantee for normal operation.
Real-time Remote Access: Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously
Support Hot Plugging: Add and remove servers freely for continuous control.
User-friendly Installation: It is easy to install by connecting cables properly.
Support Diverse Servers: Support servers with VGA/DVI/HDMI/DP ports.
Browser-based Remote Management: Securely access and manage connected servers from anywhere through a web browser or the Kinan kvmCtrlEN client.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Featuring an integrated 19″ LCD monitor, keyboard, and touchpad in a 1U rack-mountable housing, the HT1924 Cat5 LCD KVM over IP Switch is a centralized management solution that enables one local user and one remote user to securely access and control up to 24 computers from a single console.

The HT1924 provides flexible IP-based remote management through a standard web browser or the Kinan kvmCtrlEN client. Supporting TCP/IP communication, HTTPS, and AES encryption, it allows administrators to securely monitor and manage connected servers over a LAN, WAN, or the Internet. BIOS-level access is also available for low-level system configuration and administration, even before the operating system boots.

The LCD KVM switch supports both USB and PS/2 connections for connected computers. An additional HDB15 port allows a local VGA monitor to be connected, while Kinan’s VGA, DVI, HDMI, and DisplayPort KVM adapter cables provide broad compatibility with servers and computers using different video interfaces.

Deployment is quick and straightforward with no software configuration required. Simply connect the switch and computers using compact RJ-45 interfaces and Cat 5e/6 cables to begin operation. With transmission distances of up to 40 m, the HT1924 offers a reliable and space-saving solution for server rooms, control centers, and other mission-critical IT environments.

Hardware Features

This Cat5 KVM over IP switch is a hardware including a 19″ LCD monitor, a keyboard and a touchpad, occupying a 1U height space.
Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables.
LCD module can be opened up to 108 degrees to provide a user-friendly viewing experience.

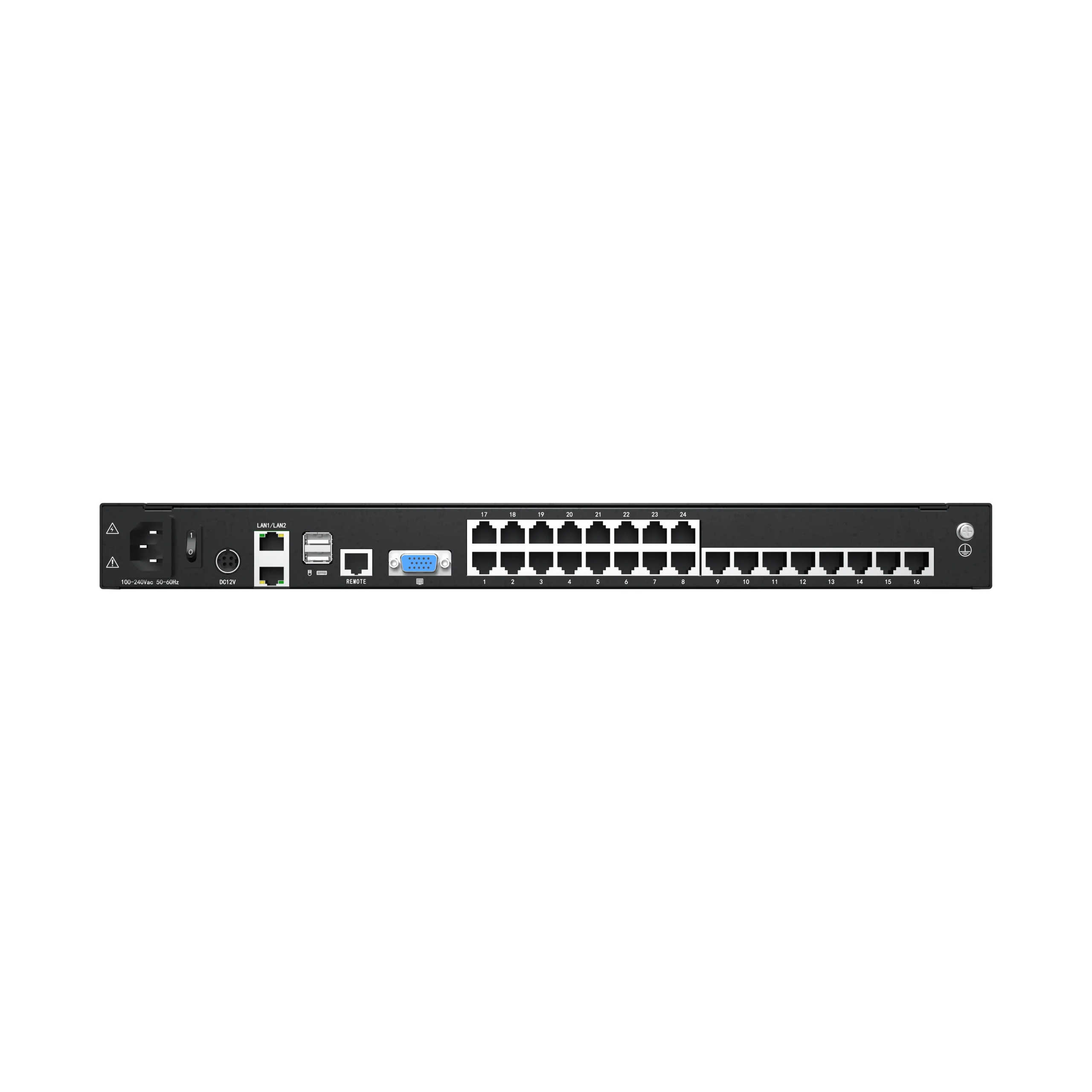

External console port – provides an external VGA, keyboard and mouse port to manage the LCD KVM Switch from an external console.
One bus for IP KVM remote access.
Dual power supply redundancy.

Hardware Features

This Cat5 KVM over IP switch is a hardware including a 19″ LCD monitor, a keyboard and a touchpad, occupying a 1U height space.
Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables.
LCD module can be opened up to 108 degrees to provide a user-friendly viewing experience.
External console port – provides an external VGA, keyboard and mouse port to manage the LCD KVM Switch from an external console.
One bus for IP KVM remote access.
Dual power supply redundancy.

Local Console

Controls up to 24 computers.
Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously.
User-friendly switching methods – browser-based UI interface, hotkeys and pushbuttons.
Support servers with VGA/DVI/HDMI/DP port.
Support Multiplatforms – Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu.
Local Console, Browser, and AP GUIs offer a unified management interface.
The resolution of local console is up to 1280×1024@60Hz.
Support mouse synchronization mode – automatically synchronizes the local and remote mouse movements.
Video synchronization with local console – EDID information for local console display can be stored in the host module for video resolution optimization.
Keyboard and mouse emulation to ensure the normal booting.
Auto scan feature for monitoring user – selected computer.
Hot pluggable–add or remove computers without having to power down the switch.

Local Console

Controls up to 24 computers.
Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously.
User-friendly switching methods – browser-based UI interface, hotkeys and pushbuttons.
Support servers with VGA/DVI/HDMI/DP port.
Support Multiplatforms – Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu.
Local Console, Browser, and AP GUIs offer a unified management interface.
The resolution of local console is up to 1280×1024@60Hz.
Support mouse synchronization mode – automatically synchronizes the local and remote mouse movements.
Video synchronization with local console – EDID information for local console display can be stored in the host module for video resolution optimization.
Keyboard and mouse emulation to ensure the normal booting.
Auto scan feature for monitoring user – selected computer.
Hot pluggable–add or remove computers without having to power down the switch.

Remote Console

Supports 2 LAN ports (LAN1: 100 Mbps, LAN2: 1000 Mbps) network.
WEB browser-based or kvmCtrlEN remote management.
The remote console resolution is up to 1920×1080@60Hz.
BIOS-level access.
Video quality and video tolerance can be adjusted to optimize data transfer speed, data transfer speed is up to 30 FPS.
Full screen or scalable video display.
Remote users and local users can control the same server/computer synchronously.
Support AES encryption.
Support audit function – allows the administrator to audit the device through the system log and operation log.
Support Exit Macros.
Supports HTTPS to ensure encrypted and secure remote access.
Configurable user and group permissions for server access and control.
Strong password is supported to ensure the data security.

Remote Console

Supports 2 LAN ports (LAN1: 100 Mbps, LAN2: 1000 Mbps) network.
WEB browser-based or kvmCtrlEN remote management.
The remote console resolution is up to 1920×1080@60Hz.
BIOS-level access.
Video quality and video tolerance can be adjusted to optimize data transfer speed, data transfer speed is up to 30 FPS.
Full screen or scalable video display.
Remote users and local users can control the same server/computer synchronously.
Support AES encryption.
Support audit function – allows the administrator to audit the device through the system log and operation log.
Support Exit Macros.
Supports HTTPS to ensure encrypted and secure remote access.
Configurable user and group permissions for server access and control.
Strong password is supported to ensure the data security.

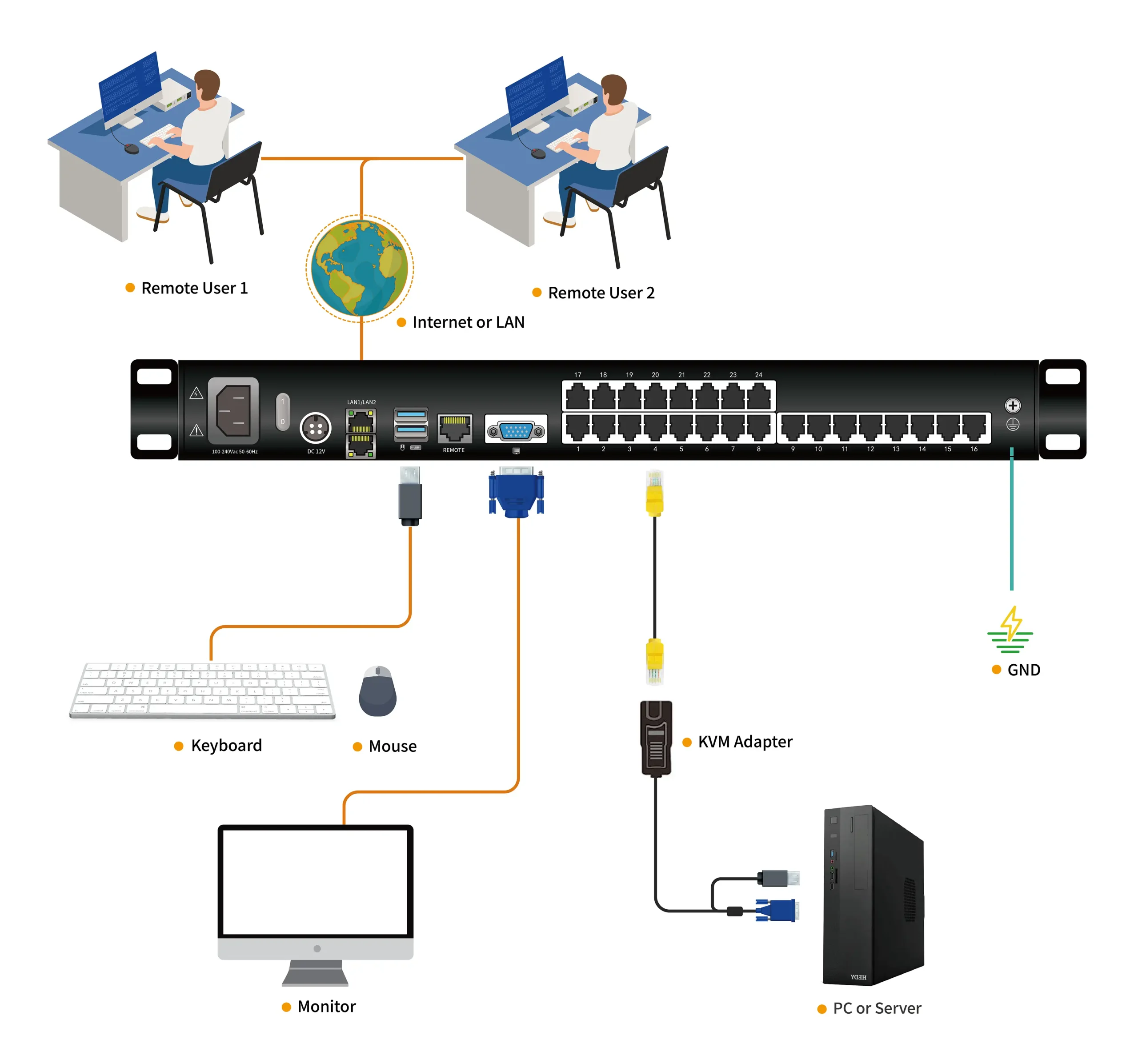

Diagram

Specification

Model		HT1924
Computer	Diret	24
Connections	Max	24
Port Selection	Keyboard, Mouse	Button, UI, Web, Hotkey
LED Monitor	Model	SXGA TFT
	View Area	19″
	Optimum Resolution	1280 x 1024@60Hz
	Color	16.7M
	Brightness	250 cd/m²
	Contrast Ratio	1000:01:00
	Pixel Pitch(mm)	0.2928(H) × 0.2928(W)
Mouse	X/Y Resolution	>1000 points / inch, (40 points/mm)
	Scroll Wheel	Supports Scroll Wheel function
Keyboard		104 function keys
		99 keys (82 keyboard + 17 number pad)
Remote	Remote Control	KVM Control (ActiveX)
	Management	Web
	Security	AES 256 Encrypted
	Resolution	1920×1080@60Hz
Power Input		100V- 240Vac, 50-60Hz, <1.5A
Mounting distance		716~825mm ( L=262mm) Mounting rails can be customized for other mounting distance.
Power Consumption		27W
Operating Temperature		0 — 50 ℃
Store Temperature		-20 —60 ℃
Humidity		0~80% RH, non-condensing
Net Weight		13.6kg
Product Dimension(W x D x H)		448mm × 605mm × 42.5mm
Package Dimension(W x D x H)		765mm × 615mm × 185mm
