18.5″ 8-Port Cat5 LCD KVM over IP Switch 1-Local/1-Remote Access

Model No.: HT1808

  • Hardware: Equipped with an 18.5” LCD monitor with high definition and high resolution, a built-in keyboard and a touch pad, occupying only 1U rack space.
  • Number of Computers: Up to 8 computers can be controlled from a single console.
  • Remote Access: 1 local user and 1 remote user can be supported, and the port share mode allows the users to gain access to a server simultaneously.
  • High Video Resolution: The max resolution of the local console is 1366 x 768@60Hz, and that of the remote console is 1920 x 1080@60Hz.
  • EDID Function: Achieve video synchronization.
  • Power Supply Redundancy: Make sure the switch is operating normally.
  • Hot Pluggable: Add or remove servers without the need to power down the switch.

Overview

HT1808 is a KVM over IP switch that can control 8 computers or servers over a network (LAN/WAN) from a single console (keyboard, video, and mouse). Both the local user and the remote user can control servers conveniently. Equipped with an LCD monitor, this switch allows operators to monitor something directly. Because of that, the operators don’t need to go in and out of data centers frequently. Its friendly design occupies only 1U rack space, which can optimize space utilization.

Connect the cables to the right ports to finish the installation, which is convenient for users. The computers are connected with compact RJ-45 connectors and Cat5e/6/7 cables. And the transmission distance is up to 100m.

HT1808 can be used in data centers, remote control rooms, and some scenarios that need remote access to achieve remote and centralized management of multiple computers.

User-friendly Design

  • Designed with an adjustable LCD monitor, which can be opened up to 108 degrees, allowing users to have a comfortable experience.
  • The built-in keyboard and touchpad allow users to operate computers conveniently.
  • Supports dual power supply.

User-friendly Design

  • Designed with an adjustable LCD monitor, which can be opened up to 108 degrees, allowing users to have a comfortable experience.
  • The built-in keyboard and touchpad allow users to operate computers conveniently.
  • Supports dual power supply.

Local Console

  • Supports up to 8 computers.
  • Supports 1 local user.
  • Supports diverse switching methods including hotkeys, pushbuttons, and browser-based UI interface.
  • The resolution is up to 1366 x 768@60Hz.
  • Supports mouse synchronization mode, which can synchronize the local and remote mouse movements.
  • Video synchronization – EDID information for the local console display can be stored in the host module for video resolution optimization.
  • Keyboard and mouse emulation to ensure normal booting.
  • Broadcast mode – operations are simultaneously performed on all selected computers.
  • Auto Scan for monitoring the user-selected computer.
  • Hot Pluggable – add or remove computers without having to power down the switch.

Local Console

  • Supports up to 8 computers.
  • Supports 1 local user.
  • Supports diverse switching methods including hotkeys, pushbuttons, and browser-based UI interface.
  • The resolution is up to 1366 x 768@60Hz.
  • Supports mouse synchronization mode, which can synchronize the local and remote mouse movements.
  • Video synchronization – EDID information for the local console display can be stored in the host module for video resolution optimization.
  • Keyboard and mouse emulation to ensure normal booting.
  • Broadcast mode – operations are simultaneously performed on all selected computers.
  • Auto Scan for monitoring the user-selected computer.
  • Hot Pluggable – add or remove computers without having to power down the switch.

Remote Console

  • Adaptive 10 / 100 / 1000 Mbps network.
  • WEB browser-based or KVM_Clients remote management.
  • BIOS-level access.
  • Video quality and video tolerance can be adjusted to optimize data transfer speed, up to 60 FPS.
  • Full-screen or scalable video display.
  • Remote users and local users can control the same server synchronously.
  • Support AES / DES / 3DES encryption.
  • Allows the administrator to audit the device through the system log and operation log (Audit Function).
  • Exit Macros support.
  • Configurable user and group permissions for server access and control.
  • Supports firmware upgrade.

Remote Console

  • Adaptive 10 / 100 / 1000 Mbps network.
  • WEB browser-based or KVM_Clients remote management.
  • BIOS-level access.
  • Video quality and video tolerance can be adjusted to optimize data transfer speed, up to 60 FPS.
  • Full-screen or scalable video display.
  • Remote users and local users can control the same server synchronously.
  • Support AES / DES / 3DES encryption.
  • Allows the administrator to audit the device through the system log and operation log (Audit Function).
  • Exit Macros support.
  • Configurable user and group permissions for server access and control.
  • Supports firmware upgrade.

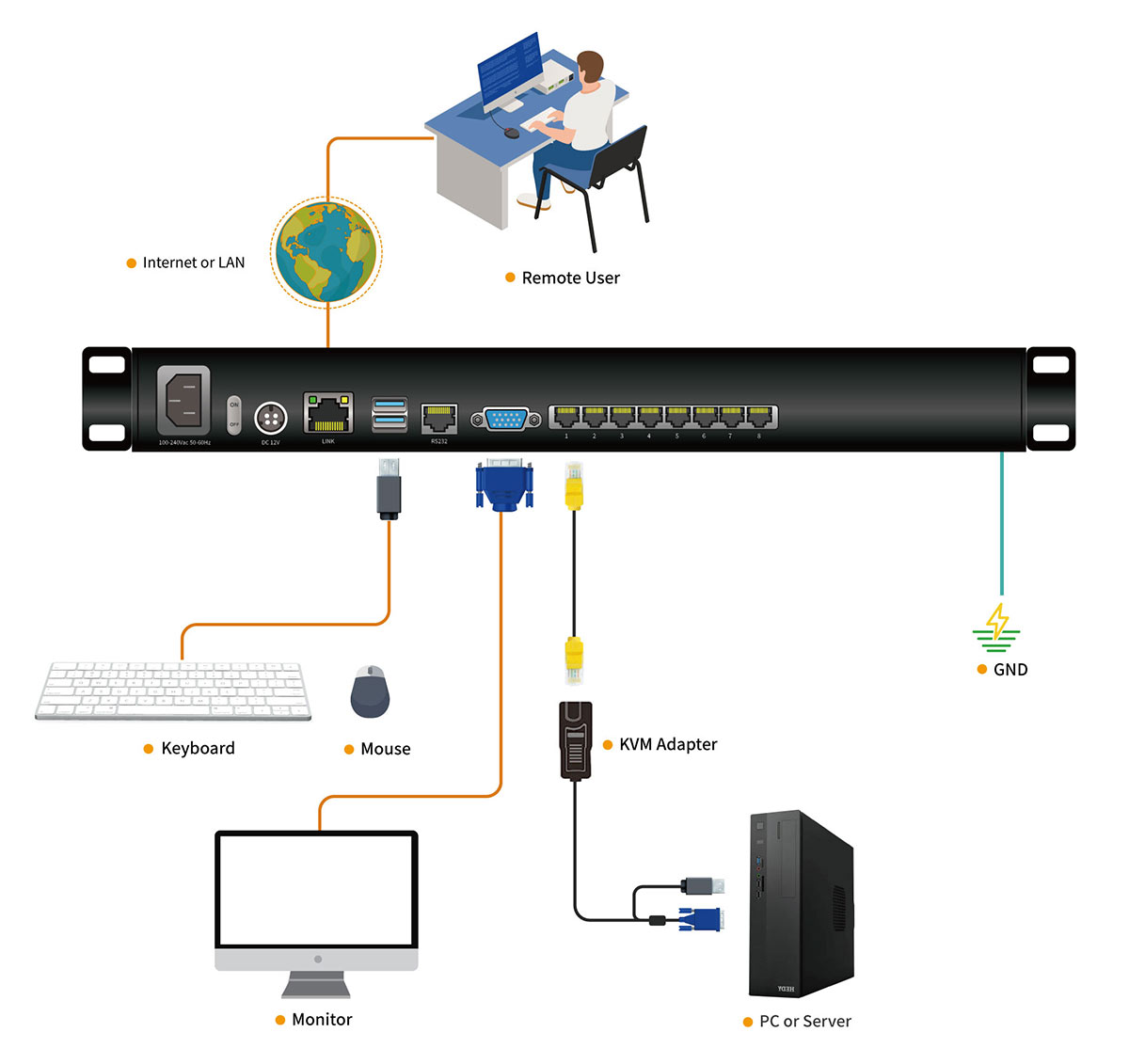

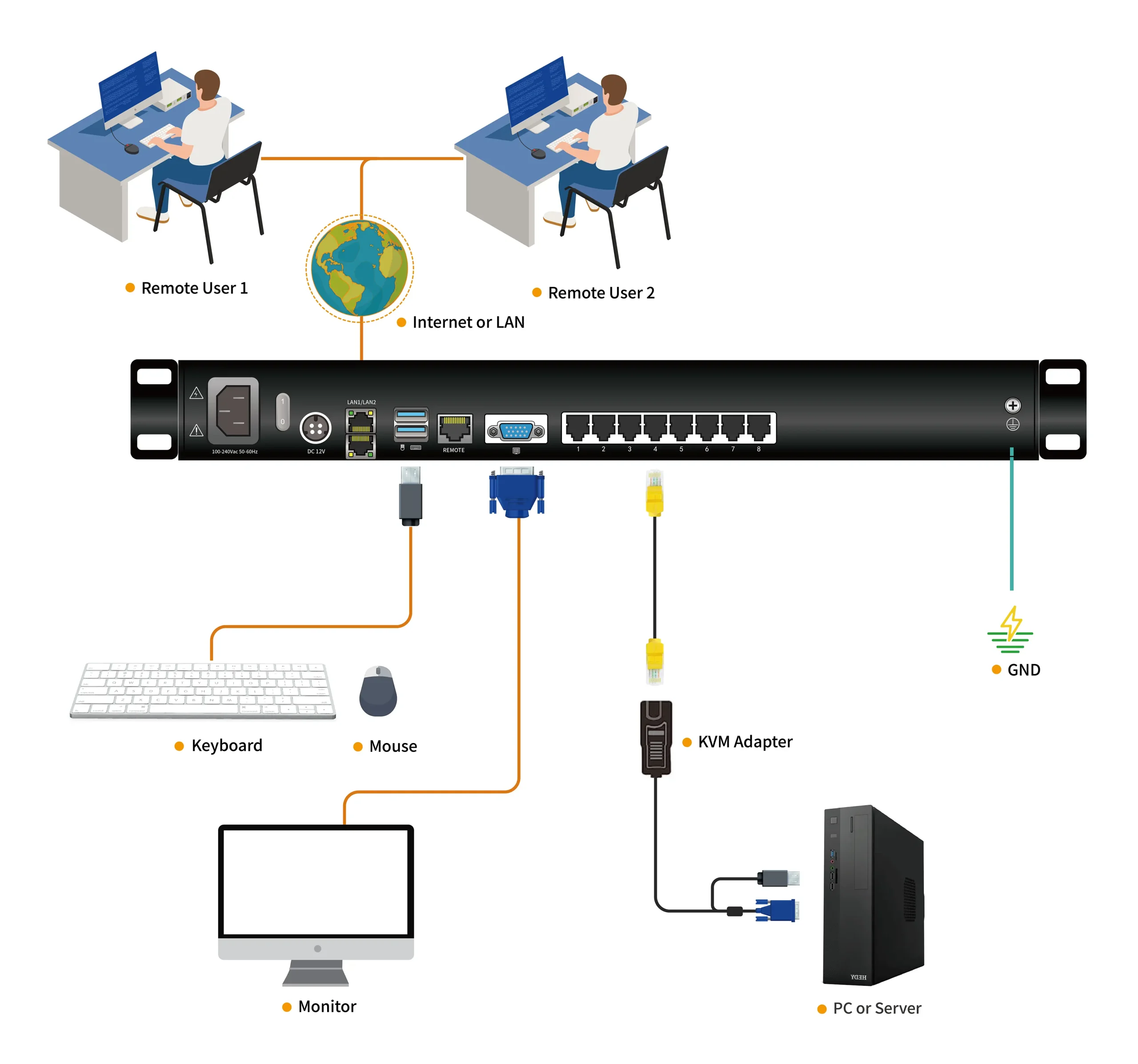

Diagram

Specification

Model HT1808 HT1816 HT1824 HT1832
Computer Connections Direct 8 16 24 32
Max 8 16 24 32
Port Selection Keyboard, Mouse Button, UI, Web, Hotkey
LED Monitor Model WXGA TFT
View Area 18.51”
Optimum Resolution 1366×768@60Hz
Color 16.7 M
Brightness 250cd/m²( T y p )
Contrast Ratio 1000 : 1 ( T y p )
Pixel Pitch(mm) 0.300(H) × 0.300(W)
Mouse X/Y Resolution >1000 points / inch, (40 points/mm)
Scroll Wheel Supports Scroll Wheel function
Keyboard 99 keys (82 keyboard + 17 number pad)
Remote Remote Control KVM Control (A9ctiveX)
Management Web
Security DES Encrypted
Resolution 1920×1080@60Hz
Power Input 100V- 240Vac , 50-60Hz , <1.5A
Mounting distance 686-770mm ( L=262mm)
Mounting bracket can be customized for othermounting distance
Power Consumption 25W 27W 29W 31W
Operating Temperature 0 — 50 ℃
Store Temperature -20 —60 ℃
Humidity 0—80% RH, non-condensing
Net Weight 11.7 kg 11.7kg 11.9kg 11.9kg
Product Dimension (W × D × H) 448mm×560mm×42.5mm
Package Dimension (W × D × H) 765mm×615mm×185mm

Package Contents

  • 1x HT1808 LCD KVM over IP Switch
  • 1x Power Cord (Regional)
  • 1x Quick Start Guide
  • 1x User Manual
  • 2x Mounting Rails
  • 1x Cat5 shield network cable
  • 1x Ground Lead
