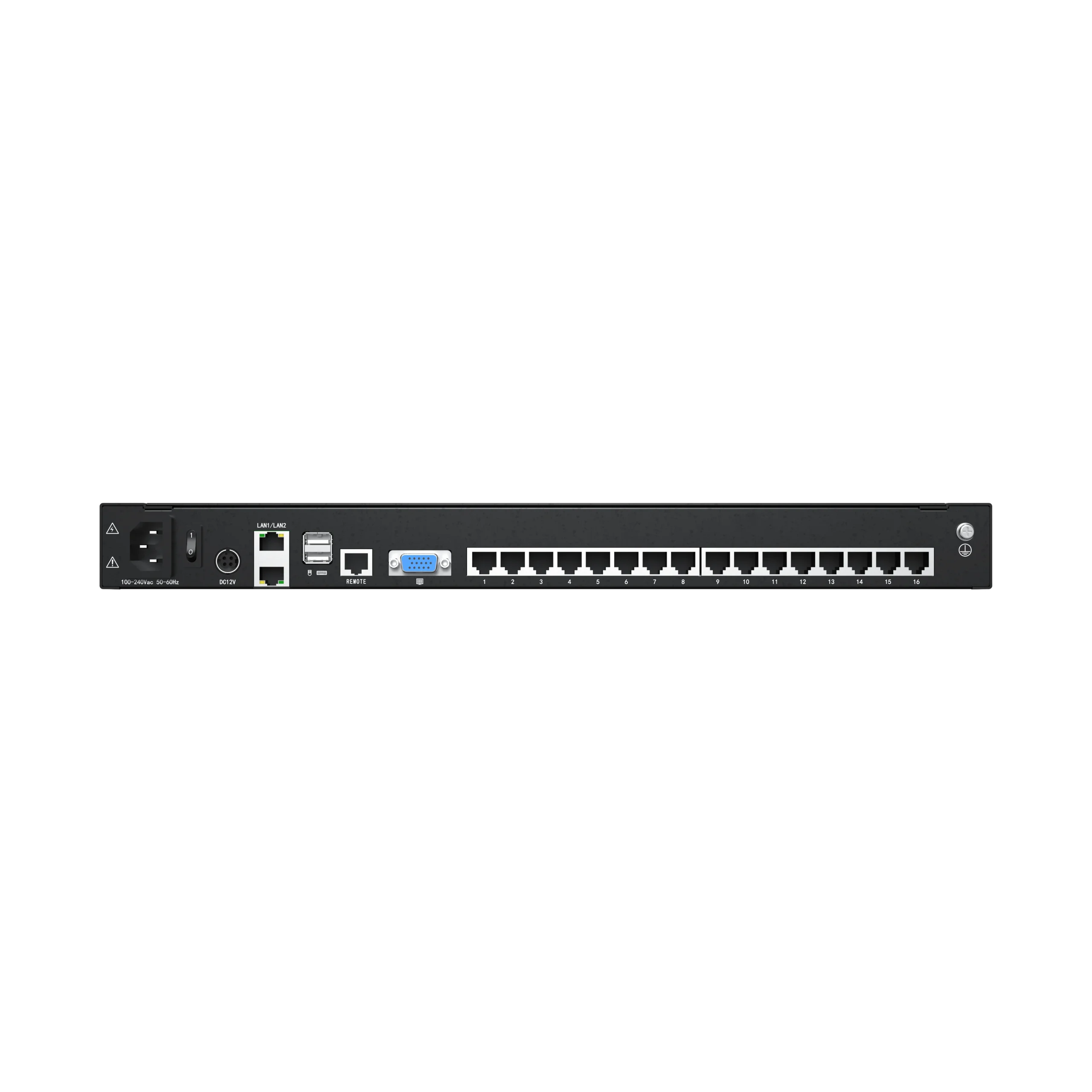

17” 16 Port CAT5 LCD KVM over IP Switch 1-Local / 1-Remote Access

Model No.: HT1716

  • (HT1916: 19″ LCD; HT1816: 18.5″ widescreen LCD)
  • Integrated KVM Console with 17” LCD monitor
  • High video resolution – resolution is up to 1920×1080@60Hz for remote console, local console resolution is up to 1280 x 1024 60Hz
  • Dual power supply
  • Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously
  • Support servers with VGA/DVI/HDMI/DP port

Overview

Featuring an integrated 17” LCD monitor, keyboard, and touchpad in a 1U rack-mountable housing, the HT1716 ip kvm switch 16 port is a control unit that allows secure access to 16 computers from a single KVM console.

The HT1716 features IP-based connectivity that allows local and remote operators to monitor and access the computers concurrently. With TCP/IP communications protocol, you can access the connected servers from any computer on the LAN, WAN, or Internet.

The IP KVM supports both USB and PS/2 connections for the computers. An extra HDB15 port allows an additional VGA monitor to be connected. Kinan also provides VGA, DVI, HDMI, and DisplayPort KVM adapter cables to link to computers/servers, support any combination of computers with different video inputs.

It’s easy to set up the HT1716, just plug the cable into the appropriate port, no software needed, no complicated installation procedures, and no compatibility issues. Connect computers with compact RJ-45 connectors and Cat 5e/6 cable. The transmitting distance is up to 100m.

Hardware Features

  • Integrated KVM Console with 17” LCD monitor, keyboard/touchpad in a 1U height console
  • Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • External console port – provides an external VGA, keyboard and mouse port to manage the LCD KVM Switch from an external console
  • One bus for IP KVM remote access
  • Dual power supply

Hardware Features

  • Integrated KVM Console with 17” LCD monitor, keyboard/touchpad in a 1U height console
  • Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • External console port – provides an external VGA, keyboard and mouse port to manage the LCD KVM Switch from an external console
  • One bus for IP KVM remote access
  • Dual power supply

Local Console

  • Controls up to 16 computers from a single console
  • Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously
  • Easy-to-use switching by browser-based UI interface, hotkeys and pushbuttons
  • Support servers with VGA/DVI/HDMI/DP port
  • Multiplatform client support – Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu
  • Local Console, Browser, and AP GUIs offer a unified management interface
  • Local resolution is up to 1280×1024@60Hz
  • Support mouse synchronization mode-automatically synchronizes the local and remote mouse movements
  • Video synchronization with local console – EDID information for local console display can be stored in the host module for video resolution optimization
  • Keyboard and mouse emulation to ensure the normal booting
  • Auto scan feature for monitoring user-selected computer
  • Hot pluggable–add or remove computers without having to power down the switch

Local Console

  • Controls up to 16 computers from a single console
  • Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously
  • Easy-to-use switching by browser-based UI interface, hotkeys and pushbuttons
  • Support servers with VGA/DVI/HDMI/DP port
  • Multiplatform client support – Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu
  • Local Console, Browser, and AP GUIs offer a unified management interface
  • Local resolution is up to 1280×1024@60Hz
  • Support mouse synchronization mode-automatically synchronizes the local and remote mouse movements
  • Video synchronization with local console – EDID information for local console display can be stored in the host module for video resolution optimization
  • Keyboard and mouse emulation to ensure the normal booting
  • Auto scan feature for monitoring user-selected computer
  • Hot pluggable–add or remove computers without having to power down the switch

Remote Console

  • Adaptive 10 / 100 / 1000 Mbps network
  • WEB browser-based remote management
  • Resolution for remote console is up to 1920×1080@60Hz
  • BIOS-level access
  • Video quality and video tolerance can be adjusted to optimize data transfer speed, data transfer speed is up to 30 FPS
  • Full screen or scalable video display
  • Remote users and local users can control the same server/computer synchronously
  • Support AES / DES / 3DES encryption
  • Support audit function-allows the administrator to audit the device through the system log and operation log
  • Exit Macros support
  • Configurable user and group permissions for server access and control
  • Support strong password
  • Support firmware upgrade

Remote Console

  • Adaptive 10 / 100 / 1000 Mbps network
  • WEB browser-based remote management
  • Resolution for remote console is up to 1920×1080@60Hz
  • BIOS-level access
  • Video quality and video tolerance can be adjusted to optimize data transfer speed, data transfer speed is up to 30 FPS
  • Full screen or scalable video display
  • Remote users and local users can control the same server/computer synchronously
  • Support AES / DES / 3DES encryption
  • Support audit function-allows the administrator to audit the device through the system log and operation log
  • Exit Macros support
  • Configurable user and group permissions for server access and control
  • Support strong password
  • Support firmware upgrade

Diagram

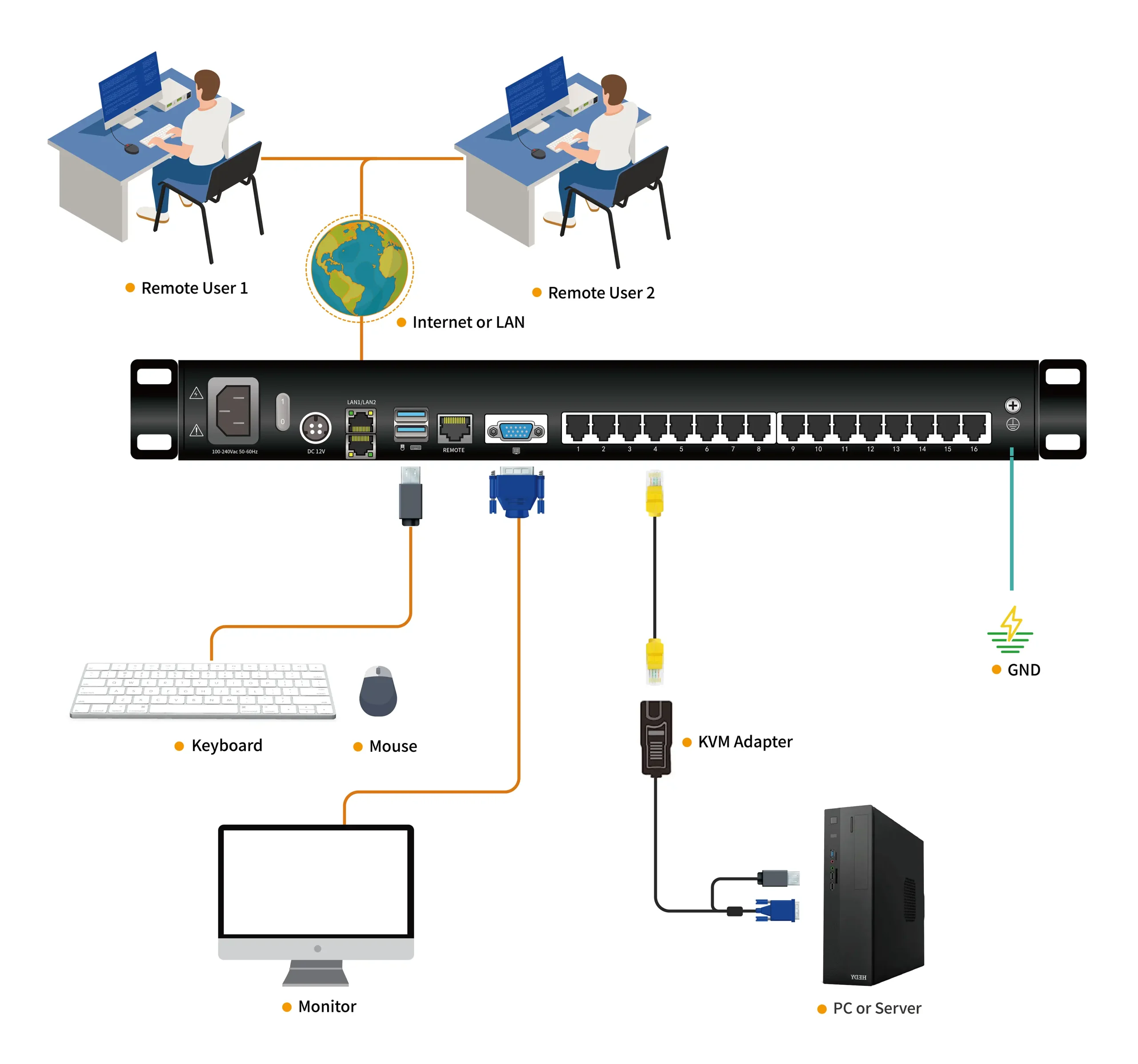

Connection Diagram HT1716-1

Specification

Model HT1716
Computer Connections Direct 16
Max 16
Port Selection Keyboard, Mouse Button, UI, Web, Hotkey
LED Monitor Model SXGA TFT
View Area 17 “
Optimum Resolution 1280×1024@60Hz
Color 16.7 M
Brightness 250 cd/m²
Contrast Ratio 1000:01:00
Pixel Pitch(mm) 0.264(H) × 0.264(W)
Mouse X/Y Resolution >1000 points / inch,( 40 points/mm )
Scroll Wheel Supports Scroll Wheel function
Keyboard 99 keys (82 keyboard + 17 number pad)
Remote Remote Control KVM Control (ActiveX)
Management Web
Security DES Encrypted
Resolution 1920×1080@60Hz
Power Input 100V- 240Vac, 50-60Hz, <1.5A
Power Consumption 23W
Operating Temperature 0 — 50 ℃
Store Temperature -20 —60 ℃
Humidity 0~80% RH, non-condensing
Net Weight 13kg
Product Dimension (W × D × H) 448mm × 581mm × 42.5mm
Package Dimension (W × D × H) 765mm × 615mm × 185mm

Package Contents

  • 1x HT1716 LCD KVM over IP Switch
  • 1x Power Cord (Regional)
  • 1x Quick Start Guide
  • 1x User Manual
  • 2x Mounting Rails
  • 1x Cat5 shield network cable
  • 1x Ground Lead
