USB HDMI® over Fiber KVM Extender

Model No.: KFH101S

Extension Signals: Extends uncompressed HDMI video, audio, USB, RS-232 signals over fiber optic cable.
Extension Distance: Up to 10km.
High Resolution: Up to 4K@60Hz (YCbCr 4:2:0).
Number of Screens: 1
High-Speed USB Ports: Supports a wide range of USB devices including keyboards, mice, mass storage devices and printers.
Plug and Play: It is easy to install without any software required.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The KFH101S HDMI digital KVM extender delivers FHD HDMI video, USB, RS232, and stereo audio signals up to 300m over fiber optic cable.

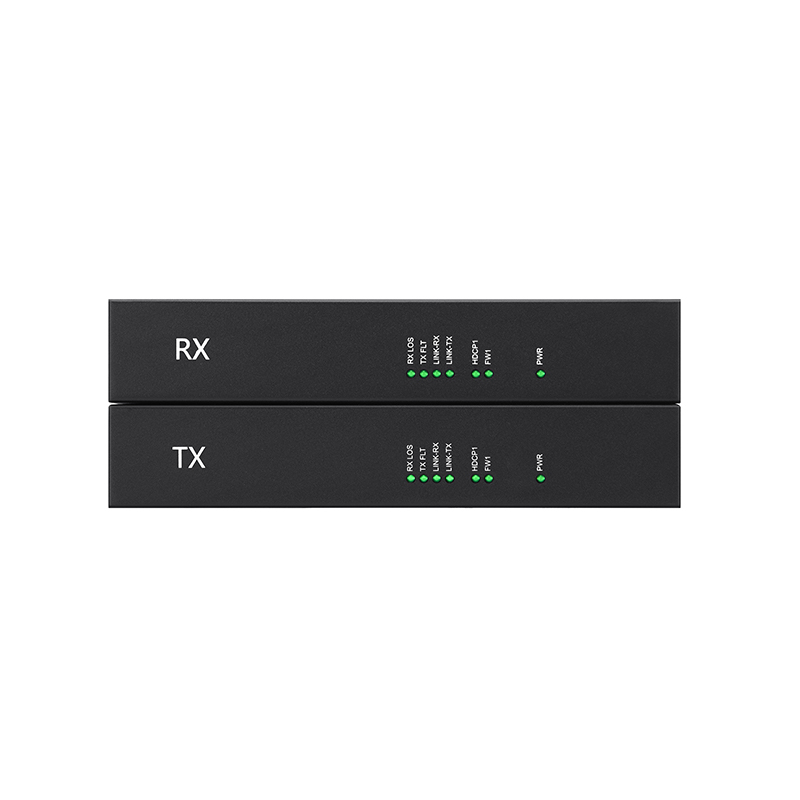

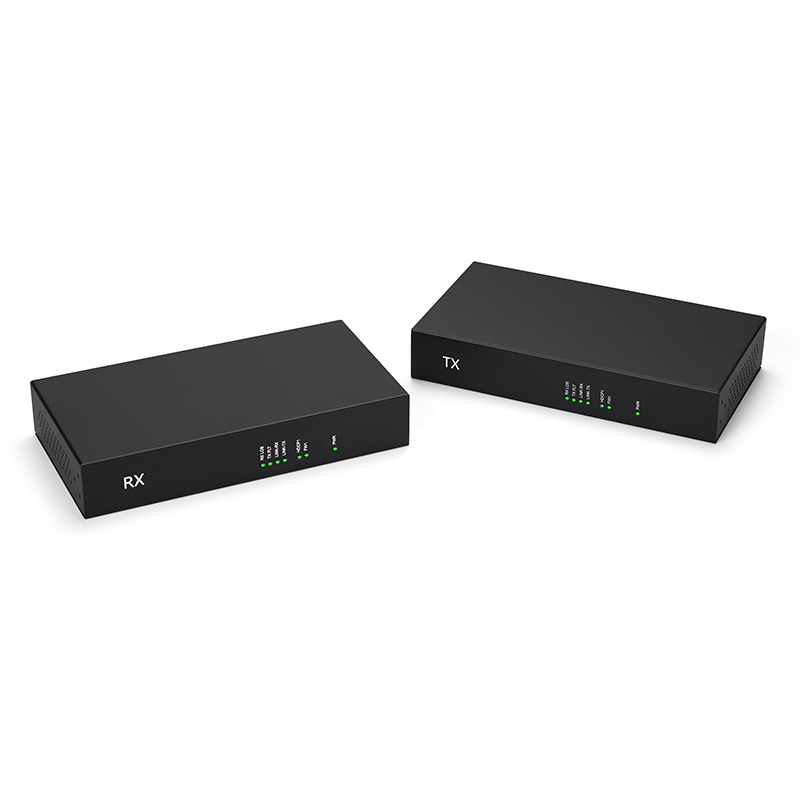

A complete set of KFH101S including Transmitter (KFH101S-TX) and Receiver (KFH101S-RX). The Transmitter is connected to a computer or server, and the receiver is connected to a display, keyboard, audio player and other USB devices.

The KFH101S support single-mode and multi-mode optical fiber, the maximum transmission distance of single mode is 10km, and the transmission distance of multimode is up to 300m. It supports the transmission of 2 channel high-quality HDMI signals and has a wide range of applications.

Diagram

Specification

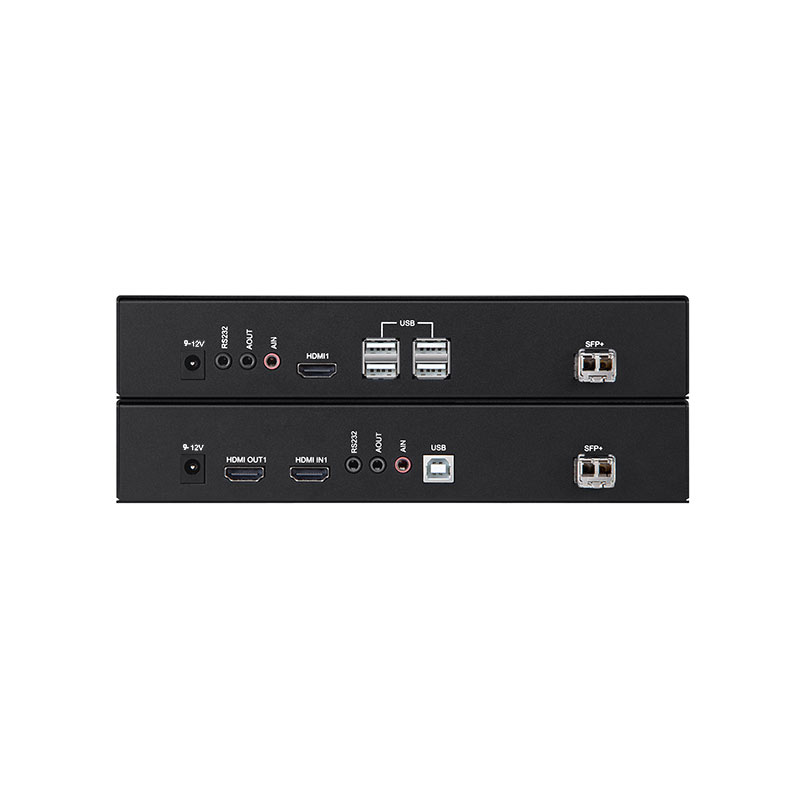

Model		KFH101S_TX	KFH101S_RX
Connector	HDMI Input	1	NA
	HDMI Output	1	1
	Power	9-12V	9-12V
	Fiber Module	SFP+ x 1	SFP+ x 1
	Microphone	3.5MM Stereo Jack (Pink)	3.5MM Stereo Jack (Pink)
	Speaker	3.5MM Stereo Jack (Green)	3.5MM Stereo Jack (Green)
	USB Type B	1	N/A
	USB	N/A	USB x 4
Resolution		4K@60Hz (YCbCr 4:2:0)
Connection Cable		Fiber cable
Power Input		9-12VDC	9-12VDC
Power Consumption		12W	12W
Operating Temperature		0 ~ 50 ℃
Storage Temperature		-20 ~ 60 ℃
Humidity		0~80% RH, Non-condensing
Material		Metal
Net Weight (kg)		0.63kg	0.63kg
Product Dimension (W × D × H)		218 mm x 115mm x 40mm
