USB HDMI® Dual View KVM Extender over Fiber

Model No.: KFH201S

Uncompressed Extension: Extends uncompressed HDMI video, audio, USB, RS-232 signals over fiber optic cable
Distance of Extension: Up to 10km
Maxium Resolution: Up to 4K@60Hz (YCbCr 4:2:0)
Number of Screens: 2
Supports A Wide range of USB Devices: Including keyboards, mice, mass storage devices and printers. (High speed USB 2.0 ports)

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

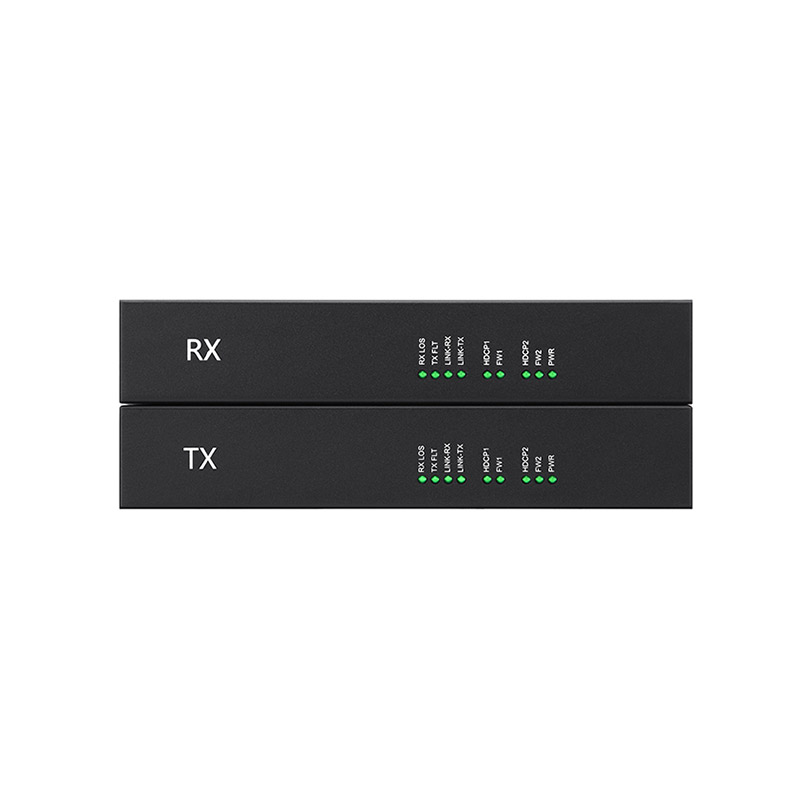

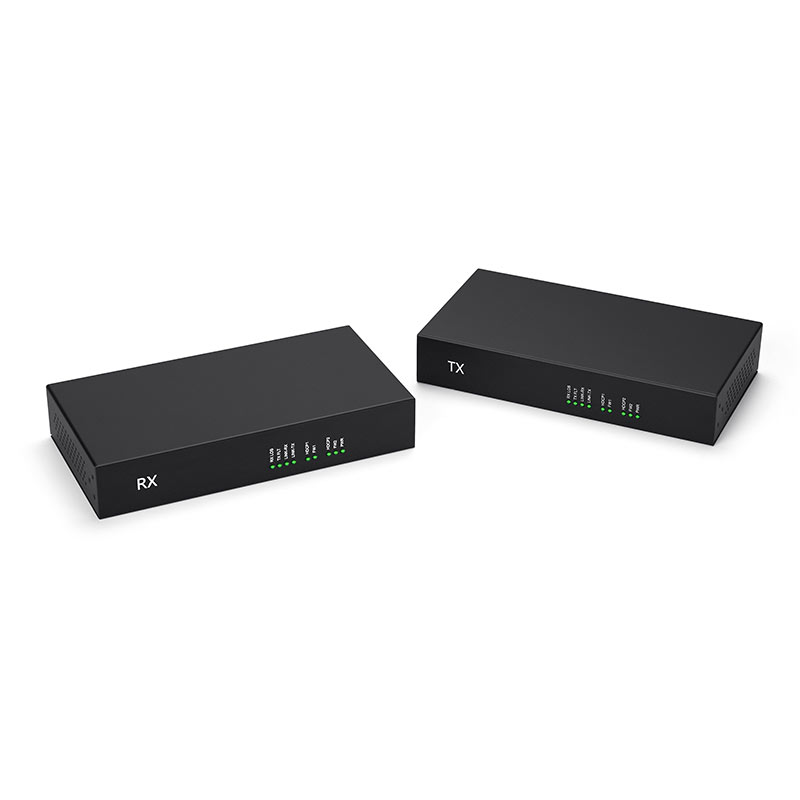

The KFH201S HDMI digital KVM extender delivers HD dual HDMI video, USB, RS232, and stereo audio signals up to 10km over fiber optic cable. A complete set of KFH201S including Transmitter (KFH201S-TX) and Receiver (KFH201S-RX). The Transmitter is connected to a computer or server, and the receiver is connected to a display, keyboard, audio player and other USB devices.

This HDMI KVM extender support single-mode and multi-mode optical fiber, the maximum transmission distance of single mode is 10km, and the transmission distance of multimode is up to 300m. It supports the transmission of 2 channel high-quality HDMI signals and has a wide range of applications.

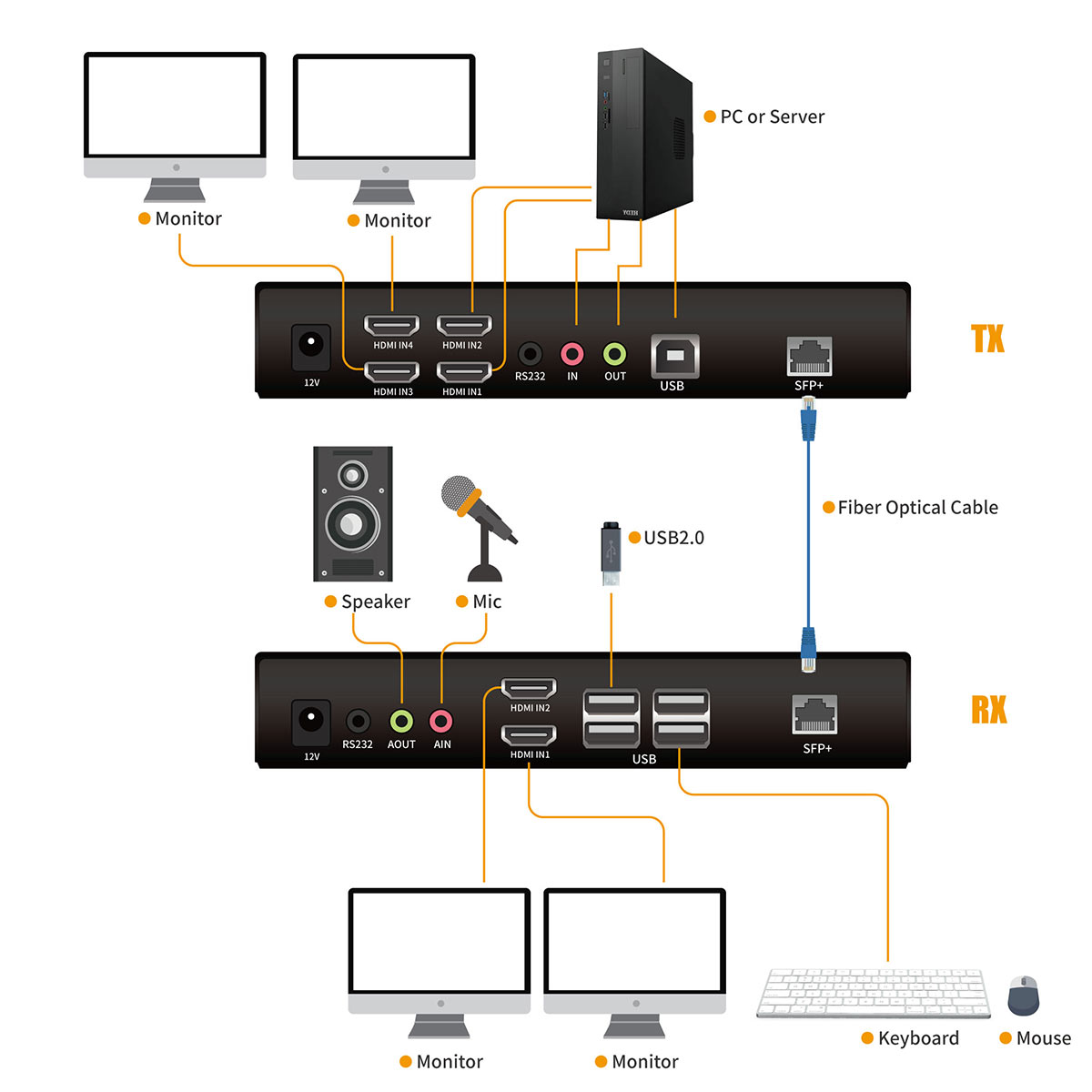

Diagram

Specification

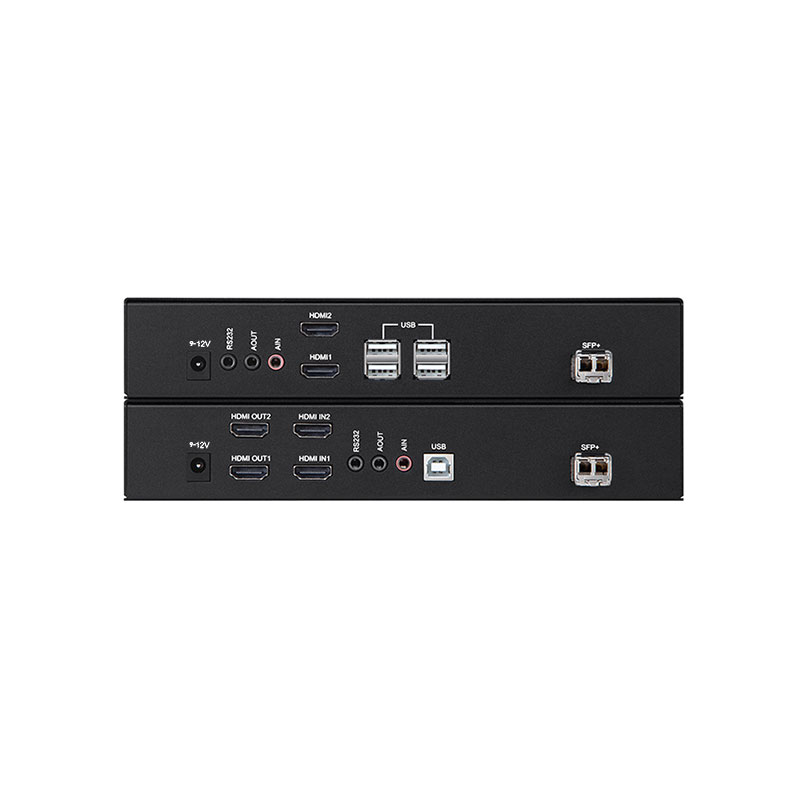

Model		KFH201S_TX	KFH201S_RX
Connector	HDMI Input	2	NA
	HDMI Output	2	2
	Power	12V	12V
	Fiber Module	SFP+ x 1	SFP+ x 1
	Microphone	3.5MM Stereo Jack (Pink)	3.5MM Stereo Jack (Pink)
	Speaker	3.5MM Stereo Jack (Green)	3.5MM Stereo Jack (Green)
	USB Type B	1	N/A
	USB 2.0	N/A	USB x 4
Resolution		Single-channel: 4K@60Hz (YCbCr 4:2:0)
		Dual-channel: 1920 X 1280 @ 60 Hz
Connection Cable		Fiber cable
Power Input		9-12VDC	9-12VDC
Power Consumption		12W	12W
Operating Temperature		0—50 ℃
Storage Temperature		-20—60 ℃
Humidity		0—80% RH, Non-condensing
Material		Metal
Net Weight (kg)		0.63 kg	0.63kg
Product Dimension (W × D × H)		218 mm x 115 mm x 40mm
