USB DVI KVM Extender (1920 x 1200@100m)

Model No.: KED101S

Signals Extension: Extends video, audio, USB, RS-232 signals via a single Cat5e / Cat 6 cable
Extension Distance: Up to 100m
High Resolution: Up to 1920×1200@60Hz
Number of Screens: 1
High-Speed USB 2.0 Ports: Supports a wide range of USB devices including keyboards, mice, mass storage devices and printers
Plug and Play: It is easy to install without any software required.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan’s KED101S USB DVI KVM extender delivers HD DVI video, USB and stereo audio signals up to 100m via single Cat5 / Cat6 cable.

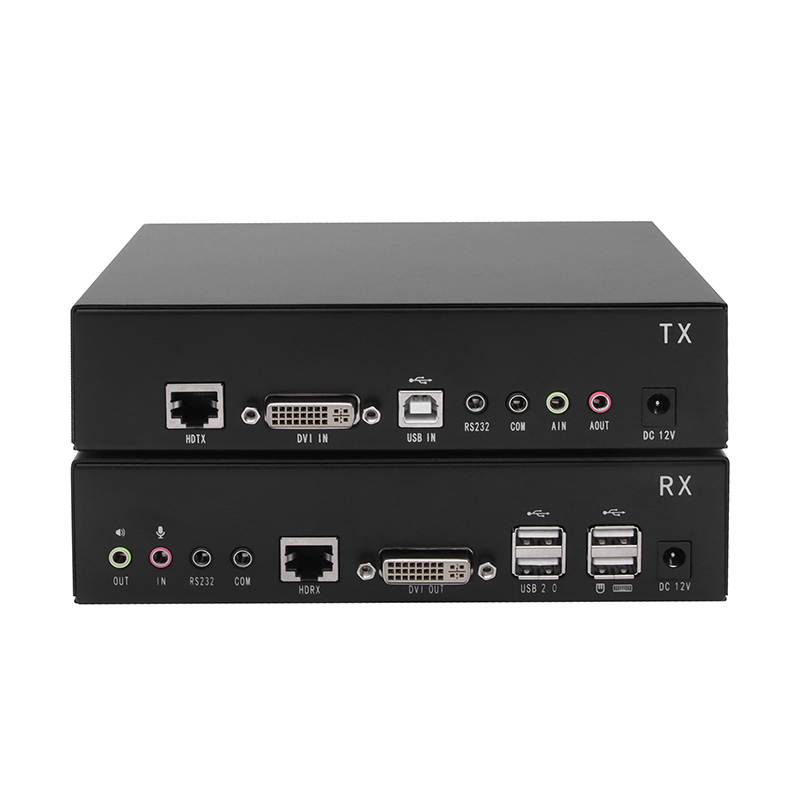

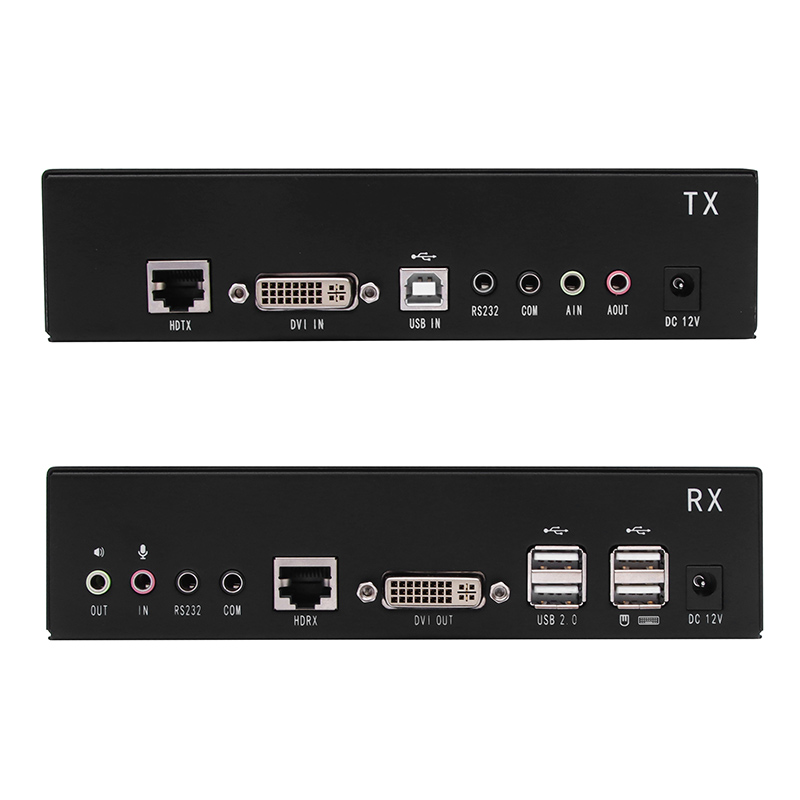

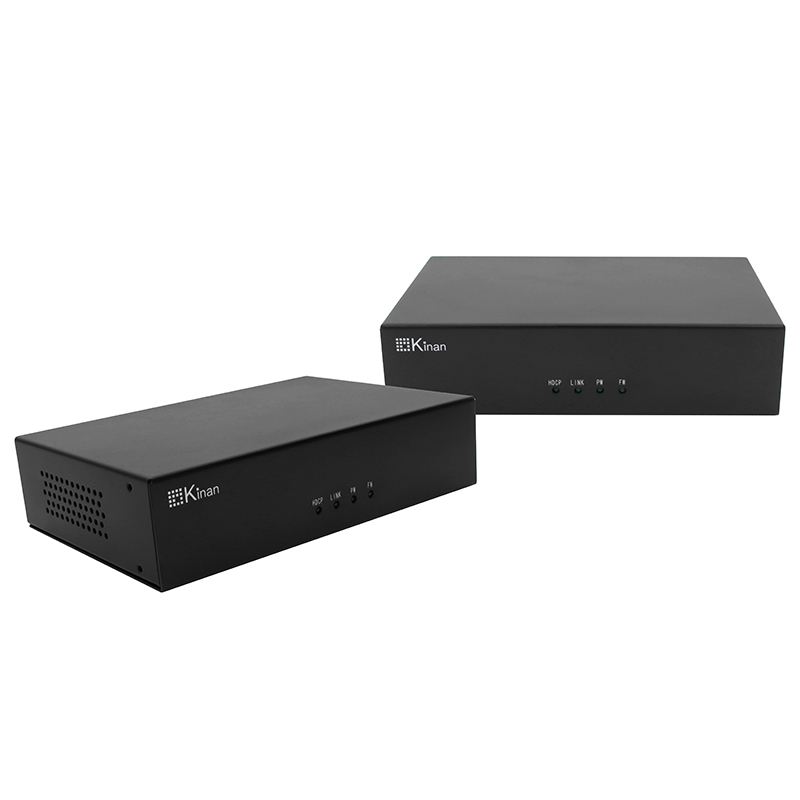

A complete set of KED101S including Transmitter (KED101S-TX) and Receiver (KED101S-RX). The Transmitter is connected to a computer or server, and the receiver is connected to a display, keyboard, audio player and other USB devices.

The KED101S enables remote high-speed access to a single computer at HD display resolution, while improving workplace ergonomics and separating employees from a noisy working environment.

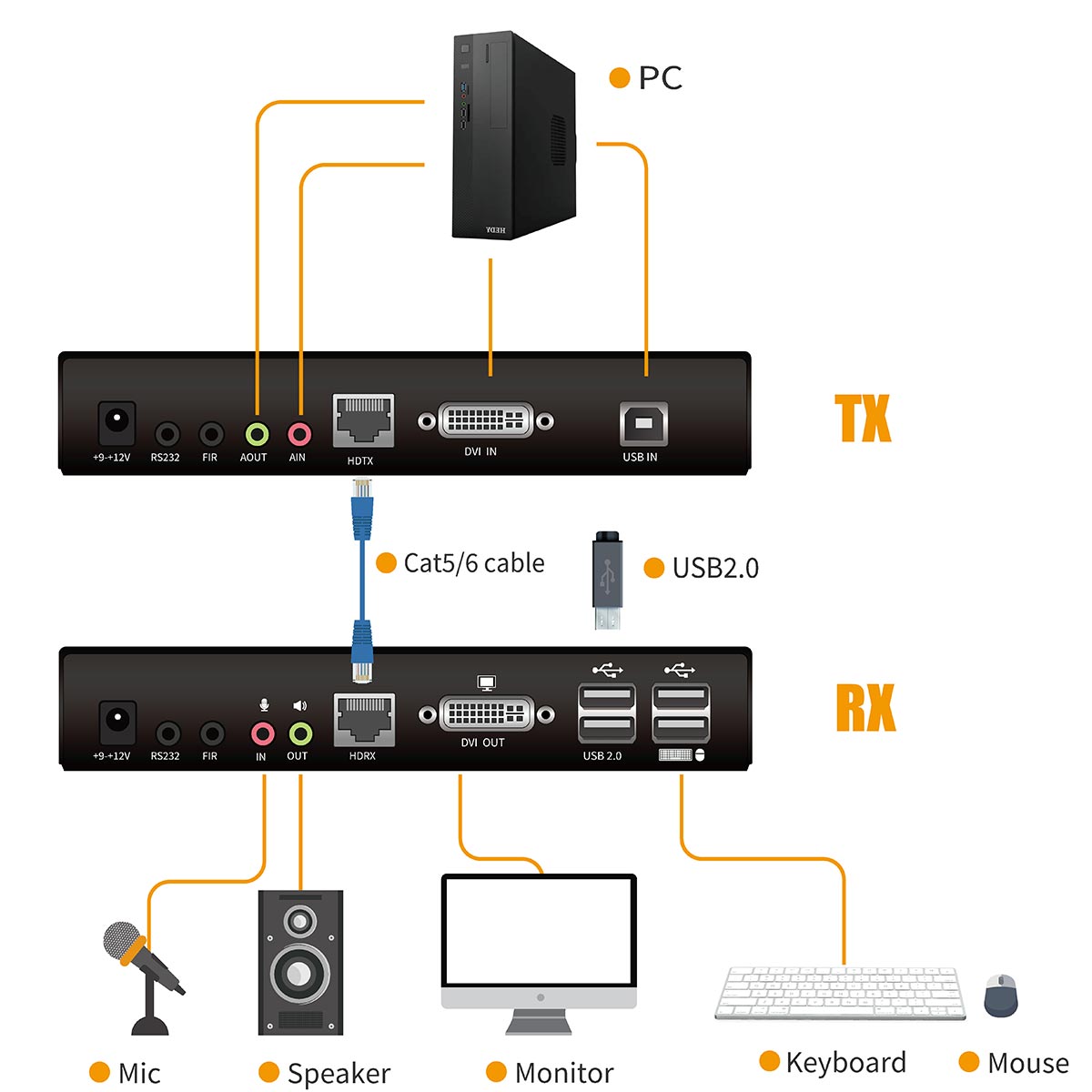

Diagram

Specification

Model		KED101S (TX)	KED101S (RX)
Connector	DVI Input	1	NA
	DVI Output	NA	1
	Power	12V	12V
	Network	RJ45 x1	RJ45 x1
	Microphone	3.5MM Stereo Jack (pink) x1	3.5MM Stereo Jack (pink) x1
	Speaker	3.5MM Stereo Jack (green) x1	3.5MM Stereo Jack (green) x1
	USB	1	N/A
	USB 2.0	N/A	USB x 4
Resolution		1920×1200 @ 60 Hz
Cable		CAT 5E / 6
I/R Value		DC12V / 2A	DC12V / 2A
Power Consumption		4W	7W
Operating Temperature		0—50 ℃
Storage Temperature		-20—60 ℃
Humidity		0—80% RH, Non-condensing
Net Weight (kg)		0.66 kg	0.66kg
Product Dimension (W × D × H)		180mmx122mmx44mm
Package Dimension (W × D × H)		525 mm x 226 mm x 106 mm
