USB DVI Dual View KVM Extender (1920 x 1200@100m)

Model No.: KED202S

Signals Extension: Extends video, audio, USB, RS-232 signals via a single Cat5e / Cat 6 cable.
Extension Distance: Up to 100m.
Max Resolution: This KVM extender supports up to 1920×1200@60Hz.
Number of Screens: 2
High-Speed USB 2.0 Ports: Supports a wide range of USB devices including keyboards, mice, mass storage devices and printers.
Plug and Play: There is no need to install any software when using this extender.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan’s KED202S USB DVI Dual View KVM extender delivers high quality Dual DVI video, USB and stereo audio signals up to 100m via single Cat5 / Cat6 cable.

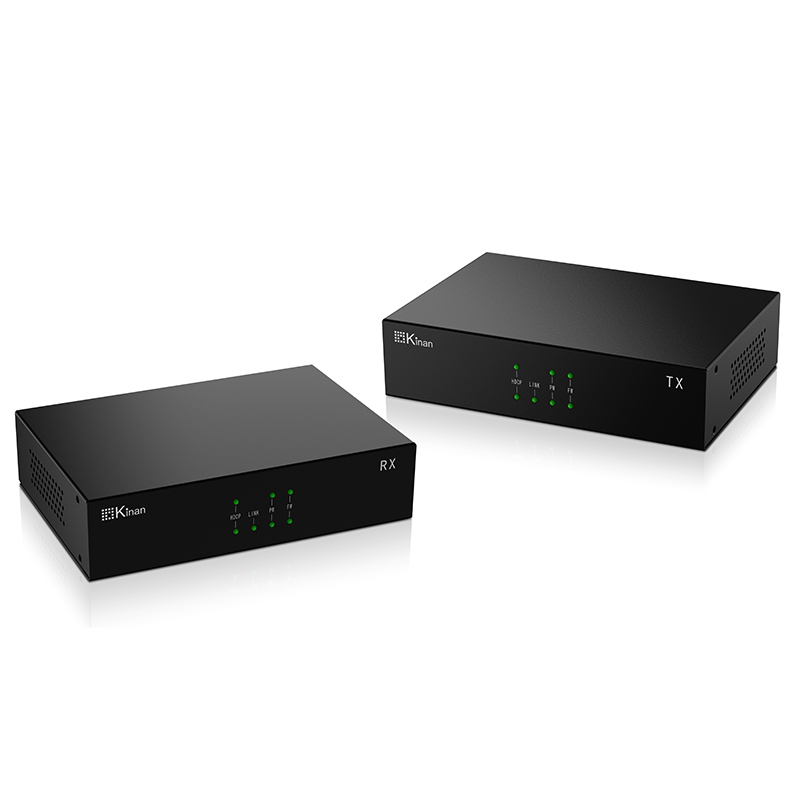

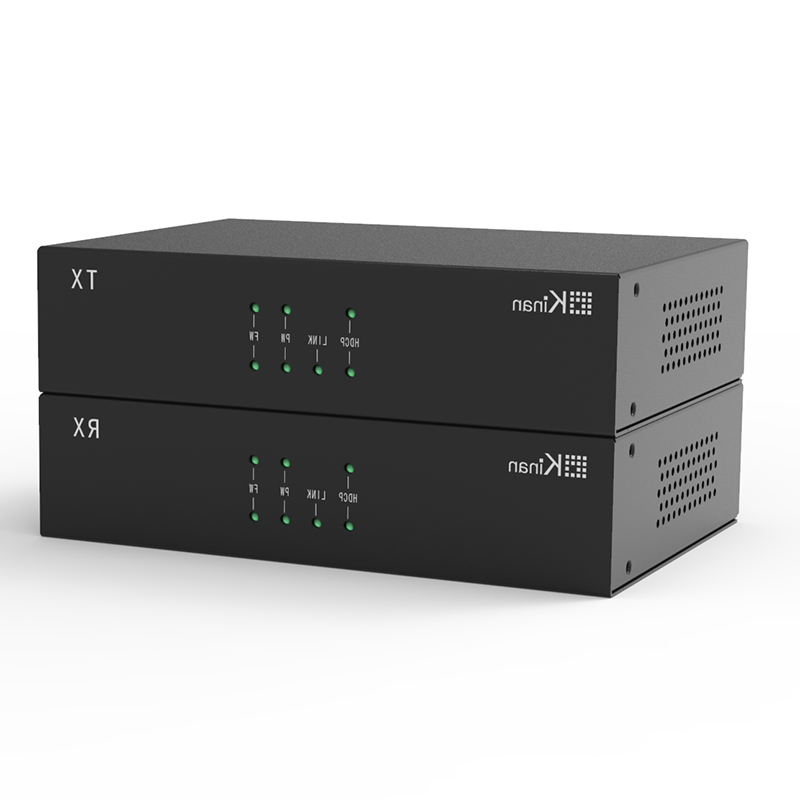

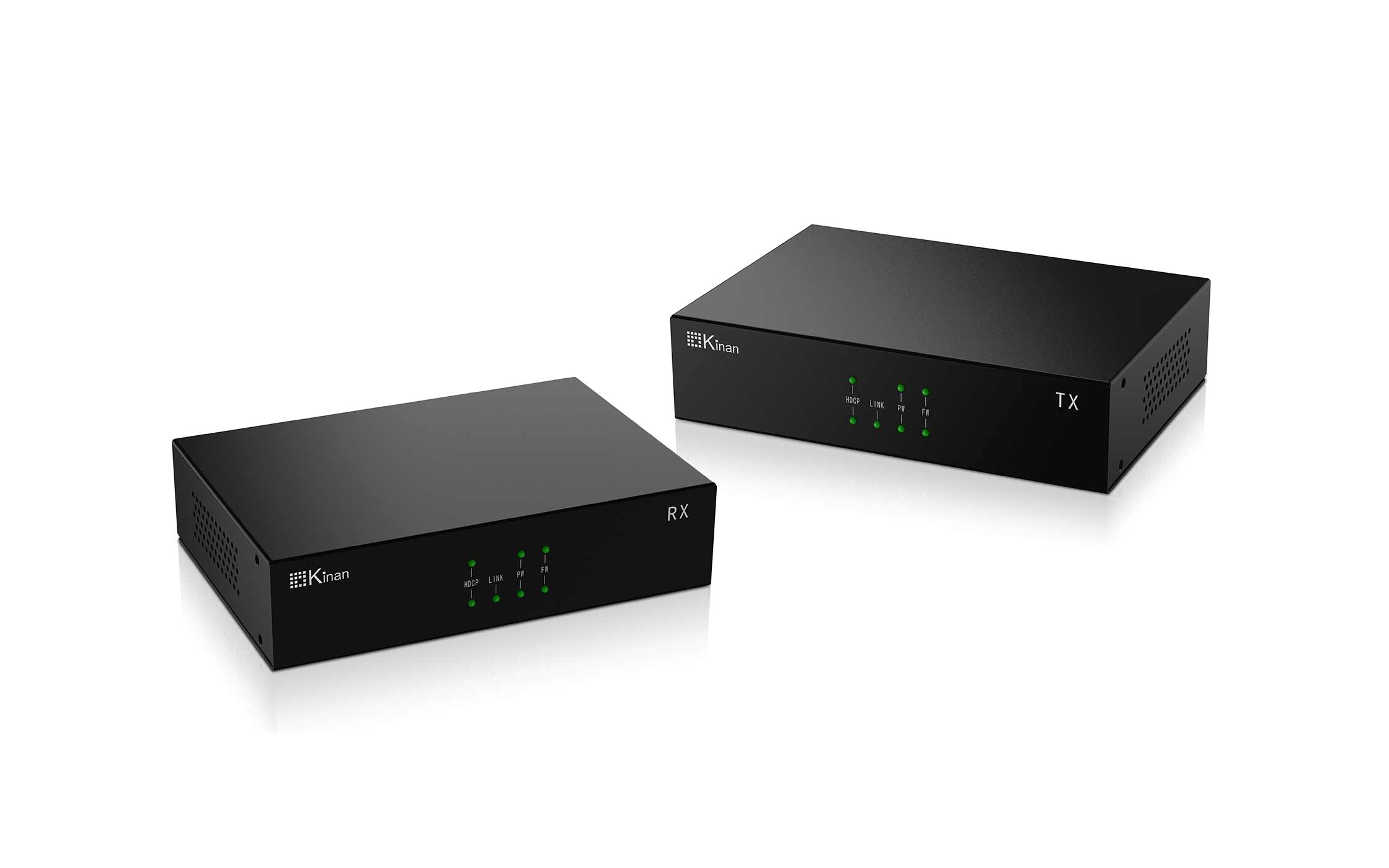

A complete set of KED202S including Transmitter (KED202S_TX) and Receiver (KED202S_RX). The Transmitter is connected to a computer or server, and the receiver is connected to a display, keyboard, audio player and other USB devices.

The KED202S enables remote high-speed access to a single computer at HD display resolution, while improving workplace ergonomics and separating employees from a noisy working environment.

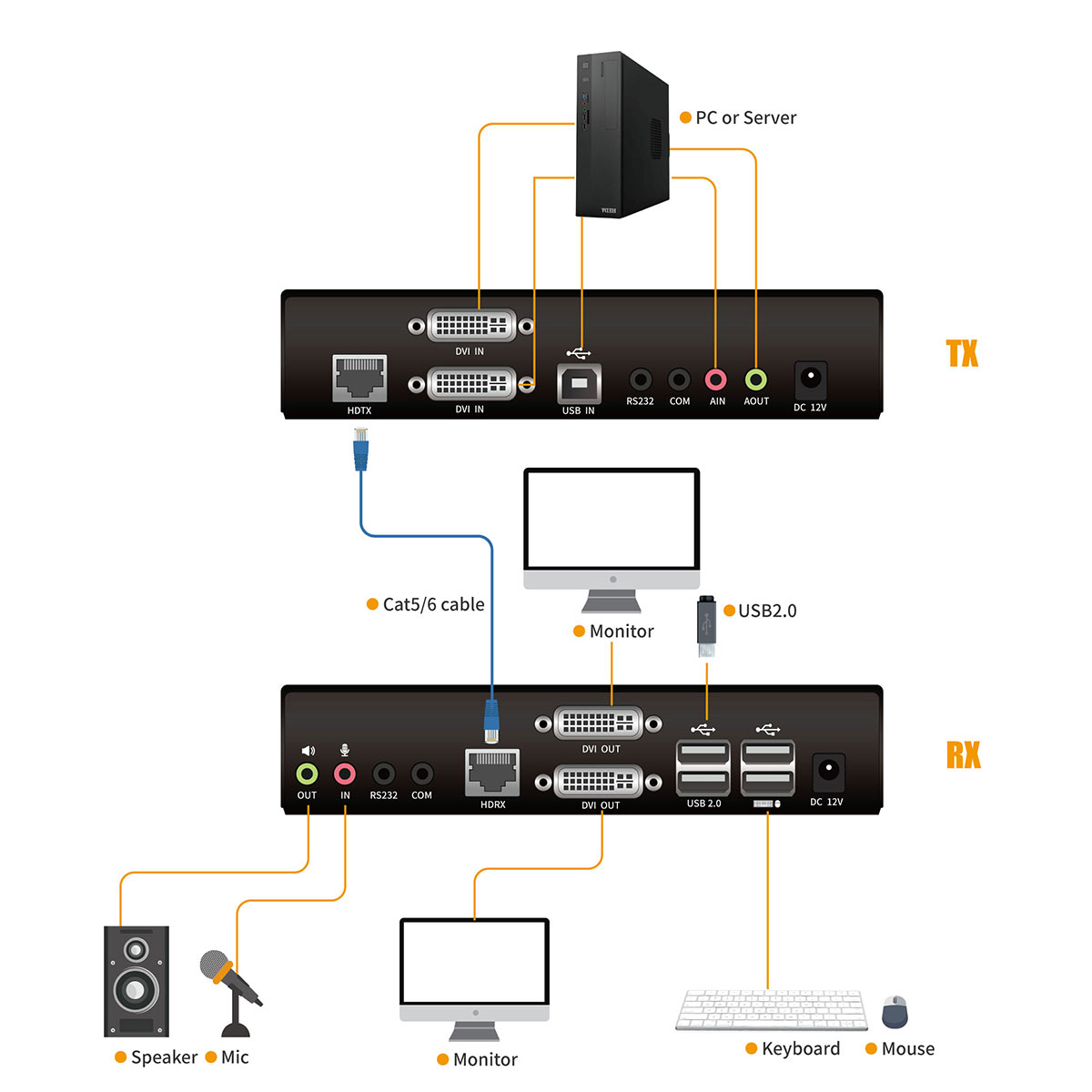

Diagram

Specification

Model No.		KED202S_TX	KED202S_RX
Connectors	DVI Input	2	NA
	DVI Output	NA	2
	Power	12V	12V
	Network Port	RJ45 x1	RJ45 x 1
	Mic	3.5MM Stereo Jack (pink)	3.5MM Stereo Jack (pink)
	Speaker	3.5MM Stereo Jack (green)	3.5MM Stereo Jack (green)
	USB Type B	1	N/A
	USB 2.0	N/A	USB x 4
Resolution		1920 X 1200@ 60 Hz (1080P)
Connecting cable		CAT 5E / 6
Power Input		DC12V / 2A	DC12V / 2A
Power consumption		6.5W	10.5W
Working Temperature		0—50 ℃
Storage Temperature		-20—60 ℃
Humidity		0—80% RH, Non-condensing
Material		Metal
N.W. (kg)		0.73 kg	0.73 kg
Dimension (W × D × H)		180 mmx 122mm x 44mm
Package Dimension (W × D × H)		395 mm x 274 mm x 110mm
