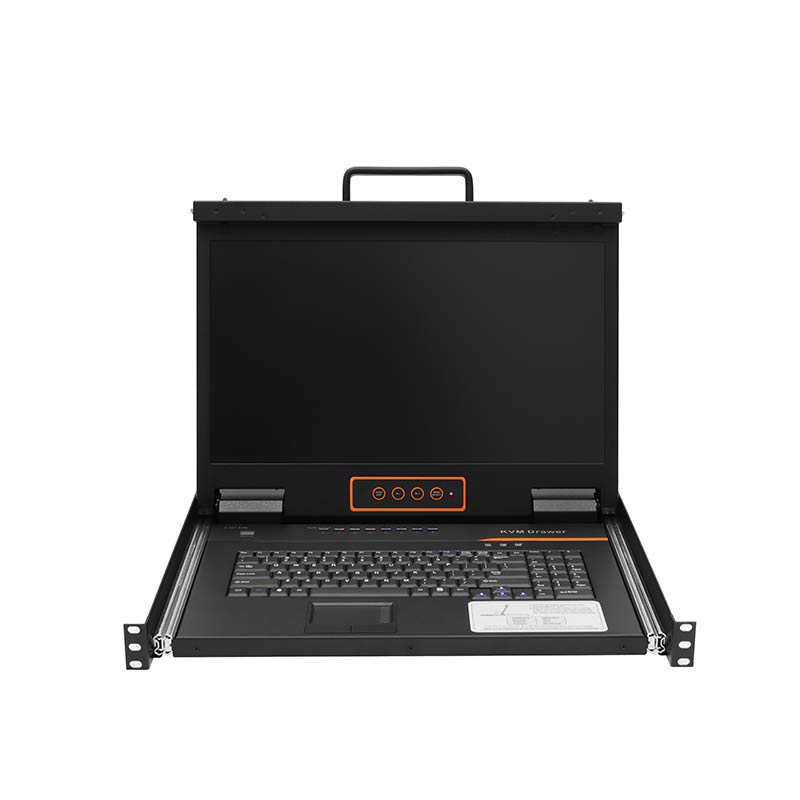

Single Rail 8 Port 18.5″ VGA LCD KVM Switch

Model No.: XW1808

Hardware Composition: Integrated KVM Console with a 18.5″ LCD display in 1U height space.
Space-saving Design: It can be installed in cabinet and occupy only 1U rack space.
Number of Computers: A rackmount LCD switch can connect 8 computers.
Max Video Resolution: The resolution is up to 1920 x 1080 @60Hz.
Easy to Control: Switch computers via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Daisy-chain Connection: Support daisy-chain connection and control up to 256 computers.

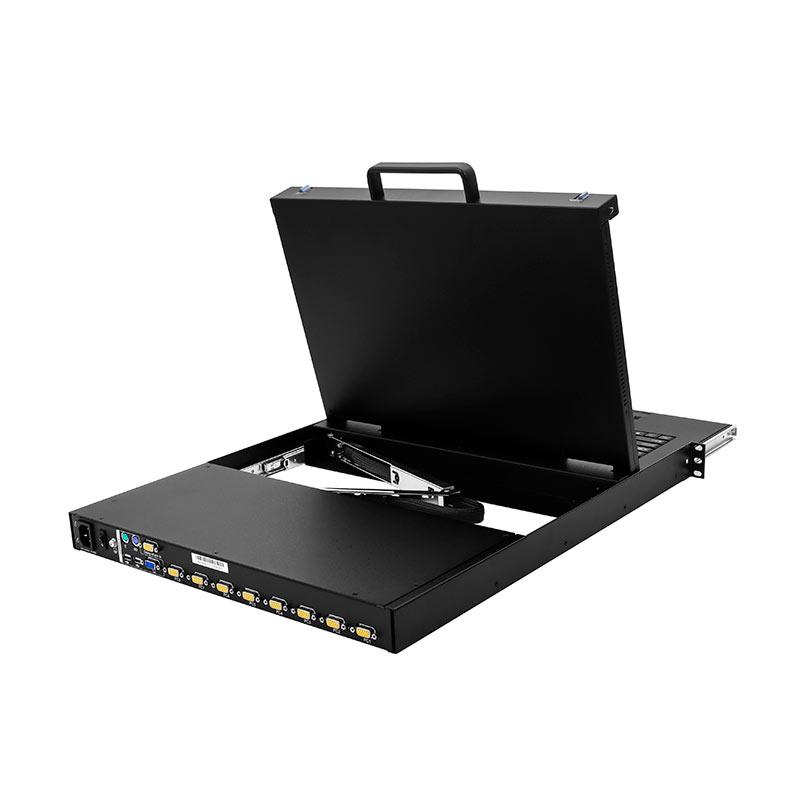

Flexiblility: The LCD display can be adjusted freely because it can be opened up to 108 degrees.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan XW1808 integrates multiple-port KVM switches in a 1U height console. It can control multiple computers with a set of device including monitor, keyboard and mouse, thus saves much cost and space to separately equip keyboard, mouse and monitor for every computer.

It is simple and easy to install this XW1808 VGA LCD KVM switch. The users just need to connect cables to the sight ports. Importantly, there is no software configuration needed. It allows users to control up to 8 computers conveniently. With the wide screen, users can easily watch something. What’s more, this LCD switch has wide compatibility, it is compatible with multiple hardware platforms and operating systems.

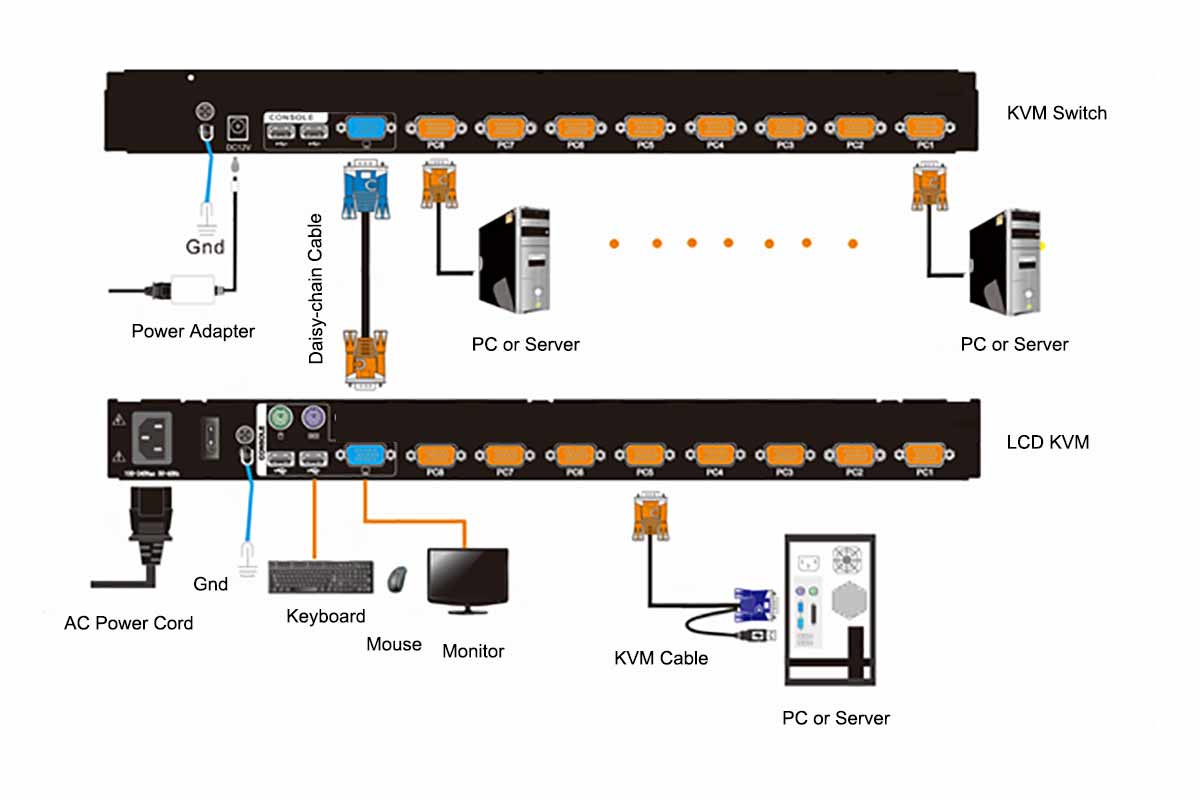

Diagram

Specification

Function		XW1808
Computer connections	Direct	8
	Max	256
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	FHD TFT
	View area	18.47″
	Optimum resolution	1920×1080@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.213(H) × 0.213(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
	Roll wheel	Supports scroll wheel function
Keyboard		99 keys
		(82 keys main keyboard +17 independent small numeric keyboard)
Port selection		pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		27W
Mounting distance		686-770mm ( L=262mm)
		Mounting bracket can be customized for other
		mounting distance
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		11.8kg
Product dimension (W × D × H)		448mm×560mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
