Single Rail 19″ 8 Port VGA LCD KVM Switch

Model No.: XL1908

User-friendly Design: Integrated with a 19″ LCD monitor which allows users to operate conveniently
Switching Computers: Designed with 8 VGA ports, allowing users to control up to 8 computers simultaneously from a single console
High Resolution: Up to 1280 x 1024@60Hz
Multiple Switching Methods: Front panel LEDs, keyboard hotkeys and on-screen-display (OSD) menu
Daisy-chain Connection Support: Allow users to control up to 256 computers

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

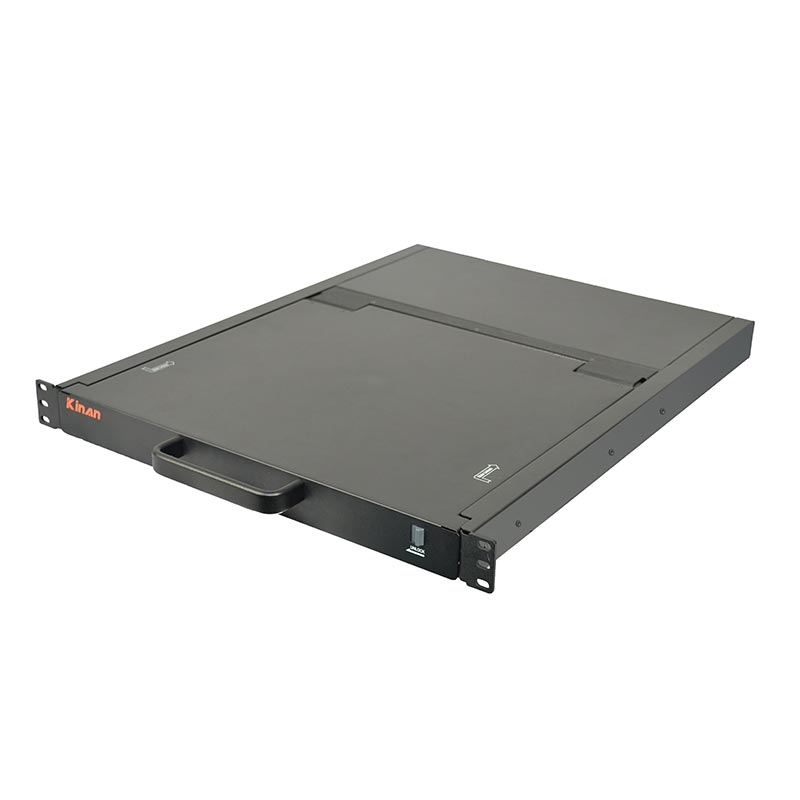

Kinan XL1908 LCD KVM switch features its 19″ screen, built-in keyboard, and touchpad, occupying only 1U of rack space. It allows users to monitor or control up to 8 servers or computers with VGA ports or by using compatible KVM adapters. Daisy-chaining up to XL1908 LCD KVM switch can support up to 256 computers.
The 19″ LCD monitor can support resolution up to 1280 x 1024@60Hz. When it is used, the users can enjoy clear images or videos. In addition, they can easily switch another computer by using front panel pushbuttons, keyboard hotkeys or on-screen-display(OSD) menu.

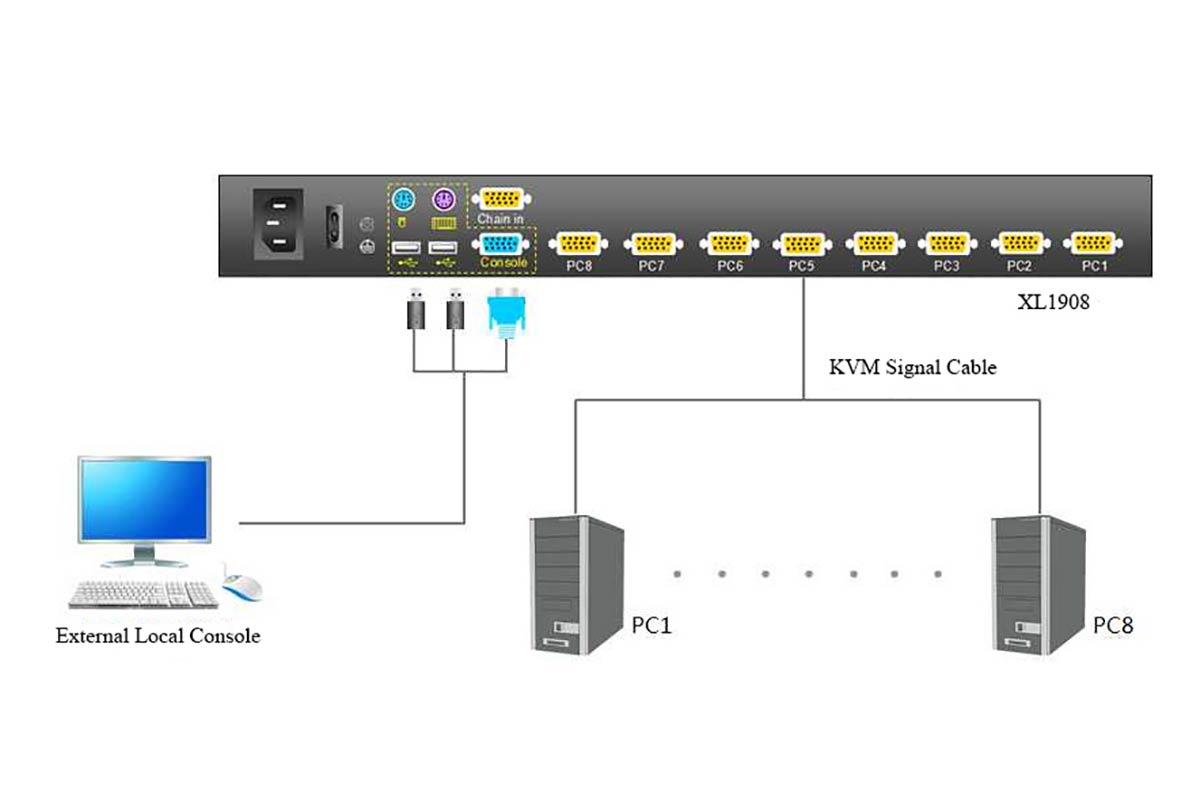

Diagram

Specification

Function		XL1908
Computer connections	Direct	8
	Max	256
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	SXGA TFT
	View area	19″
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.2928(H) × 0.2928(W)
Mouse	X/Y resolution	>1000 points /inch,( 40 points/mm )
	Roll wheel	Supports scroll wheel function
Keyboard		99 keys(82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Front panel pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac , 50-60Hz , <1.5A
Power consumption		21W
Mounting distance		716~825mm ( L=262mm)Mounting rails can be customized for other mounting distance.
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non condensing
Net weight		13.3kg
Product dimension (W × D × H)		448mm×605mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V— -72V DC
