Single Rail 19″ 16 Port USB VGA LCD KVM Switch

Model No.: XL1916

Simple Hardware: Integrated KVM Console with 19″ LCD monitor.
Wide LCD Display: A 19″ KVM console with function of switching.
Control of Computers: Allows users to control up to 16 computers from a single console.
High Video Resolution: The max resolution is 1280 x 1024 @60Hz.
Free Computer Switching: Allows users to switch via simple and easy methods including panel LEDs, keyboard hotkeys, and on-screen-display (OSD) menu.
Daisy-chain Connection: Support daisy-chain connection and control up to 512 computers.
Adjustable LCD Display Module: The LCD module can be adjusted and the max angle is 108 degress.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

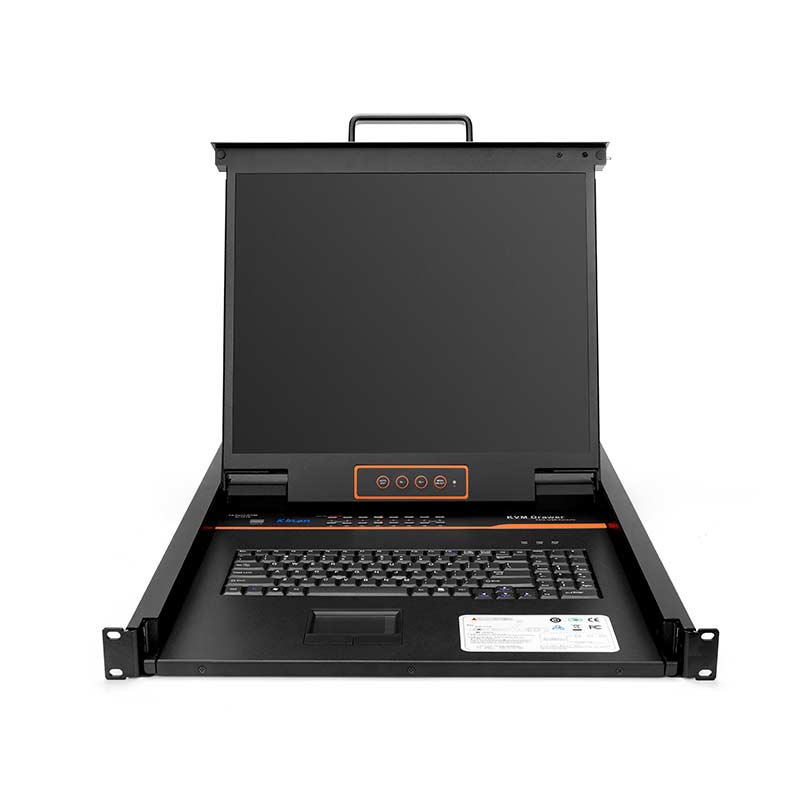

Kinan XL1916 LCD KVM switch is outstanding for its 19″ widescreen monitor, keyboard, and touchpad in a singal console that occupies only 1U height space. With 16 ports, it allows users to control up to 16 computers or servers from a single console (keyboard, mouse and monitor). Additionally, the daisy-chain connection allows this switch to support up to 512 computers. Its built-in LCD monitor supports resolution up to 1280 x 1024@60Hz.

This switch is designed with a sigle rail, which allows users to install it in the cabinet, and the height can be adjusted according to the client’s requirement. And the LCD module can be opened up to 108 degrees so that the users can have an enjoyable viewing experience.

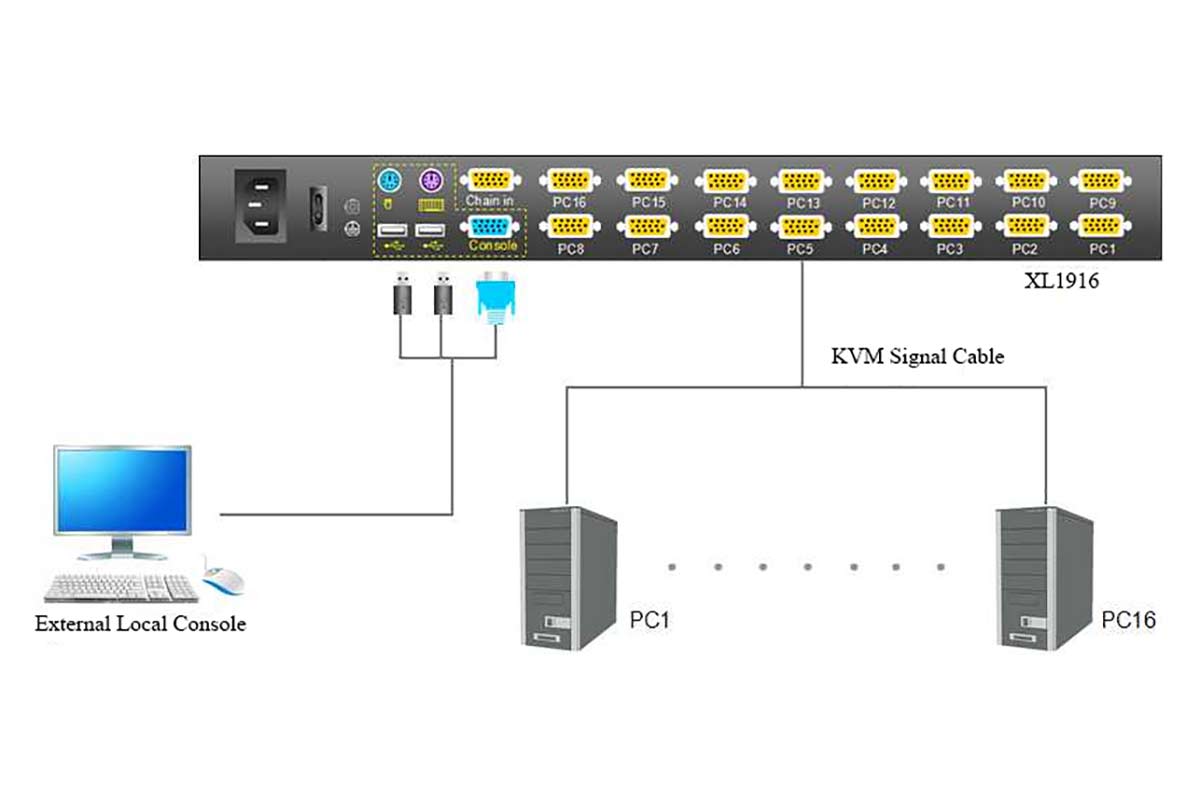

Diagram

Specification

Function		XL1916
Computer connections	Direct	16
	Max	512
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	SXGA TFT
	View area	19″
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.2928(H) × 0.2928(W)
Mouse	X/Y resolution	>1000 points /inch,( 40 points/mm )
	Roll wheel	Supports scroll wheel function
Keyboard		99 keys
		(82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Front panel pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac , 50-60Hz , <1.5A
Power consumption		23W
Mounting distance		716~825mm ( L=262mm)
		Mounting rails can be customized for other mounting distance.
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non condensing
Net weight		13.5kg
Product dimension (W × D × H)		448mm×605mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V— -72V DC
