Single Rail 19″ 24 Port Cat5 LCD KVM Switch

Model No.: LC1924

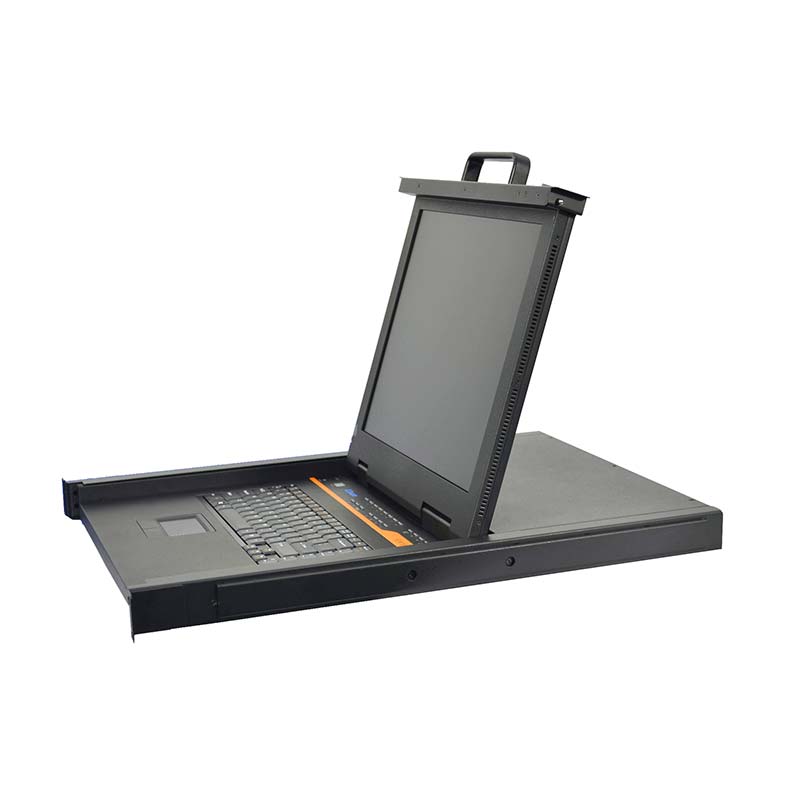

Simple Hardware: A KVM switch is designed with a 19″ LCD monitor.
Centralized Control: Designed with 24 ports to support up to 24 computers.
High Video Resolution: The resolution is up to 1280 x 1024 @60Hz.
Hot Plugging: Add or remove computers without having to power down the switch.
Multiple Switching Methods: Front panel LEDs, keyboard hotkey or on-screen-display (OSD) menu.

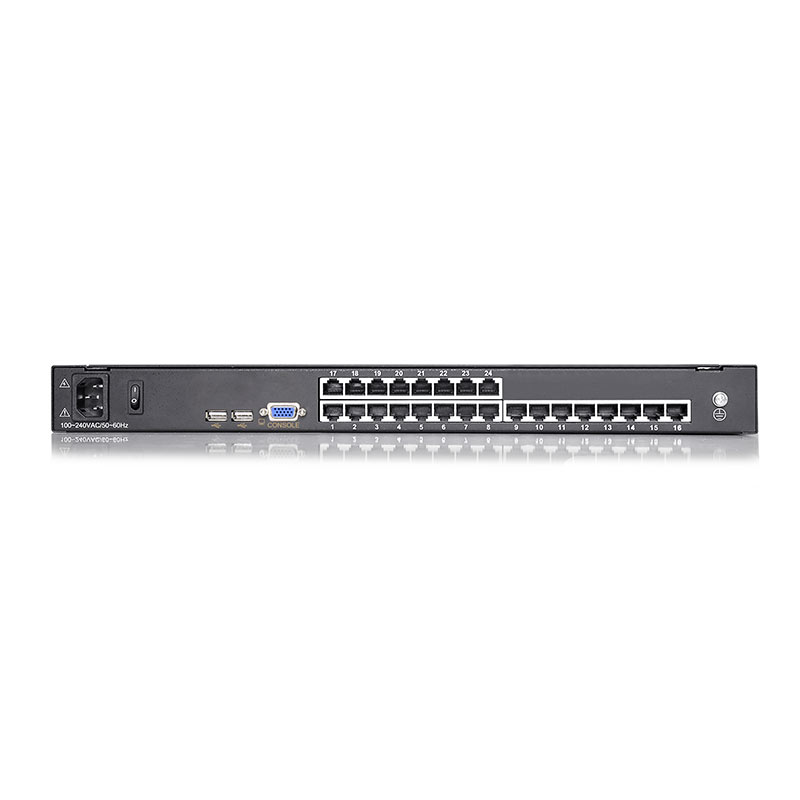

Standard Cat5 Connection: Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables.
Adjusted LCD Display Module: It is easy to enjoy a comfortable viewing experience because the LCD module can be opened up to 108 degrees.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

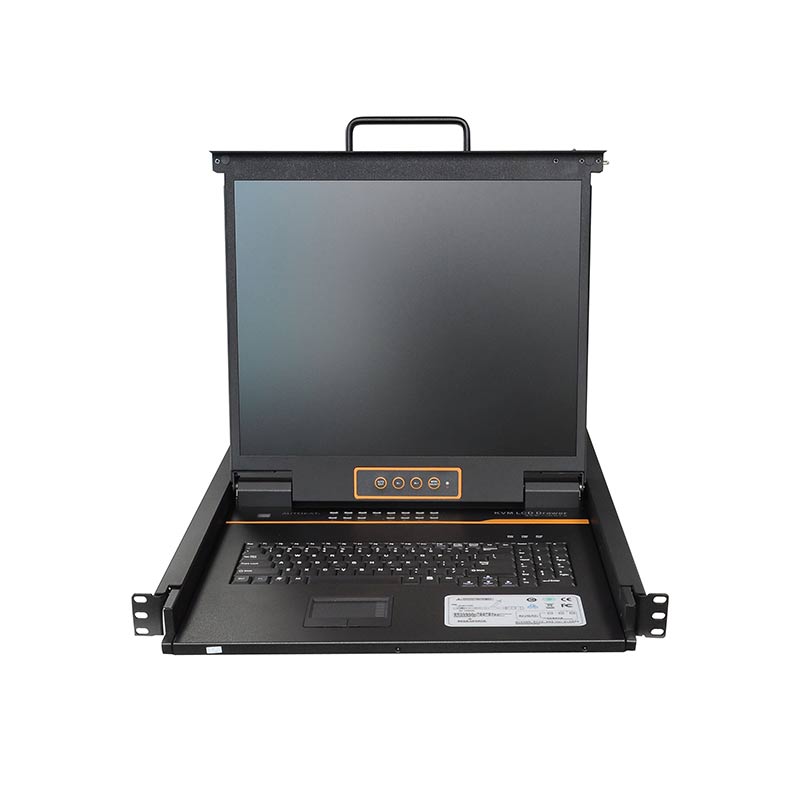

The LC1924 has a built-in 17” LCD monitor that supports resolution up to 1280×1024@60Hz. It allows access and control up to 24 computers from a single console (keyboard, mouse and monitor). Additionally, it can even control up to 768 computers by cascading to another 31 KVM switches.

It is easy for you to switch between computers via front panel pushbuttons, on-screen-display(OSD) menu, or hotkeys. With two-level password security, LC1924 can prevent unauthorized users from viewing and controlling the connected computers. Also, with RJ-45 connectors and Ca5e/6 cables, the distance between the computers and the switch can be extended up to 100m.

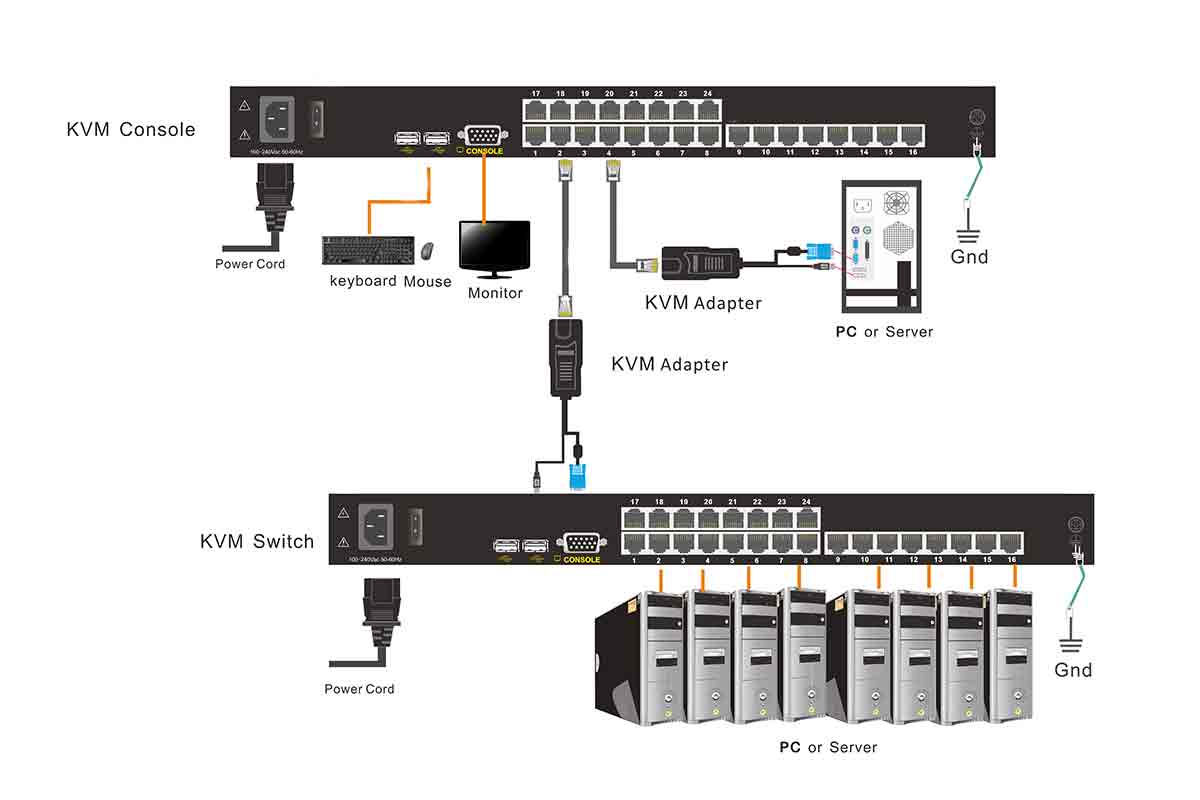

Diagram

Specification

Model		LC1924
Computer connections	Direct	24
	Max	768
Port emulation	Keyboard, mouse	PS/2，USB
LCD monitor	LED model	SXGA TFT
	View area	19″
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.2928(H) × 0.2928(W)
Mouse	X/Y resolution	>1000 points / inch,（ 40 points/mm ）
	Touchpad with trackball	Eliminates the need for an external mouse
Keyboard		99 keys （82 keys main keyboard +17 independent small number pad）
Port selection		pushbuttons, hotkeys , OSD menu
Input power		100V- 240Vac , 50-60Hz , <1.5A
Power consumption		22W
Mounting distance		716~825mm ( L=262mm)
		Mounting rails can be customized for other mounting distance.
Operating temperature		0 — 50 ℃
Store temperature		-20 —60 ℃
Humidity		0—80% RH, non-condensing
Net weight		13.6kg
Product dimension (W × D × H)		448mm×605mm×42.5mm
Package dimension (W × D × H)		765mm615mm185mm
Optional power input		-36V～ -72V DC
