Single Rail 18.5″ 16-Port VGA LCD KVM Switch

Model No.: XW1816

Hardware Composition: Integrated KVM Console with a 18.5″ LCD display in 1U height space.
Space-saving Design: Occupy only 1U rack space in the cabinet.
Number of Computers: Up to 16 computers/servers can be controlled or managed through this VGA LCD KVM switch.
Max Video Resolution: The max resolution is 1920 x 1080 @60Hz.
Easy to Control: Support optional switch methods including front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Daisy-chain Connection: Support daisy-chain connection and control up to 256 computers.
Flexiblility: The LCD display can be adjusted freely because it can be opened up to 108 degrees.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

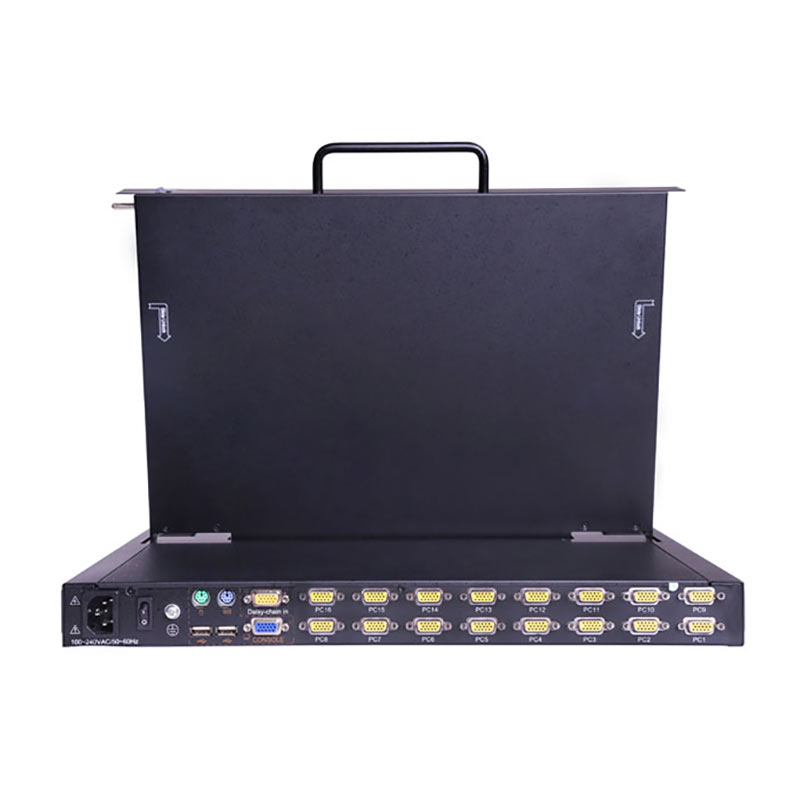

Kinan XW1816 features a flexible LCD display, built-in keyboard, touchpad, and 16 VGA ports. Up to 16 computers or servers can be connected to this VGA KVM switch to deliver signals. Users can easily control multiple computers simultaneously to achieve centralized management.

XW1816 is easy to install and use. The installation of this switch is placing it in the cabinet and connecting right cables to appropriate interfaces. Its user-friendly functions allow users to switch signals of computers via optional switching methods including front panel LEDs, keyboard hotkeys and on-screen-display menu. In addition, no software configuration is needed. Importantly, this VGA KVM switch with 18.5″ screen is compatible with multiple hardware platforms and operating systems.

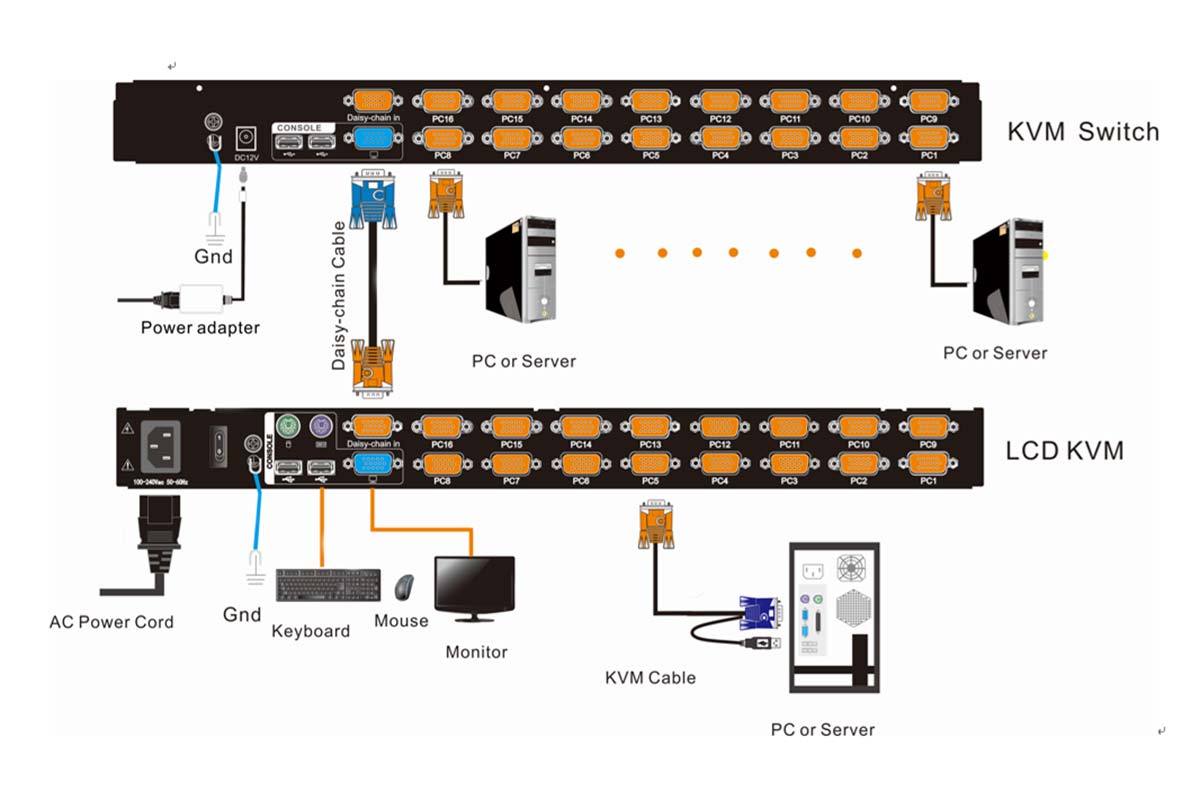

Diagram

Specification

Function		XW1816
Computer connections	Direct	16
	Max	512
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	FHD TFT
	View area	18.47″
	Optimum resolution	1920×1080@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.213(H) × 0.213(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
	Roll wheel	Supports scroll wheel function
Keyboard		99 keys
		(82 keys main keyboard +17 independent small numeric keyboard)
Port selection		pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		29W
Mounting distance		686-770mm ( L=262mm)
		Mounting bracket can be customized for other
		mounting distance
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		12kg
Product dimension (W × D × H)		448mm×560mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
