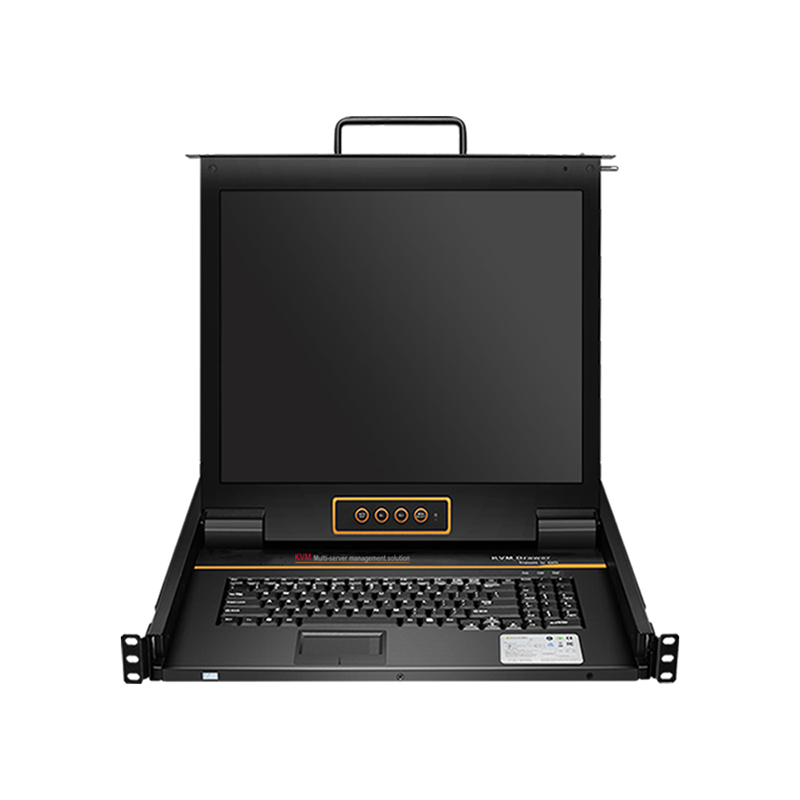

Single Rail 17″ Rack Mount LCD Console

Model No.: LS2701

User-friendly Hardware: Integrated KVM Console with 17″ LCD monitor, keyboard/touchpad in a neatly single rail 1U metal housing, fits for all standard 19″ equipment cabinet.

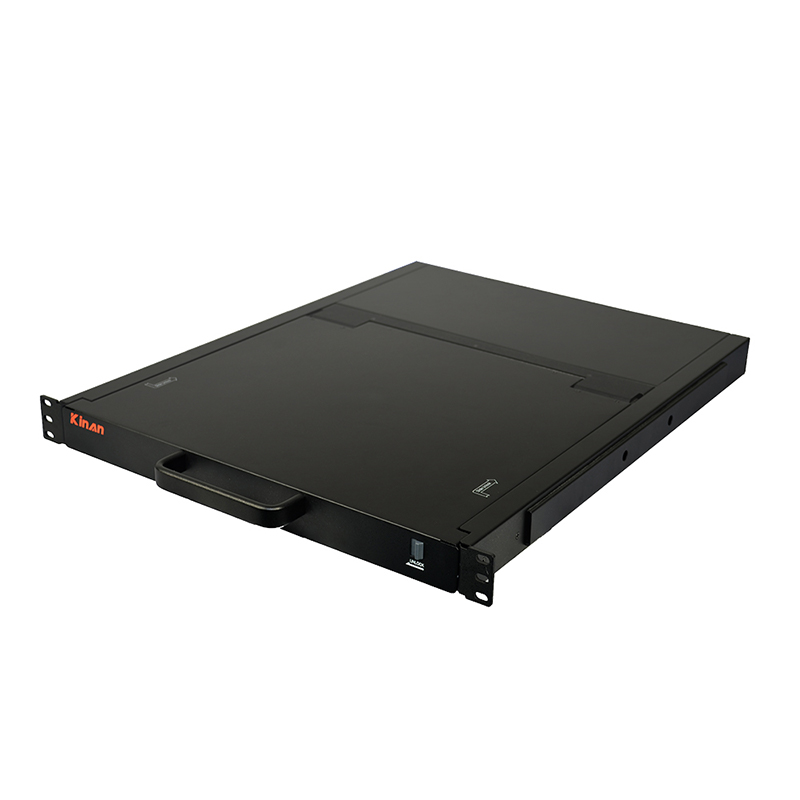

Easy to Use: Easy to install and simple to operate. It slides neatly into a 1U rack space when not in use.
High Video Resolution: The 17in. LCD screen supports video resolutions up to 1280 x 1024@60Hz.
Featured Hardware: Support 99 key full keyboard with numeric keypad + trackpad.
Flexible LCD Module: LCD module can be opened up to 108 degrees to provide a comfortable viewing angle.
Wide Compatibility: The rack mount console is compatible with all major operating systems and KVM Switches with a VGA monitor port and USB keyboard and mouse ports.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

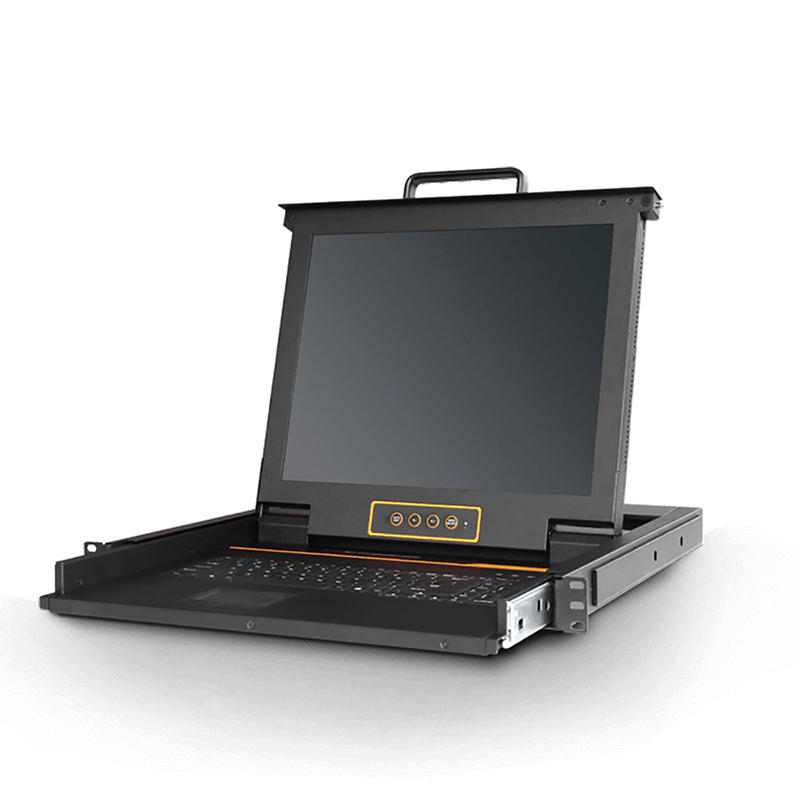

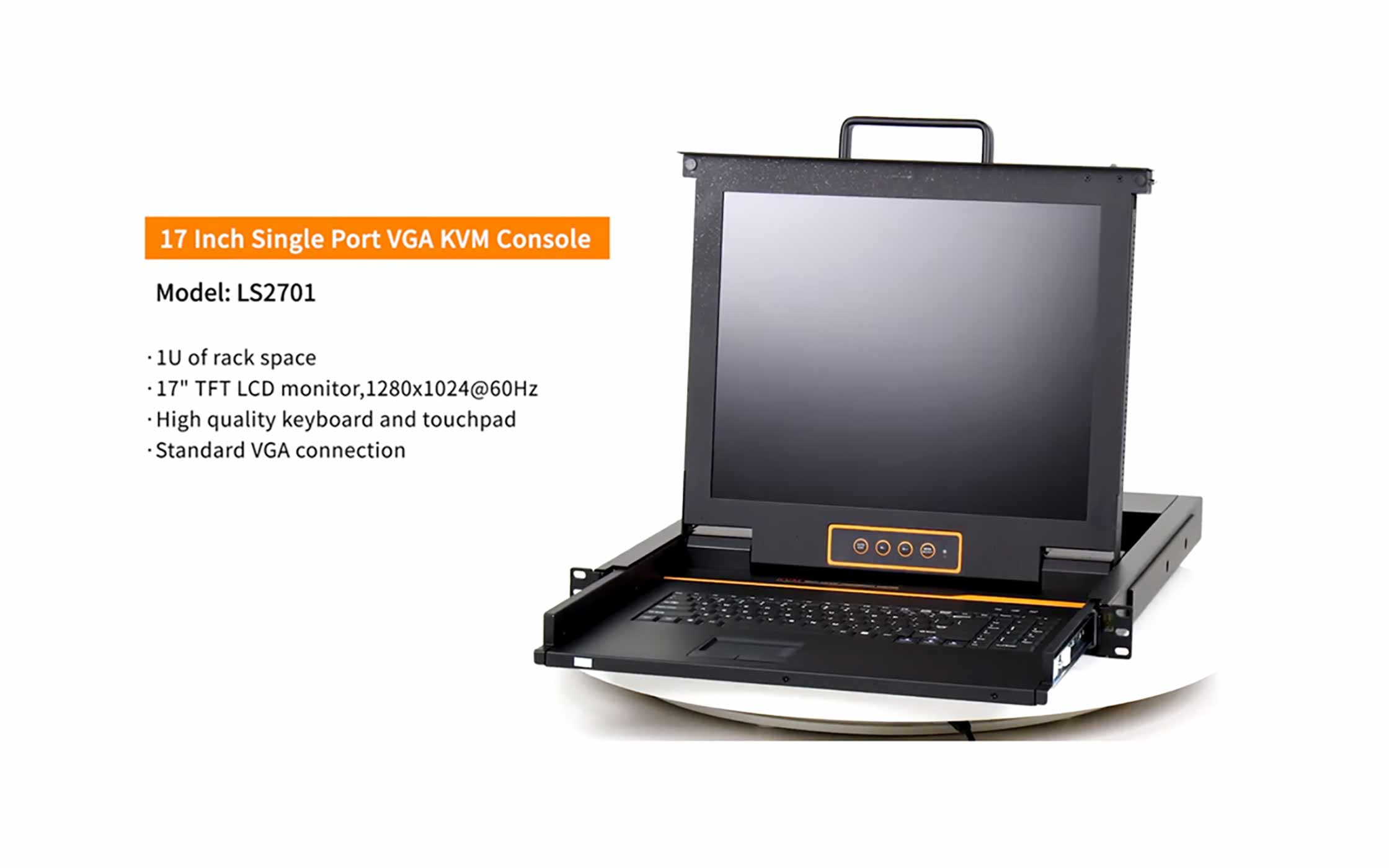

Kinan’s LS2701 is a rack mount LCD KVM Console that features an integrated 17″ LCD monitor, full 99-key keyboard and touchpad in a 1U compact housing. The included cable allows for connection to a USB/PS2 computer or KVM. Features a 17-inch LCD TFT panel, the LS2701 supports resolutions of up to 1280×1024@60Hz.

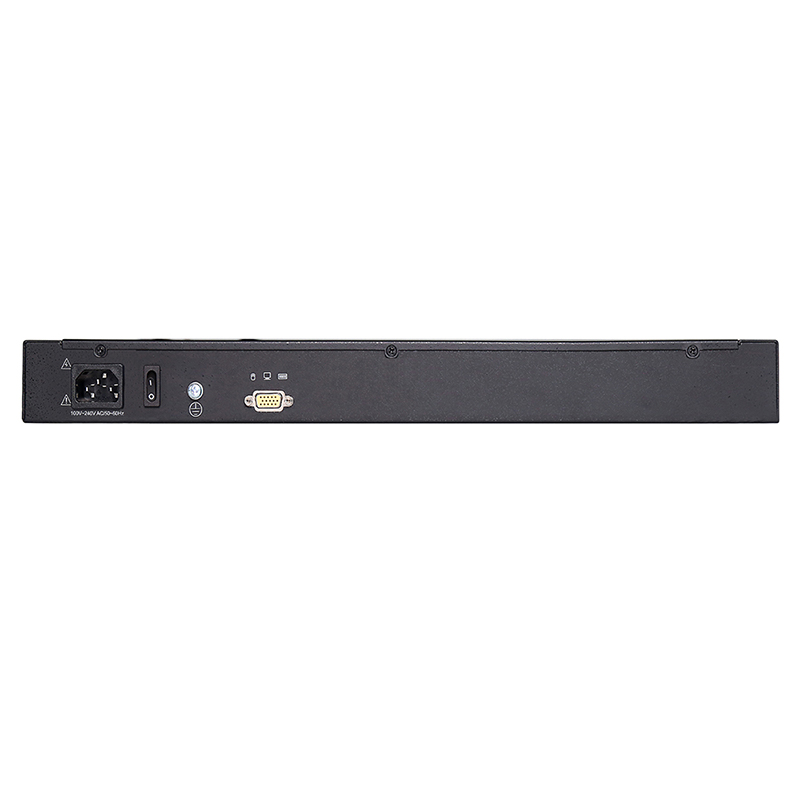

The LS2701 rack console features a single VGA port, which can be connected directly to a server or PC, or to a KVM switch to control multiple systems. The KVM monitor serves as the monitoring and managing console for standard KVM Switches. (LS1901: 19″ LCD)

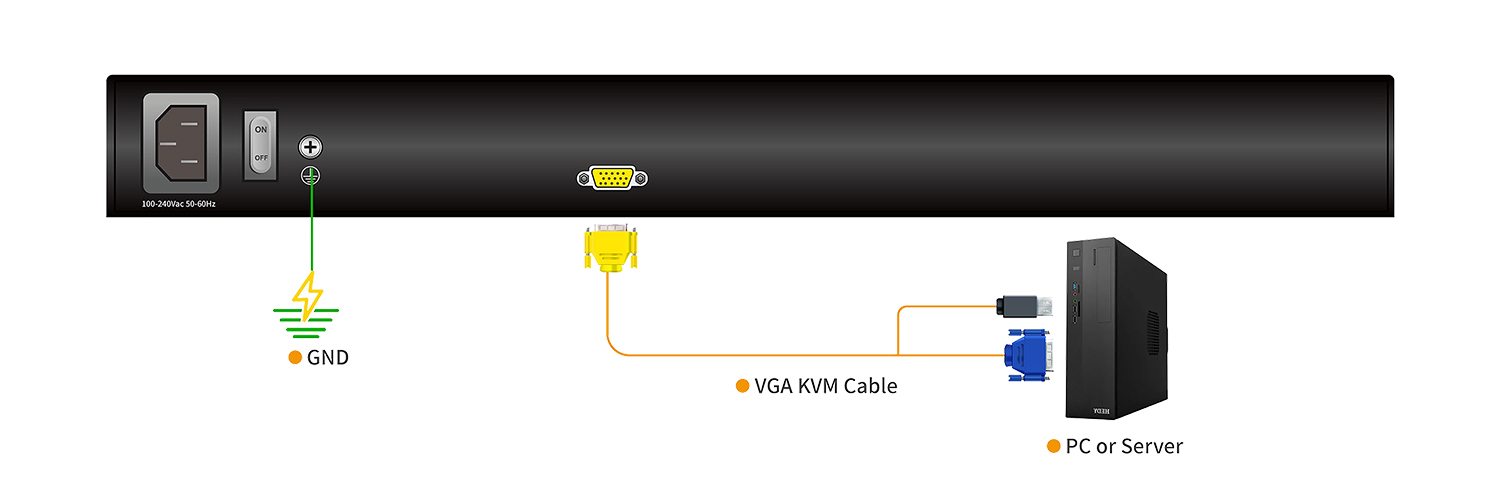

Diagram

Specification

Model		LS2701
Computer Connections	Direct	1
Computer Connections	Max	1
Port emulation	Keyboard, mouse	PS/2, USB
LCD monitor	LCD model	SXGA TFT
	View area	17 “
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m² (T y p)
	Contrast ratio	1000: 1 (T y p)
	Pixel pitch(mm)	0.264(H) × 0.264(W)
Mouse	X/Y resolution	>1000 points / inch, (40 points/mm)
Mouse	Scroll wheel	Support scroll wheel function
Keyboard		99 keys (82 keys main keyboard+17 Independent small numeric keyboard)
Input power		100V-240Vac, 50-60Hz, <1.5A
Power consumption		13W
Operating temperature		0— 50 ℃
Store temperature		-20 — 60 ℃
Humidity		0~80% RH, non-condensing
Net weight		11.7 kg
Product dimension (W × D × H)		448mm×481mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
