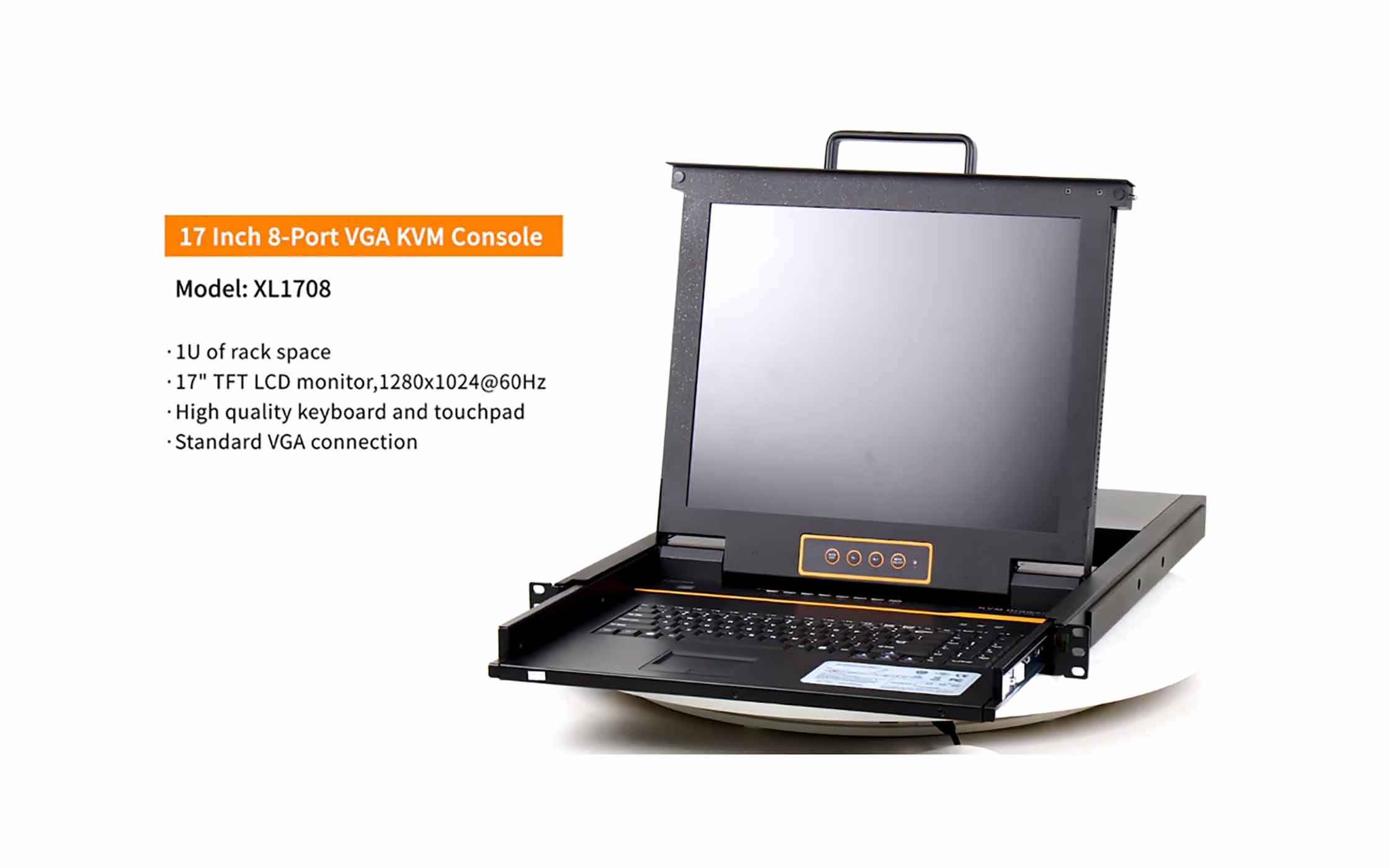

Single Rail 17″ 8 Port USB VGA LCD KVM Switch

Model No.: XL1708

Simple Design: Integrated KVM Console with 17″ LCD monitor.
Management of Computers: A single console controls up to 8 computers.
High Video Resolution: The resolution is up to 1280 x 1024 @60Hz.
Computer Switching Methods: Front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Daisy-chain Connection: Support daisy-chain connection and control up to 256 computers.
Hot Plugging: Users don’t need to power off the LCD KVM switch when they want to add or remove servers/computers.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

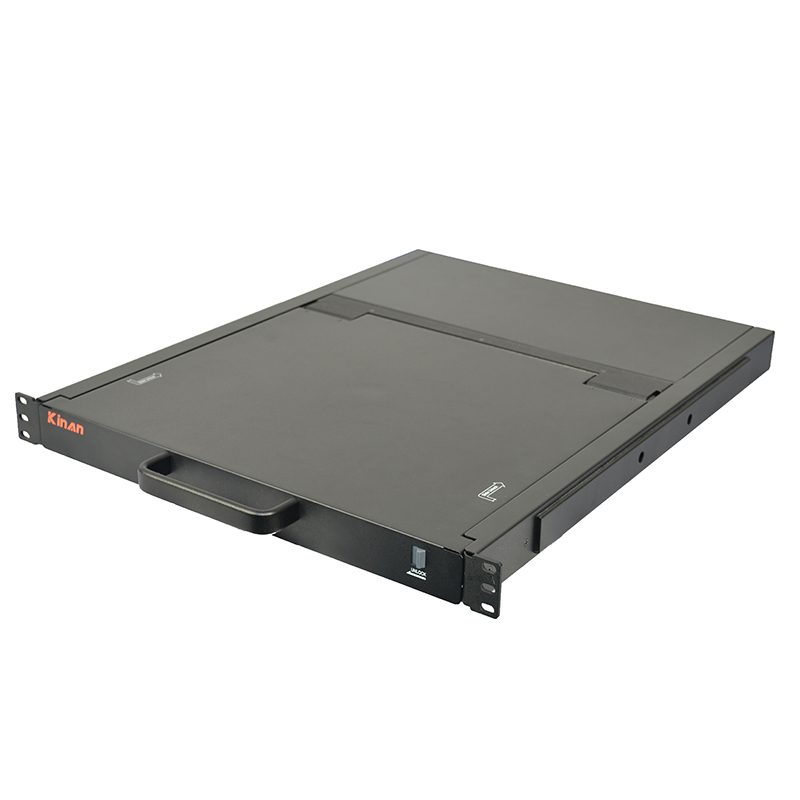

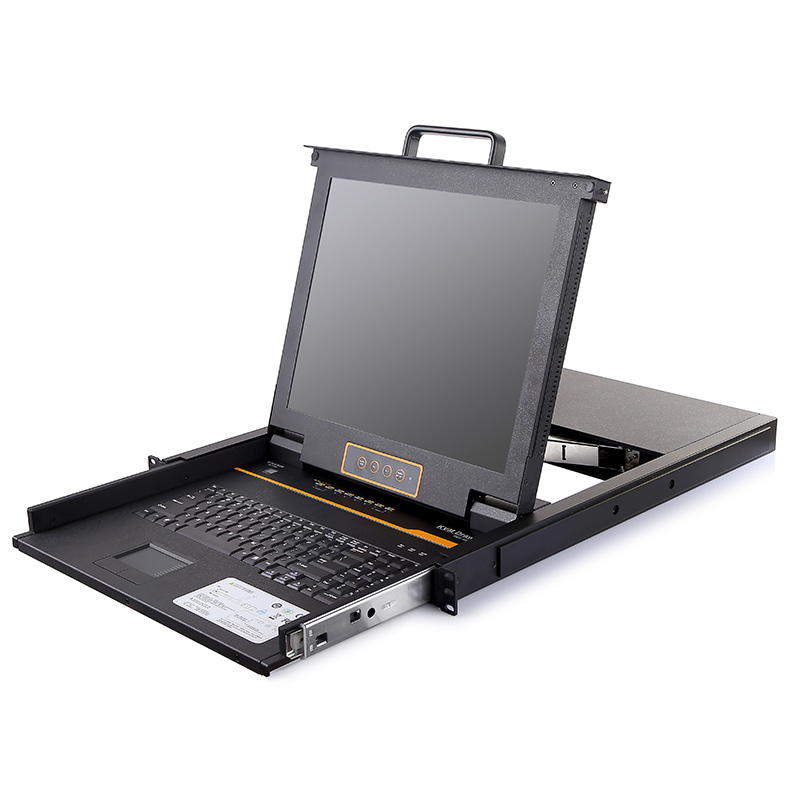

The Kinan’s XL1708 LCD KVM Switch features an integrated 17″ LCD screen, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 8 computers from a single console (keyboard, mouse and monitor). The number of connected computers can be increased up to 256 by daisy-chaining up to 31 XM0108 KVM Switches.

The XL1708 KVM Console has a built-in LCD monitor that supports resolution up to 1280×1024@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

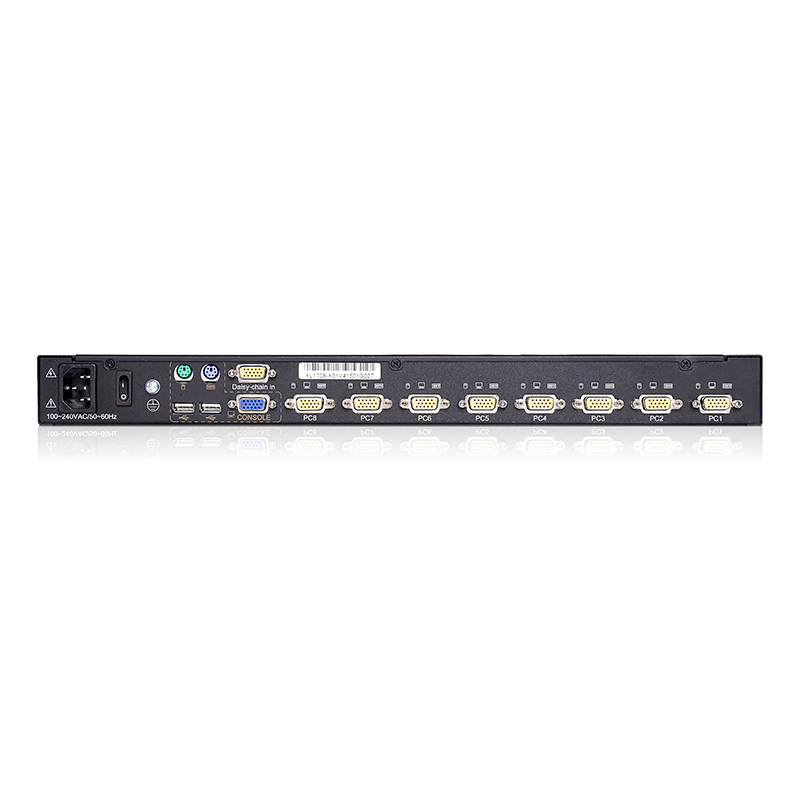

The LCD KVM switch supports USB connection for the computers. An extra HDB15 port allows an additional VGA monitor to be connected.

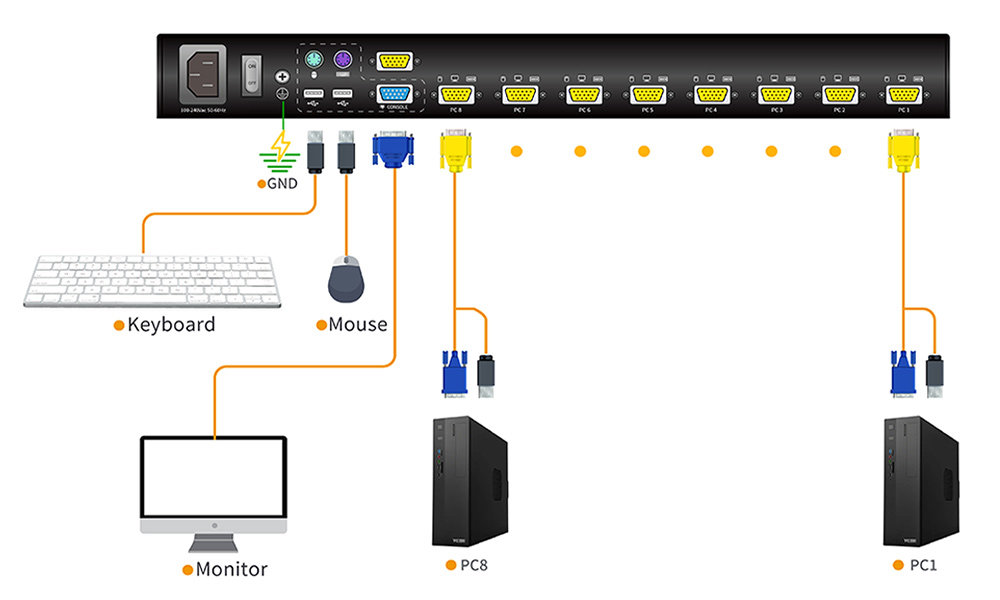

Diagram

Specification

Model		XL1708
Computer connections	Direct	8
Computer connections	Max	256
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	SXGA TFT
	View area	17 “
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.264(H) × 0.264(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Front panel pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		17W
Mounting distance		600~850mm (L=420mm)
Mounting distance		Mounting rails can be customized for other mounting distance.
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		12.8 kg
Product dimension (W × D × H)		448mm×581mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V— -72V DC
