Single Rail 17″ 16 Port USB VGA LCD KVM Switch

Model No.: XL1716

Simple Design: Integrated KVM Console with 17″ LCD monitor.
Control of Computers: A single console controls up to 8 computers.
High Video Resolution: The resolution is up to 1280 x 1024 @60Hz.
Diverse Computer Switching Options: Front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Daisy-chain Connection: Support daisy-chain connection and control up to 512 computers.
Hot Plugging: Easy to add or remove servers and no need to power off the LCD KVM switch.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

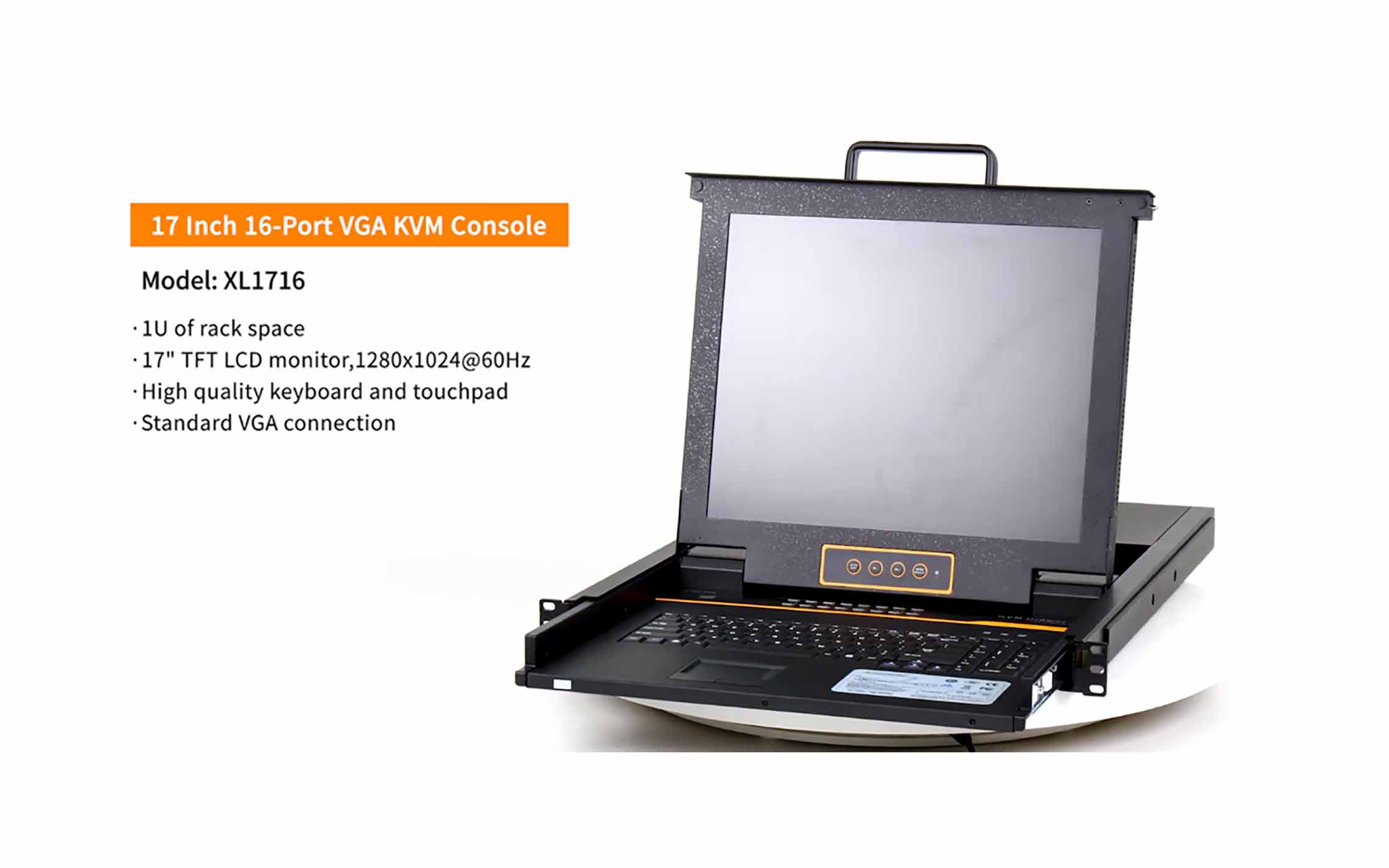

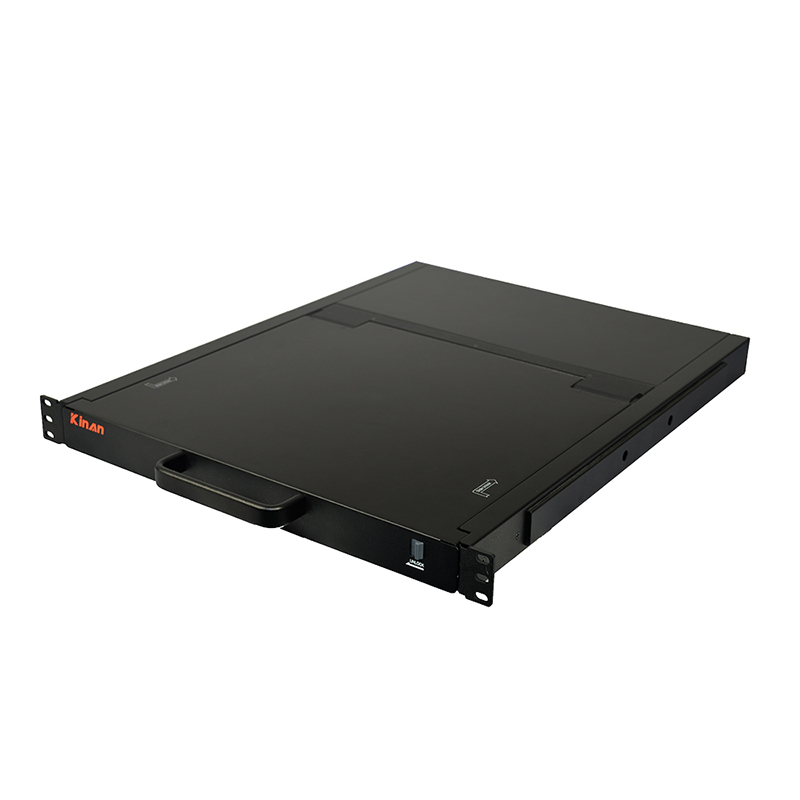

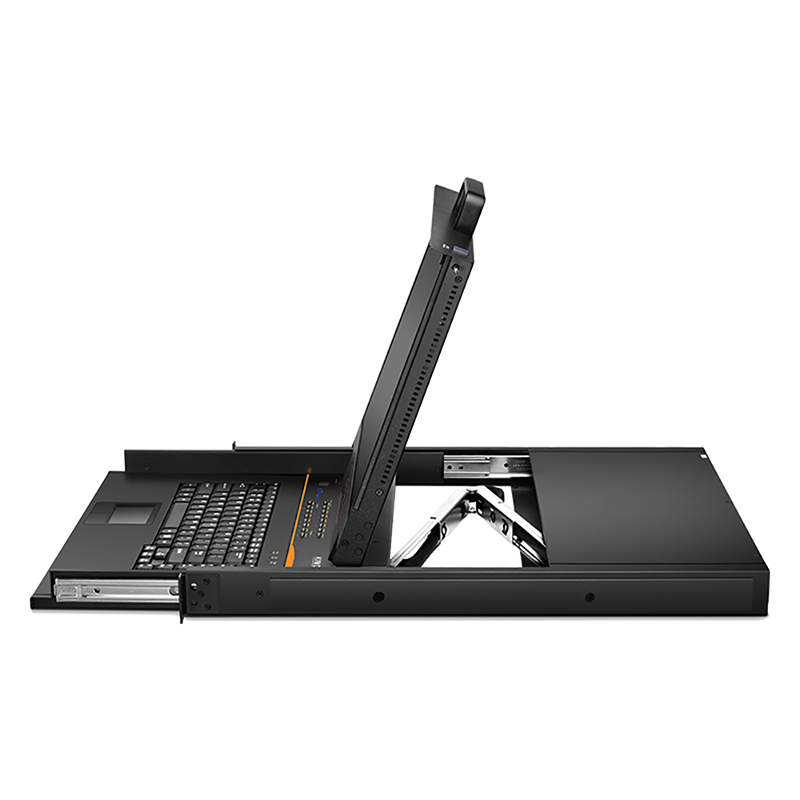

The Kinan’s XL1716 LCD KVM Switch features an integrated 17″ LCD screen, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 16 computers from a single console (keyboard, mouse and monitor). The number of connected computers can be increased up to 512 by daisy-chaining up to 31 XM0108 KVM Switches.

The XL1716 KVM Console has a built-in LCD monitor that supports resolution up to 1280×1024@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

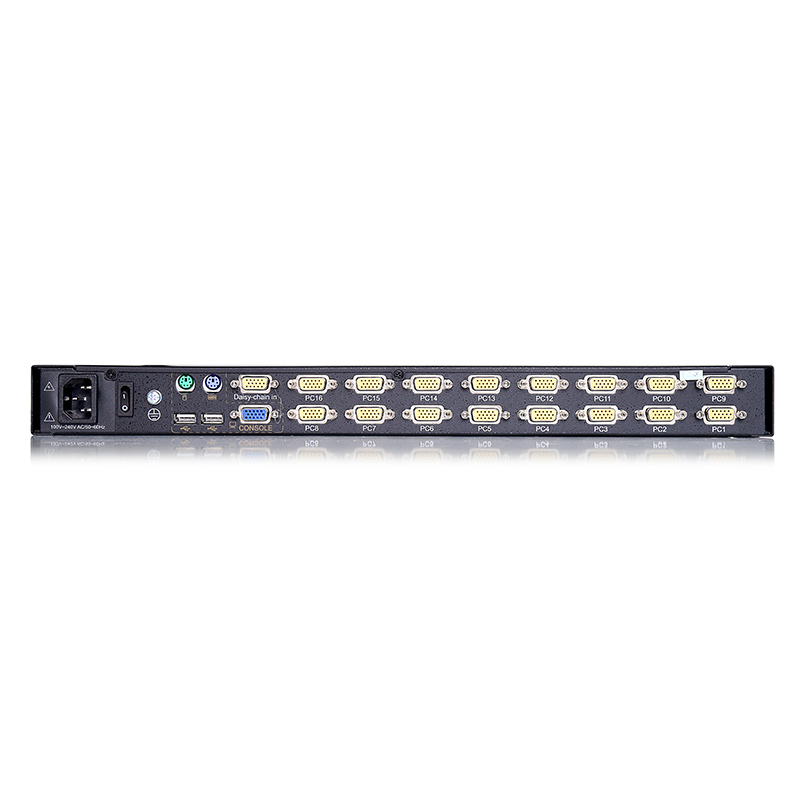

The LCD KVM switch supports USB connection for the computers. An extra HDB15 port allows an additional VGA monitor to be connected.

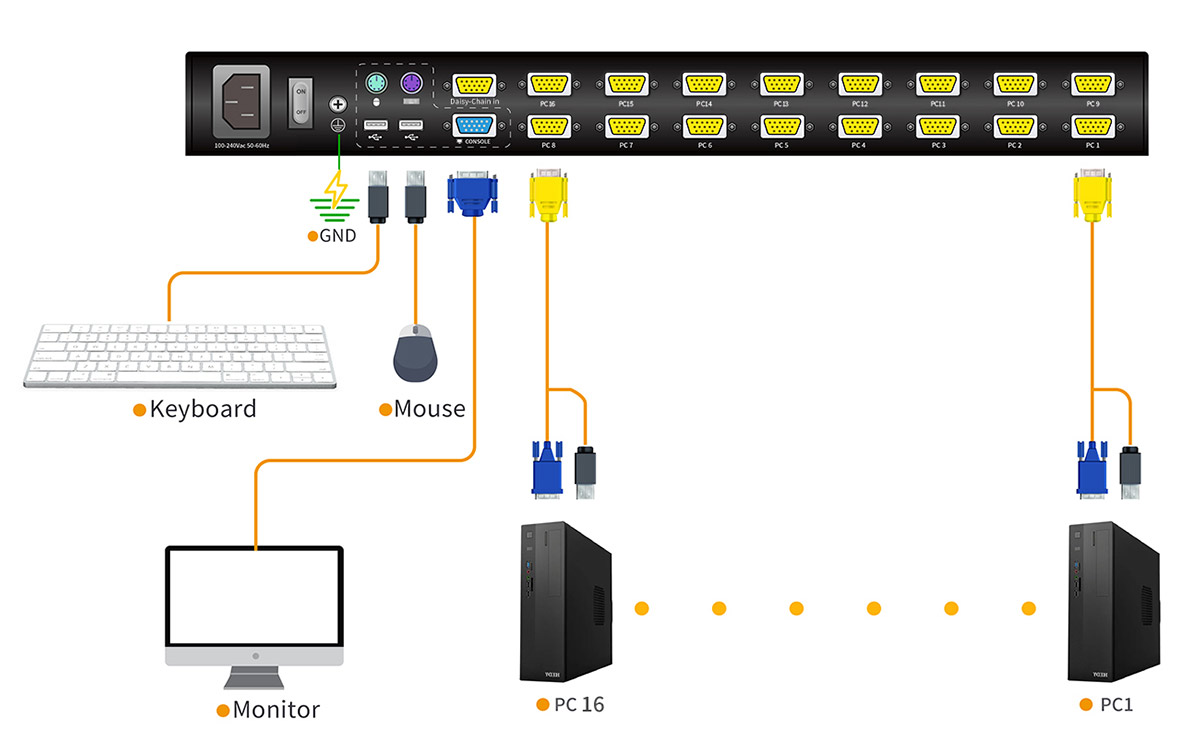

Diagram

Specification

Model		XL1716
Computer connections	Direct	16
Computer connections	Max	512
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	SXGA TFT
	View area	17″
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.264(H) × 0.264(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Front panel pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		19W
Mounting distance		600~850mm (L=420mm) Mounting rails can be customized for other mounting distance.
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		13 kg
Product dimension (W × D × H)		448mm×581mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V— -72V DC
