Single Rail 17″ 16 Port CAT5 LCD KVM Switch

Model No.: LC1716

Space-saving Hardware: Integrated KVM Console with 17″ LCD monitor.
Control of Computers: A single console controls up to 16 computers.
High Video Resolution: The Resolution is up to 1280 x 1024 @60Hz.
Optional Computer Switching: Front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Standard Cat5 Connection: Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables.
Hot Plugging: This LCD KVM switch supports uninterrupted operation when adding new servers or remove connected ones.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

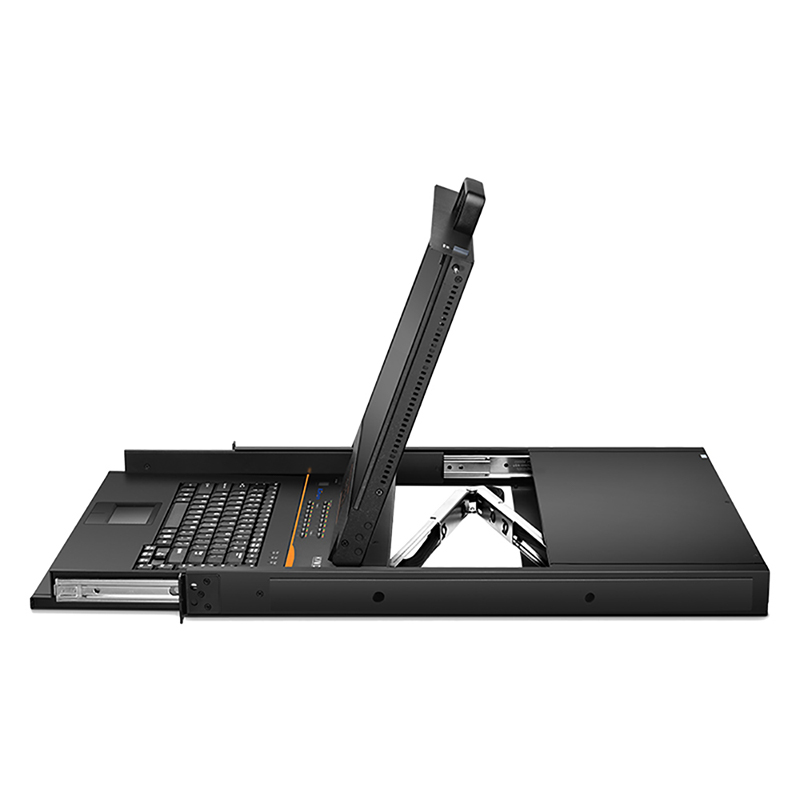

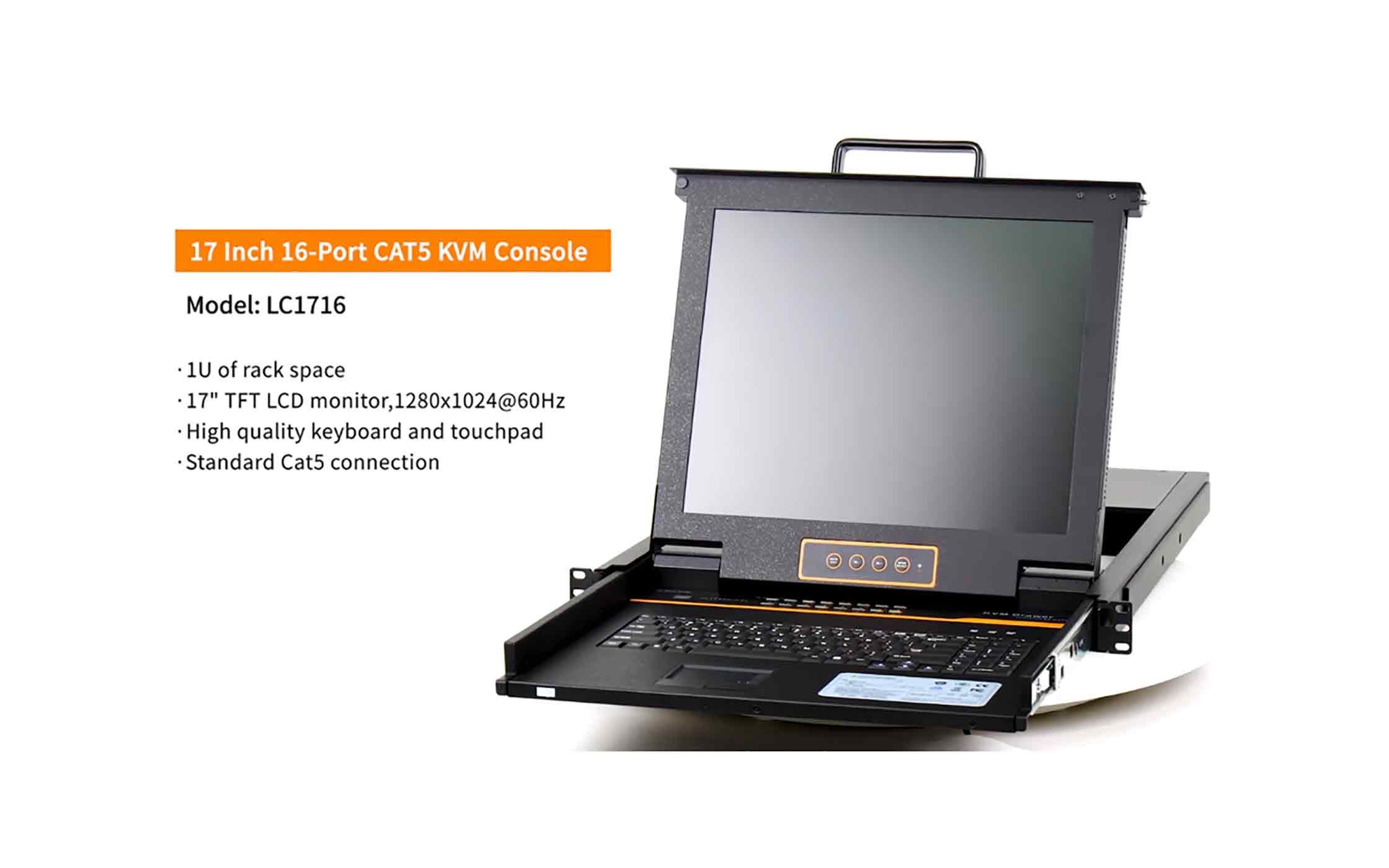

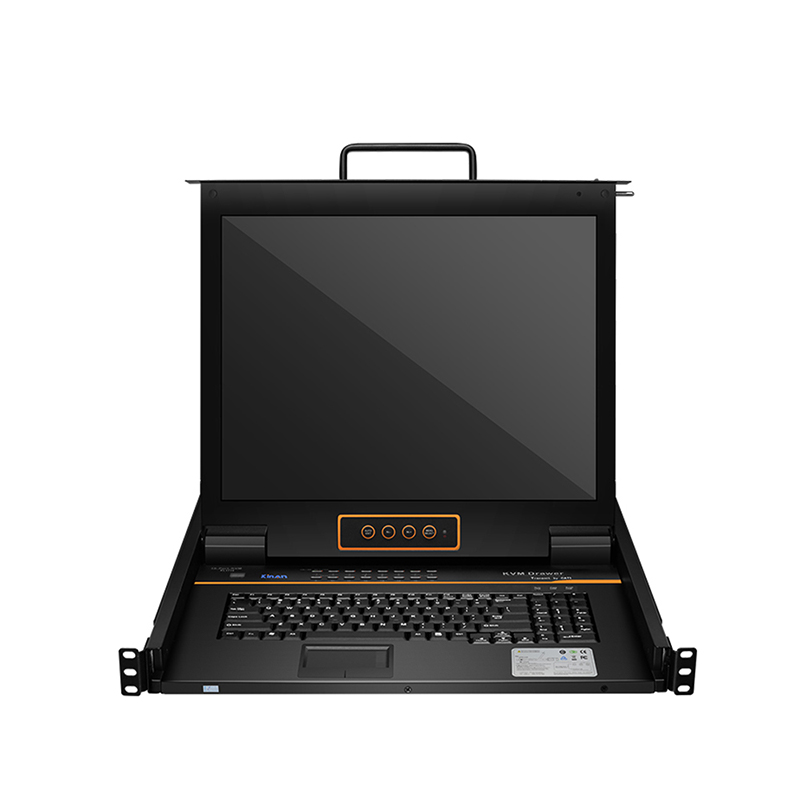

Kinan’s LC1716 rack mount monitor and keyboard integrates a 17” LCD monitor, keyboard/touchpad and a Cat5 KVM switch in a 1U rack mount housing.

The LC1716 allows access and control up to 16 computers from a single console (keyboard, mouse, and monitor). When cascading to another 31 KVM Switches, a single LC1716 can control up to 512 computers.

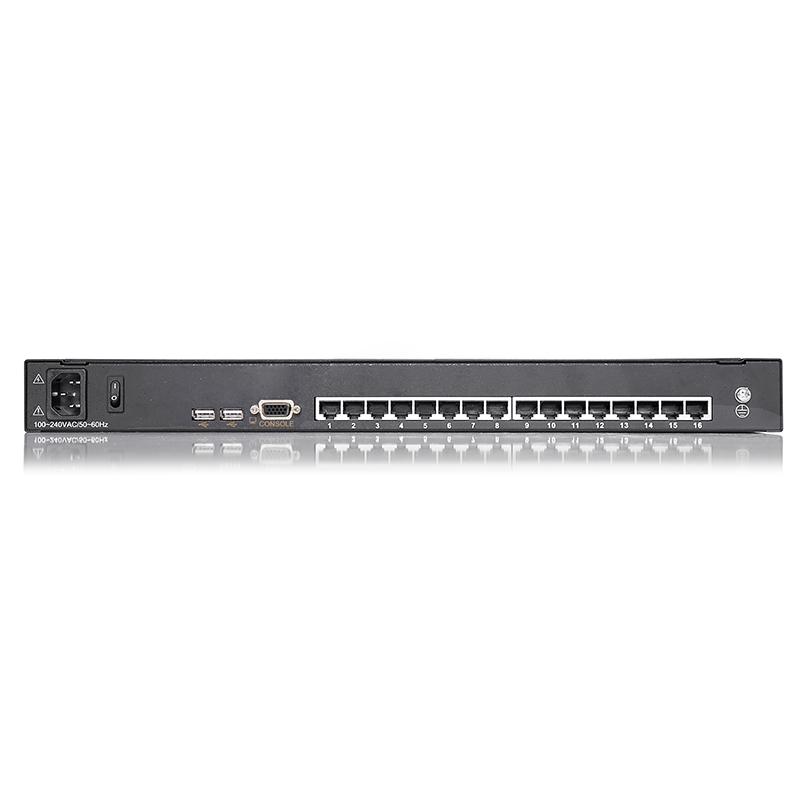

The LC1716 has a built-in 17” LCD monitor that supports resolution up to 1280×1024@60Hz. For added convenience, two USB ports and one VGA port are included in the rear of the KVM to allow for connection of keyboard/mouse and external display.

With the LC1716, you can switch easily between computers by front panel pushbuttons, OSD (on-screen display) or keyboard hotkey command. To enhance security, the LC1716 provides two-level password security which prevents unauthorized users to viewing and controlling the connected computers. With RJ-45 connectors and Cat5e/6 cables connected to computers, the LC1716 helps extend the distance to the servers up to 100m.

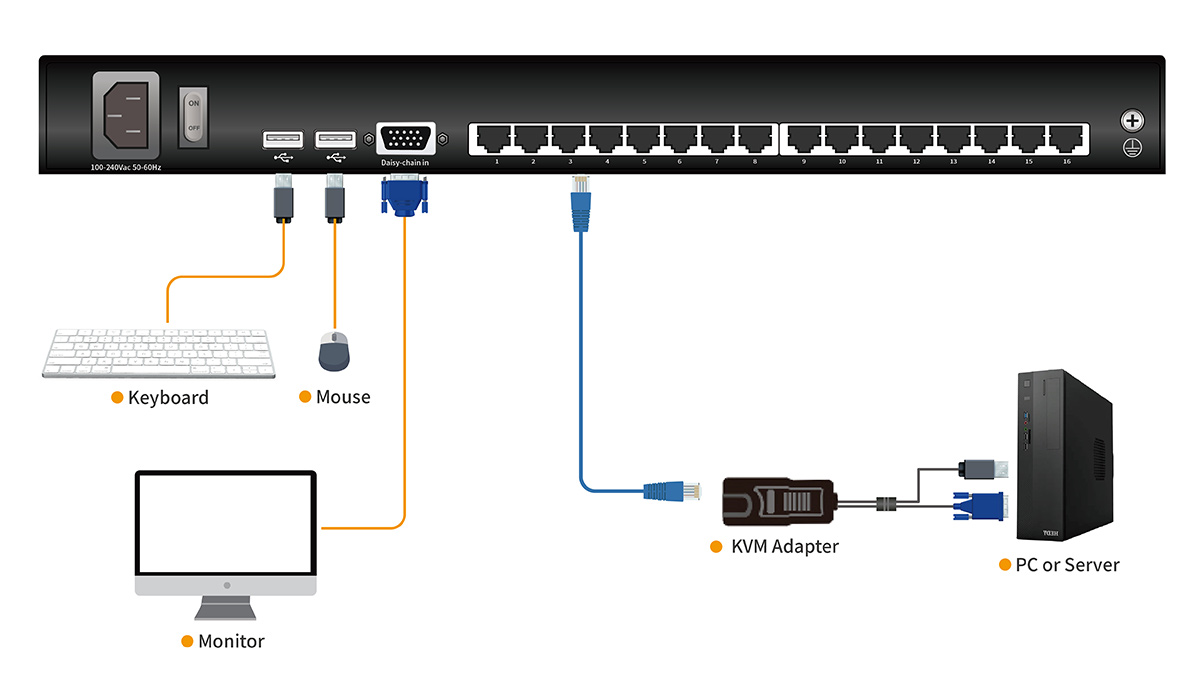

Diagram

Specification

Model		LC1716
Computer connections	Direct	16
Computer connections	Max	512
Port emulation	Keyboard, mouse	PS/2, USB
LCD monitor	LCD model	SXGA TFT
	View area	17 “
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.264(H) × 0.264(W)
Mouse	X/Y resolution	>1000 points / inch,（ 40 points/mm ）
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small number pad)
Port selection		pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		20W
Mounting distance		600~850mm (L=420mm)
Mounting distance		Mounting rails can be customized for other mounting distance.
Operating temperature		0 — 50 ℃
Store temperature		-20 —60 ℃
Humidity		0—80% RH, non-condensing
Net weight		12.8kg
Product dimension (W × D × H)		448mm×581mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V~ -72V DC
