Short Depth Single Rail 4 Port 15.6″ FHD LCD KVM Switch

Model No.: XW1604

Space-saving Hardware: Ultra short depth rackmount LCD console is the ideal solution for short rack, fits for mounting in the small 600m rack.
Number of Computers: A console controls up to 4 computers.
Simple Design: Easy to install and simple to operate. It slides neatly into a 1U rack space when not in use.
High Video Resolution: The 15.6″ widescreen LCD screen supports video resolutions up to 1920 x 1080@60Hz.
Adjustable LCD Display: LCD module can be opened up to 108 degrees to provide a comfortable viewing angle.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The XW1604 rackmount keyboard and monitor switch is an ideal solution for ETC specialized rack, 5G rack, network specialized rack and standard server rack. Featuring an integrated 15.6” LCD display, full-99 key keyboard and touchpad, all in a 1U rack-mountable housing, with 360mm short depth, the XW1604 can be mounted in a small 600mm rack.

The XW1604 supports control of up to 4 computers from a single keyboard-mouse-monitor console. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD). It also features a dual power supply redundancy, largely improve the work efficiency of the whole KVM and server system.

It is easy and fast to install the XW1604 rack mount keyboard drawer; you just need to connect corresponding cables to the right ports of KVM and its module without software configuration. This rack KVM is designed with two anti-vibration fixing screws on the front panel to prevent the console during transportation and operating.

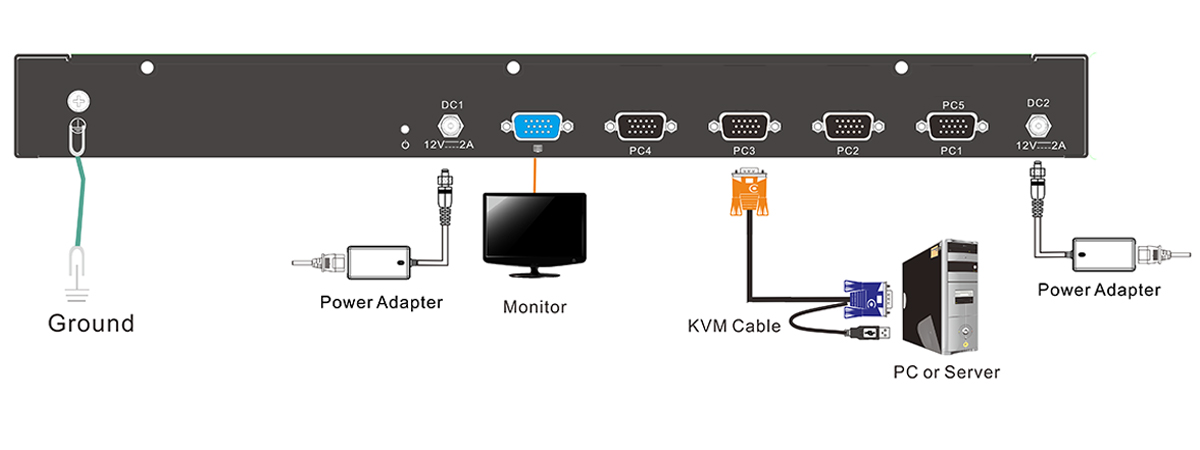

Diagram

Specification

Model		XW1604
Computer connections	Direct	4
Computer connections	Max	4
Port emulation	Keyboard, mouse	USB
LCD monitor	LCD model	FHD TFT
	View area	15.6 “
	Optimum resolution	1920×1080@60Hz
	Display color	16.2M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	800 : 1 （ T y p ）
	Pixel pitch(mm)	0.17925(H) × 0.17925(V)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
Mouse	Scroll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Pushbuttons, hotkeys, OSD menu
Input power		DC12V /2A
Mounting distance		266-470mm (L=235mm)
Mounting distance		Mounting bracket can be customized for other mounting distance
Power consumption		9W
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		8.8kg
Product dimension (W × D × H)		448mm×360 mm×42.5mm
Package dimension (W × D × H)		600mm×538mm×160mm
