Rackmount 16 Port DVI KVM Switch

Model No.: RDV116

Hardware Design: 1U design-Occupies only 1U of the rack space.
Number of Computers: This single DVI KVM switch controls up to 16 computers.
High Resolution Support: The resolution is up to 1920×1080@60Hz.
Switching Computers: Front panel pushbuttons or keyboard hotkey commands.
Standard DVI Connection: Connect to a server or computer via standard DVI connectors.
Hot Plugging: The rackmount KVM switch is hot-pluggable to support adding or removing servers directly without powing off the switch.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The RDV116 rack mount KVM switch allows access and control up to 16 computers from a single console (keyboard, mouse, and monitor).

The RDV116 KVM switch rack supports resolution up to 1920×1080@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons or keyboard hotkey commands.

The USB KVM console supports USB connections for the console and computers. An extra DVI port allows an additional DVI monitor to be connected.

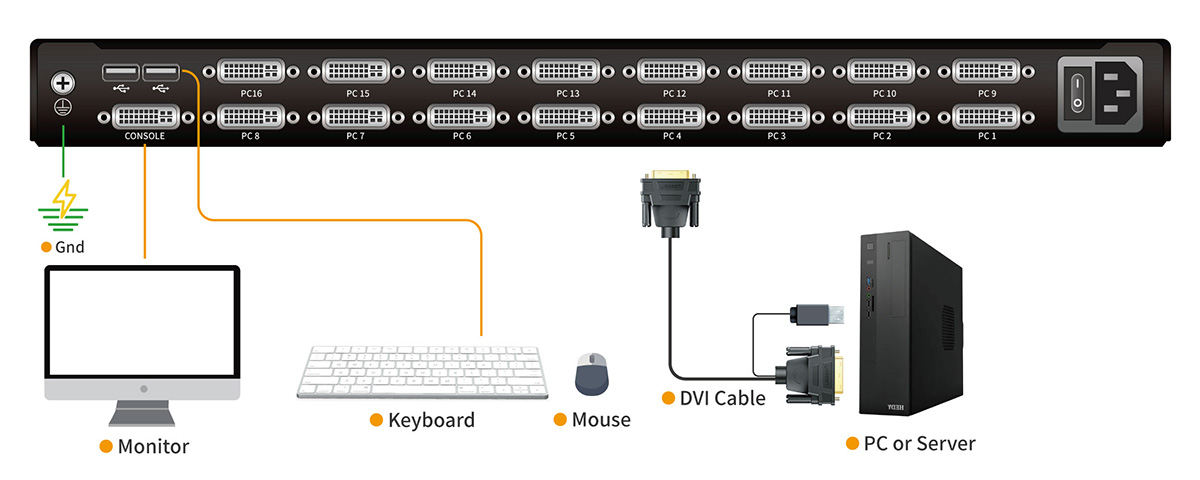

Diagram

Specification

Model No.			RDV116
Computer Connection			16
Port Selection			Pushbutton, Hot key
Connector	Console	Monitor	1x DVI-I
		Keyboard/Mouse	2x USB type A
	KVM		16x DVI-I
Switch	Port Selection		16x buttons
LEDs	Online		16 (orange)
	Selected		16 (green)
	Port Display		2x 7-Segment (orange)
Power Input			DC12V / 2A
Resolution			1920 x 1080@60Hz
Power Consumption			7W
Simulation	Keyboard / Mouse		USB
Environment Required	Operating Temperature		0-50℃
	Storage Temperature		-20-60℃
	Humidity		0-80%RH, Non-condensing
Physical Features	Material		Metal
	Weight		2.4kg
	Dimension		440 x 169 x 43mm
