Rack Mount Single Rail 18.5″ Widescreen LCD Console

Model No.: SW1801

Outstanding Hardware: Integrated KVM Console with 18.5″ LCD monitor, keyboard/touchpad in a neatly single rail 1U metal housing, fits for all standard 19″ equipment cabinet.
User-friendly Design: Easy to install and simple to operate. It slides neatly into a 1U rack space when not in use.
High Resolution: The LCD screen of this rackmount console supports video resolutions up to 1920 x 1080@60Hz, resolutions up to 1366 x 768 @ 60Hz for LS1801.
Keyboard Features: Support 99 key full keyboard with numeric keypad + trackpad.
Wide Compatibility: The rack mount console is compatible with all major operating systems and KVM Switches with a VGA monitor port and USB keyboard and mouse ports.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan SW1801 is a rackmount KVM Console with an integrated 18.5” LCD monitor, full 99-key keyboard, and touchpad in a 1U compact housing. The included cable allows connection to a USB computer or KVM. Features an 18.5” widescreen LCD panel, it supports resolutions of up to 1920 x 1080 @60Hz.

The SW1801 rackmount console features a single VGA port, which can be connected directly to a server or PC, or a KVM switch to control multiple systems. The KVM monitor serves as the monitoring and managing console for standard KVM Switches.

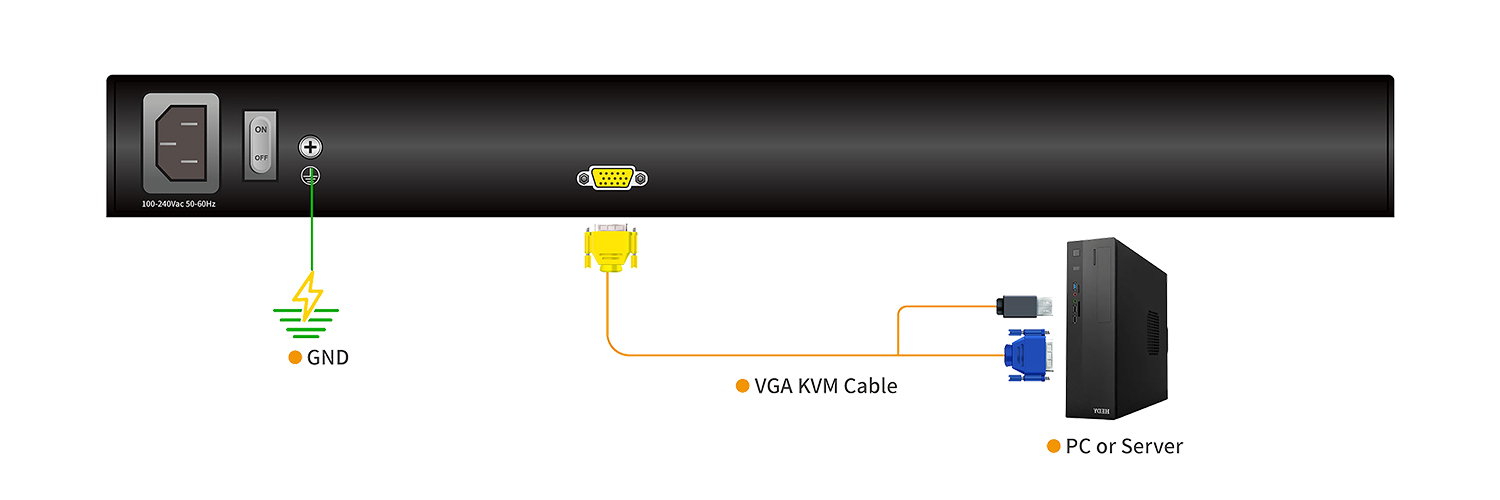

Diagram

Specification

Model		SW1801
Computer Connections	Direct	1
Computer Connections	Max	1
Port emulation	Keyboard, mouse	PS/2, USB
LCD monitor	LCD model	FHD TFT
	View area	18.47″
	Optimum resolution	1920×1080@60Hz
	Display color	16.7 M
	Brightness	250cd/ m² (T y p)
	Contrast ratio	1000: 1 (T y p)
	Pixel pitch(mm)	0.213(H) ×0.213(W)
Mouse	X/Y resolution	>1000 points / inch, (40 points/mm)
Mouse	Scroll wheel	Support scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Input power		100V-240Vac, 50-60Hz, <1.5A
Power consumption		20W
Mounting distance		686-770mm (L=262mm)
Mounting distance		Mounting bracket can be customized for other mounting distance
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		11.2kg
Product dimension (W× D×H)		448mm×560mm×42.5mm
Package dimension (W× D×H)		765mm×615mm×185mm
Optional power input		-36V— -72Vdc
