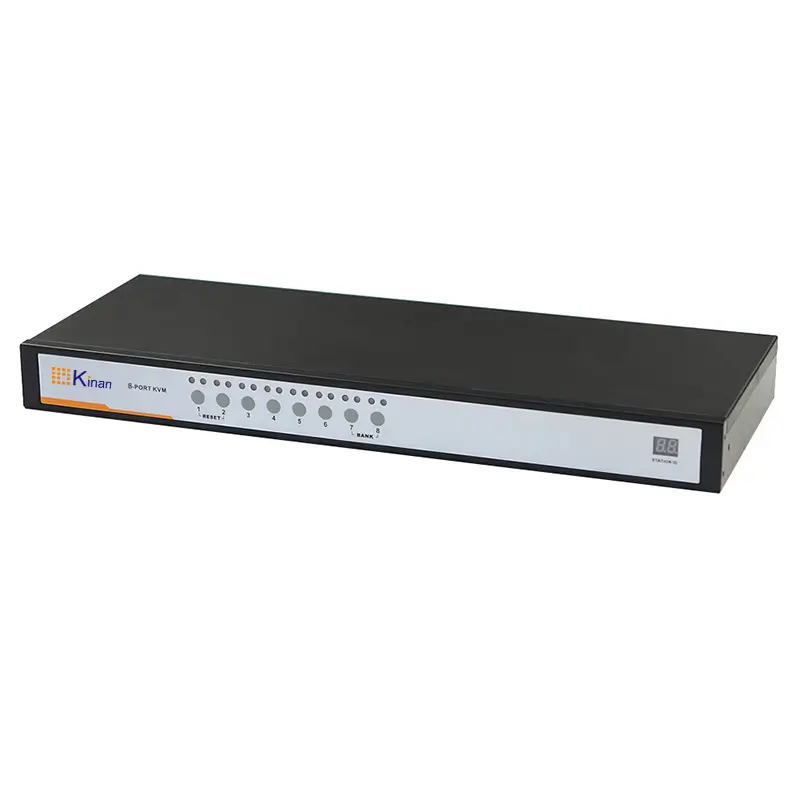

Rack Mount 8 Port USB VGA KVM Switch

Model No.: XU0108

Hardware Design: 1U design allows it to be installed in cabinet easily and save more space.
Control Computers: A single console controls up to 8 computers.
High Resolution Support: Resolution is up to 2048×1536; DDC2B.

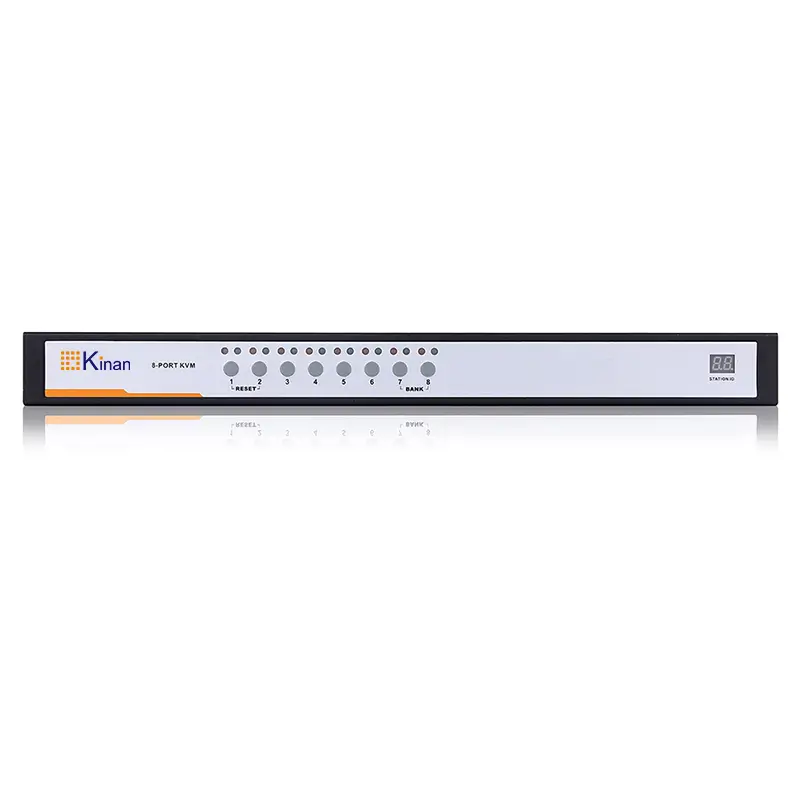

Effortless Computer Switching: Front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Daisy-chain Connection: Support daisy-chain connection and control up to 256 computers.
Hot Plugging: This rackmount VGA KVM switch is easy to use because the users have no need to power off the switch when they want to add or remove servers/computers.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The XU0108 rack mount USB KVM switch allows access and control up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 256 computers can be controlled from a single keyboard-mouse console by cascading to another 31 additional switches.

The XU0108 KVM switch supports resolution up to 2048×1536; DDC2B. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

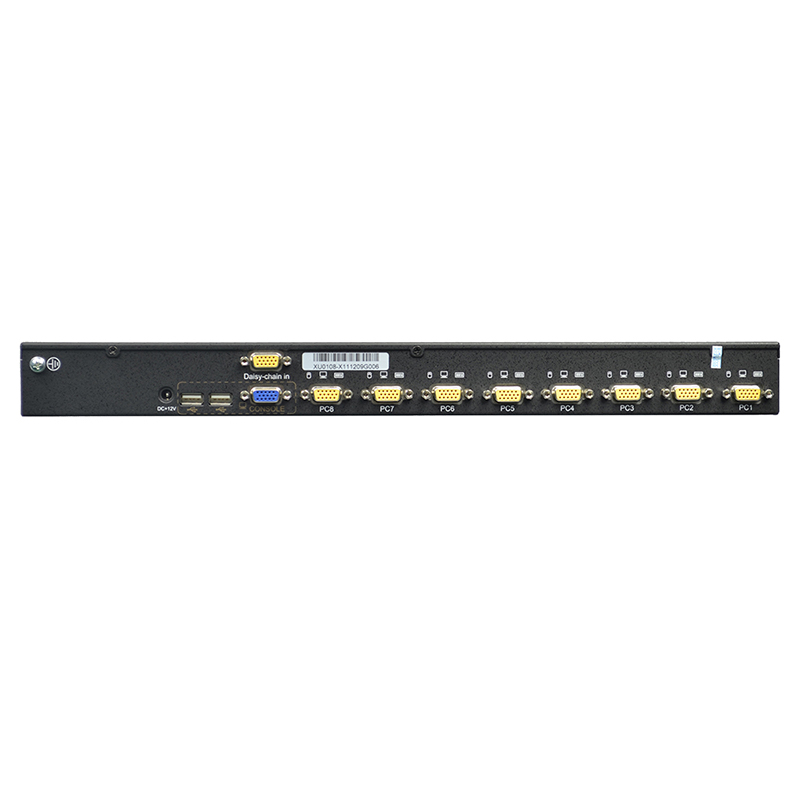

The KVM switch supports USB connections for the console and computers. An extra HDB15 port allows an additional VGA monitor to be connected.

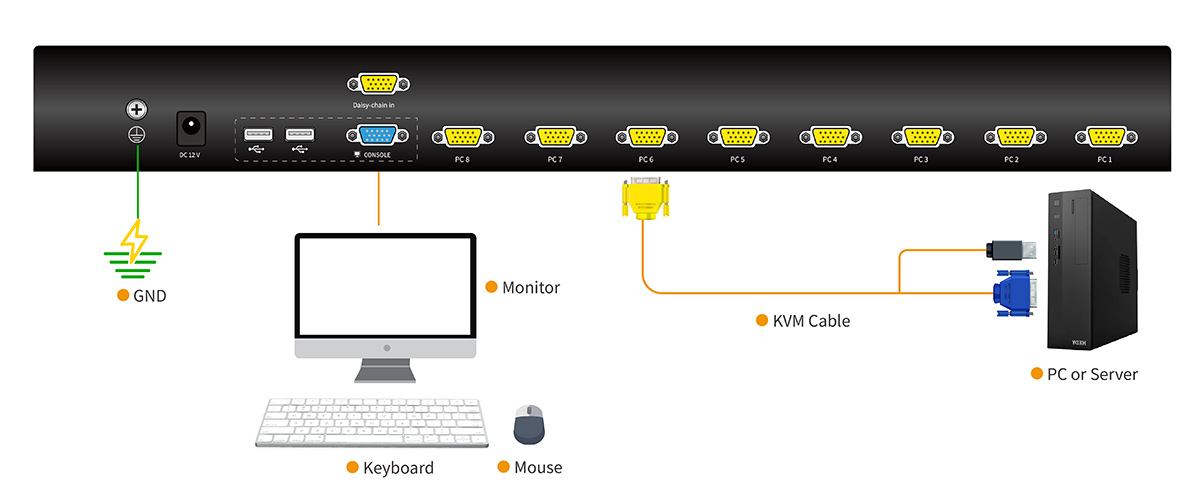

Diagram

Specification

Model			XU0108
Port Selection			8
Computer Connections			Select buttons, OSD menu
Connector	Console	monitor	1x HDB-15 Female(blue)
		keyboard	2x USB type A
		mouse
	KVM port (HDB-15 Female(yellow)		8
	Cascade port		1x HDB-15 Female(yellow)
Switch	Port selection		8x keys
LED indicator	Online(green)		8
	Selected(orange)		8
	Cascading display		2x 7- Segment (orange)
Input power			DC 12V/ 2A
Video signal			2048×1536; DDC2B
Power consumption			3.6W
Emulation	Keyboard/Mouse		USB
Environment requirements	Working Temperature		0-50℃
	Store Temperature		-20-60℃
	Humidity		0-80%RH, Non-condensing
	Material		Metal
Physical features	Weight		2.0kg
	Dimension		440x169x43mm
