Rack Mount 8 Port USB CAT5 KVM Switch

Model No.: KC2108

Space-saving Design: 1U design makes this rackmount Cat5 KVM switch occupy little space, and it is designed with USB and Cat5 ports.
Manage Multiple Computers: A single console controls up to 8 computers.
High Resolution: Resolution is up to 1920×1080@60Hz.
Diverse Computer Switching Options: Front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
User-friendly RJ-45 Connectors: Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables.
Hot Plugging: This hot-pluggable rackmount KVM switch allows users to freely add or remove servers without the need for turning off the power.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The KC2108 rack mount CAT5 KVM switch allows access and control up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 256 computers can be controlled from a single keyboard-mouse console by cascading to another 31 additional switches.

The KC2108 KVM switch supports resolution up to 1920×1080@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

The KVM switch supports USB connections for the console and computers, RJ-45 connectors and CAT 5e/6 cable are used to link to the computers.

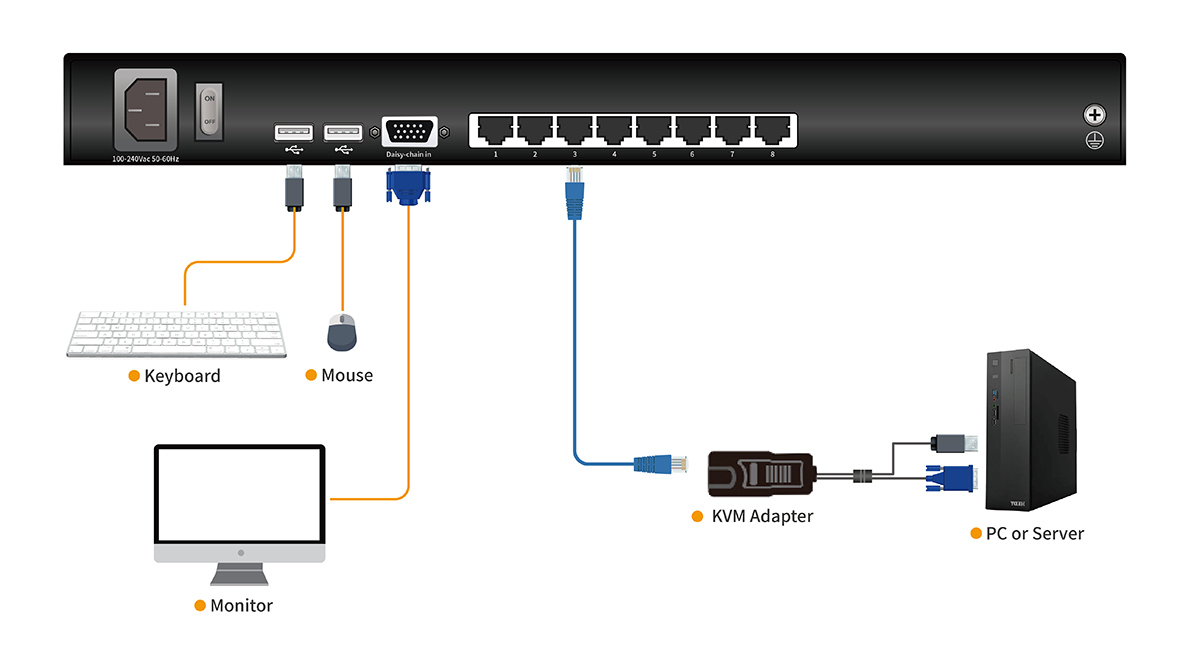

Diagram

Specification

Model			KC2108
Direct			8
Max			256
Port Selection			LED buttons, OSD menu
Connector	Console	Monitor	1x HDB-15 Female(blue) 2x USB TYPE A
		Keyboard
		Mouse
	KVM port (RJ45)		8
	Upgrading switch		1x RJ11 Female
	Power		3-Prong AC socket
Switch	Port Selecting (buttons)		8
	Reset		1x tuch-button
	Upgrading switch		1x pull switch
	Power		1x rocker switch
Indicating LEDs	Online (green)		8
	Selected(orange)		8
	Power		1(blue)
	Cascading/port display		2x 7- Segment (orange)
Input power			100V- 240Vac, 50-60Hz, <1.5A
Resolution (Optimum)			1920×1080@60Hz
Power Consumption			4W
Emulation	Keyboard/Mouse		PS/2 、USB
Environment Requirements	Working Temperature		0-50℃
	Store Temperature		-20-60℃
	Humidity		0-80%RH, Non-condensing
Physical Features	Material		Metal
	Weight		2.5kg
	Dimension		433x171x44.5mm
