Rack Mount 4 Port USB VGA KVM Switch

Model No.: XU0104

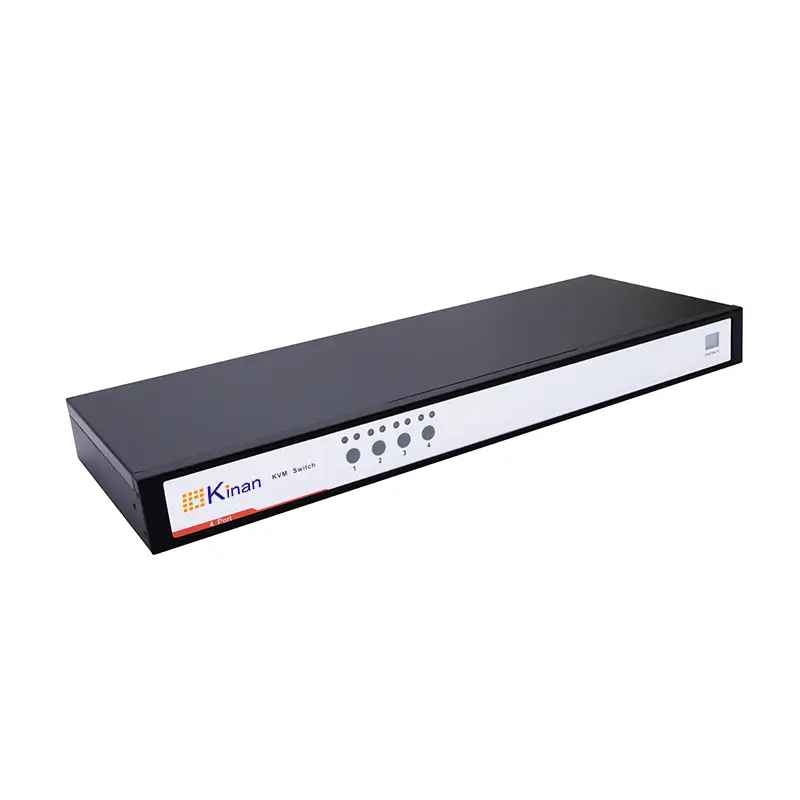

Hardware Design: This rackmount VGA KVM switch occupies only 1U of the rack space with its space-saving design.
Number of Computers: A single console controls up to 4 computers.
High Video Resolution: Resolution is up to 2048×1536; DDC2B.

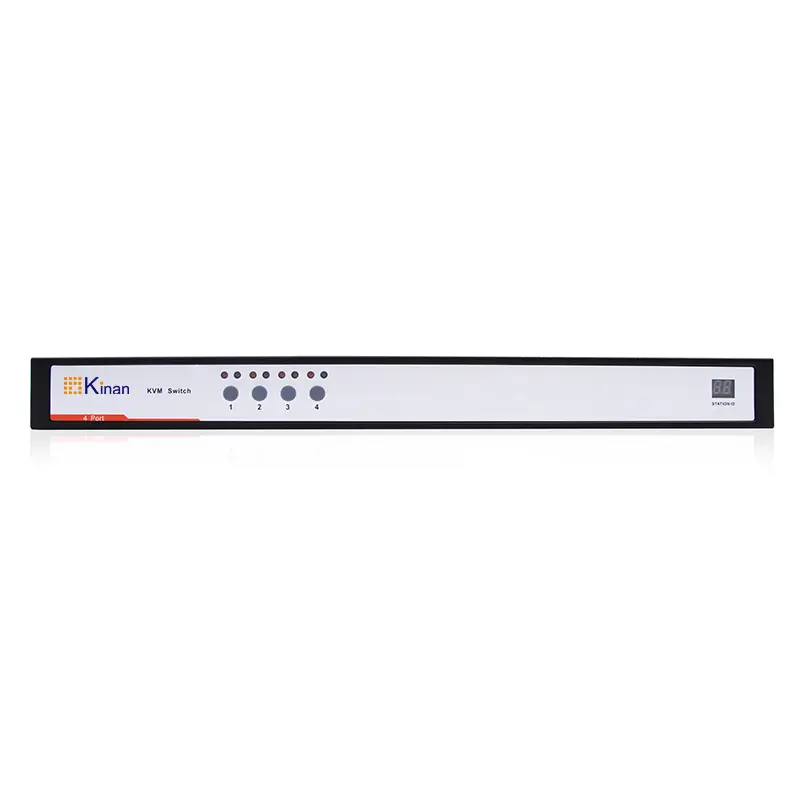

Convenient Computer Switching: Front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Daisy-chain Connection: Support daisy-chain connection and control up to 128 computers.
Hot Plugging: It is hot-pluggable and computers can be connected to this switch or removed from it freely. At this time, the users don’t need to power off the switch.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The XU0104 rack mount USB KVM switch allows access and control up to 4 computers from a single console (keyboard, mouse, and monitor). As many as 128 computers can be controlled from a single keyboard-mouse console by cascading to another 31 additional switches.

The XU0104 KVM switch supports resolution up to 2048×1536; DDC2B. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

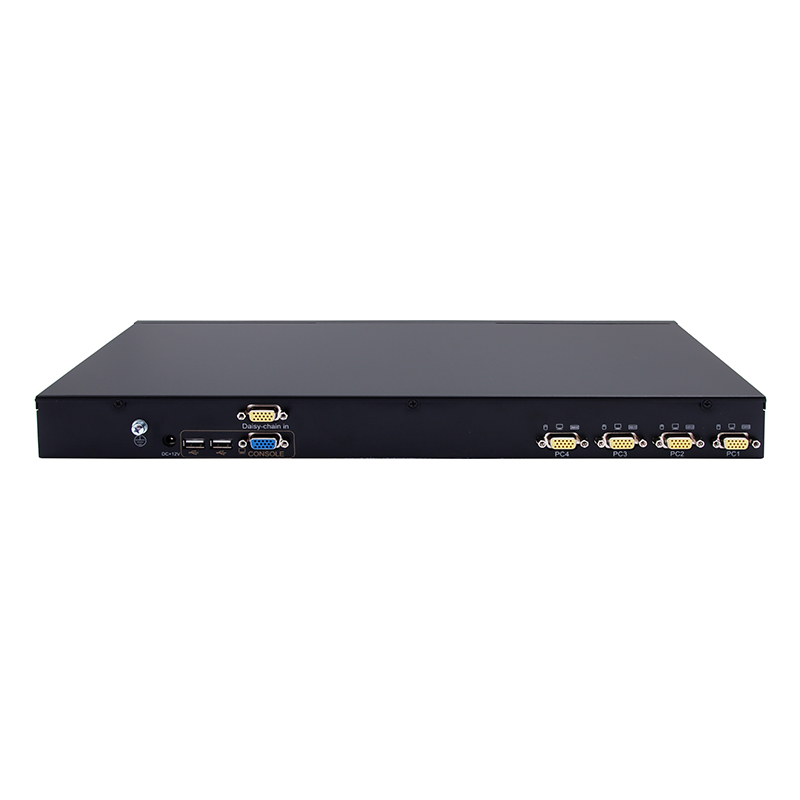

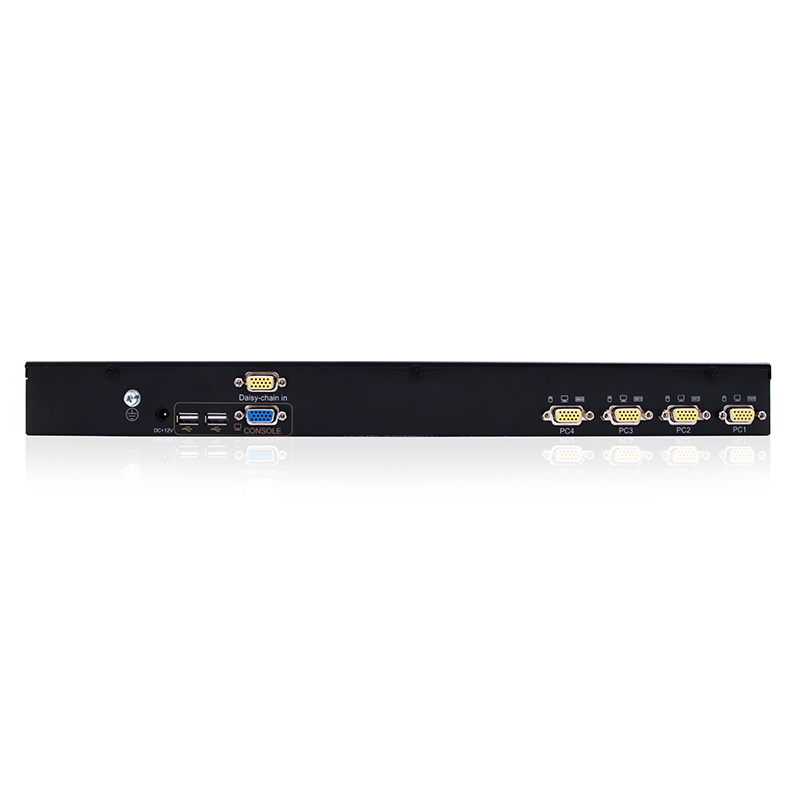

The KVM switch supports USB connections for the console and computers. An extra HDB15 port allows an additional VGA monitor to be connected.

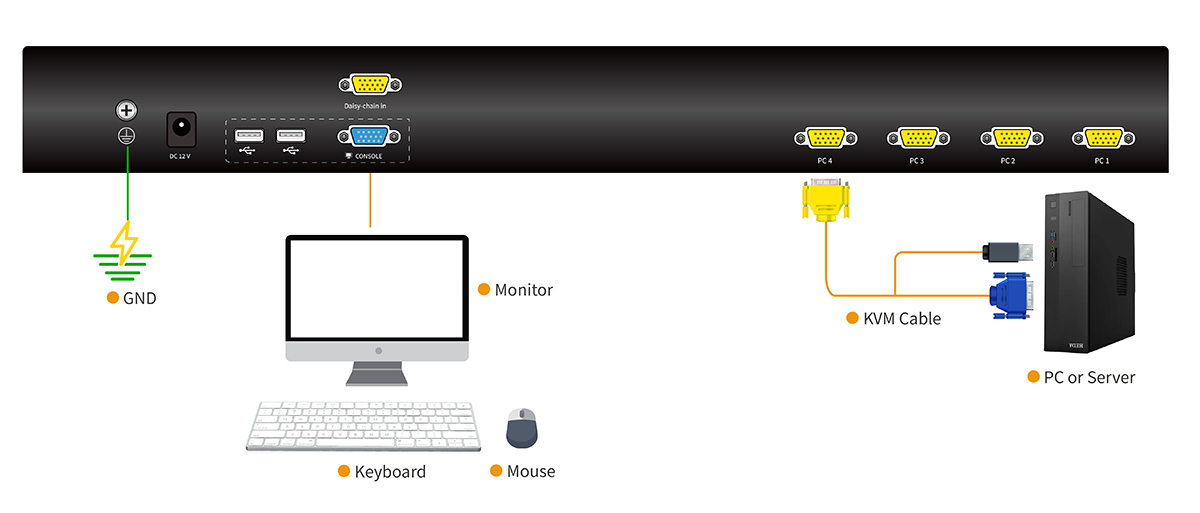

Diagram

Specification

Model			XU0104
Port Selection			4
Computer Connections			Select buttons, OSD menu
Connector	Console	monitor	1x HDB-15 Female(blue)
		keyboard	2x USB type A
		mouse
	KVM port (HDB-15 Female(yellow)		4
	Cascade port		1x HDB-15 Female(yellow)
Switch	Port selection		4x keys
LED indicator	Online(green)		4
	Selected(orange)		4
	Cascading display		2x 7- Segment (orange)
Input power			DC 12V/ 2A
Video signal			2048×1536; DDC2B
Power consumption			2.5W
Emulation	Keyboard/Mouse		USB
Environment requirements	Working Temperature		0-50℃
	Store Temperature		-20-60℃
	Humidity		0-80%RH, Non-condensing
	Material		Metal
Physical features	Weight		2.0kg
	Dimension		440x169x43mm
