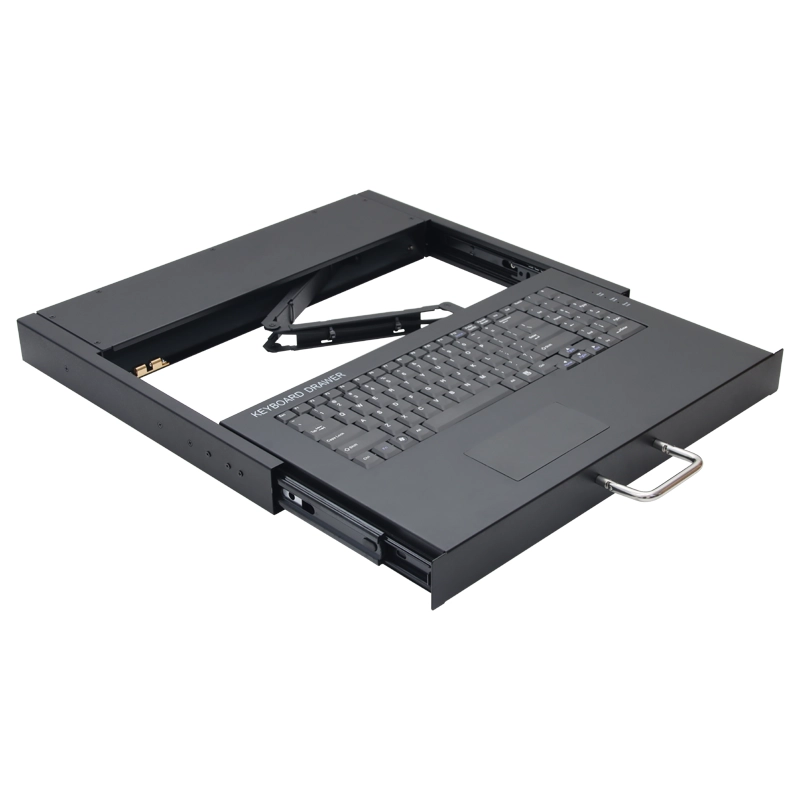

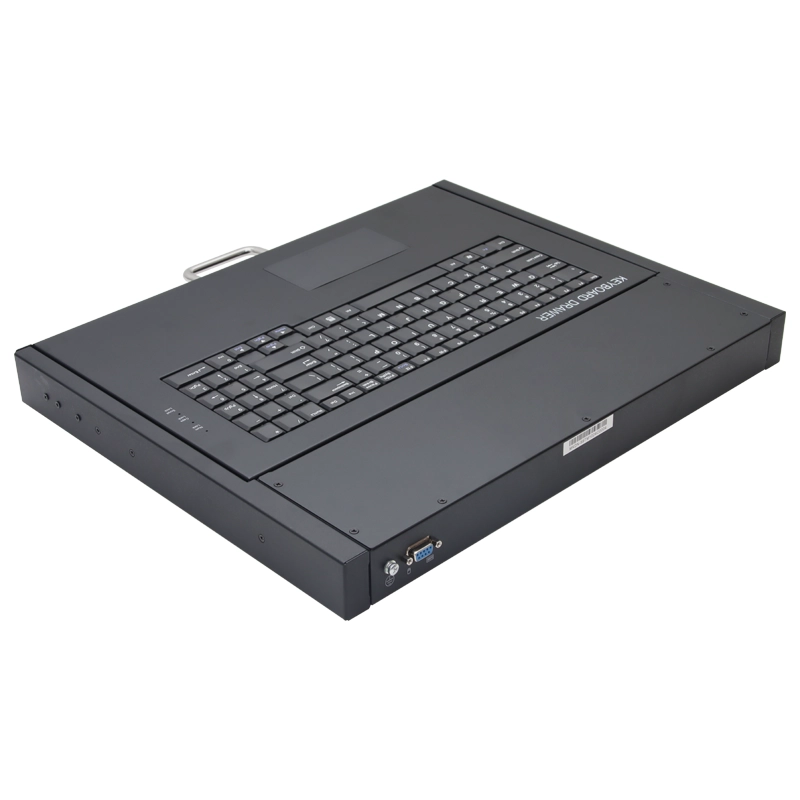

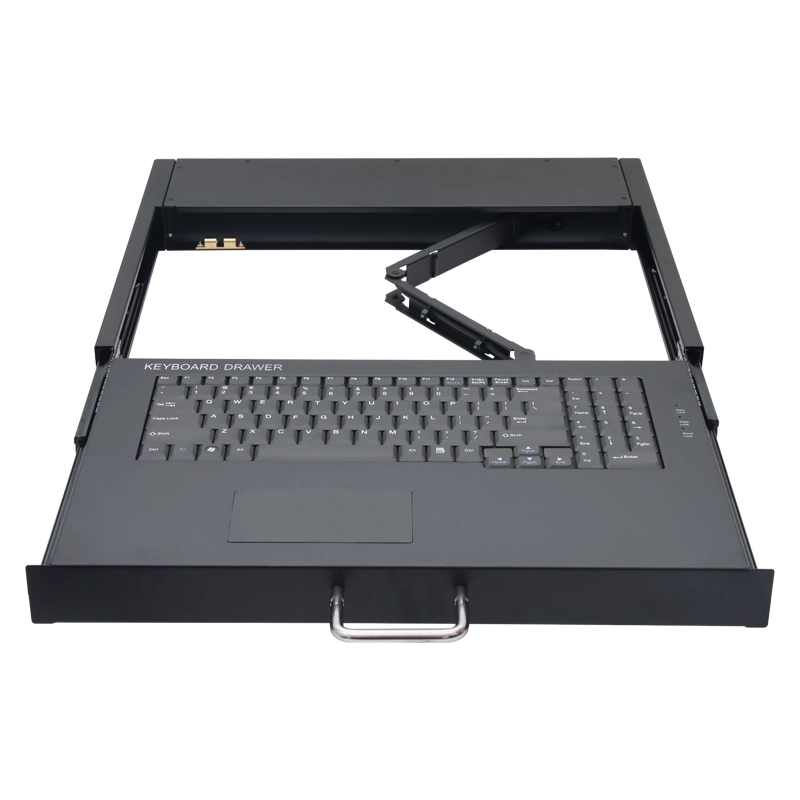

MKDN-19T is a rack mount keyboard drawer for keyboard and mouse console. Ultra slim keyboard with 99 keys and numeric keyboard, standard PS/2 port are built in 1U height metal structure that fits for standard 19” rack mounting. It can directly connect and control one computer and needs no software. The touchpad boasts high resolution and high flexibility. The rack mount keyboard tray supports both USB and PS2 connections.

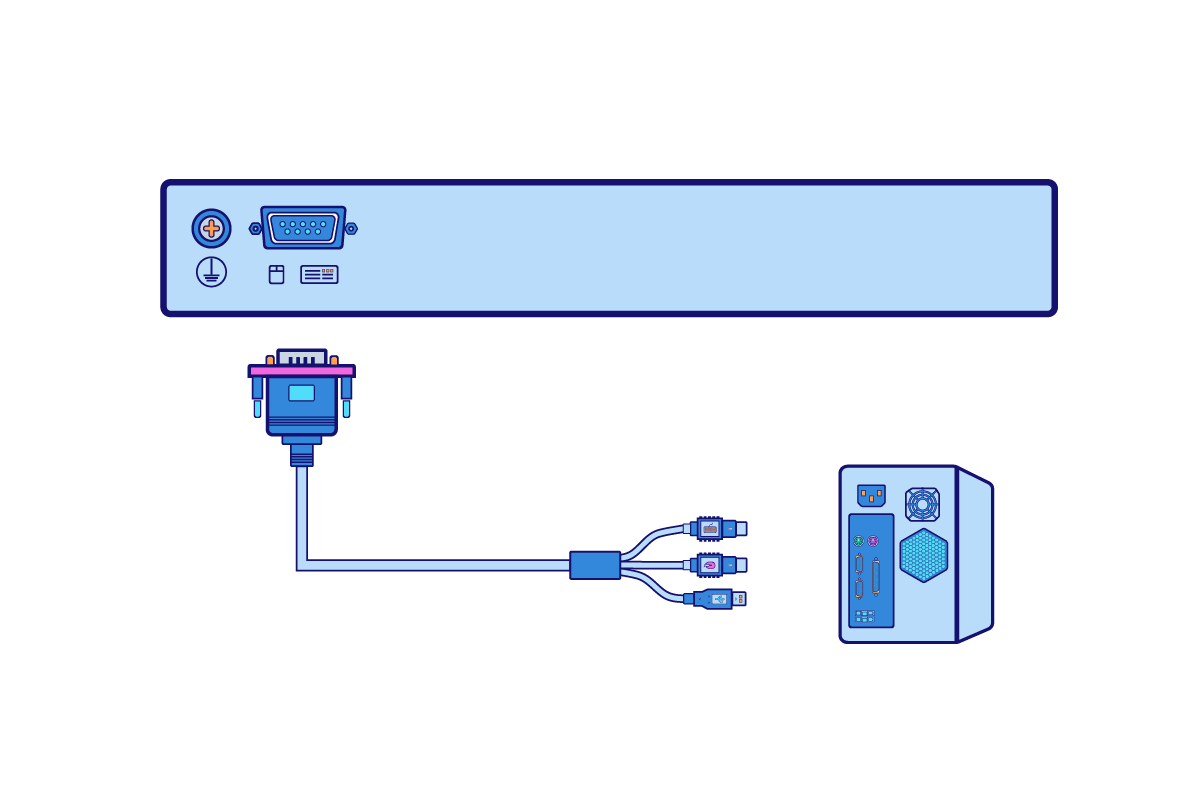

Diagram
Specification
Model
MKDN-19T
Computer Connections
1
Control Port (keyboard /mouse)
1x DB9F
PC Port (keyboard /mouse)
1xUSB type A
1x 6P Mini-DIN F(purple)
1x 6P Mini-DIN F(green)
Cable Length
1800mm
Working Temperature
0 ─50 ℃
Store Temperature
-20 ─ 60 ℃
Humidity
0─80% RH, non-condensing
N.W.
4kg
Material
Metal
Product Dimension (W × D × H)
440mm×355mm×42.5mm
Package Dimension (W × D × H)
532mm×455mm×125mm
Package Contents
1x MKDN-19T keyboard drawer
2x Mounting Rails
1x USB+PS2+VGA cable
1x User Manual
Want to Learn More About Our Products? Download Resources.
3030105010G MKDN-19T User manual-V2.0-Kinan-202508
