Rack Mount 16 Port USB VGA KVM Switch

Model No.: XU0116

Space-saving Design: 1U design-Occupies only 1U of the rack space.
Control of Computers: A single console controls up to 16 computers with USB and VGA ports.
High Resolution: The Resolution is up to 2048×1536; DDC2B.

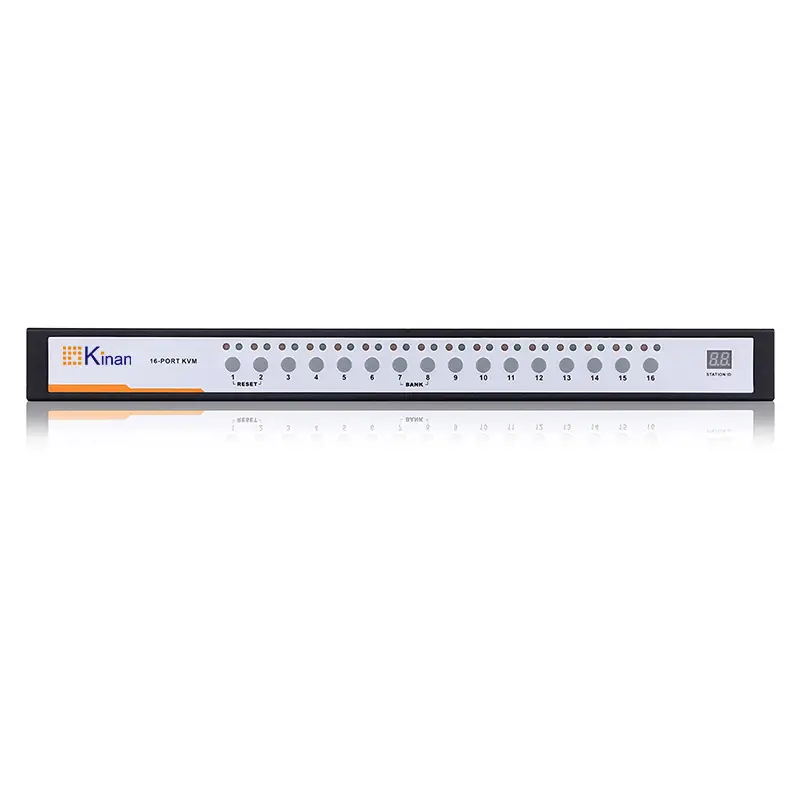

Computers Switching Choices: Front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Daisy-chain Connection: Support daisy-chain connection and control up to 512 computers.
Hot Plugging: No need to power off the rackmount KVM switch when adding or removing servers or computers.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The XU0116 rack mount USB KVM switch allows access and control up to 16 computers from a single console (keyboard, mouse, and monitor). As many as 512 computers can be controlled from a single keyboard-mouse console by cascading to another 31 additional switches.

Kinan XU0116 rackmount KVM switch with USB and VGA ports supports resolution up to 2048×1536; DDC2B. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

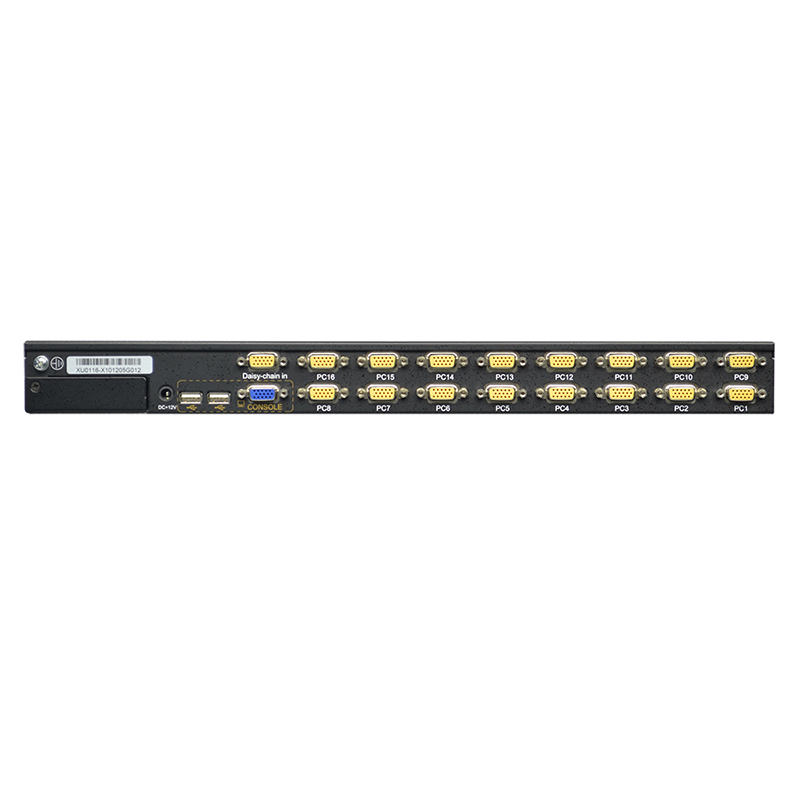

The rack kvm switch supports USB connections for the console and computers. An extra HDB15 port allows an additional VGA monitor to be connected.

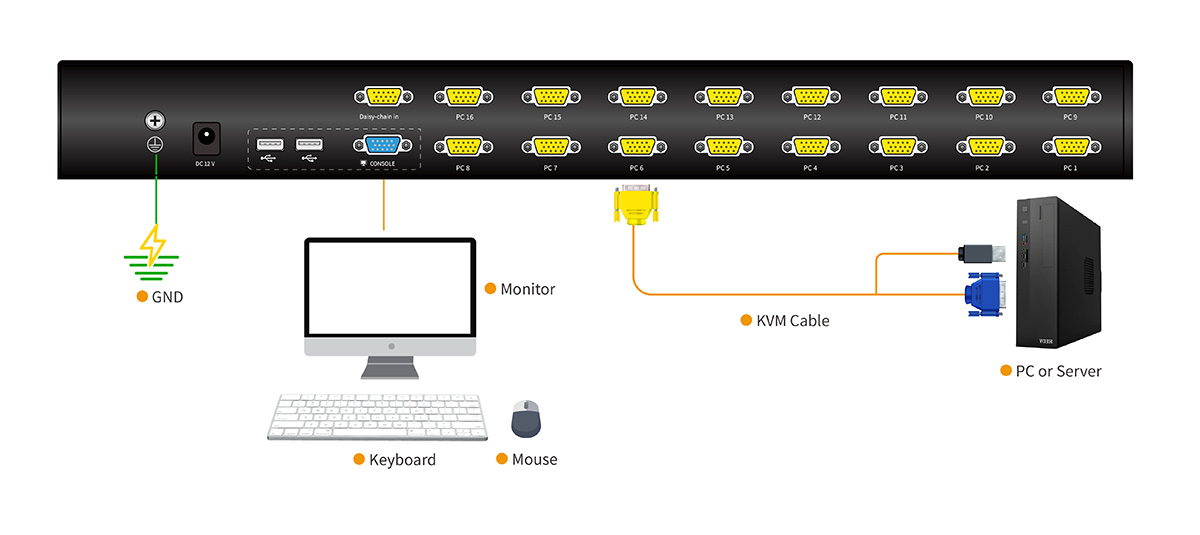

Diagram

Specification

Model			XU0116
Port Selection			16
Computer Connections			Select buttons, OSD menu
Connector	Console	monitor	1x HDB-15 Female(blue)
		keyboard	2x USB type A
		mouse
	KVM port (HDB-15 Female(yellow)		16
	Cascade port		1x HDB-15 Female(yellow)
Switch	Port selection		16x keys
LED indicator	Online(green)		16
	Selected(orange)		16
	Cascading display		2x 7- Segment (orange)
Input power			DC 12V/ 2A
Video signal			2048×1536; DDC2B
Power consumption			6W
Emulation	Keyboard/Mouse		USB
Environment requirements	Working Temperature		0-50℃
	Store Temperature		-20-60℃
	Humidity		0-80%RH, Non-condensing
	Material		Metal
Physical features	Weight		2.2kg
	Dimension		440x169x43mm
