Rack Mount 16 Port USB CAT5 KVM Switch

Model No.: KC2116

Space-saving Design: 1U design-Occupies only 1U of the rack space.
Control of Computers: A single console controls up to 16 computers.
High Resolution: Up to 1920×1080@60Hz.

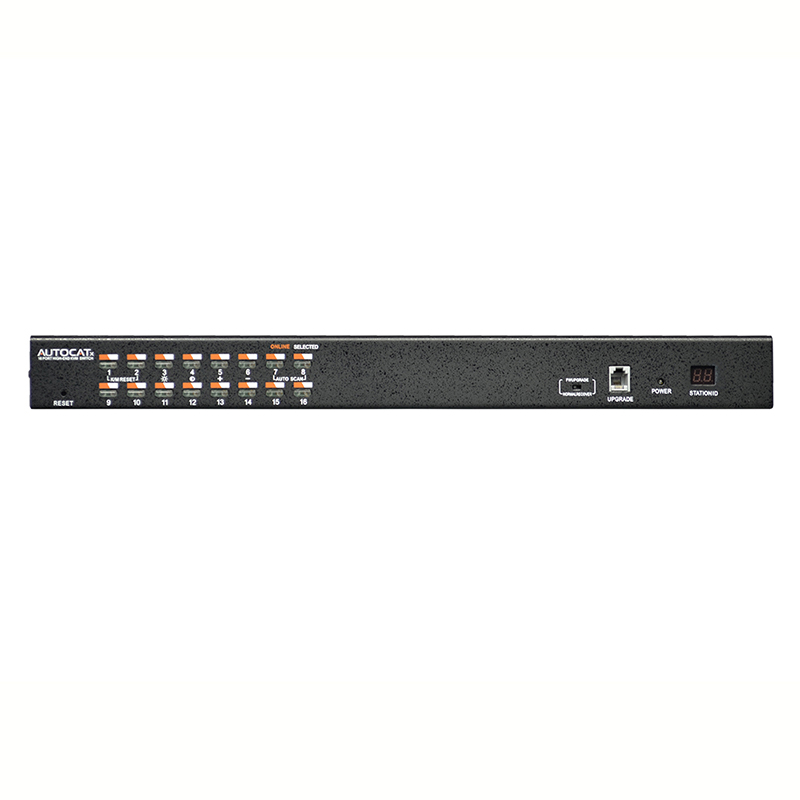

Computer Switching Methods: Front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Convenient RJ-45 Connectors: Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables.
Simple Installation: It can be easily installed in a cabinet and users can use after connecting the cables to the right ports.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The KC2116 Cat5 KVM switch allows access and control up to 16 computers from a single console (keyboard, mouse, and monitor). As many as 512 computers can be controlled from a single keyboard-mouse console by cascading to another 31 additional switches.

The KC2116 KVM switch supports resolution up to 1920×1080@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

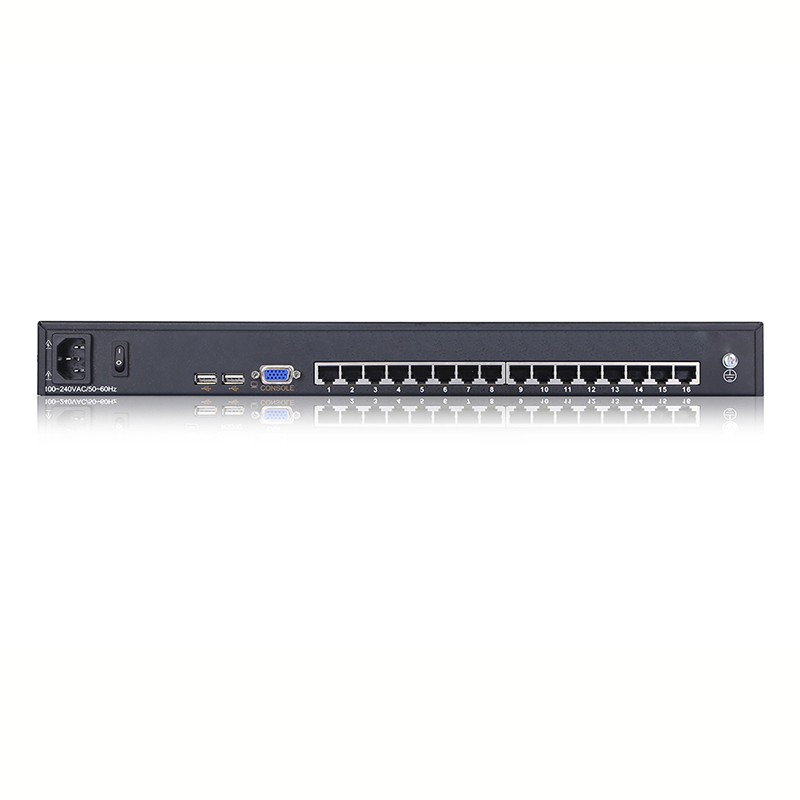

The rackmount KVM switch 16 port supports USB connections for the console and computers, RJ-45 connectors and CAT 5e/6 cable are used to link to the computers.

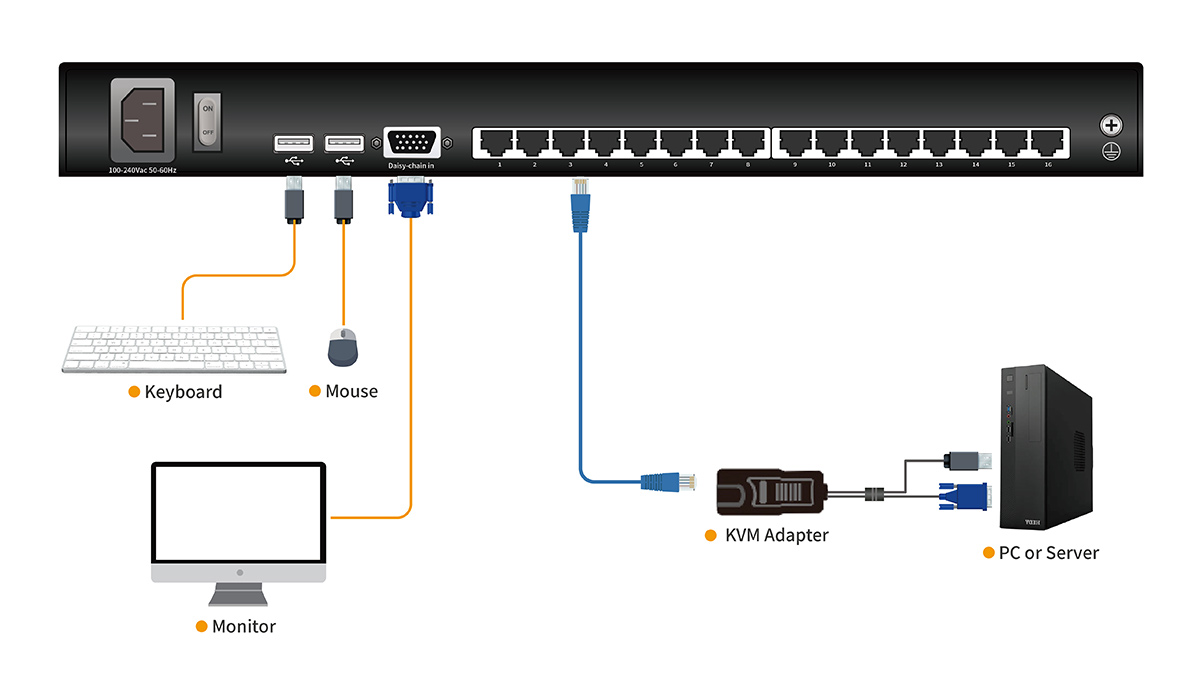

Diagram

Specification

Model			KC2116
Direct			16
Max			512
Port Selection			LED buttons, OSD menu
Connector	Console	Monitor	1x HDB-15 Female(blue) 2x USB TYPE A
		Keyboard
		Mouse
	KVM port (RJ45)		16
	Upgrading switch		1x RJ11 Female
	Power		3-Prong AC socket
Switch	Port Selecting (buttons)		16
	Reset		1x tuch-button
	Upgrading switch		1x pull switch
	Power		1x rocker switch
Indicating LEDs	Online (green)		16
	Selected(orange)		16
	Power		1(blue)
	Cascading/port display		2x 7- Segment (orange)
Input power			100V- 240Vac, 50-60Hz, <1.5A
Resolution (Optimum)			1920×1080@60Hz
Power Consumption			5W
Emulation	Keyboard/Mouse		PS/2 、USB
Environment Requirements	Working Temperature		0-50℃
	Store Temperature		-20-60℃
	Humidity		0-80%RH, Non-condensing
Physical Features	Material		Metal
	Weight		2.7kg
	Dimension		433x171x44.5mm
