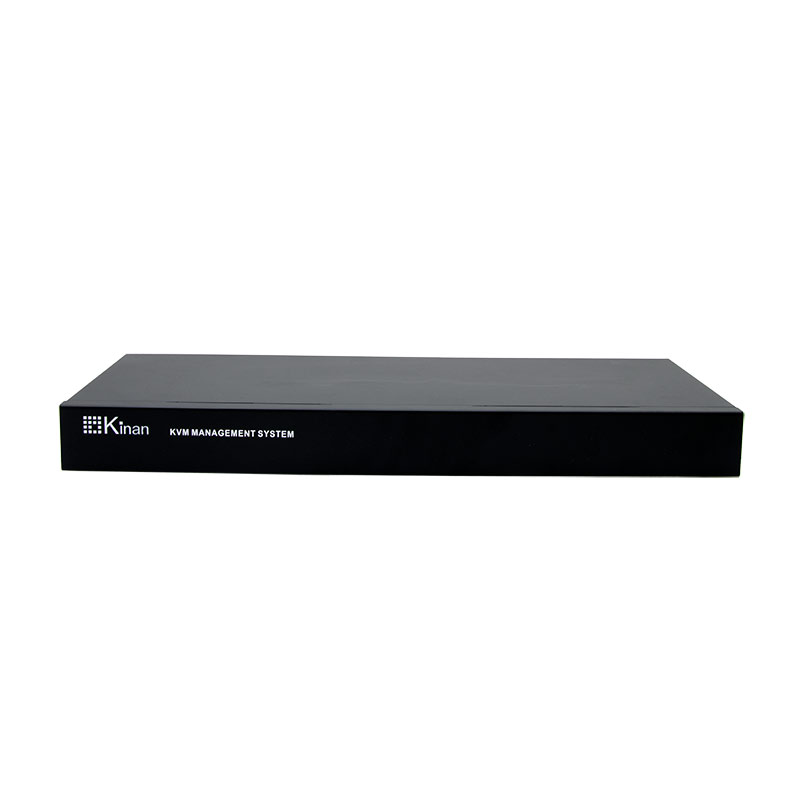

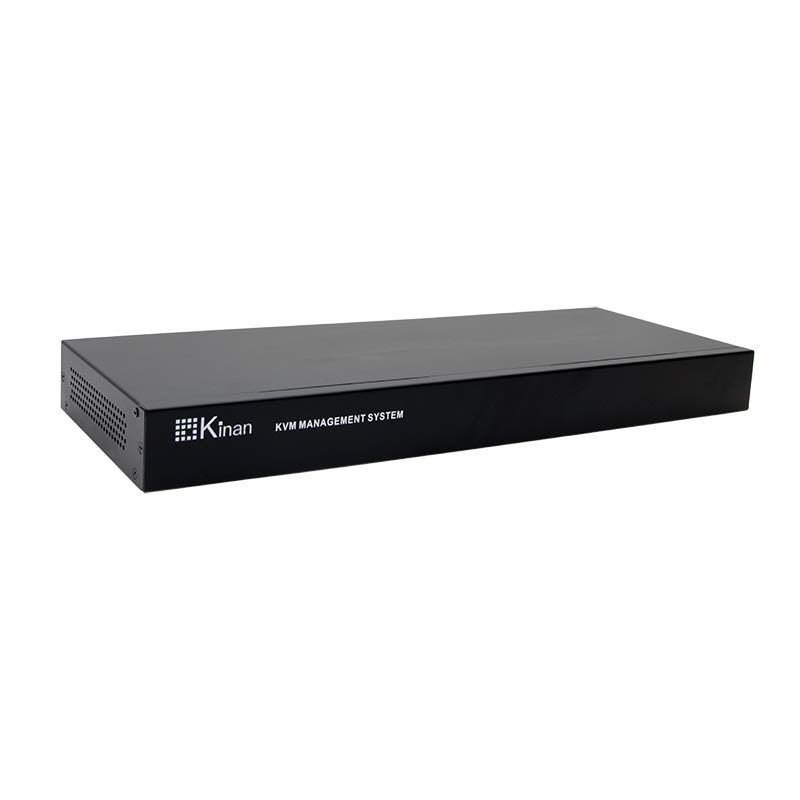

IP KVM Management Control Unit

Model No.: IPK600

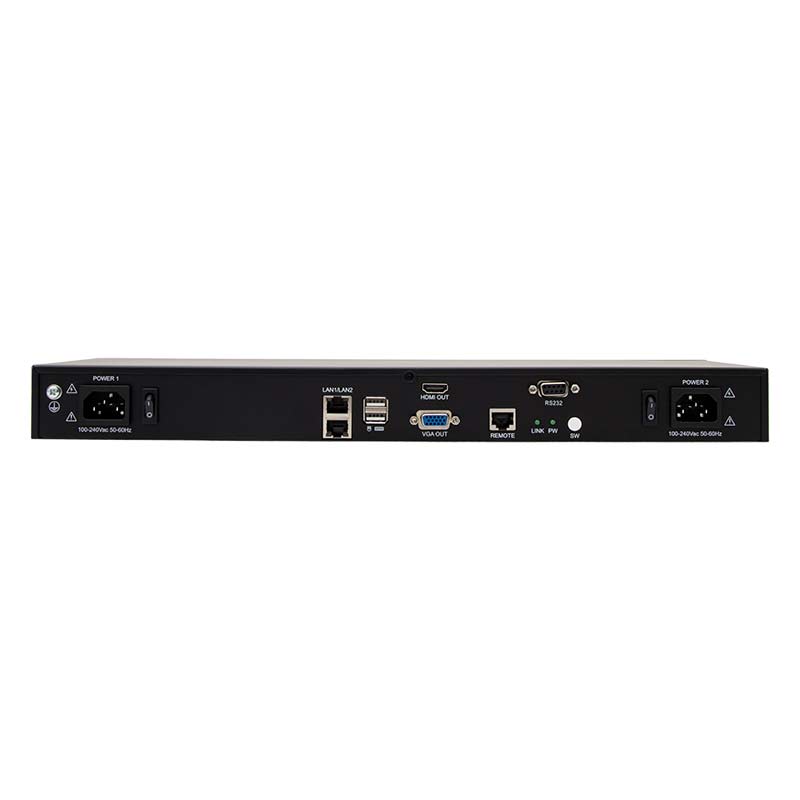

User-friendly Design: The IP KVM Management hardware is designed with VGA and HDMI out ports, dual network ports and dual power supply ports.
Flexible Connection: It supports one-to-one, one-to-many, many-to-one, and many-to-many TX/RX connections.
Easy to Management: Multiple transmitters and receivers can be managed easily with this centralized management tool.
Convenient Interface: Users can have a comfortable viewing experience with the intuitive interface, which is convenient for them to manage devices.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan IPK600 – The matrix manager unit is an easy-to-use hardware to configure, manage, and monitor all transmitter and receiver units. With an intuitive interface, you can configure user access rights and get a real-time overview of system connections and users through the manager unit. It’s easy to set up the manager unit, no software is needed, just connect it with a keyboard, mouse, and monitor will be OK. The matrix switching system composed of extenders supports up to 9999 nodes by using the IPK600 centralized management control unit.

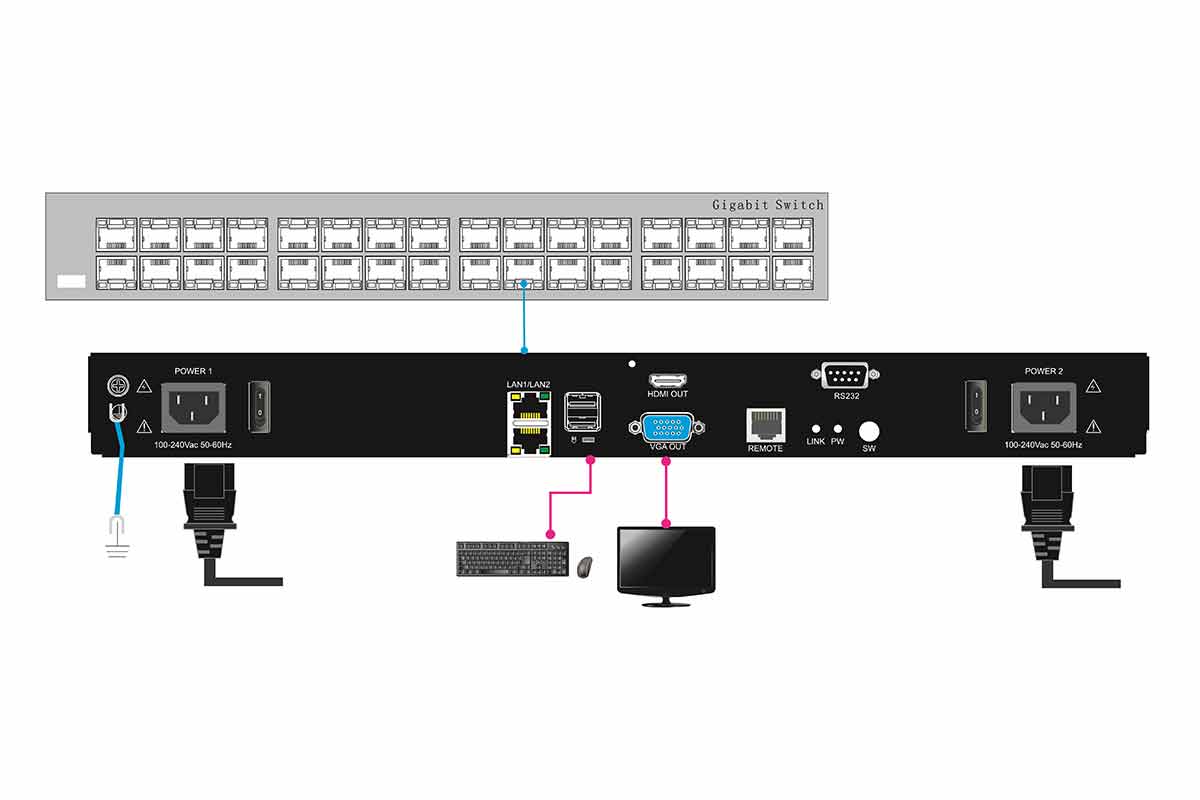

Diagram

Specification

Function		IPK600
Connectors	Monitor	1x HDMI Type A
		1xHDB-15 Female(blue)
	Keyboard/Mouse	2x USB Type A (White)
	Power	2x 3-Prong AC jack
	RS232	1x DB9
	LAN	2x RJ45
Video Resolution		1920×1080@60Hz
Power Input		100V-240Vac, 50-60Hz, <1.5A
Power Consumption		14W
Environment	Operating Temp.	0-50℃
	Storage Temp.	-20-60℃
	Humidity	0-80%RH, Non-condensing
Physical Properties	Housing	Metal
	Weight	2.3kg
	Dimensions(L x W x H)	440 mm x 166 mm x 44mm
