HDMI® FHD KVM Extender over Fiber/Cat5

Model No.: KFH168S

Extend Signals: Extends HDMI video, auido, USB, RS-232 signals.
Number of Screens: 1
Transmission: Supports fiber optic/Catx connection.
Extension Distance: The transmitting Distance is up to 10km.
High Resolution: The resolution is up to 3840×2160@30Hz.
USB Devices: Supports USB2.0 transparent transmission and 4 peripherals including U disk, USB printer, fingerprint recognition module, face recognition module, etc.
Connection: Support poin-to-point connection.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

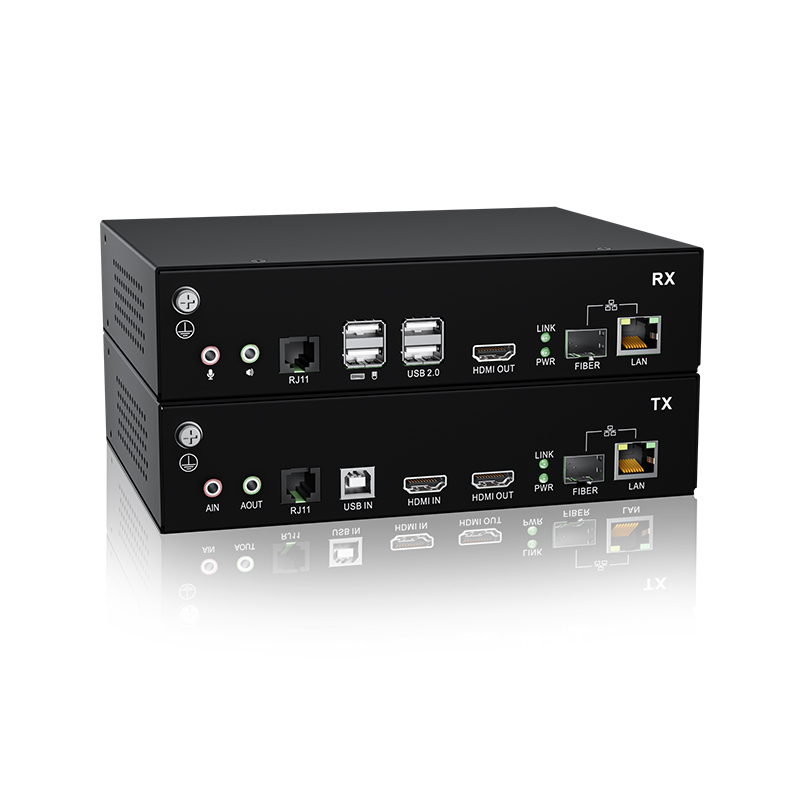

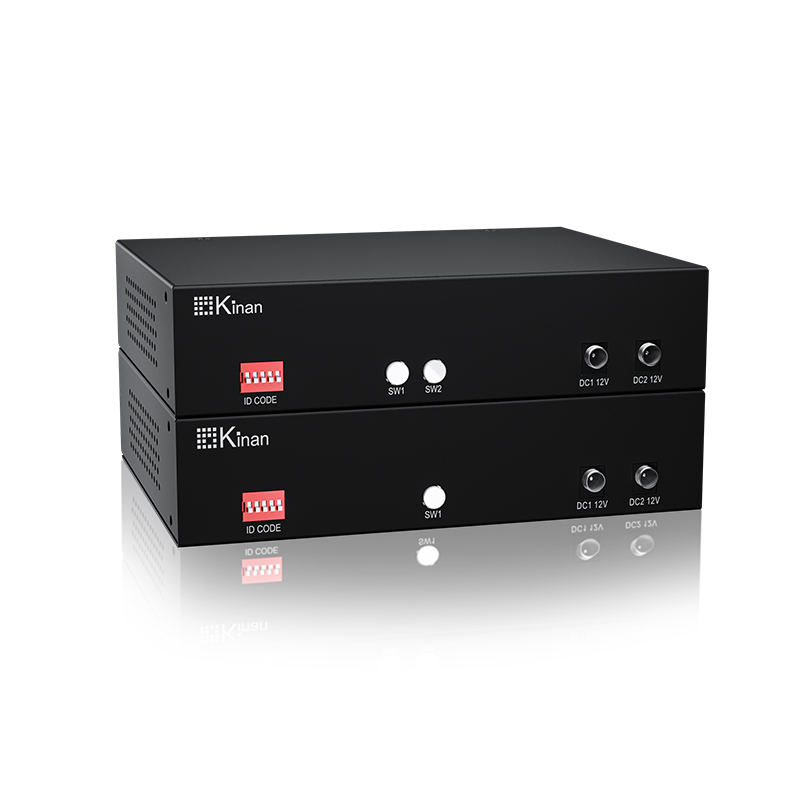

Kinan KFH168S HDMI FHD KVM extender over fiber/Cat5 is used to transmit 1-channel video, mouse, keyboard, USB2.0 and other signals of the servers through fiber or Cat5 cables. It consists of a transmitter (KFH168S-TX) for sending signals and a receiver (KFH168S-RX) for accepting singals.

This KVM extender supports single-mode and multi-mode optical fiber, the trasmission distance of single-mode is up to 80km, and that of the multi-mode is up to 300m. It can be used in many scenarios with its feature of ultra-low latency and high-definition video transmission.

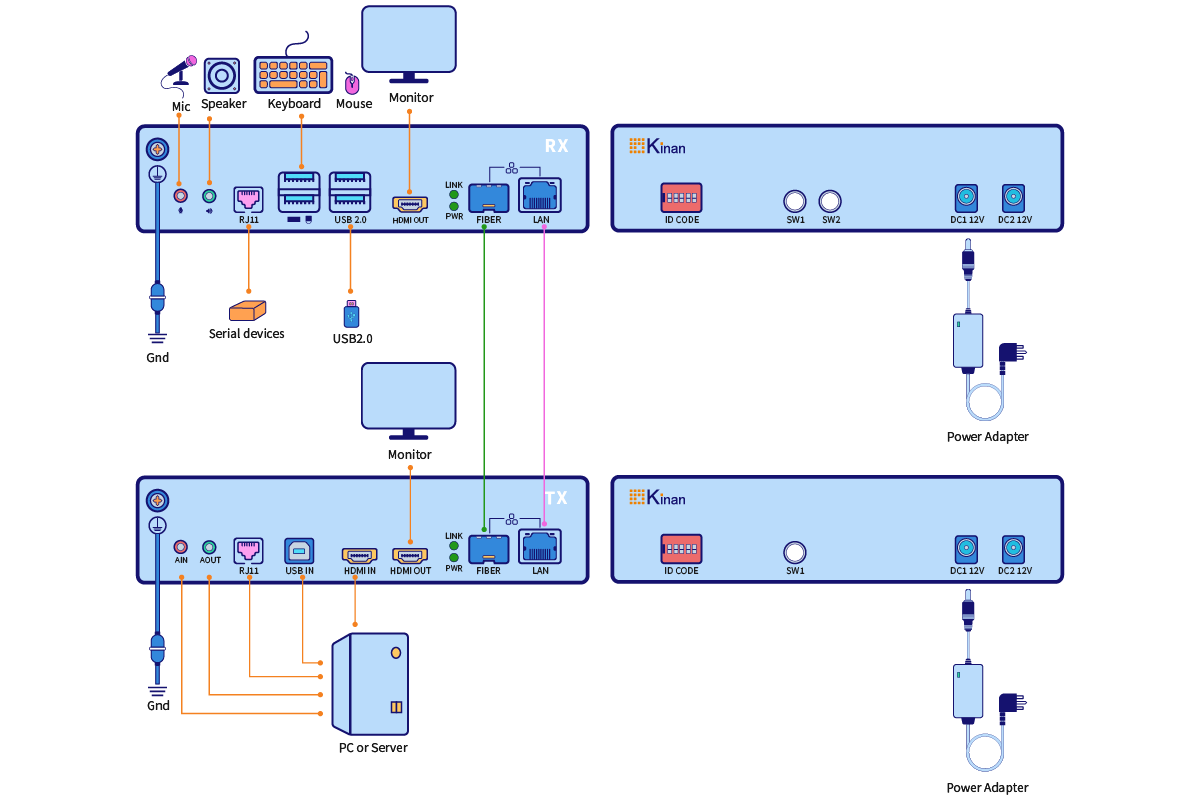

Diagram

Specification

Function		KFH168S_TX	KFH168S_RX
Interfaces	HDMI in	1	NA
	HDMI out	1	1
	Power	12V	12V
	SFP	SFP x 1	SFP x 1
	Microphone	3.5mm Stereo Jack (Pink)	3.5mm Stereo Jack (Pink)
	Speaker	3.5mm Stereo Jack (Green)	3.5mm Stereo Jack (Green)
	LAN	RJ45	RJ45
	USB Type B	1	N/A
	USB 2.0	N/A	USB x 4
Resolution		3840×2160@30Hz
Connection Cable		Fiber optical cable or Cat5/6 cable
Power Input		DC12V /2A	DC12V / 2A
Power Consumption		5W	5W
Operating Temperature		0–50 ℃
Storage Temperature		-20–60 ℃
Humidity		0–80% RH, Non-condensing
Material		Metal
Net Weight (kg)		0.81kg	0.81kg
Product Dimension(W × D × H)		189 mm×144 mm×44mm
Package Dimension(W × D × H)		395 mm ×274 mm×110mm
