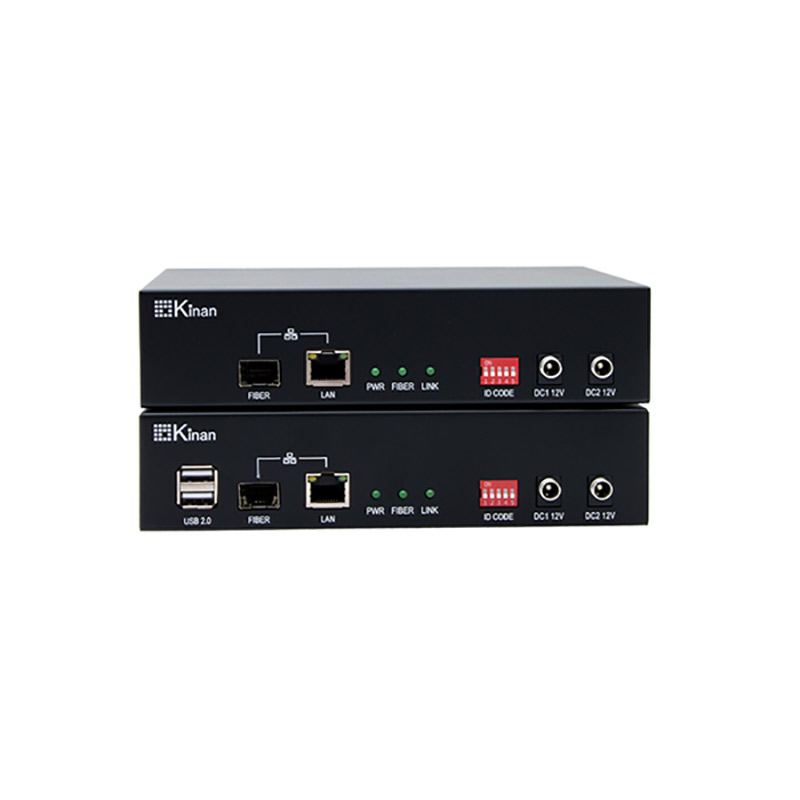

HDMI® Digital KVM Extender over Fiber/Cat5

Model No.: KFH163S

Signal Transmission: Extends HDMI video, audio, USB, RS-232 signals over fiber optic cable or CATx cable.
Number of Screens: 1
Transmission Distance: Up to 10km.
High Resolution: Up to 3840×2160@30Hz.
High Speed USB 2.0 Ports: Supports a wide range of USB devices including USB printers, U disk, face recognition module, etc.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

KFH163S HDMI digital KVM extender delivers 1 channel video, mouse, keyboard, USB2.0 signals of servers over fiber cables or Cat 5 cables.

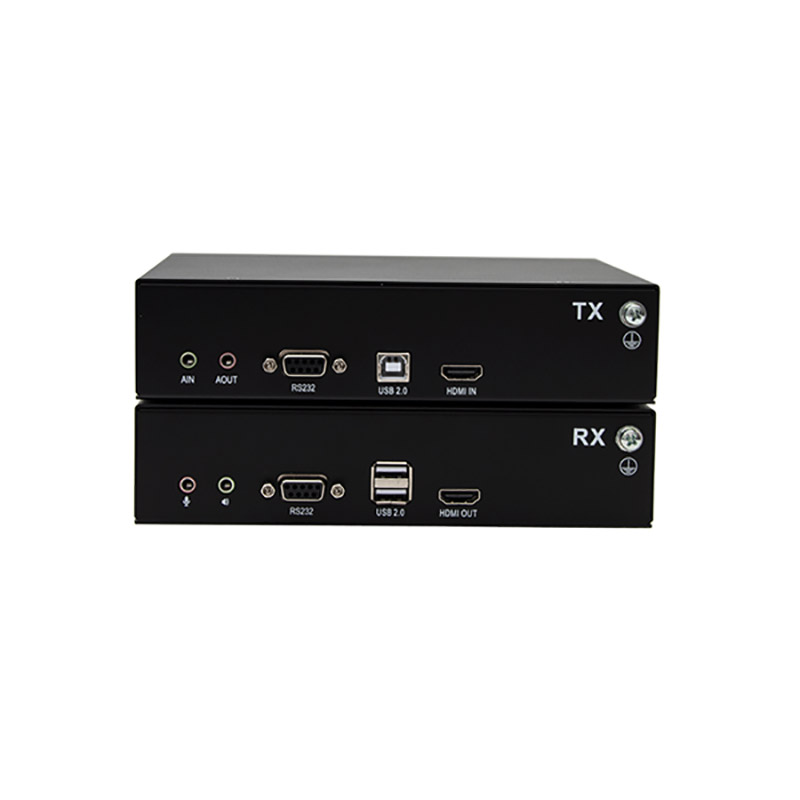

A complete set of KFH163S device consists of a transmitter (KFH163S_TX) and a receiver (KFH163S_RX). The transmitter can be connected to a computer or server, and the receiver can be connected to a monitor, keyboard, mouse, audio player and other USB devices.

KFH 163S HDMI digital KVM extender supports signal transmission over fiber optic cable or Cat5 cable, it supports single-mode and multi-mode optical fiber. The maximum transmission distance of single mode is 10km, for multi mode the transmission distance is up to 300m. The max transmission distance of Cat5 cable is 150m. It supports 1 channel high-quality HDMI signals and has a wide range of applications

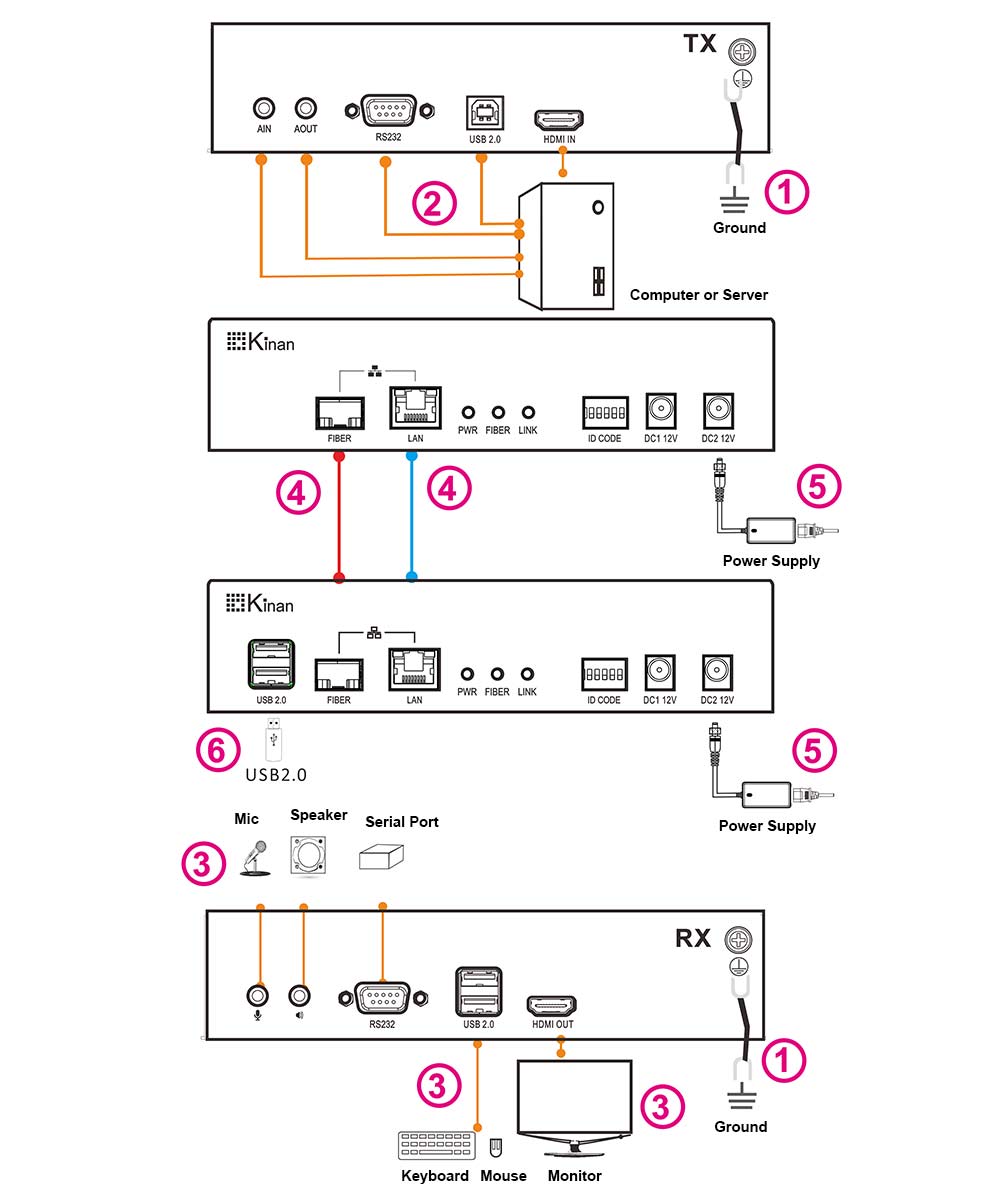

Diagram

Specification

Specification		KFH163S_TX	KFH163S_RX
Connection	HDMI Input	1	NA
	HDMI Output	NA	1
	Power	12V	12V
	LAN Port	RJ45 x 1	RJ45 x 1
	SFP Port	SFP x 1	SFP x 1
	Microphone	3.5mm Stereo Jack(Pink)	3.5mm Stereo Jack(Pink)
	Speaker	3.5mm Stereo Jack(Green)	3.5mm Stereo Jack(Green)
	IR Interface	3.5mm Stereo Jack(Black)	3.5mm Stereo Jack(Black)
	Square USB	1	N/A
	USB 2.0	N/A	USB x 4
Max Resolution		3840*2160@30Hz
Connected Cables		Cat5\6 or Optical Fiber Cable
Power Input		DC12V / 2A	DC12V / 2A
Power Consumption		5W	5W
Operating Temperature		0–50 ℃
Storage Temperature		-20–60 ℃
Humidity		0–80% RH, non-condensing
Net Weight (kg)		0.81kg	0.81kg
Material		Metal
Product Dimension (W × D × H)		189×144×44mm	189×144×44mm
