Dual View HDMI® KVM Extender over Cat5/Fiber

Model No.: KFH268S

HDMI / USB2.0 – HDMI KVM extender.
Hardware: Consists of a transmitter and a receiver.
Number of Screens: 2
Ultra-low Latency: Support lossless transmissions with ultra-low latency, about 1 frame delay (16ms@60fps).
High Resolution: The HDMI high-definition video transmission is up to 3840 x 2160@30Hz, and the recommended resolution is 1920 x 1080@60Hz.
Transmission: Support transmission through fiber optic and Cat5 and support USB2.0 transparent transmission.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan KFH268S HDMI dual view KVM extender over fiber/cat5 consists of a transmitter unit (KFH268S-TX) and a receiver unit(KFH268S-RX), supporting transmitting 2-channel video, mouse, keyboard, USB2.0 and other signals of the servers via optical fiber or Cat5 cables. This HDMI extender is used to extend the signals of the servers in the remote server room so that the users can control devices remotely.
KFH268S supports single mode and multi-mode optical fibers. As for the transmiiting distance, the maximum transmitting distance of single mode is 80km, and that of the multi-mode is 150m.

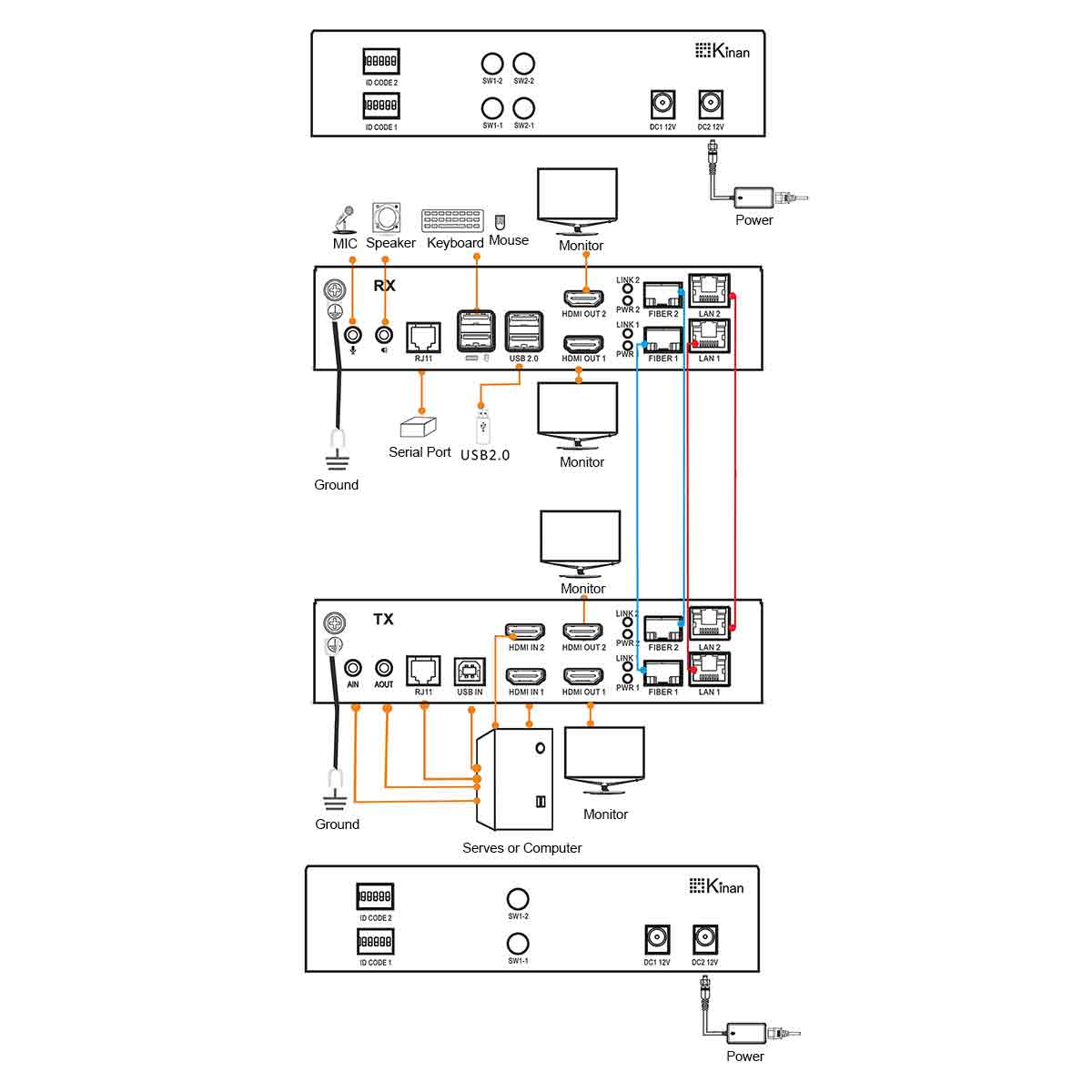

Diagram

Specification

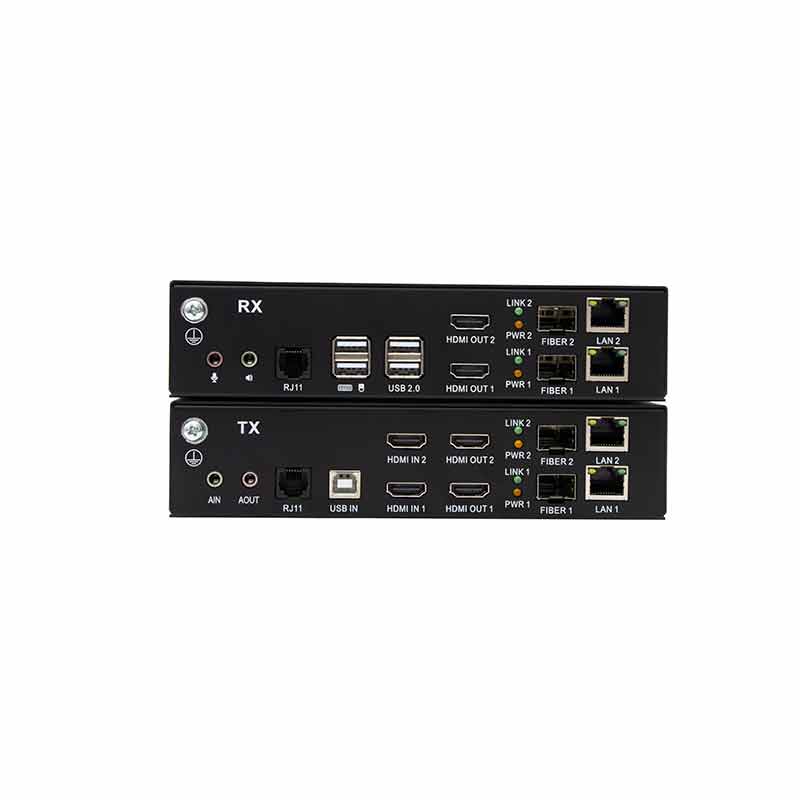

Specifications		KFH268S_TX	KFH268S_RX
Connections	HDMI input	2	NA
	HDMI output	2	2
	Power	12V	12V
	LAN port	RJ45 x 2	RJ45 x 2
	SFP port	SFP x 2	SFP x 2
	MIC	3.5mm Stereo Jack (Pink)	3.5mm Stereo Jack (Pink)
	Speaker	3.5mm Stereo Jack (Green)	3.5mm Stereo Jack (Green)
	USB Type B	1	N/A
	USB 2.0	N/A	2
Max resolution		3840*2160@30Hz
Connection cable		CAT5/6 or Optical Fiber Cable
Input power supply		DC12V / 2A	DC12V / 2A
Power consumption		7W	9W
Operating temperature range		0–50 ℃
Storage temperature range		-20–60 ℃
Humidity range		0–80% RH, non-condensing
Net weight (kg)		0.92kg	0.91kg
Material		Metal
Device dimension (W×D×H)		189 mm×144 mm×44mm
Package dimension (W×D×H)		395 mm ×274 mm×110mm
