8 Port USB HDMI® 18.5″ LCD KVM Switch

Model No.: LH1808

Hardware Structure: Integrated KVM Console with an 18.5″ widescreen LCD display.
Number of Computers: A single console controls up to 8 computers.
High Video Resolution: The resolution is up to 1920 x 1080 @60Hz.
Computer Switching Methods: Front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Adjustable LCD Display Module: Provide a great viewing experience because it can be opened up to 108 degrees.
Standard HDMI Connection: Connect to a server or computer via standard HDMI connectors.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan LH1808 is an 8 Port USB HDMI® 18.5″ LCD KVM Switch designed with a built-in keyboard, touchpad and a adjustable monitor. The 1U height design is friendly to users and the high-resolution screen can provide a comfortable viewing experience.

With advanced technology, Kinan LCD KVM switch allows users control up to 8 computers easily from a single console (monitor, keyboard, and mouse). It plays an important role in remote access and management. Then the time and distance limitation can be overcome.

The LH1808 is easy to install and use. The users just need to connect the each cable to propriate interfaces according to the manual, and then power on the devices. When they control different computers, they just need to press the front panel LEDs, keyboard hotkeys or on-screen-display (OSD) menu to select freely.

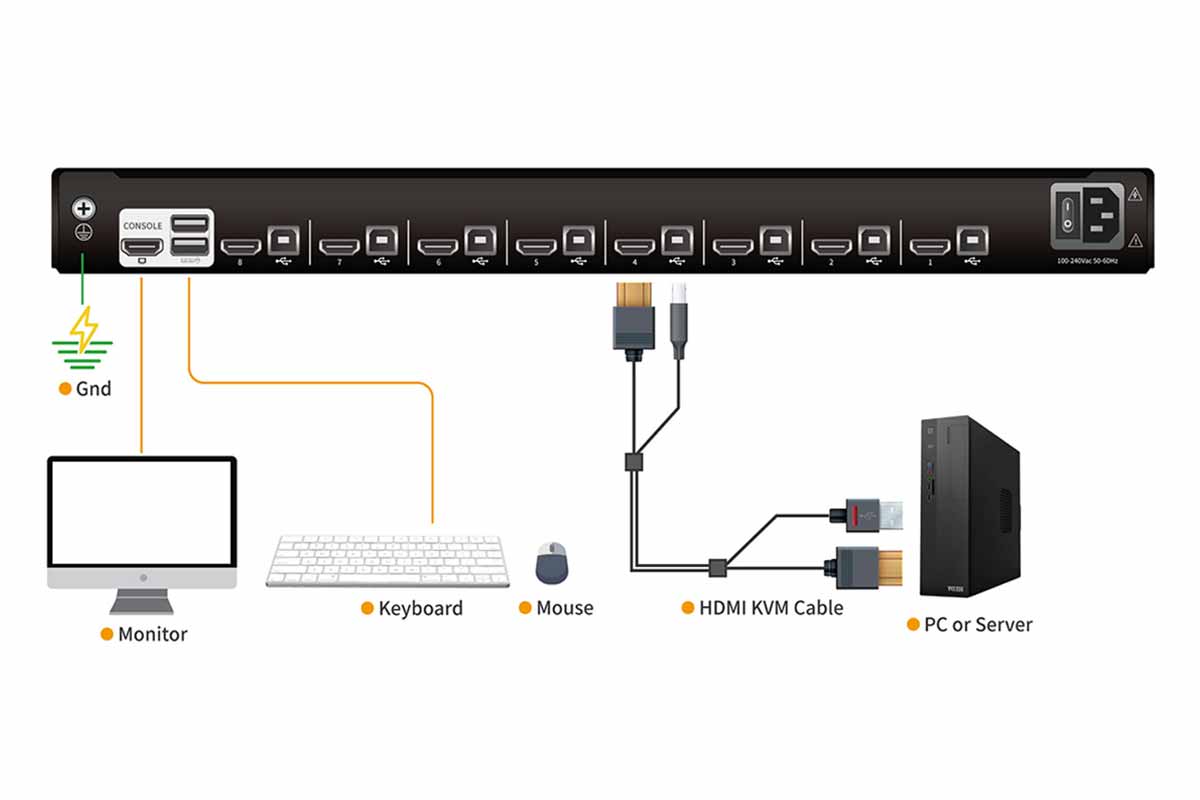

Diagram

Specification

Function		LH1808	LH1816
Computer connections	Direct	8	16
	Max	8	16
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	FHD TFT
	View area	18.47″
	Optimum resolution	1920×1080@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.213(H) × 0.213(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
	Roll wheel	Supports scroll wheel function
Keyboard		99 keys
		(82 keys main keyboard +17 independent small numeric keyboard)
Port selection		pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		28W	30W
Mounting distance		686-770mm ( L=262mm)
		Mounting bracket can be customized for other
		mounting distance
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		11.8kg	12kg
Product dimension (W × D × H)		448mm×560mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
