8 Port USB HDMI® 17″ LCD KVM Switch

Model No.: LH2708

Hardware Structure: Integrated KVM Console with 17″ LCD monitor.
Control of Computers: A single console controls up to 8 computers.
High Video Resolution: The resolution is up to 1280 x 1024 @60Hz.
Computer Switching Choices: Front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
User-friendly Viewing Angle: The LCD display module can be adjusted up to 108 degrees.
Standard HDMI Connection: Connect to a server or computer via standard HDMI connectors.
Simple Installation: Just connect the cables properly and then start using the LCD KVM switch.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

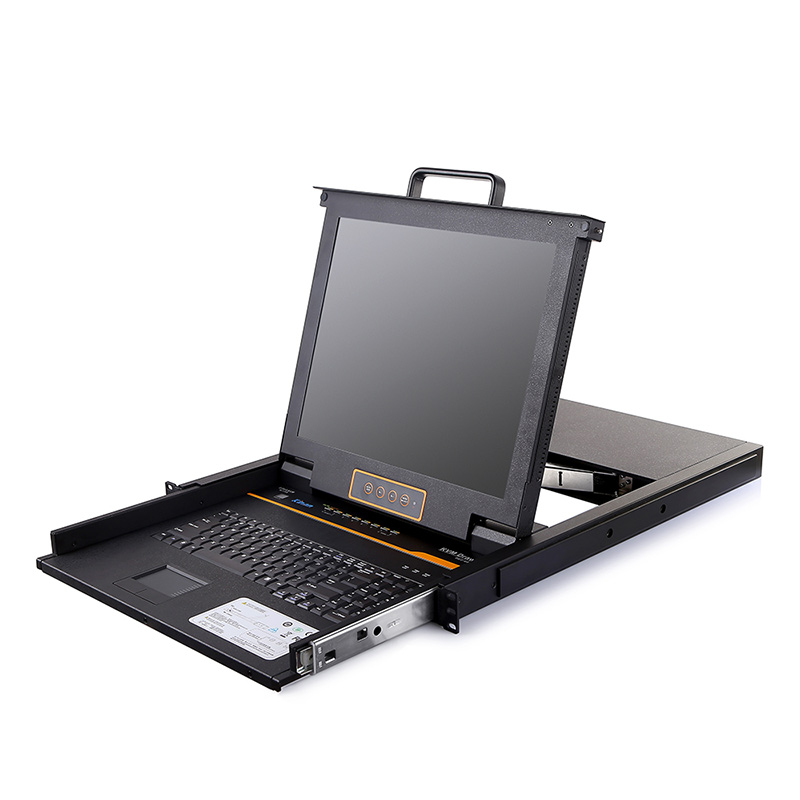

The Kinan’s LH2708 HDMI rackmount LCD console features an integrated 17″ LCD monitor, keyboard and touchpad in a 1U compact design. It allows access and control up to 8 computers from a single console (keyboard, mouse and monitor).

The LH2708 server rack monitor and keyboard has a built-in LCD monitor that supports resolution up to 1280×1024@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

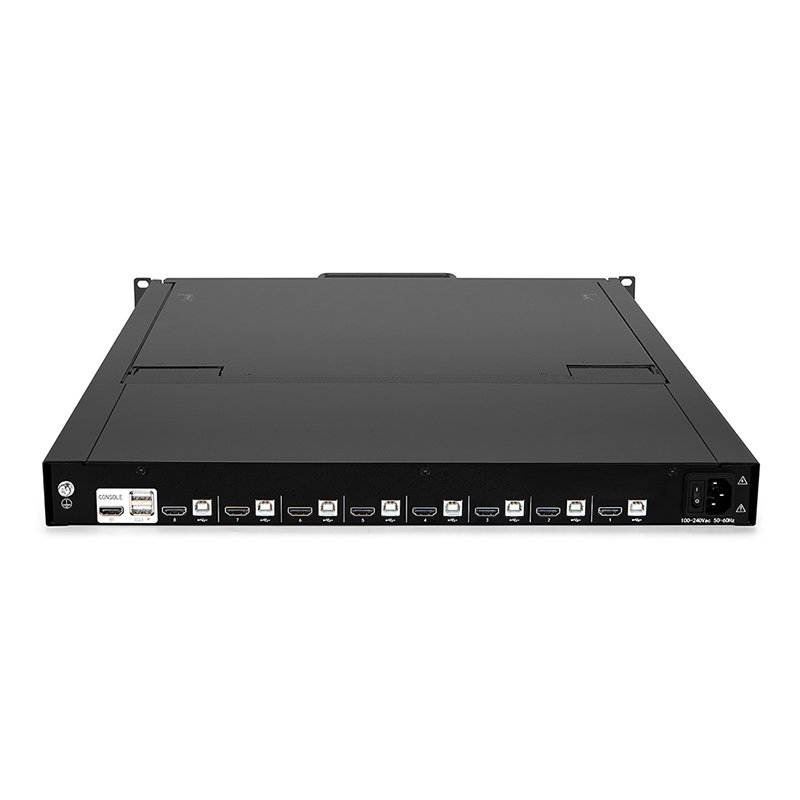

The KVM switch supports USB connections for the computers. An extra HDMI port allows an additional HDMI monitor to be connected.

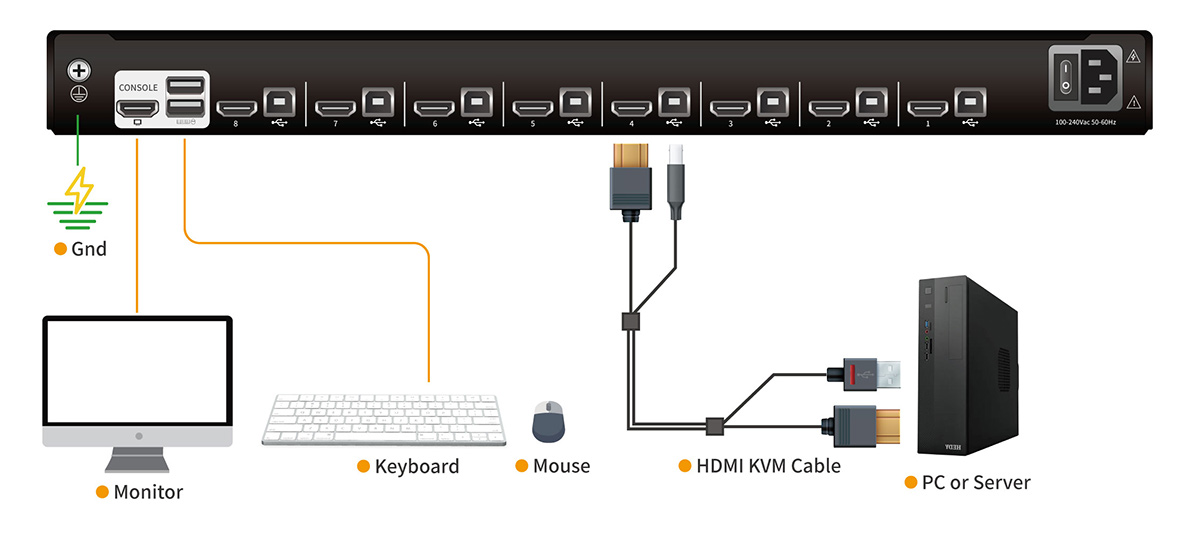

Diagram

Specification

Model		LH2708
Computer connections	Direct	8
Computer connections	Max	8
Port emulation	Keyboard, mouse	USB
LCD monitor	LCD model	SXGA TFT
	View area	17 “
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.264(H) × 0.264(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Front panel pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		22W
Mounting distance		600~850mm (L=420mm)
Mounting distance		Mounting rails can be customized for other mounting distance.
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		12.8 kg
Product dimension (W × D × H)		448mm×581mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V— -72V DC
