8 Port USB HDMI® 17.3″ Widescreen LCD KVM Switch

Model No.: LH1708

Hardware Structure: Integrated KVM Console with 17.3″ widescreen LCD monitor.
Number of Computers: A single console controls up to 8 computers.
High Video Resolution: Resolution is up to 1920 x 1080 @60Hz.
Computer Switching Methods: Front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Adjustable LCD Display Module: Provide a great viewing experience because it can be opened up to 108 degrees.
Standard HDMI Connection: Connect to a server or computer via standard HDMI connectors.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

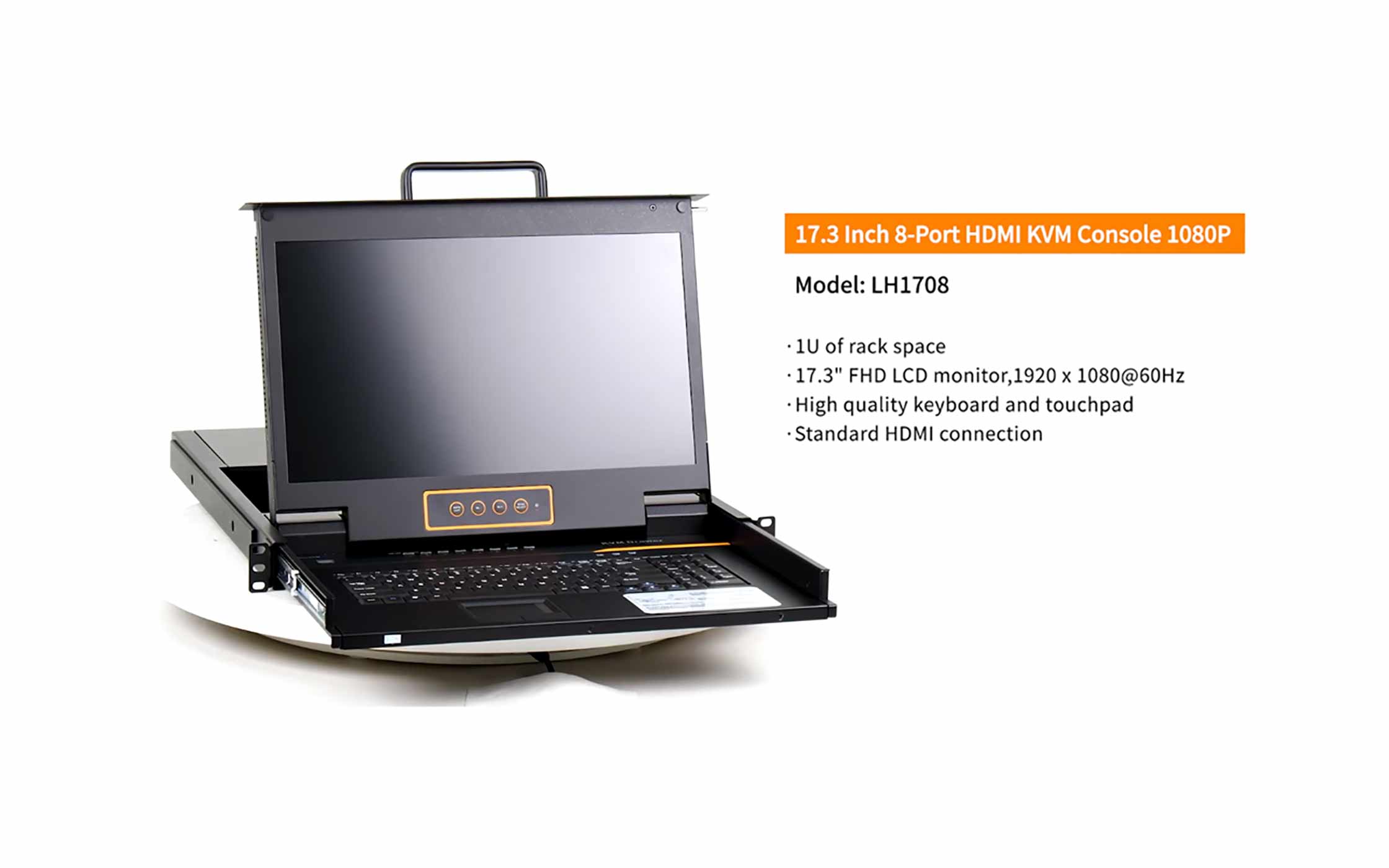

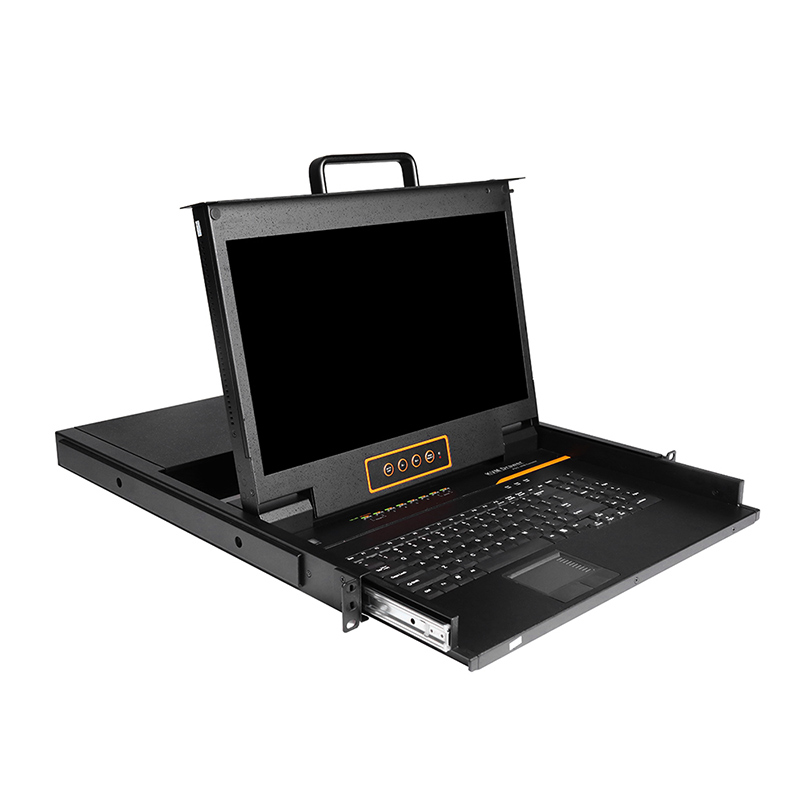

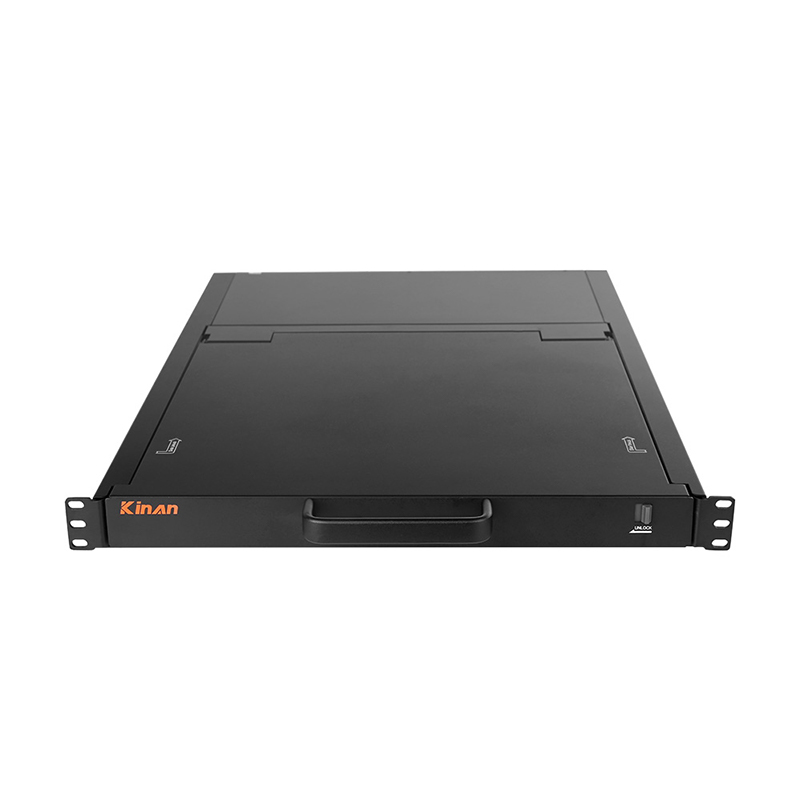

The Kinan’s LH1708 HDMI rackmount LCD console features an integrated 17.3″ widescreen LCD monitor, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 8 computers from a single console (keyboard, mouse and monitor).

The LH1708 HDMI KVM console has a built-in LCD monitor that supports resolution up to 1920×1080@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

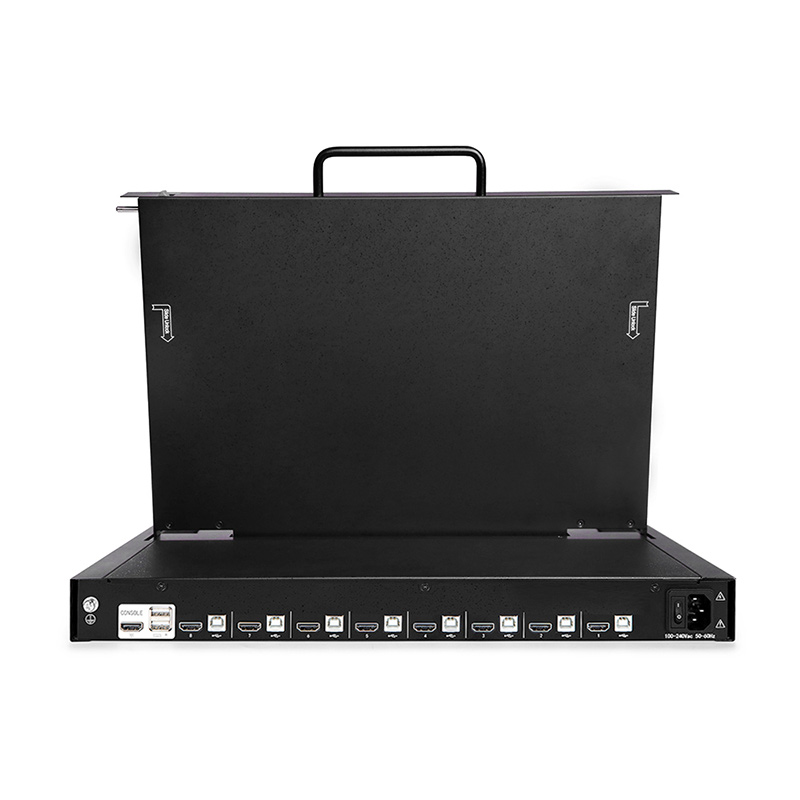

The KVM switch supports both USB and PS/2 connections for the computers. An extra HDMI port allows an additional HDMI monitor to be connected.

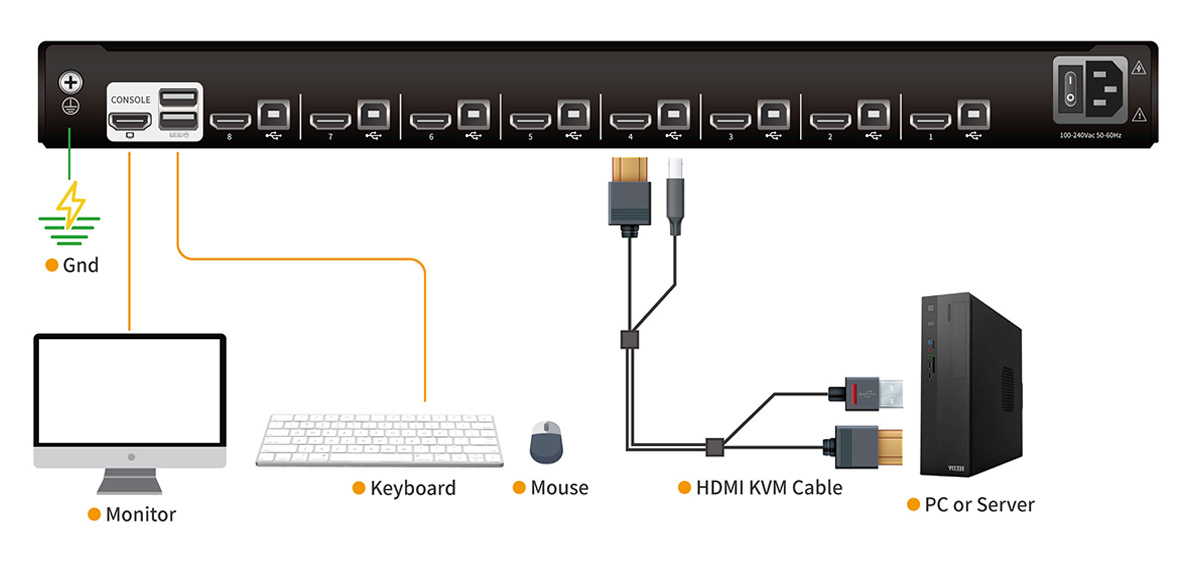

Diagram

Specification

Model		LH1708
Computer connections	Direct	8
Computer connections	Max	8
Port emulation	Keyboard, mouse	USB
LCD monitor	LCD model	FHD TFT
	View area	17.3″
	Optimum resolution	1920×1080@60Hz
	Display color	16.7 M
	Brightness	250cd/m² (T y p)
	Contrast ratio	800: 1(T y p)
	Pixel pitch(mm)	0.1989(H) × 0.1989(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		13W
Mounting distance		510-850mm (L=420mm)
Mounting distance		Mounting bracket can be customized for other mounting distance
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		10.8kg
Product dimension (W × D × H)		448mm×525.6 mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
