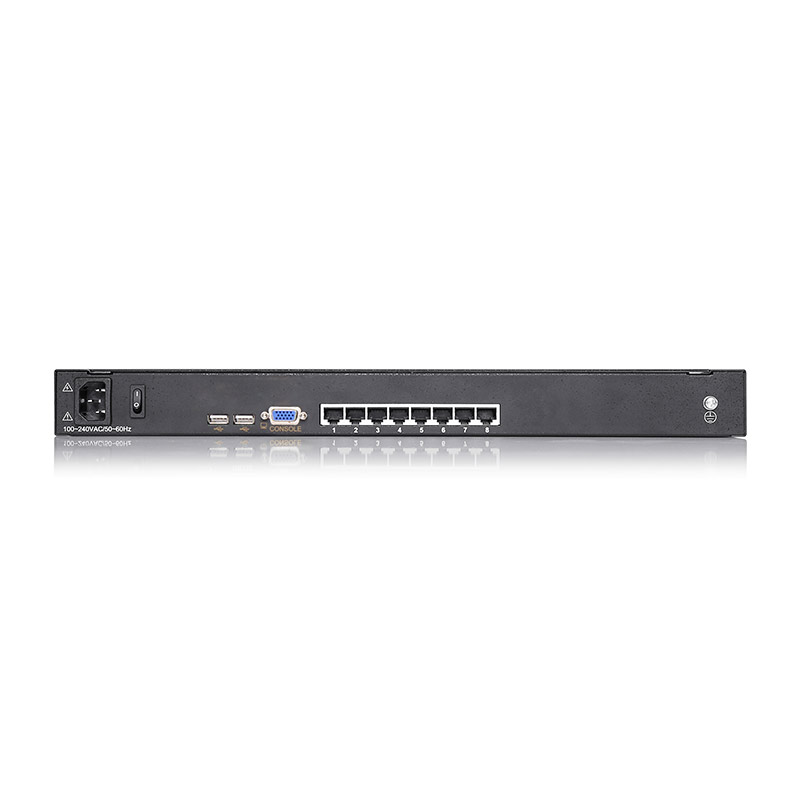

8-Port Cat5 LCD KVM Switch with 19″ Display

Model No.: LC1908

Hardware Structure: LCD KVM switch with a 19″ LCD monitor.
Number of Computers: Control up to 8 computers.
High Video Resolution: The Resolution is up to 1280 x 1024 @60Hz.
Hot Plugging: Plug in or unplug without need to power the swith off.
User-friendly Switching Methods: Front panel LEDs, keyboard hotkey, on-screen-display(OSD) menu.
Convenient Viewing Angle: Users are free to adjust the angle of the LCD display module (up to 108 degress) to enjoy a comfortable viewing experience.
Standard Cat5 Connection: Connect to a server or computer via standard RJ-45 connectors and Cat5 cable.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan LC1908 Cat5 LCD KVM switch with a 19″ LCD monitor allows access and control up to 8 computers from a single console (keyboard, mouse, and monitor). If it is cascaded to another 31 KVM switches, it can even control up to 256 computers.
The LC1908 has a built-in 19″ LCD screen that supports resolution up to 1280×1024@60Hz. It can connect multiple computers with RJ-45 connector and CAT5 connecting cables. The transmitting distance is up to 100M, so it doesn’t need a KVM extender.
Importantly, this LCD KVM switch is easy to install. You just need to connect corresponding cables to the right ports of the CAT5 KVM and its module without software configuration.

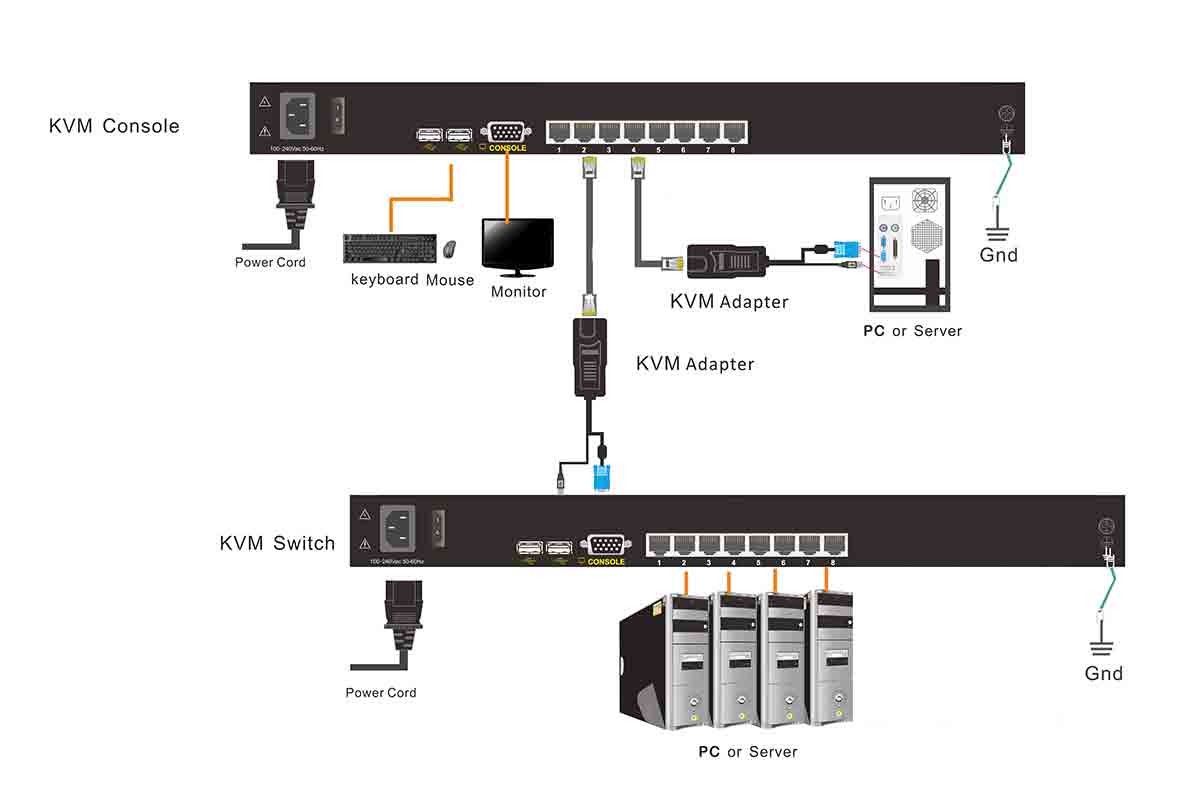

Diagram

Specification

Model		LC1908
Computer connections	Direct	8
	Max	256
Port emulation	Keyboard, mouse	PS/2，USB
LCD monitor	LED model	SXGA TFT
	View area	19″
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.2928(H) × 0.2928(W)
Mouse	X/Y resolution	>1000 points / inch,（ 40 points/mm ）
	Touchpad with trackball	Eliminates the need for an external mouse
Keyboard		99 keys
		（82 keys main keyboard +17 independent small number pad）
Port selection		pushbuttons, hotkeys , OSD menu
Input power		100V- 240Vac , 50-60Hz , <1.5A
Power consumption		20W
Mounting distance		716~825mm ( L=262mm)
		Mounting rails can be customized for other mounting distance.
Operating temperature		0 — 50 ℃
Store temperature		-20 —60 ℃
Humidity		0—80% RH, non-condensing
Net weight		13.4kg
Product dimension (W × D × H)		448mm×605mm×42.5mm
Package dimension (W × D × H)		765mm615mm185mm
Optional power input		-36V～ -72V DC
