8-Port Cat5 Dual Rail LCD KVM Switch with 19 in. LCD

Model No.: DL2908

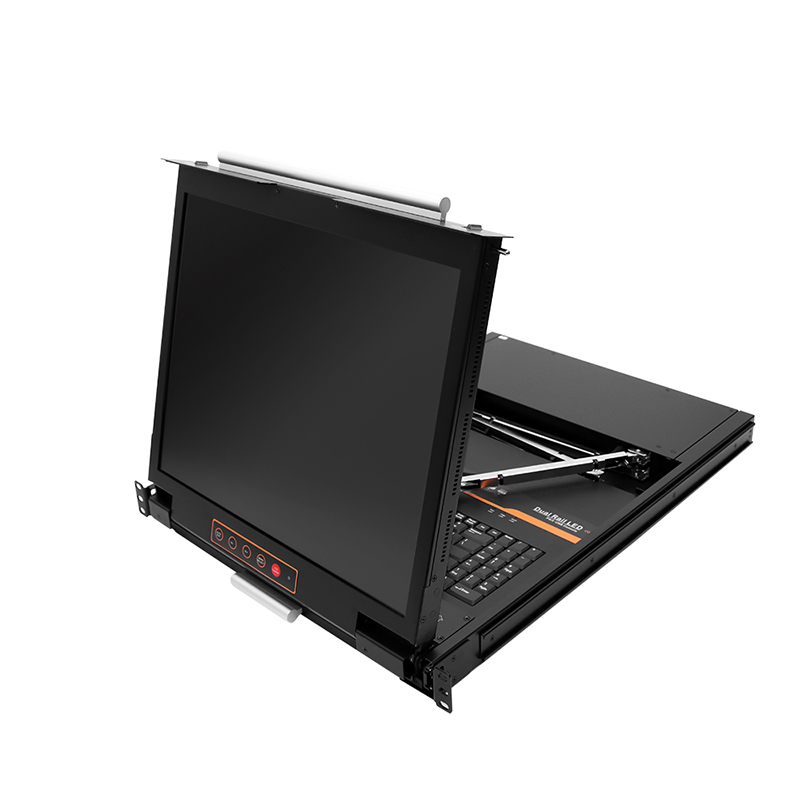

Hardware Structure: A short depth dual rail rack console featuring a 19″ LCD monitor with an integrated keyboard and touchpad, fits for all standard 19″ equipment cabinet.

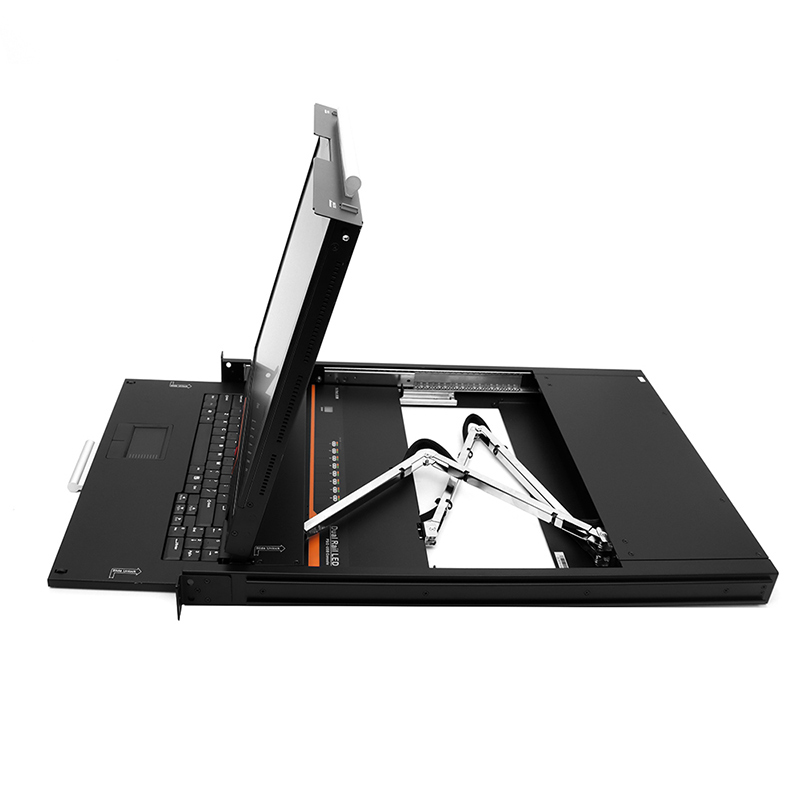

Convenient Design: The LCD panel and keyboard/touchpad modules slide independently of each other, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates back, flush against the rack.
High Video Resolution: The 19in. LCD screen supports video resolutions up to 1280 x 1024@60Hz.
Number of Computers: A single console controls up to 8 computers.
Comfortable Viewing Angle: The LCD dispaly module is flexible and the max angle is 108 degrees.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan’s DL2908 LCD CAT5 KVM integrating the LCD monitor, ultra-slim keyboard and touchpad in a 1U housing. The LCD panel and keyboard/touchpad modules slide independently of each other with the drawer design which saves much space.

The DL2908 integrates an 8 port CAT5 KVM switch together with the LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). The number of connected computers can be increased up to 256 by cascading up to 31 KC2108 KVM Switches. With RJ-45 interface and CAT5 cables to connect the server, the transmitting distance is up to 150m.

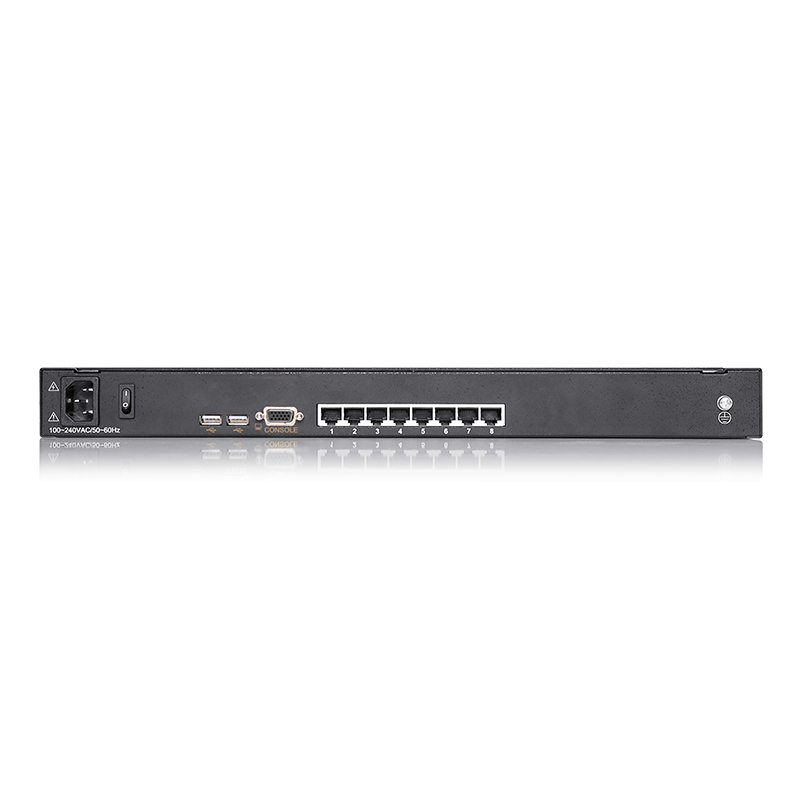

The DL2908 LCD KVM Switch has a built-in LCD monitor that supports resolution up to 1280×1024@60Hz. An extra console port is provided on the rear panel to manage the LCD KVM switch from an external console.

Diagram

Specification

Model		DL2908
Computer connections	Direct	8
Computer connections	Max	256
Port emulation	Keyboard, mouse	PS/2, USB
LCD monitor	LCD model	SXGA TFT
	View area	19 “
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m² (T y p)
	Contrast ratio	1000: 1 (T y p)
	Pixel pitch(mm)	0.2928 (H) × 0.2928 (W)
Mouse	X/Y resolution	>1000 points / inch, (40 points/mm)
Mouse	Touchpad with trackball	Eliminates the need for an external mouse
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Pushbuttons, hotkeys, OSD menu, mouse
Input power		100V – 240Vac, 50 ~ 60Hz, <1.5A
Power consumption		20W
Operating temperature		0 – 50 ℃
Store temperature		-20 – 60 ℃
Humidity		0 – 80% RH, non-condensing
Net weight		13.5 kg
Product dimension (W × D × H)		448mm×605mm×43.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V– -72V DC
