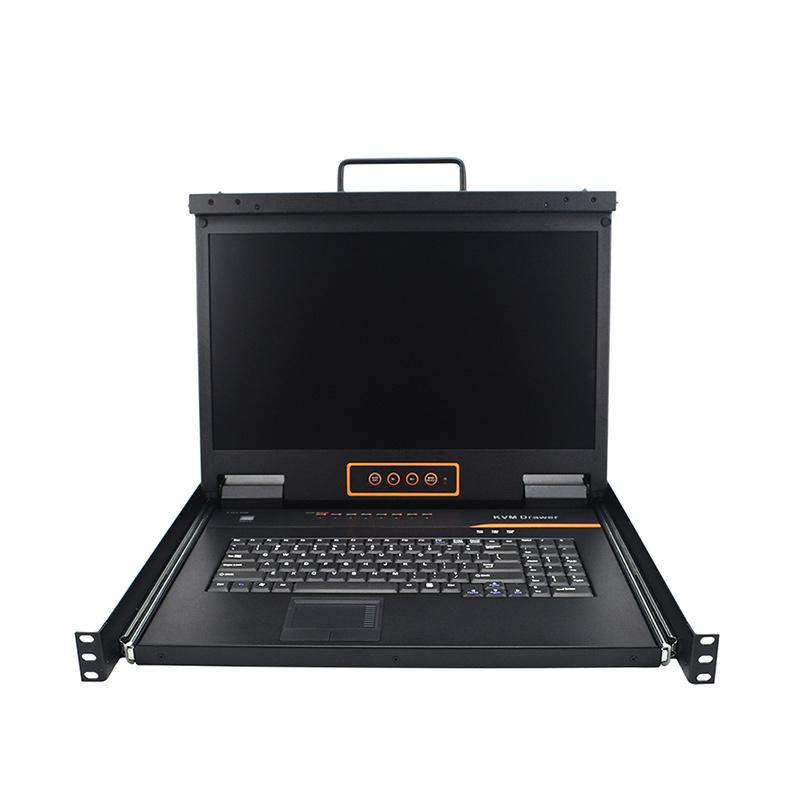

8-Port 18.5″ VGA LCD KVM Switch

Model No.: XL1808

Hardware Structure: Integrated KVM Console with 18.5″ LCD monitor.
Control of Computers: A single console controls up to 8 computers.
High Video Resolution: The resolution of this LCD KVM switch is up to 1366 x 768 @60Hz.
Easy Computer Switching: Front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Daisy-chain Connection: Support Daisy-Chain Connection and control up to 256 computers.
Flexible LCD Module: It can be opened up to 108 degrees for a good viewing experience.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The Kinan’s XL1808 kvm monitor switch features an integrated rackmount monitor, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 8 computers from a single console (keyboard, mouse and monitor). The number of connected computers can be increased up to 256 by daisy-chaining up to 31 XM0108 KVM Switches.

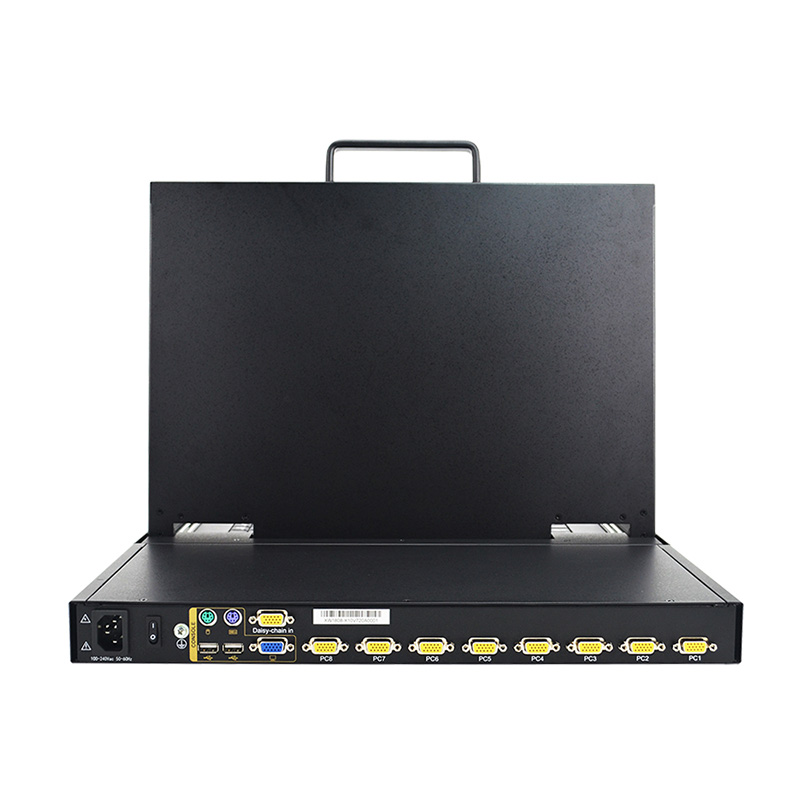

The XL1808 keyboard monitor mouse switch has a built-in LCD monitor that supports resolution up to 1366×768@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD). The LCD KVM switch supports USB connection for the computers. An extra HDB15 port allows an additional VGA monitor to be connected.

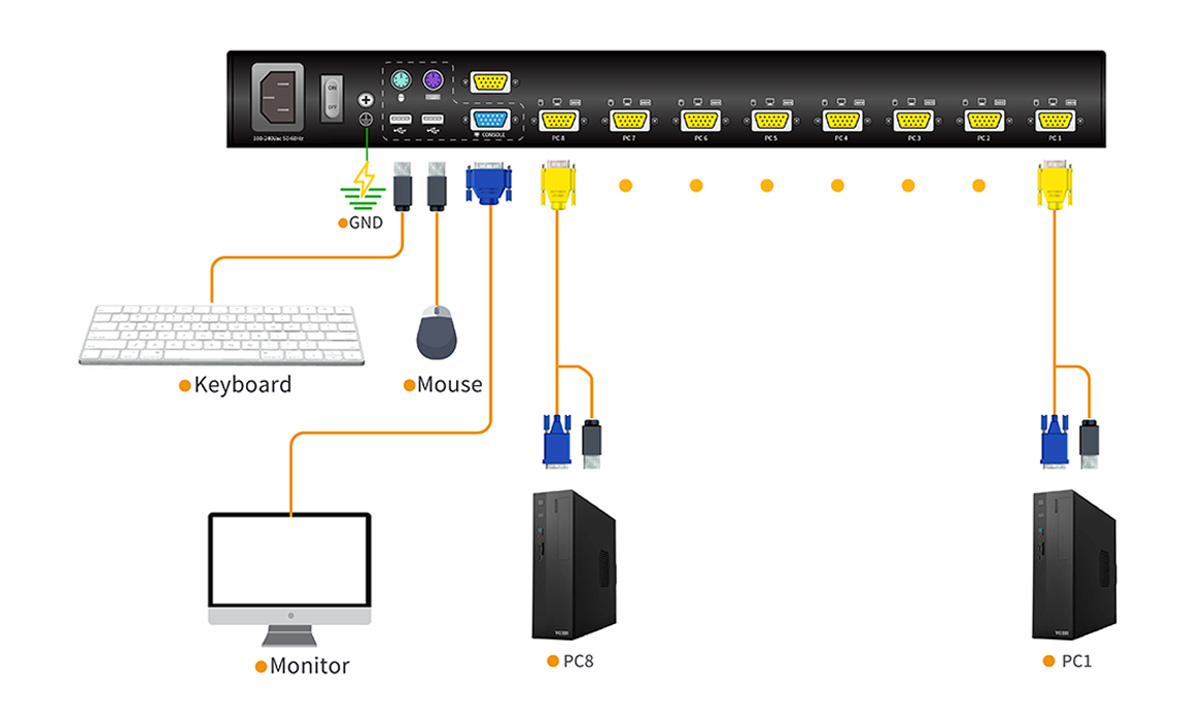

Diagram

Specification

Model		XL1808
Computer connections	Direct	8
Computer connections	Max	256
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	WXGA TFT
	View area	18.51”
	Optimum resolution	1366×768@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.300(H) × 0.300(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		16W
Mounting distance		686-770mm (L=262mm) Mounting bracket can be customized for other mounting distance
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		11.8kg
Product dimension (W × D × H)		448mm×560mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
