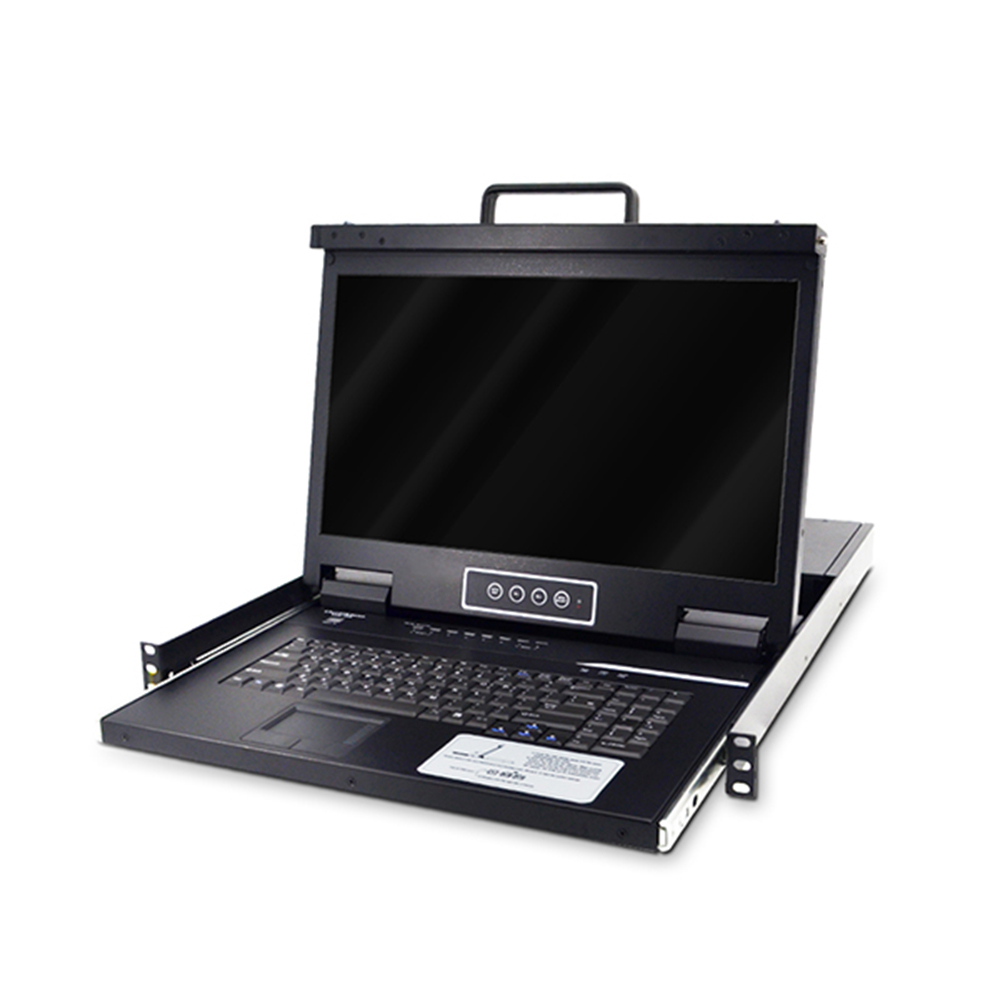

8포트 18.5인치 VGA LCD KVM 스위치

모델 번호: KXW-1808

  • LED KVM 스위치로 8대의 컴퓨터 제어 가능
  • 19인치 1U 랙마운팅 가능
  • 최대 해상도 1366 x 768
  • Windows, Linux, Mac, Sun등 멀티플랫폼 지원
  • 전면 선택 버튼, 핫키, OSD를 이용한 포트 선택
  • PS/2 및 USB 키보드/마우스, VGA 콘솔 포트 제공
UKCA
FCC
CE
RoHS
특징
세부 사항
사양
종범
다운로드
관련 상품

개요

The Kinan’s XL1808 kvm monitor switch features an integrated rackmount monitor, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 8 computers from a single console (keyboard, mouse and monitor). The number of connected computers can be increased up to 256 by daisy-chaining up to 31 XM0108 KVM Switches.

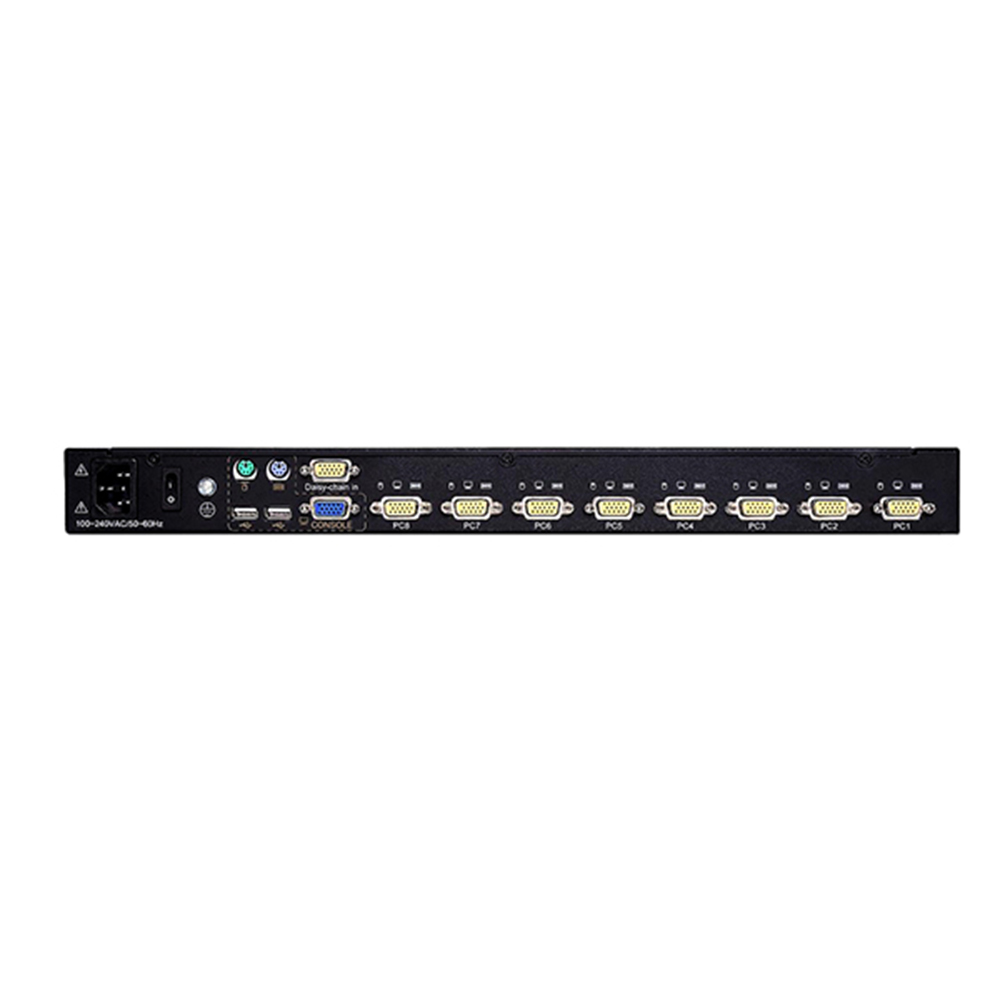

The XL1808 keyboard monitor mouse switch has a built-in LCD monitor that supports resolution up to 1366×768@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD). The LCD KVM switch supports USB connection for the computers. An extra HDB15 port allows an additional VGA monitor to be connected.

Hardware Features

  • Integrated rack mount drawer with 18.5-inch LCD monitor, keyboard/touchpad and 8 port KVM switch in a 1U height console
  • Standard VGA connection-Connect to a server or computer via standard VGA connectors
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Supports computers with USB and PS/2 keyboard and mouse

Hardware Features

  • Integrated rack mount drawer with 18.5-inch LCD monitor, keyboard/touchpad and 8 port KVM switch in a 1U height console
  • Standard VGA connection-Connect to a server or computer via standard VGA connectors
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Supports computers with USB and PS/2 keyboard and mouse

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode–operations simultaneously performed on all selected computers
  • Hot pluggable –add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode–operations simultaneously performed on all selected computers
  • Hot pluggable –add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

High Resolution

  • 18.5-inch TFT LCD KVM monitor with highlight, high definition and high resolution
  • Optimum resolution is up to 1366×768@60Hz

High Resolution

  • 18.5-inch TFT LCD KVM monitor with highlight, high definition and high resolution
  • Optimum resolution is up to 1366×768@60Hz

Daisy-Chain Connection

  • By daisy-chaining up to another 31 switches, as many as 256 servers can be controlled from a single console

Daisy-Chain Connection

  • By daisy-chaining up to another 31 switches, as many as 256 servers can be controlled from a single console

Security

  • Two level password security–only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

Security

  • Two level password security–only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

High Performance Touchpad

  • Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

High Performance Touchpad

  • Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

세부 사항

사양

Model XL1808
Computer connections Direct 8
Max 256
Port emulation Keyboard, mouse USB
LED monitor LED model WXGA TFT
View area 18.51”
Optimum resolution 1366×768@60Hz
Display color 16.7 M
Brightness 250cd/m²（ T y p ）
Contrast ratio 1000 : 1 （ T y p ）
Pixel pitch(mm) 0.300(H) × 0.300(W)
Mouse X/Y resolution >1000 points /inch, (40 points/mm)
Roll wheel Supports scroll wheel function
Keyboard 99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection pushbuttons, hotkeys, OSD menu
Input power 100V- 240Vac, 50-60Hz, <1.5A
Power consumption 16W
Mounting distance 686-770mm (L=262mm)
Mounting bracket can be customized for other mounting distance
Operating temperature 0—50 ℃
Store temperature -20—60 ℃
Humidity 0—80% RH, non-condensing
Net weight 11.8kg
Product dimension (W × D × H) 448mm×560mm×42.5mm
Package dimension (W × D × H) 765mm×615mm×185mm

패키지 내용물

  • 1x LCD KVM 스위치 (KXW-1808)
  • 1x 전원 코드 (지역별)
  • 1x 빠른 시작 가이드
  • 2x 장착 레일
  • 8x USB+VGA KVM 케이블 (1.8m/6ft)
