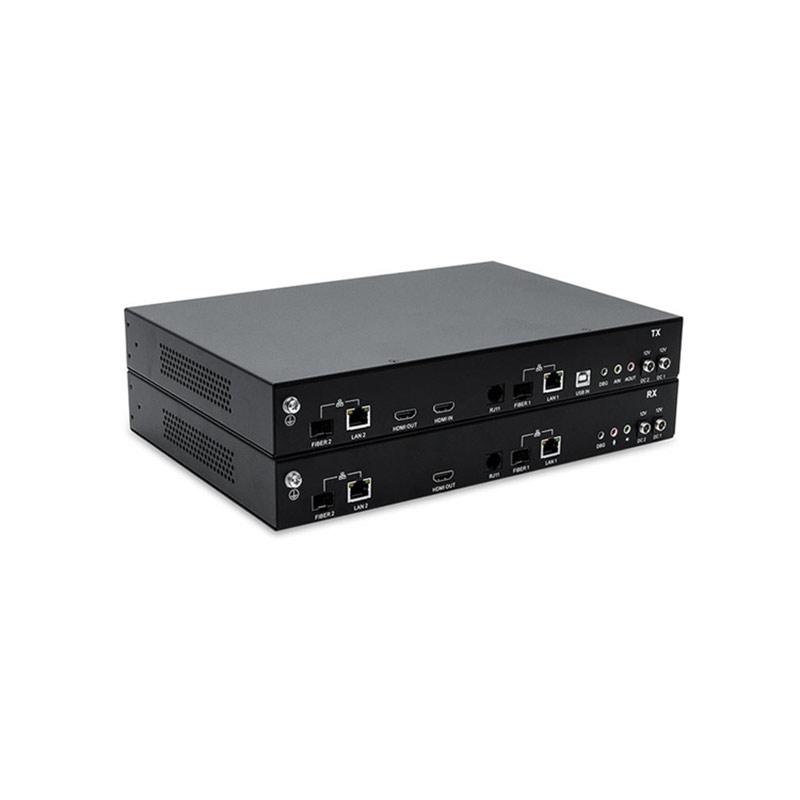

4K HDMI® IP KVM Matrix Extender over Cat5/Fiber

Model No.: KFH188S

High Resoultion: This IP KVM matrix extender supports up to 1920 x 1080@60Hz.
Number of Screens: 2
Low latency: Support lossless and ultra-low latency video transmissions (≈8ms@60Hz), support USB2.0
Hot Backip Funtion: Support hot backup function with master and backup connections (dual optical/dual network connections/1 optical and 1 network connections)
Transmission: Network redundancy via CATx and fiber.
HDMI Connectivity.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

IP HD Digital KVM Matrix Extender is a highly optimized KVM extender. The transmissiondistance can reach up to 150m for point-to-point connection with an Ethernet cable, and the resolution is up to 1920 x 1080@60Hz.

This series of extenders can be connected to a Gigabit network switch to form a matrix switching system, which can be networked independently without using a centralized management platform, it can support up to 40 nodes; when using a centralized mangement platform, it can support up to 9999 nodes according to the network bandwidth.

The matrix switching system can connect various kinds of signal sources, such as servers, workstations, cameras, video TV walls, etc.

The video compression algorithm of the IP HD digital KVM matrix extender is a perfect combination of high image quality and low latency (8ms/1080P@60Hz). USB and video signals are transmitted via Cat5e/6/7 network cables or optical fibers.

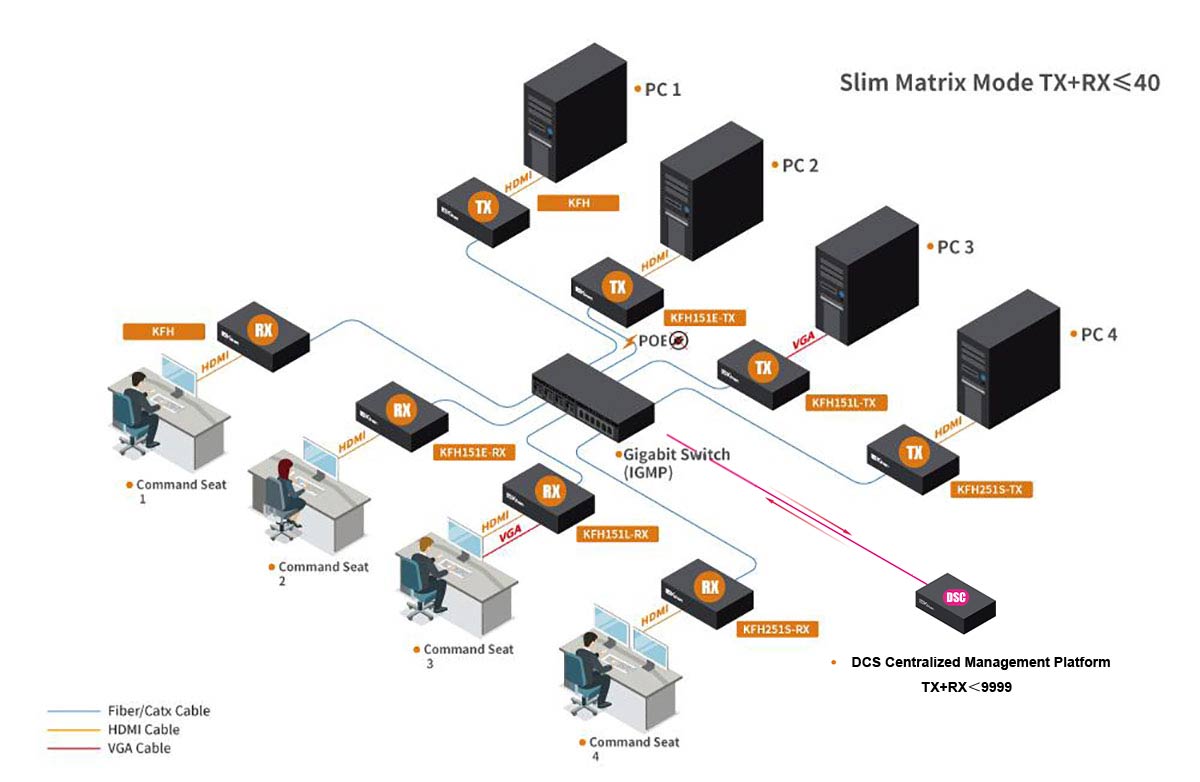

Diagram

Specification

Specification		KFH188S_TX	KFH188S_RX
Interfaces	HDMI Input	1	N/A
	HDMI Output	1	1
	Power	12V x 2	12V x 2
	LAN Port	RJ45 x 2	RJ45 x 2
	Fiber Optic Module	SFP x 2	SFP x 2
	Microphone	3.5MM Stereo Jack(Green)	3.5MM Stereo Jack(Pink)
	Speaker	3.5MM Stereo Jack(Pink)	3.5MM Stereo Jack(Green)
	Square USB	1	N/A
	USB	N/A	4
Max Resolution		1920 x 1080@60Hz
Connected Cables		CAT5e/6/7 or Fiber(Depends on the fiber optic module)
Power Input		DC12V / 3A	DC12V / 3A
Power Consumption		15W	15W
Operating Temperature		0—50 ℃
Storage Temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Material		Metal
Net Weight(kg)		1.78 kg	1.8kg
Product Dimension (W × D × H)		317mm x 216.1 mm x 44mm
Package Dimension (W × D × H)		395 mm x 274 mm x110 mm	395 mm x 274 mm x110 mm
