4K HDMI® Dual Display IP KVM Matrix Extender with USB HID

Model No.: KFH286K

HDMI / USB2.0/Audio – IP KVM Matrix Extender
High Resolution: Supports up to 3840×2160@60Hz(4:4:4).
Number of Screens: 2
Low Latency: Support lossless and low latency video transmissions and supports USB2.0 and 2 channel digital audio.
Transmission: Support transmission through fiber optic and network (CAT5e/6/7).
Centralized Management: Centrally management via Kinan matrix manager unit.
Connections: Supports point-to-point (p2p) connection (distance limitation) and matrix connection (no distance limitation).

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

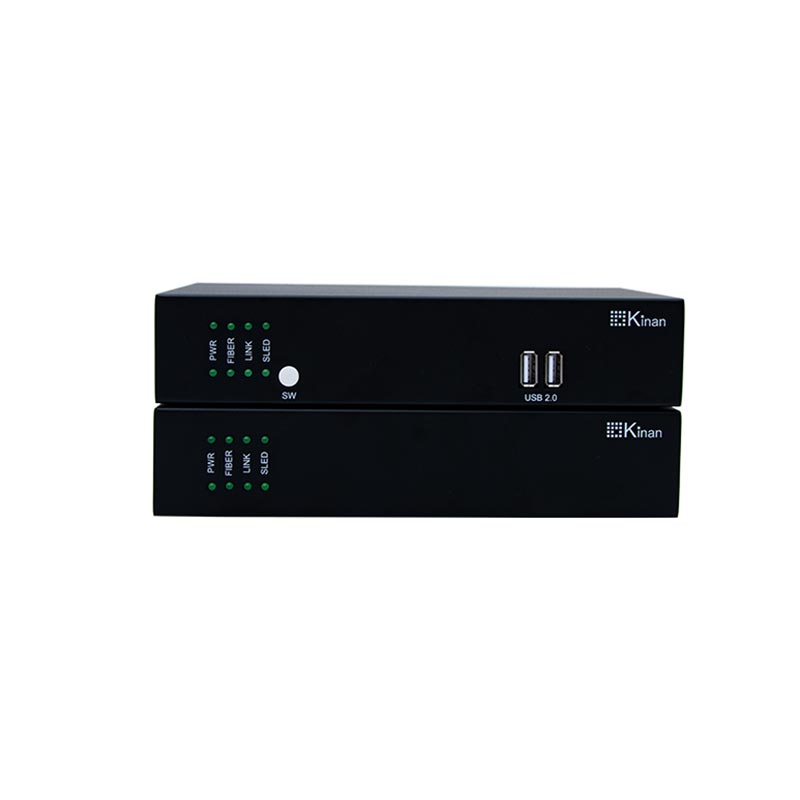

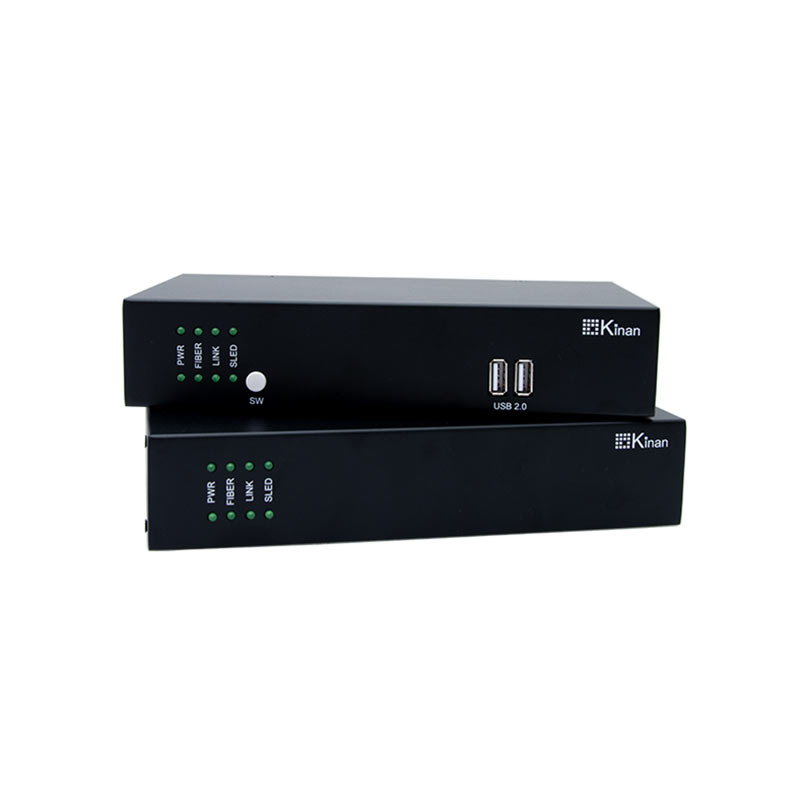

Kinan KFH286K IP KVM matrix extenders consist of a transmitter unit for sending signals and a receiver unit for accepting signals. They are highly optimized KVM extenders used to extend the transmitting distance of the signals of devices.

The max resolution they support is up to 3840 x 2160@60Hz. Also, they support point-to-point (P2P) connection and matrix connection. The matrix connection supports even up to 9999 nodes by using a centralized management software and 40 nodes without using this software.

The video compression algorithm of KFH286K IP matrix extender is a perfect combination of high-quality image and low latency (<8ms). The USB and video signals are transmitted through CAT5e/6/7 network cable. It supports USB devices such as touch screen, USB sound card, printer, etc., it can also support USB storage devices.

Diagram

Specification

Specifications		KFH286K _TX	KFH286K_RX
Connections	HDMI input	2	N/A
	HDMI output	N/A	2
	Power	2x 12V	2x 12V
	LAN port	2x RJ45	2x RJ45
	Optical Module	2x SFP+	2x SFP+
	Mic	3.5MM Stereo Jack (Green)	3.5MM Stereo Jack (Pink)
	Speaker	3.5MM Stereo Jack (Pink)	3.5MM Stereo Jack (Green)
	Square USB	1	N/A
	USB	1	4
Resolution		3840×2160@60Hz
Cable		CAT5e/6/7 or Optical Fiber Cable
I/R Value		DC12V / 3A	DC12V / 3A
Power consumption		15W	16W
Operating temperature		0—50 ℃
Storage temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Material		Metal
Net weight(kg)		0.88 kg	0.88 kg
Product dimension (W × D × H)		212mm x 114.3 mm x 44mm
Package dimension (W × D × H)		243mmx 209mm x 98mm	243mmx 209mm x 98mm
