4K HDMI® AV over IP Extender

Model No.: KEH1MS

Support Convenient Visual Control: Use effortlessly via iPad, mobile phone or windows PC.
High Video Resolution: Support visually lossless high-quality video up to 4K@30Hz.
Plug & Play without Configuration: The extender can work with universal Ethernet switches without need for IGMP Gigabit switch. Spend minutes in setting and then plug and play.
IP Matrix/ Video Wall: Multiple videos can be shown at the same time.
Seamless Switching: Users can switch videos quickly without black screen.
Signal Transmission: Independent RS232 pass-through.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

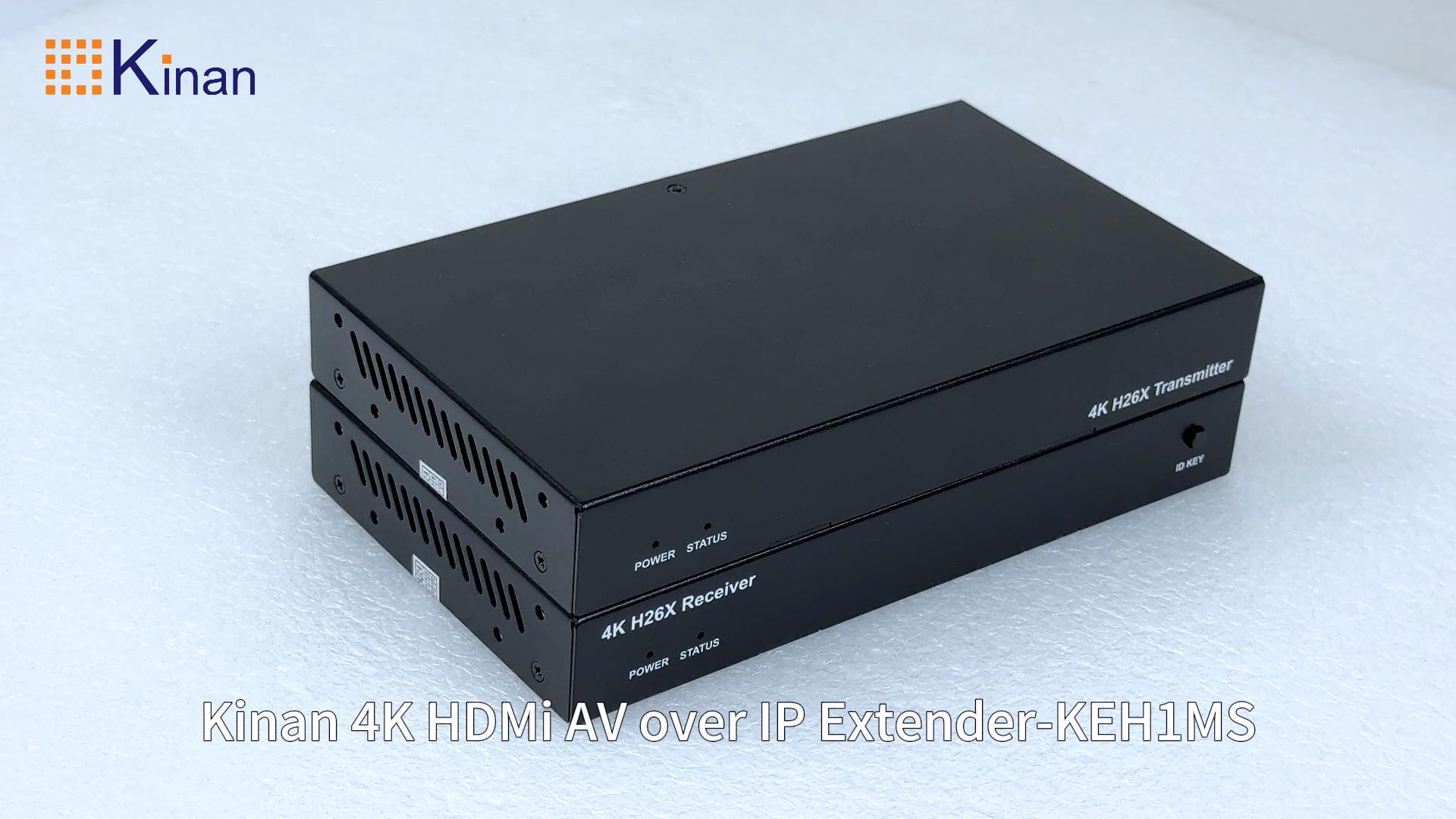

Kinan KEH1MS 4K HDMI AV over IP extender is an audio and video extender that uses the latest H.265 compression technology. It can be used with common managed and unmanaged network switches; it supports resolutions up to 3840×2160@30Hz.

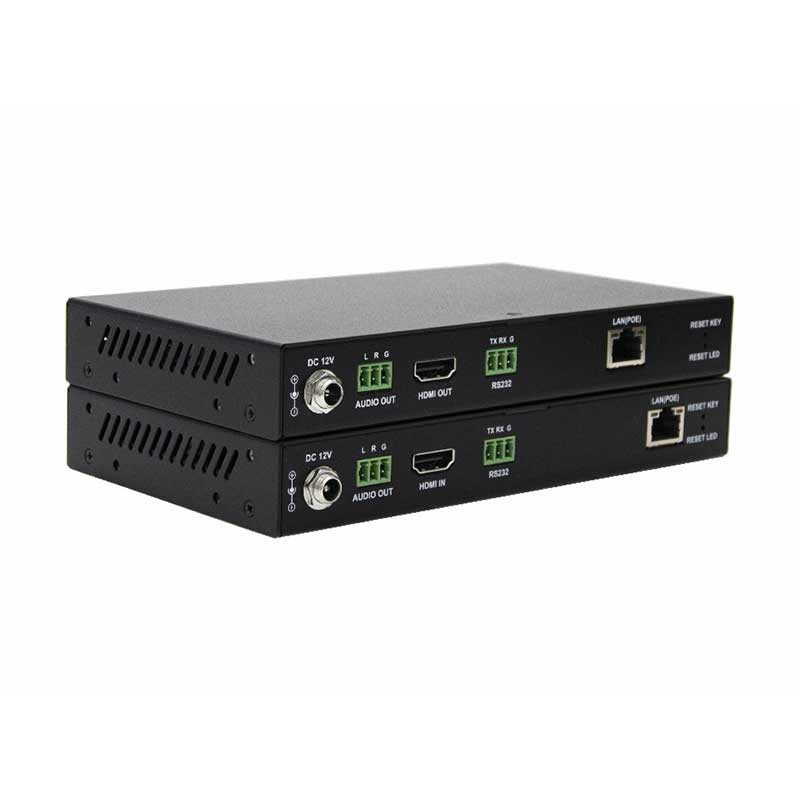

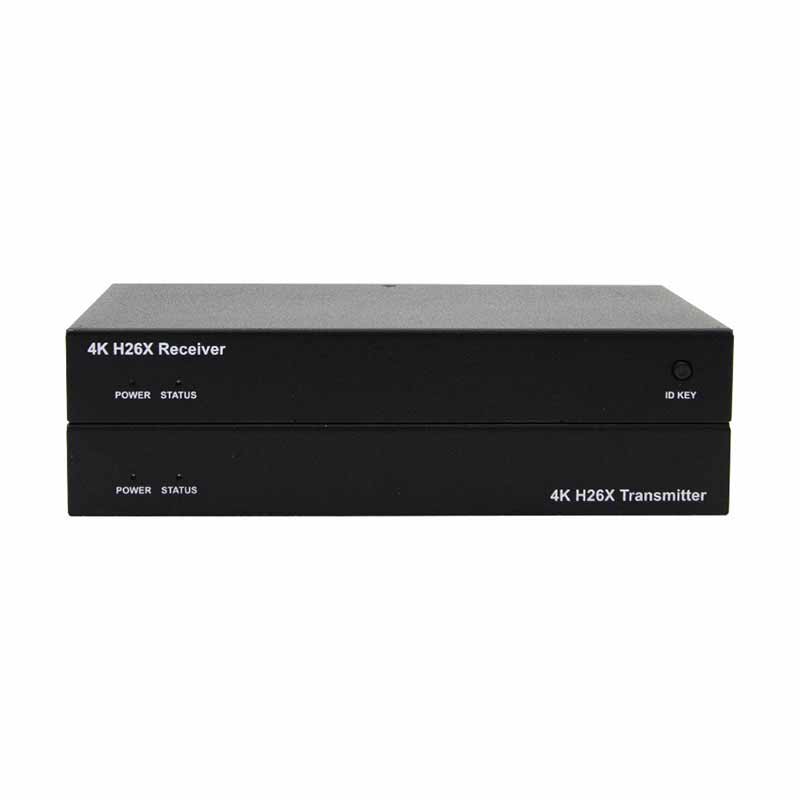

This AV over IP extender consist of a transmitter (KEH1MS_TX) and a receiver (KEH1MS_RX). Users can easily control it by installing the “VDirector” app (support iOD/Android/Windows). It easily builds an IP matrix or a video wall. In addition, it is easy to set up and operate.
Kinan KFH1MS is an ideal solution for different application scenarios, such as sports bars, conference centers, digital signage, etc.

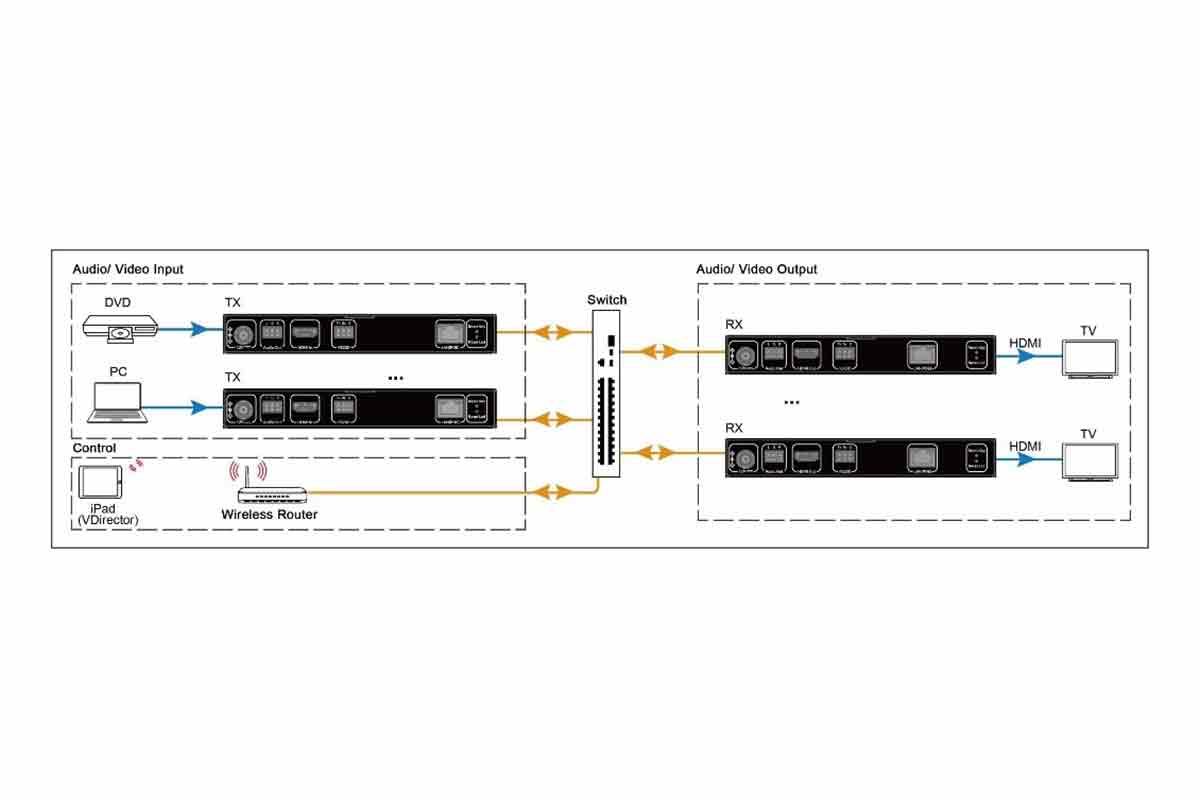

Diagram

Specification

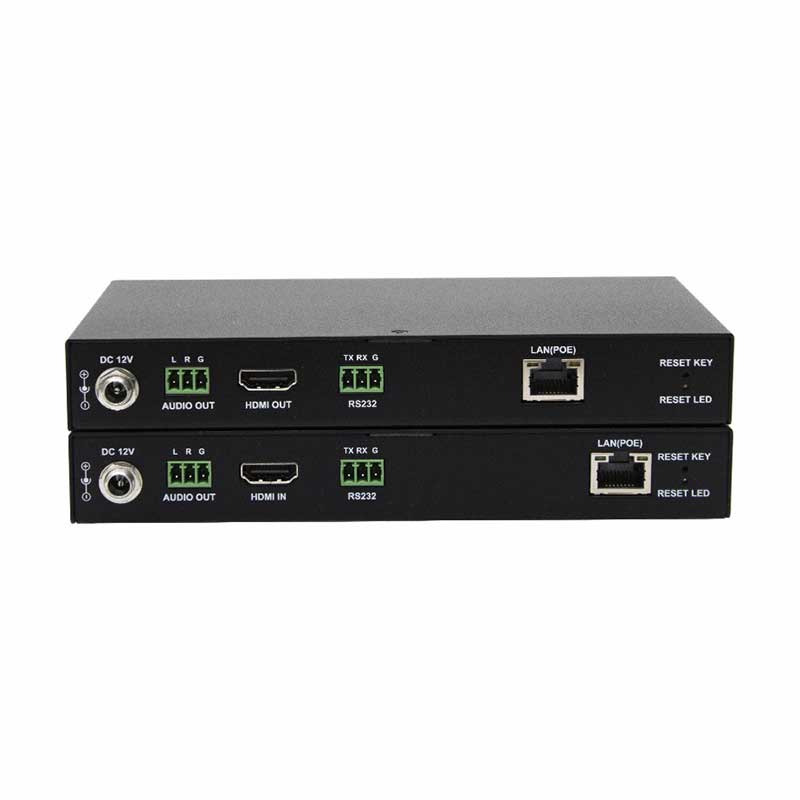

Model No.		KEH1MS_TX	KEH1MS _RX
Interfaces	HDMI Input	1	NA
	HDMI Output	NA	1
	LAN	1	1
	Audio	1	1
	RS232	1	1
Video Protocol		H.265
Resolution		3840×2160@30Hz
Audio Type		MPEG4-AAC stereo
Visual Control		VDirector App (iOS/Android/Windows)
Power Input		DC12V / 1A	DC12V /1A
Power Consumption		3.6W	3.6W
Operating Temperature		+32°F ~ +113°F (0°C ~ +45°C)
Storage Temperature		-4°F ~ 140°F (-20°C ~ +70°C)，
Humidity		10% ~ 90%, Non-condensing
Material		Metal
ESD Protection		Human body discharge mode: ±8kV (air-gap discharge)/±4kV (contact discharge)
Net Weight (kg)		0.6 kg	0.6kg
Dimension (W × D × H)		175mm x 25mm x 100.2mm
